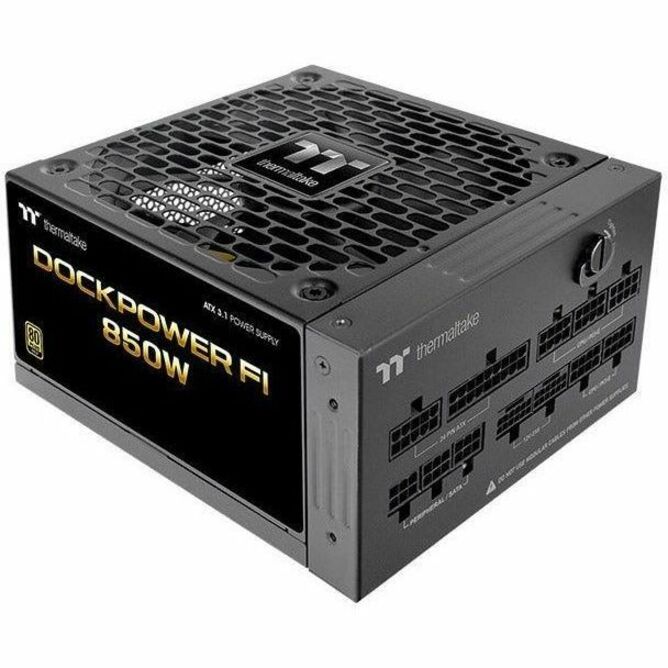

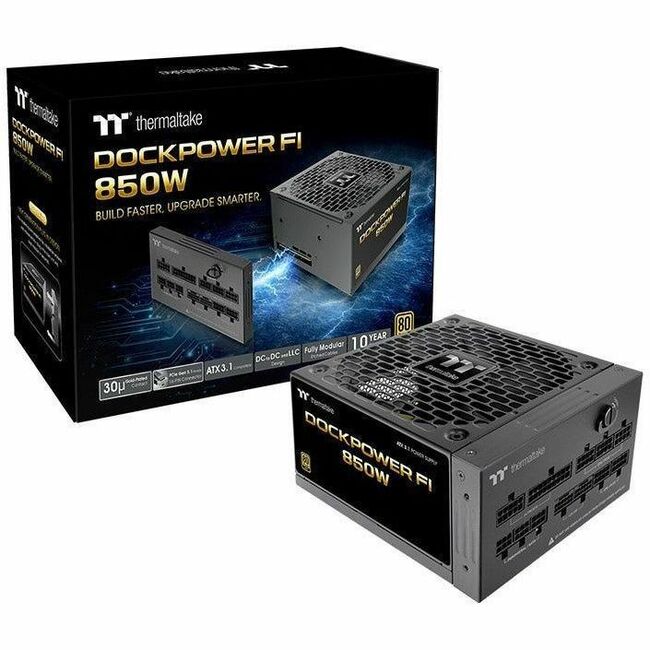

Thermaltake Dockpower FI 850W - PS-DCP-0850FNFAGU-2
Key Features
- 30µ Gold-Plated Dock Connection- Durable high-current contacts paired with a secure D-ring locking mechanism.
- Builder-Friendly Cabling- Native 12V-2x6 with a colored H++ connector crown and low-profile modular cables for easier routing.

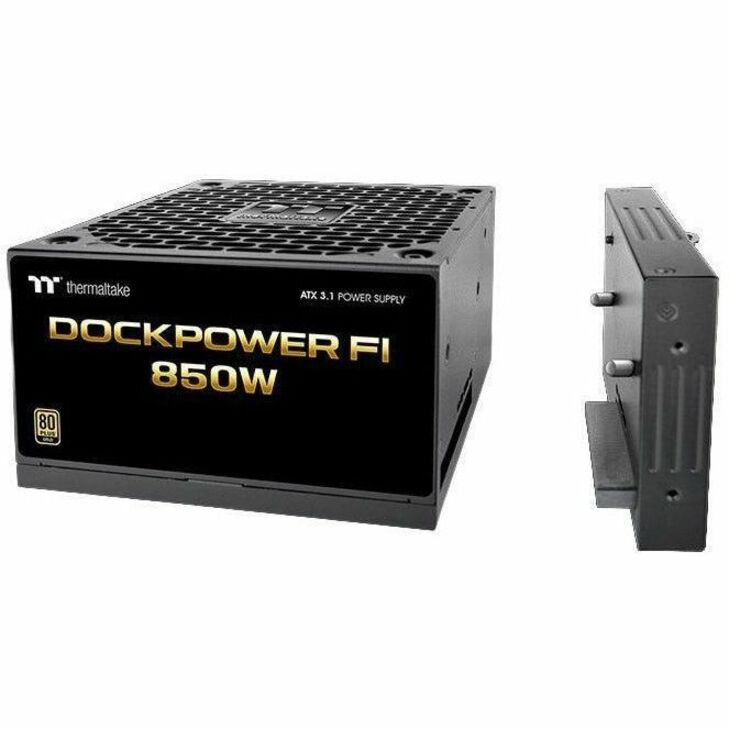

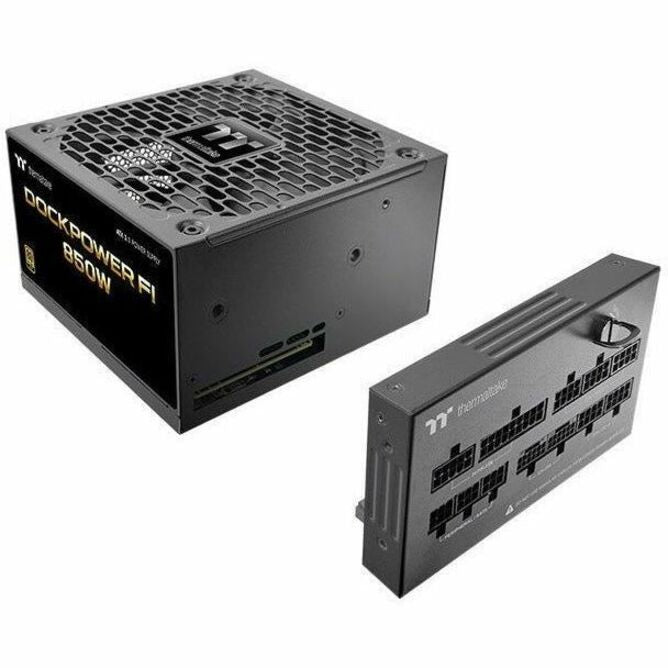

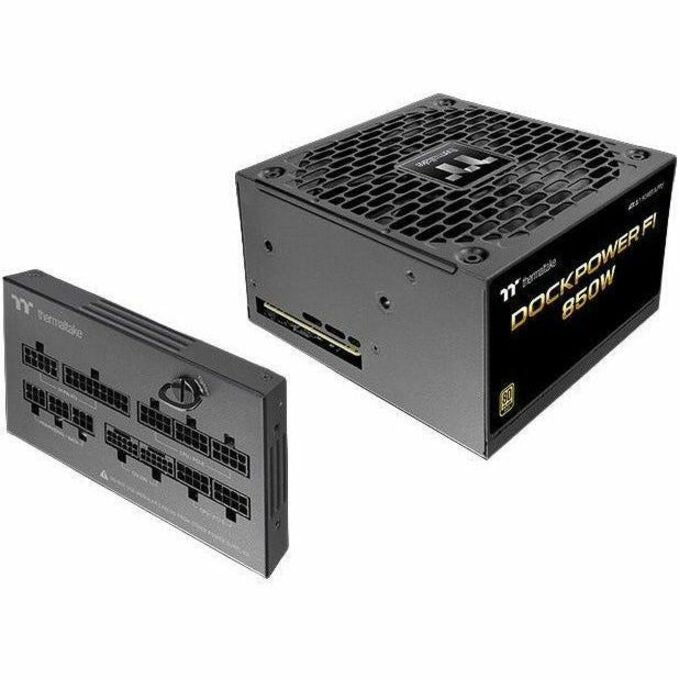

- Docking Power Architecture- Separate the PSU main unit from the Dock Module for easier access in tight spaces.
- Pre-Route, Then Dock- Install and manage cables first, then dock and lock the power unit into place.
- Upgrade Without Rewiring- Keep the Dock Module and cables installed when replacing the power unit.
Product Overview
INSTALLATION FLEXIBILITY
Pre-route your cables to the Dock Module, then dock it onto the power supply main unit. With the detachable Dock Module, DockPower provides more flexibility for cable installation in tight spaces.
- INSTALL POWER SUPPLY MAIN UNIT
- PRE-ROUTE THE CABLES WITH DOCK MODULE
- DOCK & LOCK POWER ON
UPGRADE POSSIBILITIES
Keep your cable setup intact and upgrade only the power supply main unit. No disconnecting, rerouting, or reinstalling cables-just swap, dock, and power on.
- UNLOCK & REMOVE Power Supply Main Unit.
- INSERT NEW, DOCK & LOCK POWER ON
Engineered for Reliable Power | Stable Power Design
A high-amperage single +12V rail with LLC + DC-to-DC design delivers stable, precise power where it's needed.
Industry-Grade Protection
OCP, OVP, UVP, OPP, OTP and SCP provide comprehensive protection against common electrical faults.
80 PLUS Gold Efficiency
Up to 90% efficiency for reduced power loss and efficient everyday operation.
Energy & Environment
Supports Intel C6/C7, Energy Star 5.0 and ErP, with WEEE and RoHS compliance.
General Information
- Manufacturer: Thermaltake Technology Co., Ltd
- Manufacturer Part Number: PS-DCP-0850FNFAGU-2
- Brand Name: Thermaltake
- Product Line: Dockpower FI
- Product Model: TDP-0850AH3FXG
- Product Name: Dockpower FI 850W
- Product Type: Power Supply
Technical Information
- Specification Compliance: ATX 3.1
- Efficiency: 90%
- Power Factor Correction (PFC): Active
- Number of Fans: 1
- Fan Bearing Type: Hydraulic Bearing
- Fan Diameter: 135 mm
- Protection Type:
- Over Current
- Over Voltage
- Under Voltage
- Over Power
- Short Circuit
- Over Temperature
- Modular: Yes
Power Description
- Input Voltage:
- 120 V AC
- 230 V AC
- Number of +12V Rails: 1
- Output Voltage:
- 3.3 V DC
- 5 V DC
- 12 V DC
- -12 V DC
- 5 V SB
- Output Voltage Detail:
- 3.3 V @ 20 A
- 5 V @ 20 A
- -12 V @ 0.3 A
- 5 V SB @ 3 A
- 12 V @ 70.8 A
- Output Current:
- 20 A
- 70.80 A
- 300 mA
- 3 A
- Output Power: 850 W

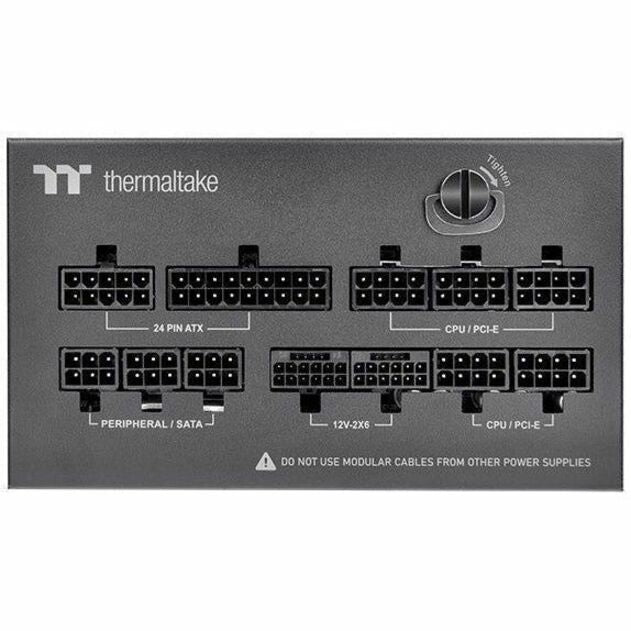

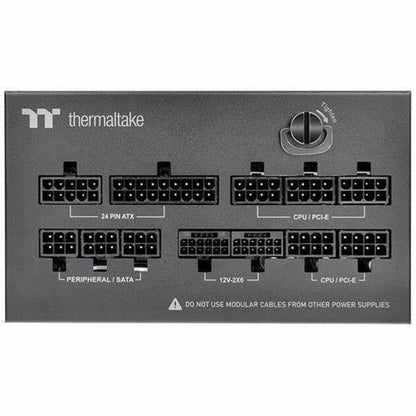

Interfaces/Ports
- Number of SATA Power Connectors: 6
- PCI Express Connector: Yes
- PCI Express Version: 5.1
- Number of (6+2 pin) PCI Express Power Connectors: 4
- Number of (4+4 pin) CPU Power Connectors: 2
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Form Factor: ATX
- Height: 3.4"
- Width: 5.9"
- Depth: 6.3"
Environmental Conditions
- Minimum Operating Temperature: 32°F (0°C)
- Maximum Operating Temperature: 104°F (40°C)
Miscellaneous
- Energy Star: Yes
- Energy Efficiency Certification:
- 80 Plus Gold
- ENERGY STAR 5.0
- Energy Efficiency Compliance: Energy-related Products Directive (ErP)
- Environmental Compliance:
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 10 Year
