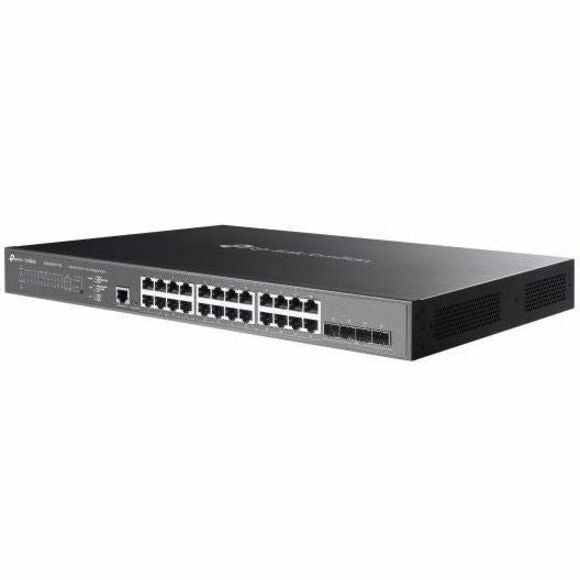

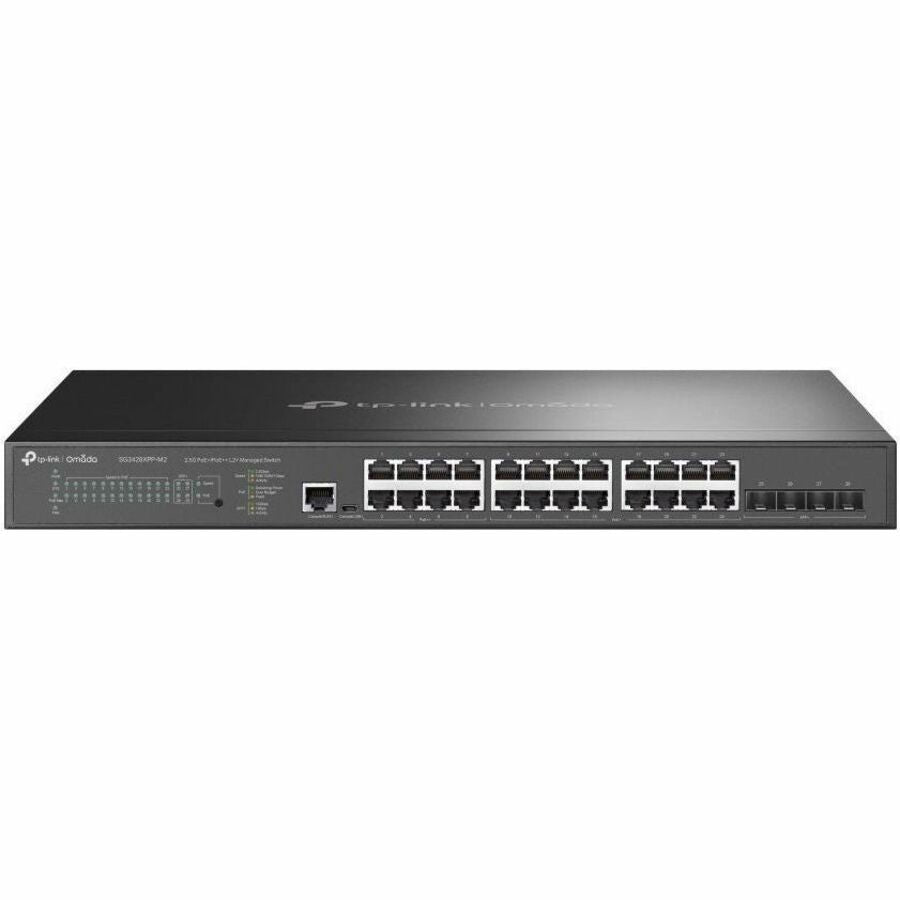

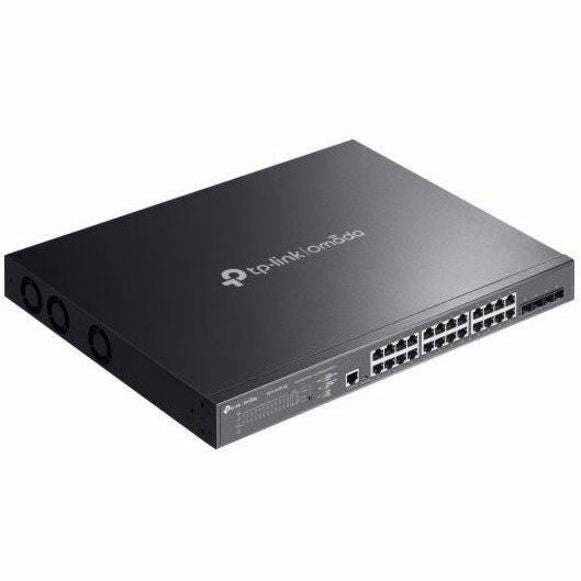

TP-Link Omada SG3428XPP-M2 - Omada 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++ - SG3428XPP-M2
Key Features
- Effectively increases available bandwidth on your network
- Features 24 networking ports to meet the requirements of the most demanding workgroups
- Gigabit Ethernet port for ultra-fast network speeds
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- Lets you conveniently connect different networks to enable improved flexibility to your infrastructure
- Management capability provides control over setup and configuration of your network
- Rack mounting enables you to organize wires & secure cables for professional installation
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Product Overview
TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.
General Information
- Manufacturer: TP-LINK Technologies Co., Ltd
- Manufacturer Part Number: SG3428XPPM2
- Brand Name: TP-Link
- Product Line: JetStream
- Product Model: TL-SG3428XPP-M2
- Product Name: Omada 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++
- Product Type: Ethernet Switch
Interfaces/Ports
- Total Number of Network Ports: 24
- Network (RJ-45): Yes
- Uplink Port: Yes
- Port/Expansion Slot Details:
- 24 x 10/100/1000Mbps 2.5Gbps RJ-45 Network Port
- 4 x 10Gigabit Ethernet SFP+ Expansion Slots
- 1 × RJ-45 Console Port
- 1 × Micro-USB Console Port
Media & Performance
- Media Type Supported:
- Twisted Pair
- Optical Fiber
- Ethernet Technology:
- Gigabit Ethernet
- 2.5 Gigabit Ethernet
- 10 Gigabit Ethernet
- Network Technology:
- 10/100/1000Base-T
- 2.5GBase-T
- 10GBase-X
- Maximum Data Transfer Rate: 1.25 GB/s
I/O Expansions
- Total Number of Expansion Slots: 4
- Expansion Slot Type: SFP+
- Number of SFP+ Slots: 4
Network & Communication
- Layer Supported: 2
- Networking Standards:
- IEEE 802.3i
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3bz
- IEEE 802.3z
- IEEE 802.3ae
- IEEE 802.3af
- IEEE 802.3bt
- IEEE 802.1x
- IEEE 802.1Q
- IEEE 802.3ah
- IEEE 802.1p
- IEEE 802.3ad
- IEEE 802.1D
- IEEE 802.1w
- IEEE 802.1s
- IEEE 802.3x
Management & Protocols
- Manageable: Yes
Power Description
- PoE (RJ-45) Port: Yes
- PoE Budget: 500 W
- Input Voltage:
- 120 V AC
- 230 V AC
- Power Source: Power Supply
- Power Consumption: 629.10 W
Physical Characteristics
- Compatible Rack Unit: 1U
- Form Factor: Rack-mountable
- Height: 1.7"
- Width: 17.3"
- Depth: 13"
Miscellaneous
- Package Contents:
- Omada 24-Port 10/100Mbps + 4-Port Gigabit Smart Switch with 24-Port PoE+
- Quick Installation Guide
- Rackmount Kit
- Rubber Feet
