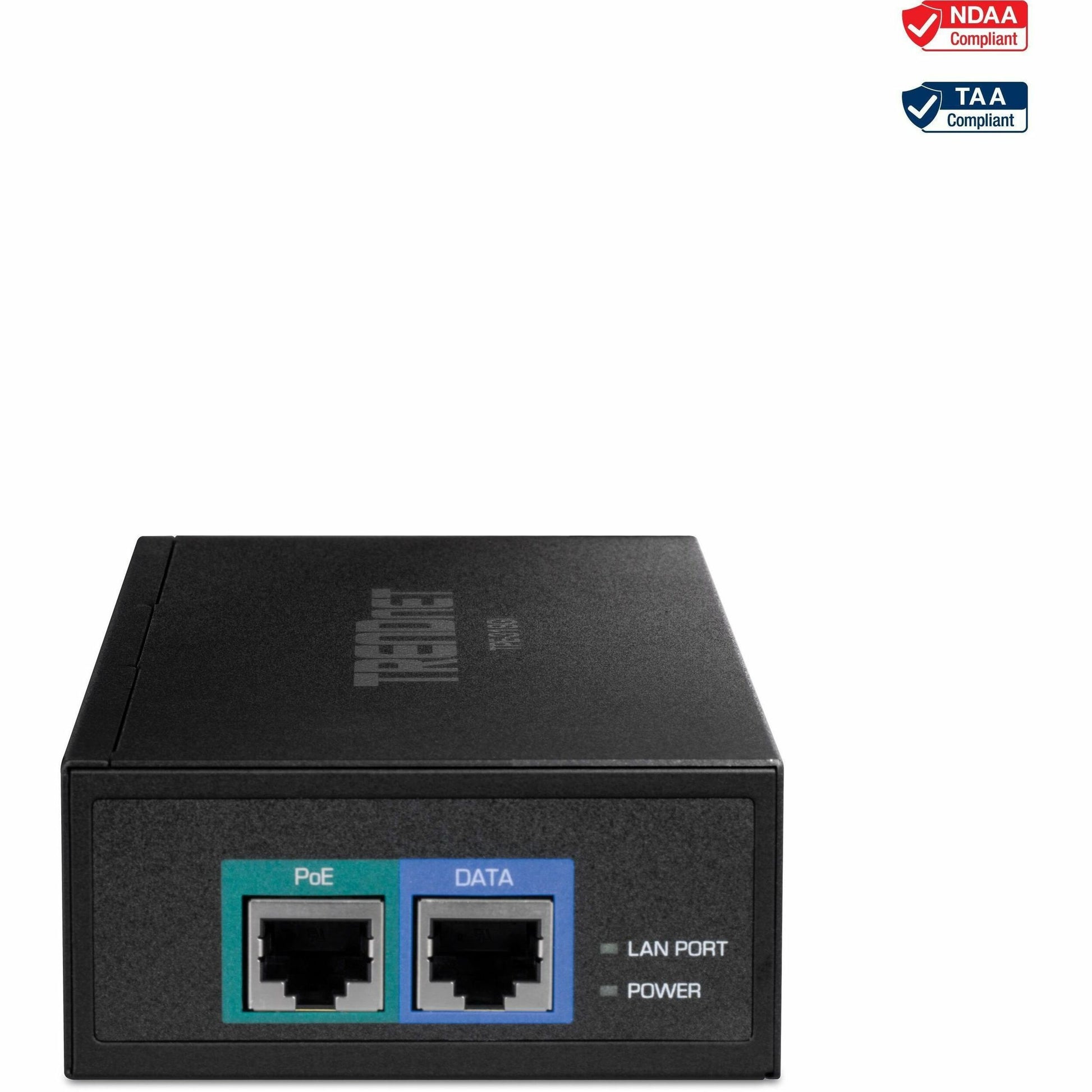

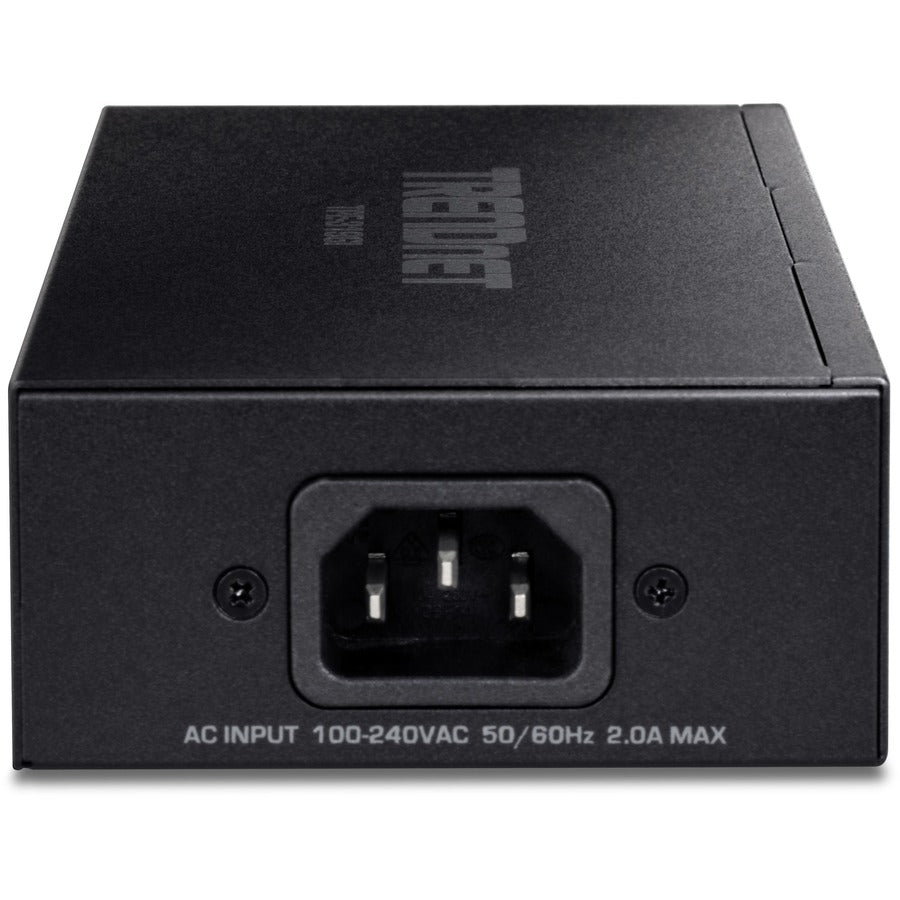

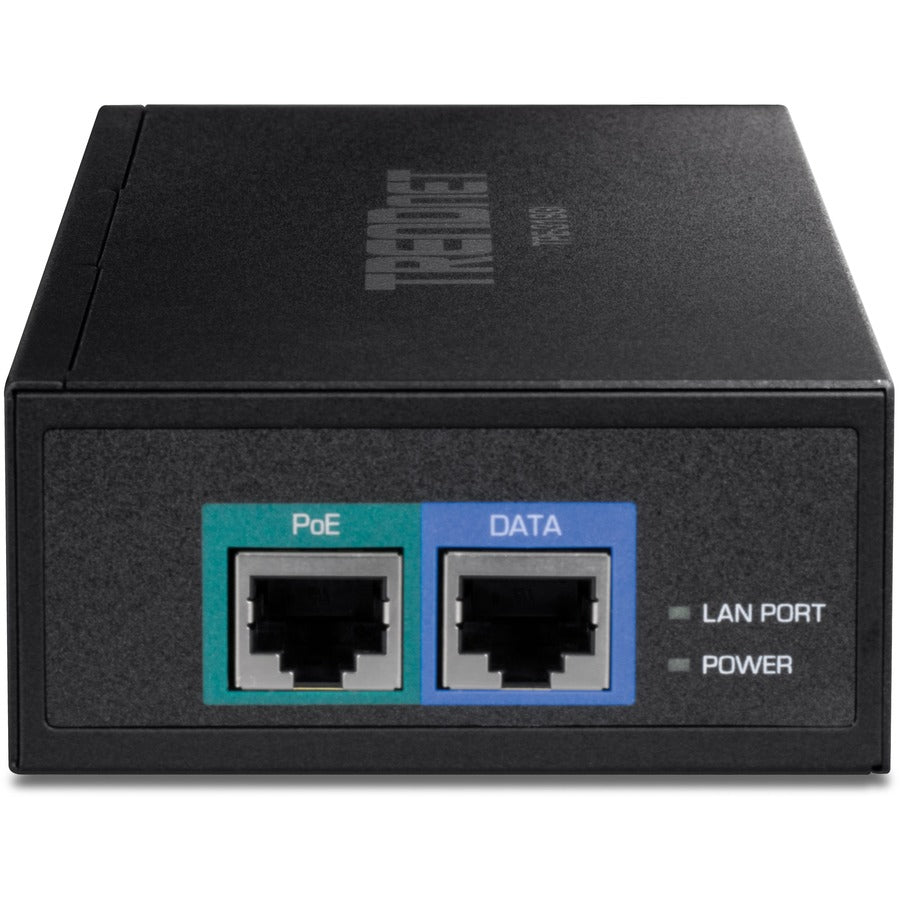

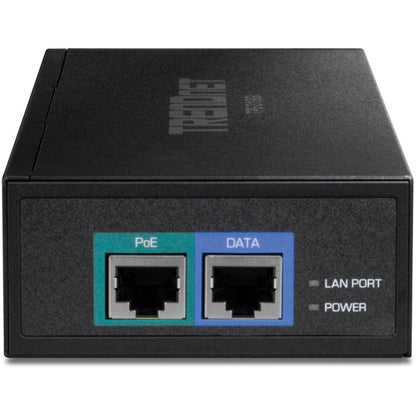

TRENDnet 10G PoE++ Injector, Supplies PoE (15.4W), PoE+ (30W), or PoE++ (90W), Converts a Non-PoE Port To A PoE ++ 10G port, Metal Housing, Black, TPE-319GI - TPE-319GI
Key Features
- 10GBASE-T complian
- Converts a non-PoE port to a PoE++ 10G port
- IEEE 802.3af, 802.3at, and 802.3bt compliant
- NDAA / TAA compliant (U.S. and Canada only)
- Network a PoE device up to 100m (328 ft.) over cat6a or better cabling
- Save on installation and equipment costs
- Supplies PoE (15.4W), PoE+ (30W), or PoE++ (90W)
- tIntegrated power supply
Product Overview
TRENDnet's 10G PoE++ Injector, model TPE-319GI, combines electrical power with a 10GBASE-T network connection to produce a 10G PoE++ network signal. Auto-sensing technology conveniently delivers the correct wattage needed to power your PoE, PoE+ and PoE++ devices. Connect the 10G PoE++ injector to a non-PoE switch, and then run an Ethernet cable with data + power to network a PoE, PoE+ or PoE++ device up to 100 meters (328 ft.) over cat6a or better cabling. Network PoE devices such as wireless access points, IP cameras, VoIP phone systems, IPTV decoders, access controls, and more. DEVICE INTERFACE: 1 x 10GBASE-T port (data); 1 x 10GBASE-T PoE+ port (data + power); Integrated Power Supply
POE++: The 10G PoE++ injector supplies a PoE device with PoE (15.4W), PoE+ (30W), or PoE++ (90W) power
EXPERIENCE 10G SPEEEDS: The PoE++ Injector converts a non-PoE port to a PoE++ 10G port over existing Cat6a or better cabling.
EASY INSTALLATION: Simply connect the 10G PoE++ injector to your network switch and PoE device - no configuration needed.

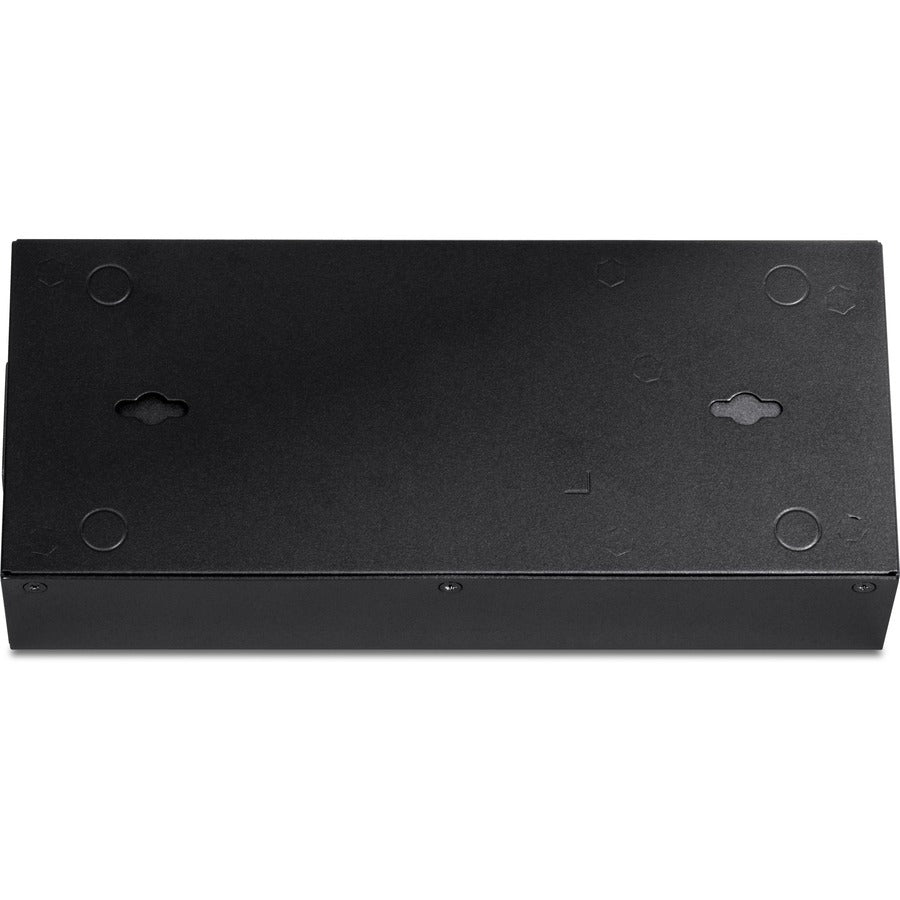

INSTALLATION FLEXIBILITY: The wall-mount design and a sturdy metal enclosure accommodates most installations scenarios.
POE DISTANCE: Network a PoE, PoE+ or PoE++ device up to 100 meters (328 ft.) with this injector over cat6a or better cabling
10GBASE-T: The 10G injector is 10GBASE-T compliant and equipped with a 10GBASE-T RJ-45 Port
IEEE 802.3af and 802.3at compliant
General Information
- Manufacturer: TRENDnet
- Manufacturer Part Number: TPE319GI
- Brand Name: TRENDnet
- Product Model: TPE-319GI
- Product Name: 10G PoE++ Injector
- Product Type: PoE++ Injector
Power Description
- Maximum Input Current: 2 A
- Maximum Output Power: 90 W
Interfaces/Ports
- Input Ports: 1 x 10 Gigabit PoE++
- Output Ports: 1 x 10 Gigabit Ethernet
Physical Characteristics
- Product Color: Black
- Form Factor: Wall Mountable
- Height: 7.6"
- Width: 3.2"
- Depth: 1.5"
- Weight (Approximate): 1.48 lb
Miscellaneous
- Package Contents:
- 10G PoE++ Injector
- Quick Installation Guide
- Power Cord
- Certifications & Standards:
- IEEE 802.3af Compliant
- IEEE 802.3at Compliant
- IEEE 802.3 Compliant
- IEEE 802.3u Compliant
- IEEE 802.3ab Compliant
- IEEE 802.3an Compliant
- IEEE 802.3bt Compliant
- IEEE 802.3bz Compliant
- CE
- FCC
- ETL
- Country of Origin: Taiwan
- TAA Compliant: Yes
Warranty
- Limited Warranty: 3 Year
