TRENDnet Outdoor IP68 Weatherproof Enclosure with 350W Power Supply, TI-CA4K, IK10 Impact Protection, Power Supply Supports up to 350W (55V DC, 6.3A), 20kA @ 8/20 µs Surge Protection - TI-CA4K

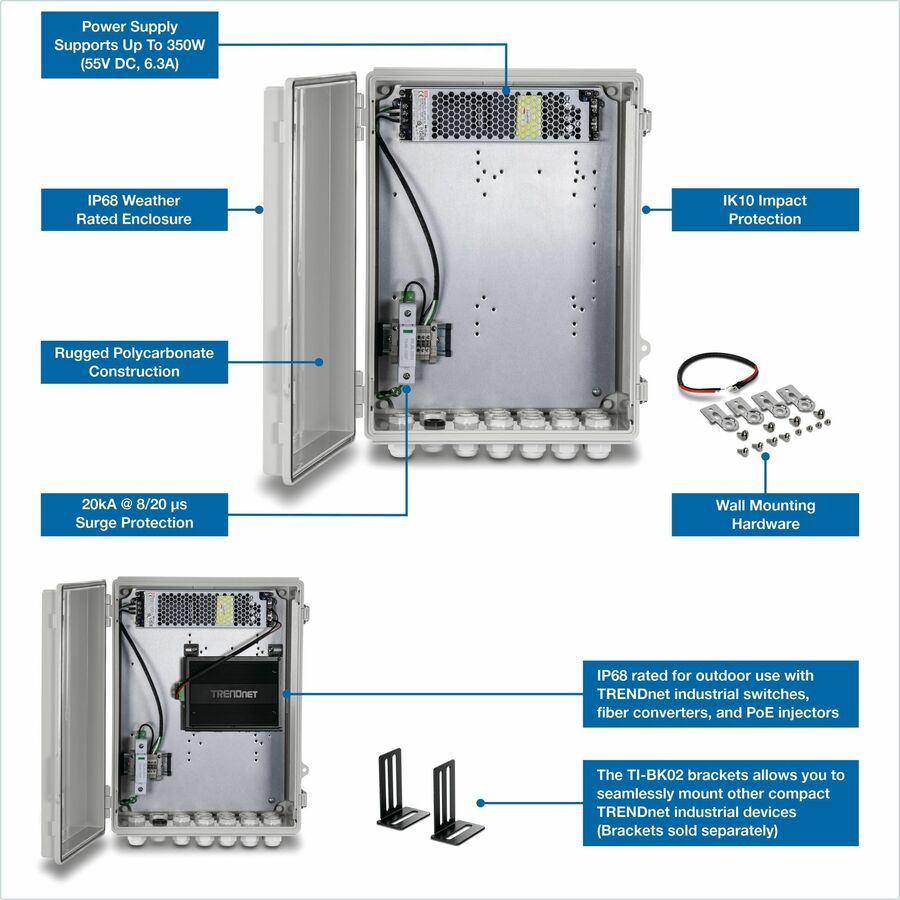

Key Features
- 20kA @ 8/20 µs surge protection
- Add TI-BK01 or TI-BK02 bracket to use with TRENDnet's industrial switches, fiber converters, and PoE injectors (sold separately)
- IK10 impact protection
- IP68 weather rated enclosure
- Power supply supports up to 350W (55V DC, 6.3A)
- Rugged polycarbonate construction
- Supports up to 16-port TRENDnet industrial switches
- Wall mounting hardware included
Product Overview

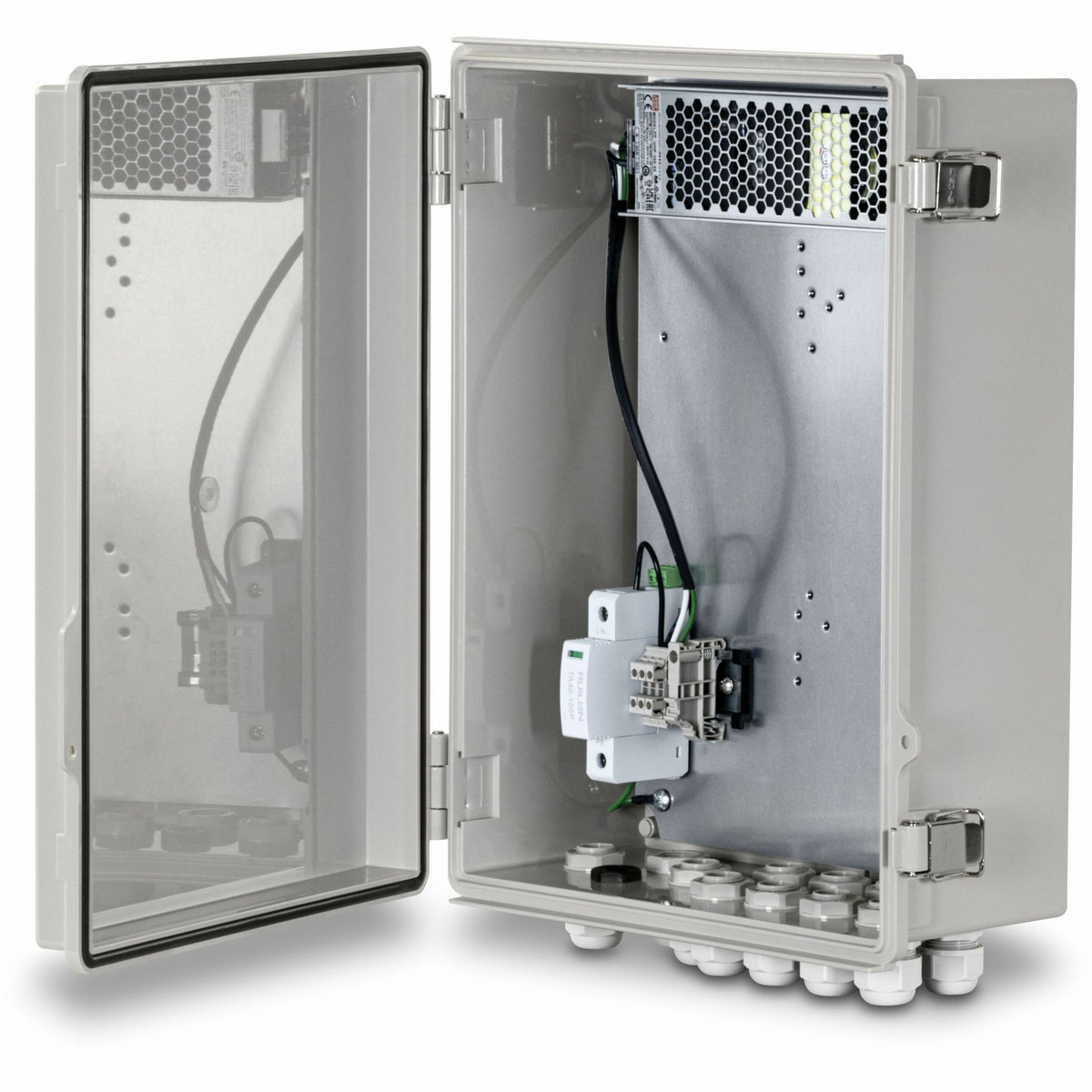

The TRENDnet Outdoor IP68 Weatherproof Enclosure with Power Supply, model TI-CA4K, is well suited for use with TRENDnet's line of industrial switches, fiber converters, and PoE injectors. The internal mounting holes of the outdoor network cabinet provide a safe and convenient way to install industrial devices while protecting them from the elements. An extreme operating temperature range of -30° - 70° C (-22° - 158° F) allows for installations in very hot or cold environments. This durable, outdoor network enclosure comes with a power supply that provides up to 350W (55V DC, 6.3A) of power to industrial equipment, such as PoE switches, injectors and wireless access points.
Outdoor Rated
This outdoor network enclosure is IP68 rated for outdoor use with TRENDnet industrial switches, fiber converters, and PoE injectors.
Internal Mounting Design

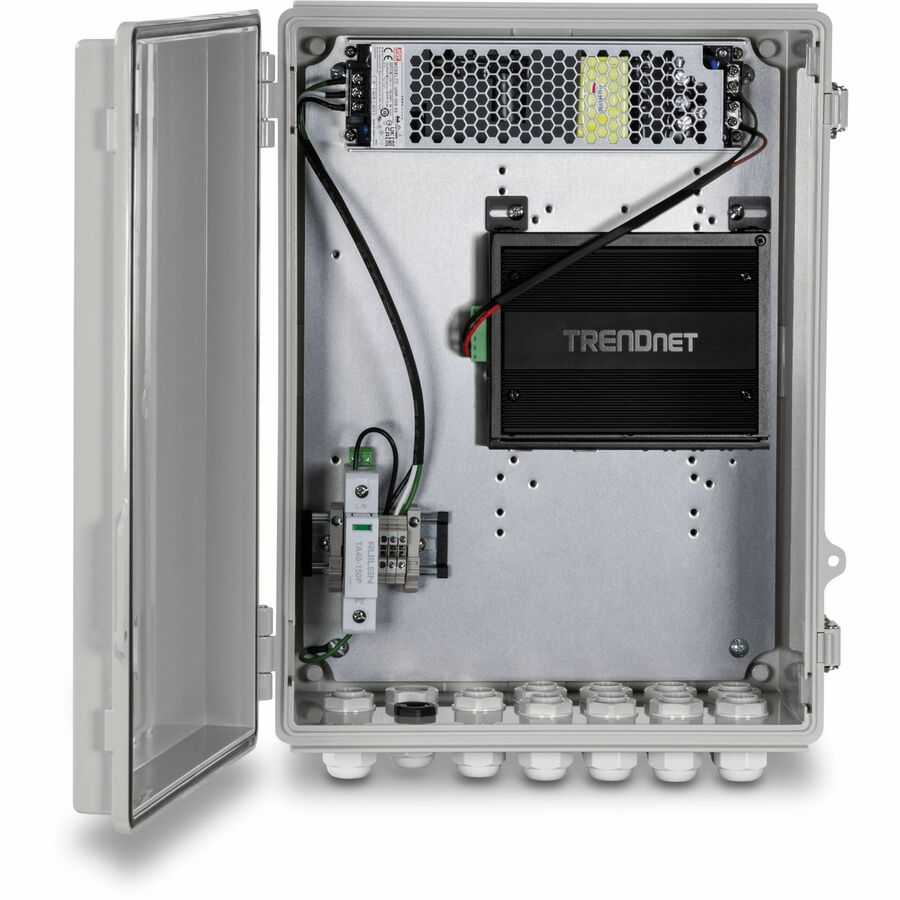

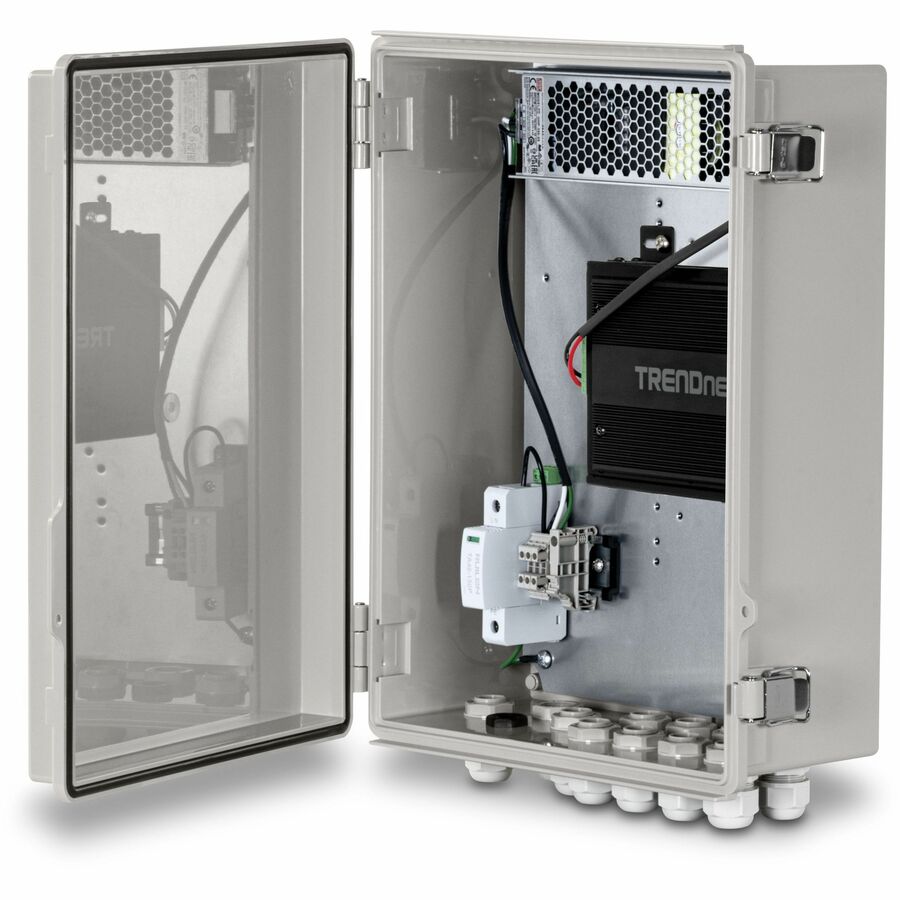

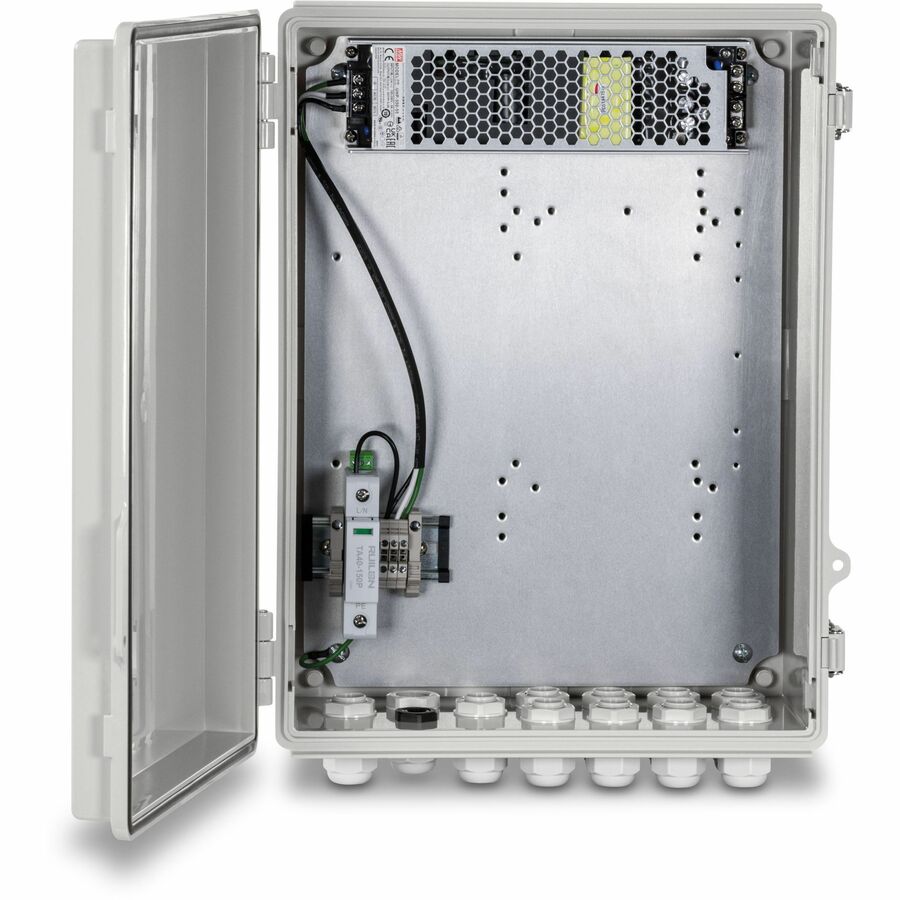

The internal mounting design of the outdoor network cabinet provides a safe and convenient way to install a DIN-Rail for mounting industrial devices while protecting them from the elements
Wide Temperature Range
A wide operating temperature range of -30° - 70° C (-22° - 158° F) allows for installations in extreme hot or cold environments.
Surge Protection
20kA @ 8/20 µs surge protection
Wide Temperature Range
A wide operating temperature range of -30° - 70° C (-22° - 158° F) allows for installations in extreme hot or cold environments
Impact Protection
This outdoor network cabinet features an IK10 impact protection
Wall Mount
This wall-mount network cabinet is designed to be installed on vertical surfaces
Housing Design

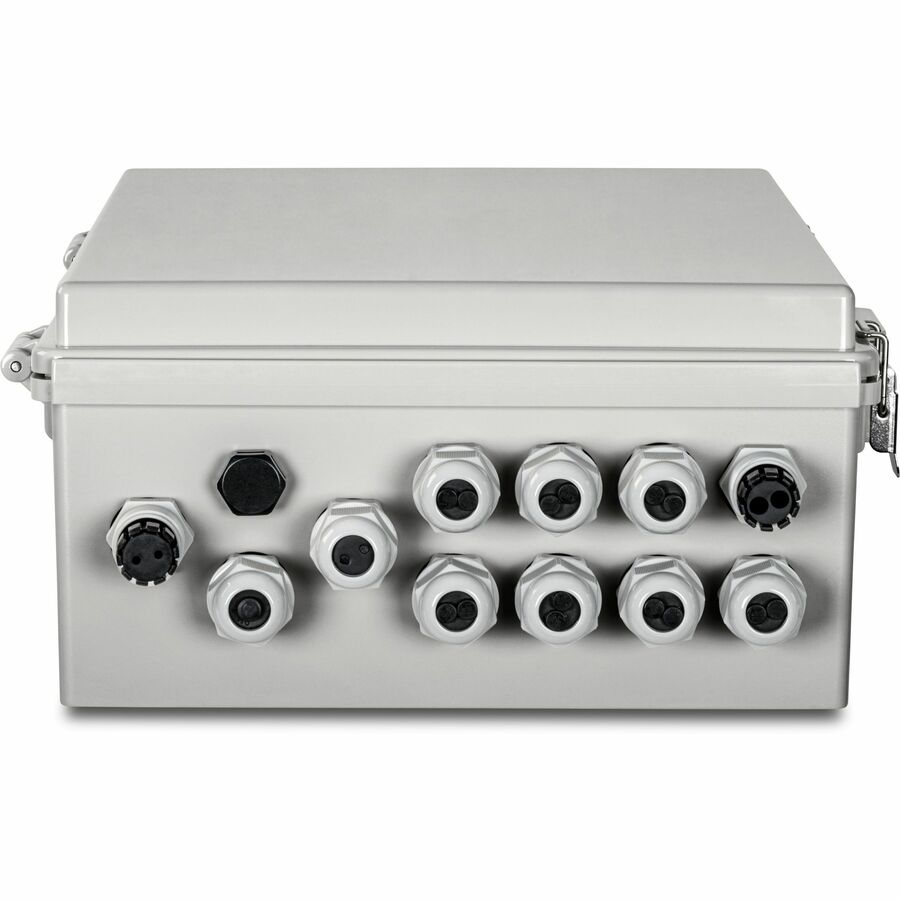

The outdoor network cabinet features a rugged polycarbonate construction with IP68 weather protection
Power Supply
Provides up to 350W power to PoE and non-PoE devices
General Information
- Manufacturer: TRENDnet
- Manufacturer Part Number: TI-CA4K
- Brand Name: TRENDnet
- Product Model: TI-CA4K (Version V1)
- Product Name: Outdoor IP68 Weatherproof Enclosure with 350W Power Supply
- Product Type: Outdoor Network Enclosure
Physical Characteristics
- Product Material: Polycarbonate
- Form Factor: Wall Mountable
- Mount Surface: Wall
- Weight (Approximate): 8.20 lb
Miscellaneous
- Package Contents:
- TI-CA4K

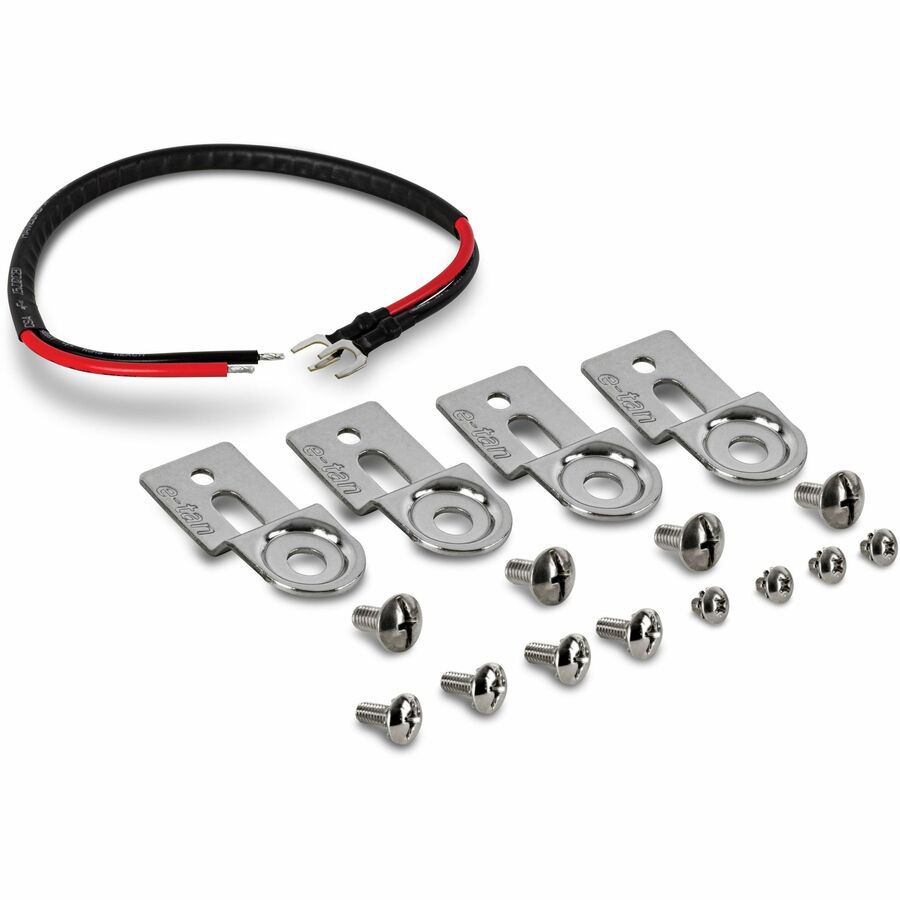

- Wall-mount Accessories
- Power Cable
- Application/Usage:
- Switch
- Fiber Converter
- Indoor/Outdoor: Outdoor
Warranty
- Limited Warranty: Lifetime
- Additional Warranty Information:
- Power supply: 1 year
- Surge protector: 1 year
