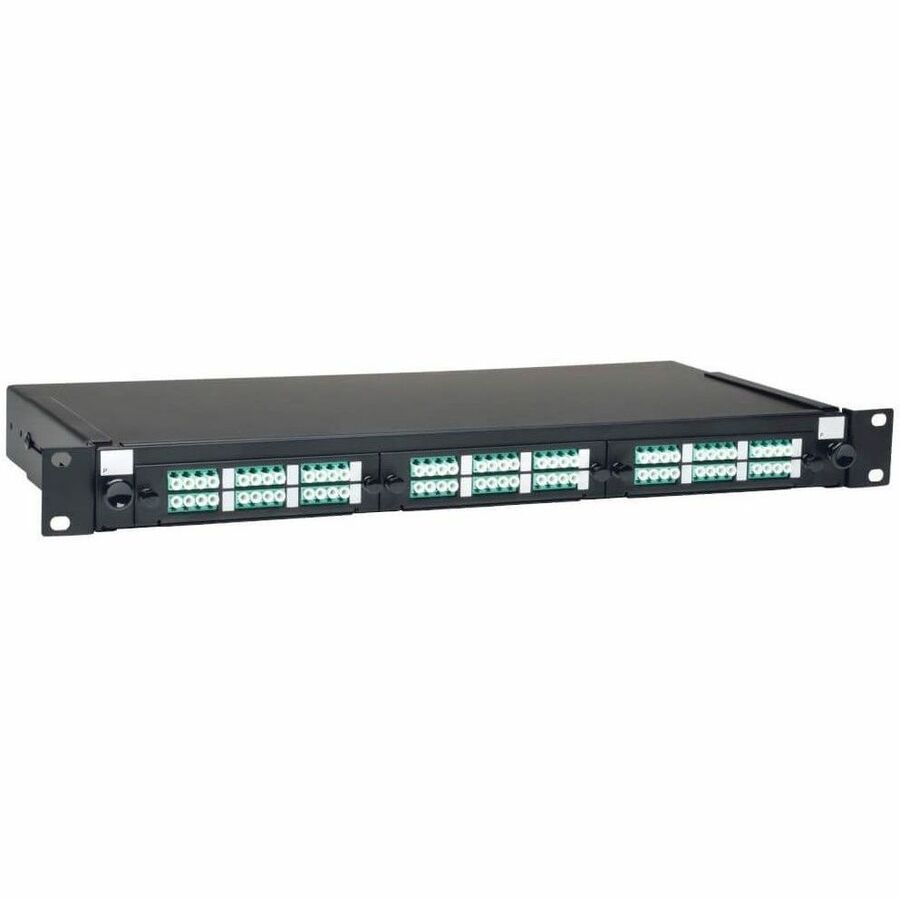

Tripp Lite by Eaton 36-Port LC/LC Rackmount Fiber Enclosure Feed Through Patch Panel 1U - N492-036-LCLC-E
Key Features
- Multimode and most Single mode applications supported
- Space saving 1U design, 19" rack mountable
- Supports up to 36 LC/LC patch connections
- This product is covered by a Lifetime Limited Warranty
Product Overview

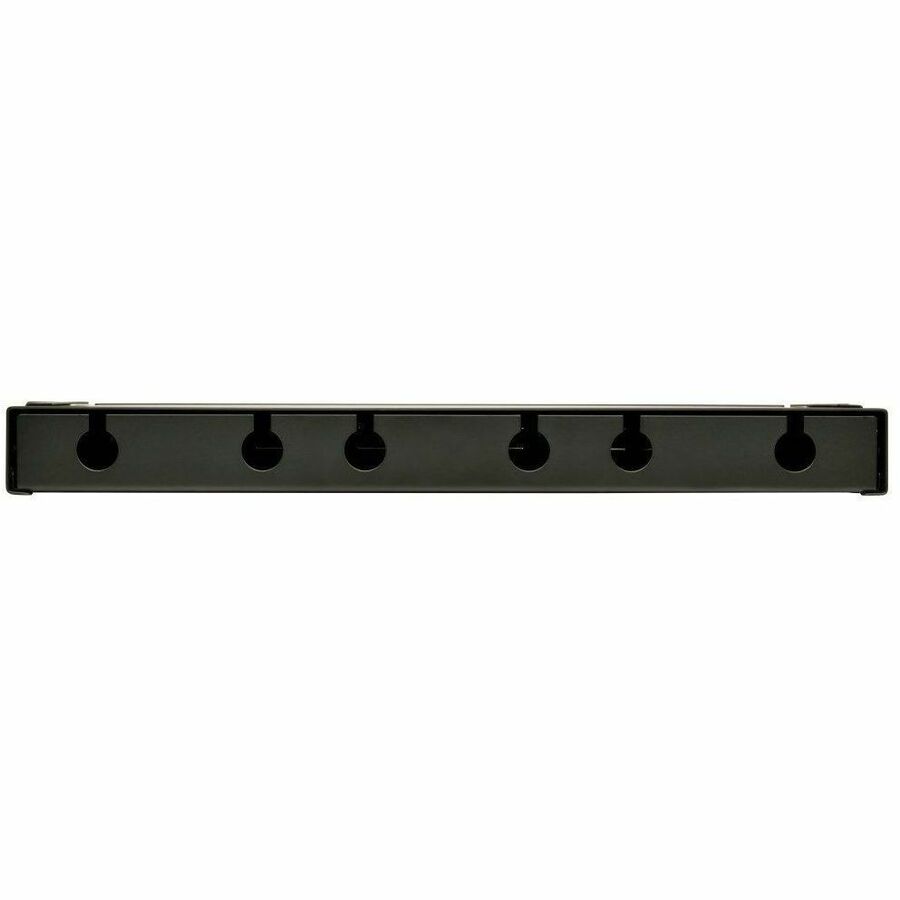

Tripp Lite N492-016-LCLC-E is a pre-loaded, 36-port, LC/LC fiber patch enclosure that supports either Multimode or Singlemode LC Fiber cable patching. Features rugged heavy steel construction, with multiple rear entry points for trunk cable feeding into the panel, providing protection as well as internal management. 1U design takes up minimal space while allowing for maximum patching.
General Information
- Manufacturer: Eaton Corporation
- Manufacturer Part Number: N492-036-LCLC-E
- Brand Name: Tripp Lite series
- Product Model: N492-036-LCLC-E
- Product Name: 36 Port LC/LC 1U Rackmount Fiber Enclosure Patch Panel
- Product Type: Network Patch Panel
Interfaces/Ports
- Total Number of Ports: 36
- Number of RJ-11 Ports: 36
- Number of LC Ports: 36
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Product Material: Cold Rolled Steel
- Form Factor: Rack-mountable
- Compatible Rack Unit: 1U
- Compatible Rack Width: 19"
- Height: 1.8"
- Width: 19"
- Depth: 8"
Miscellaneous

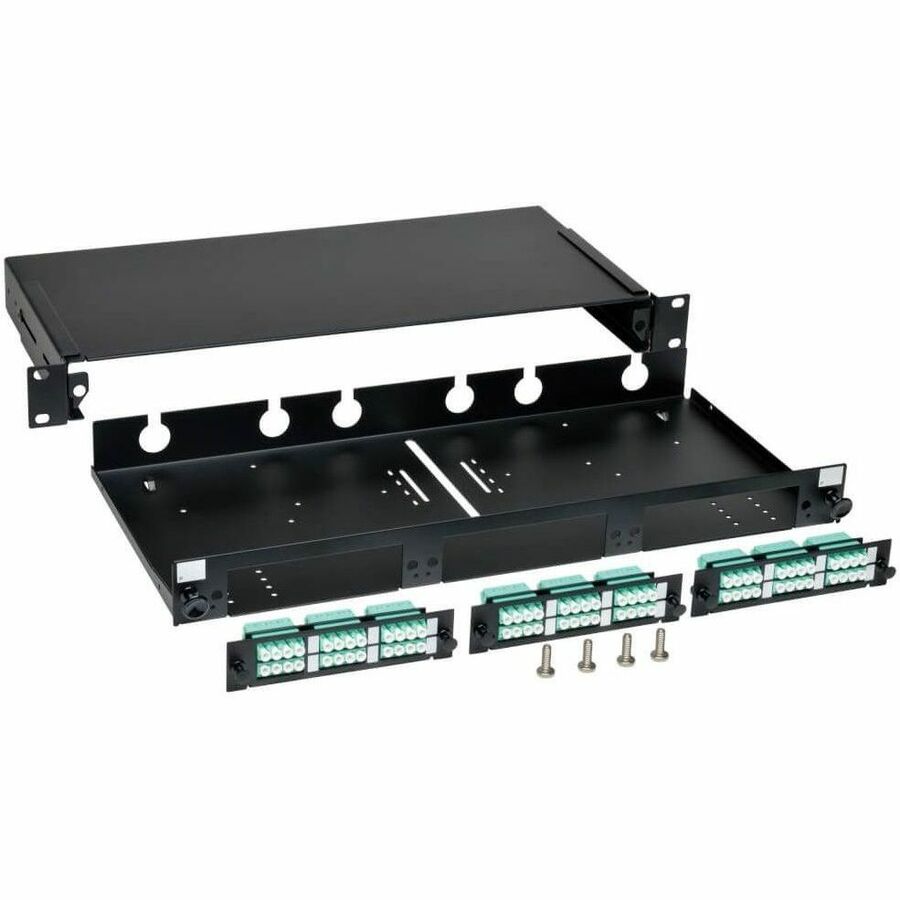

- Package Contents:
- 36 Port LC/LC 1U Rackmount Fiber Enclosure Patch Panel
- 3 x 12-Port LC Feed-Through Adapter plate
- Mounting Brackets
- Mounting Screws
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
- Country of Origin: China
Warranty
- Limited Warranty: Lifetime
