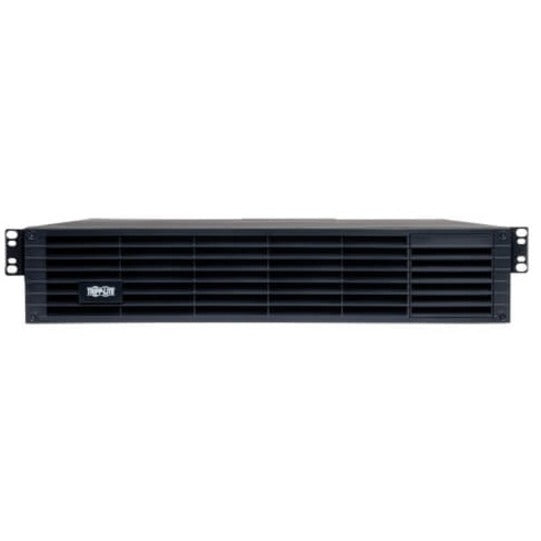

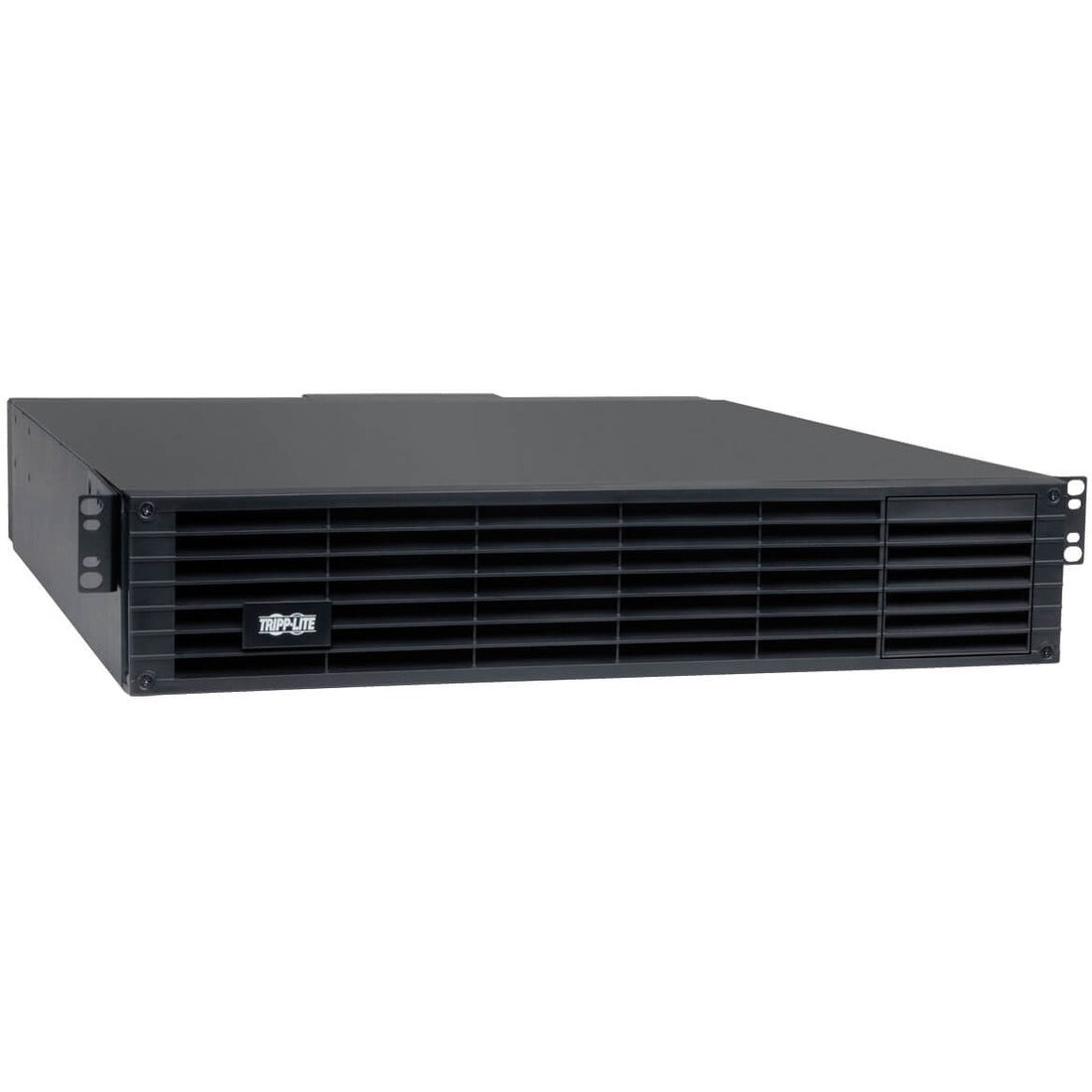

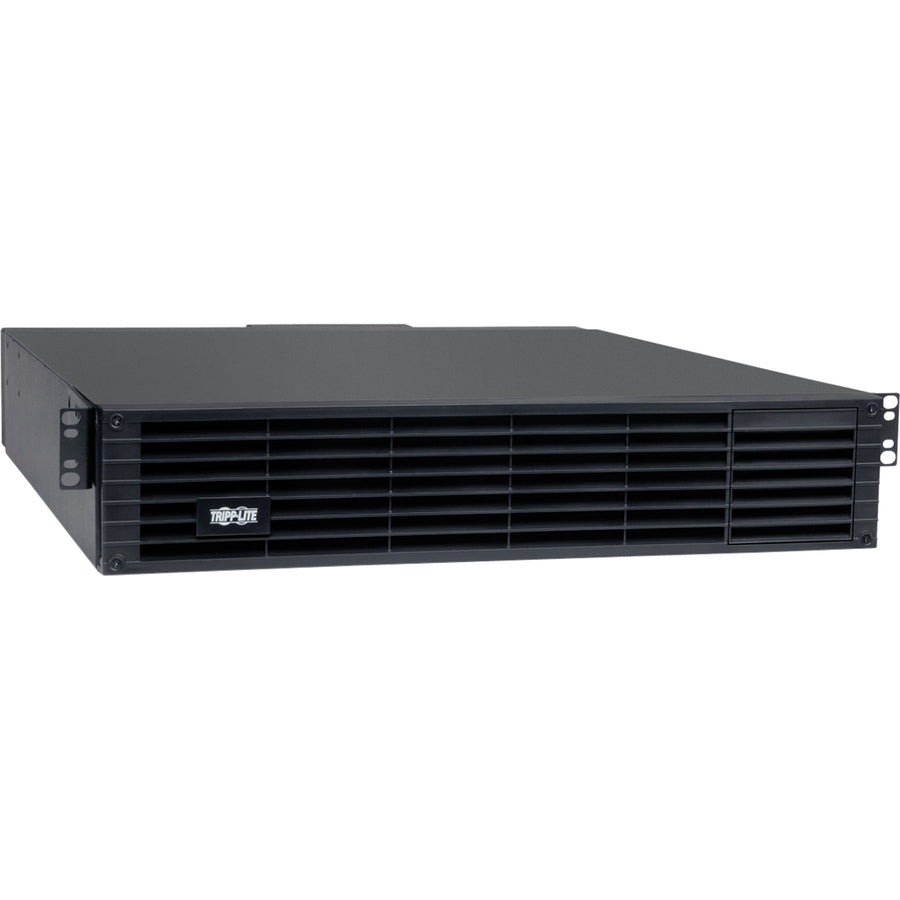

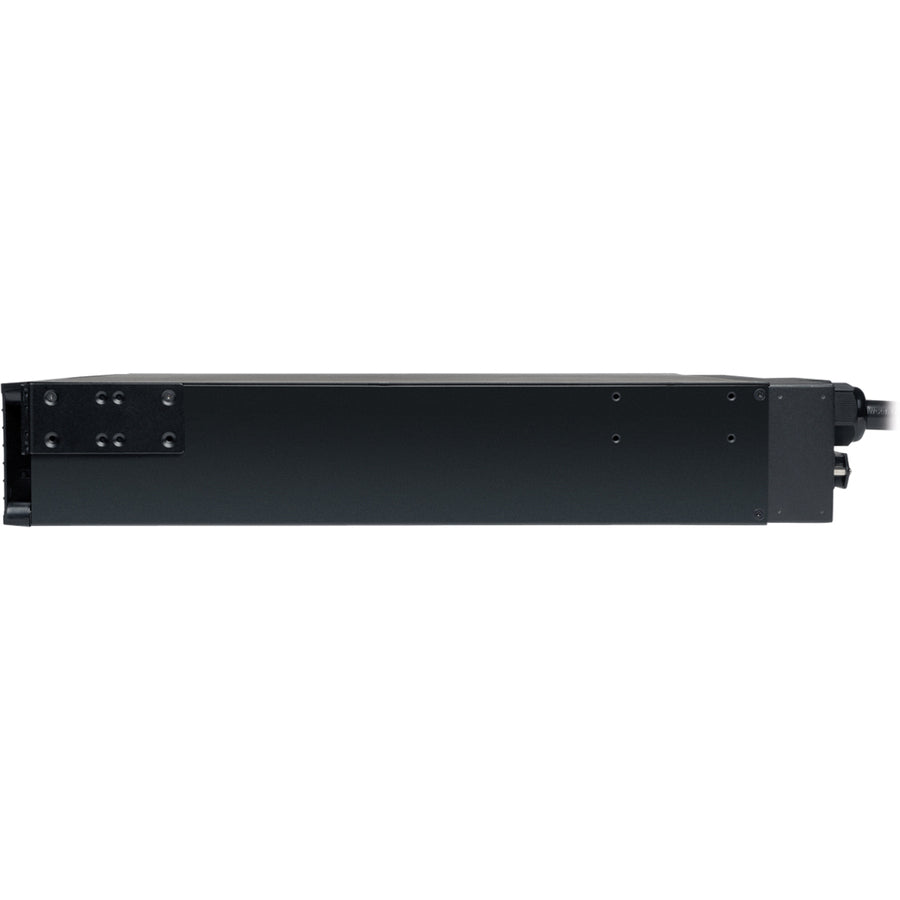

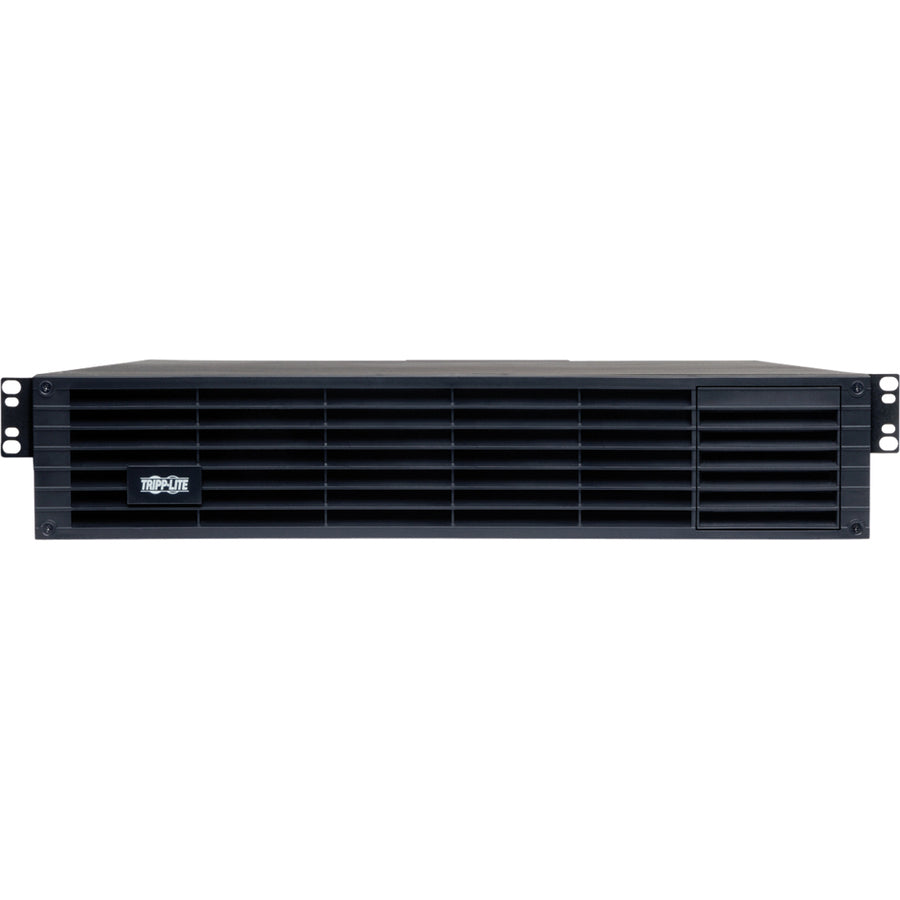

Tripp Lite by Eaton External 72V 2U Rack/Tower Battery Pack for Select UPS Systems (BP72V18-2US) - BP72V18-2US
Key Features
- Extends the runtime of compatible 72V Tripp Lite UPS Systems

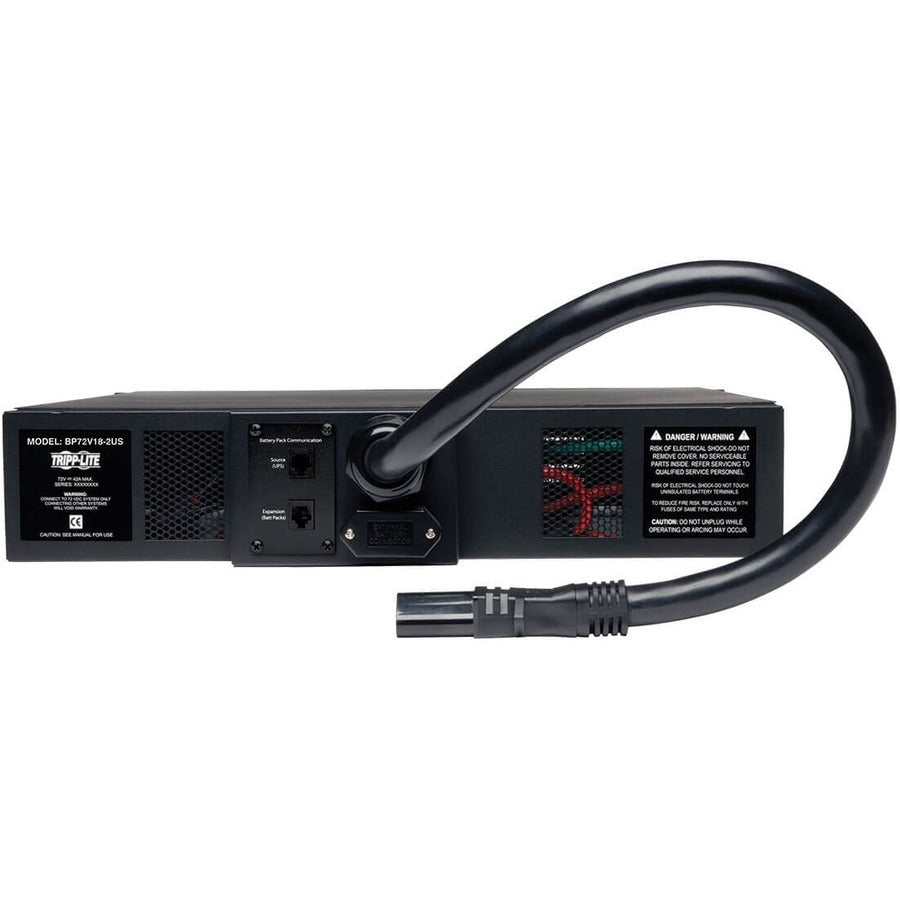

- Included daisychain connector supports the addition of multiple compatible external battery packs
- Options for 2 post rackmount, tower and wallmount installation available
- Supports 2U rackmount installation; 4 post installation accessories included
Product Overview
BP72V18-2US rack / tower external battery pack offers extended battery runtime when used in conjunction with compatible 72V Tripp Lite Rack and Tower UPS systems. Supports 2U installation in 19 inch 4 post racks with included accessories. Optional 2POSTRMKITWM enables 2 post rackmount installation. Optional 2-9USTAND accessory enables tower placement. Supports the connection of multiple BP72V18-2US external battery packs with built-in daisychain connector. Includes heavy gauge cabling with high current DC connector for simple installation in rackmount and tower configurations. Compatible with these UPS Systems - SMART3000RMOD2U, SU3000RTXL2U, SU3000RTXL3U, SU3000RTXL3UHV, SU3000RTXLCD2U, SU3000RTXLCD3U, SU3000RTXR3U, SU3000RTXR3UHW, SU3000XL, SU3000XLCD, SUINT3000RTXL2U, SUINT3000RTXL3U and other Tripp Lite UPS systems that specify the use of this battery pack.
General Information
- Manufacturer: Eaton Corporation
- Manufacturer Part Number: BP72V18-2US
- Brand Name: Tripp Lite series
- Product Model: BP72V18-2US
- Product Name: BP72V18-2US - 72V External 2U Rack / Tower Battery Pack for Select UPS Systems
- Product Type: UPS Battery Pack
Technical Information
- Battery Chemistry: Lead Acid
- Minimum Battery Life: 4 Year
- Maximum Battery Life: 6 Year
- Output Voltage: 72 V DC
Physical Characteristics
- Height: 3.4"
- Width: 17.3"
- Depth: 20.8"
- Weight (Approximate): 88.20 lb
Miscellaneous
- Package Contents:
- BP72V18-2US - 72V External 2U Rack / Tower Battery Pack for Select UPS Systems

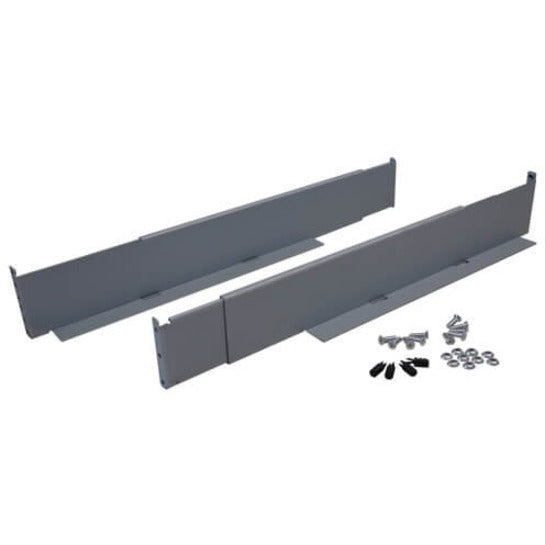

- 4 x Post Rack Mounting Hardware
- Warranty Information
- Instruction Manual
- Compatibility: Tripp Lite UPS Systems:
- SMART3000RMOD2U
- SU3000RTXL2U
- SU3000RTXL3U
- SU3000RTXL3UHV
- SU3000RTXLCD2U
- SU3000RTXLCD3U
- SU3000RTXR3U
- SU3000RTXR3UHW
- SU3000XL
- SU3000XLCD
- SUINT3000RTXL2U
- SUINT3000RTXL3U
- Country of Origin: Vietnam
- TAA Compliant: Yes
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 2 Year
