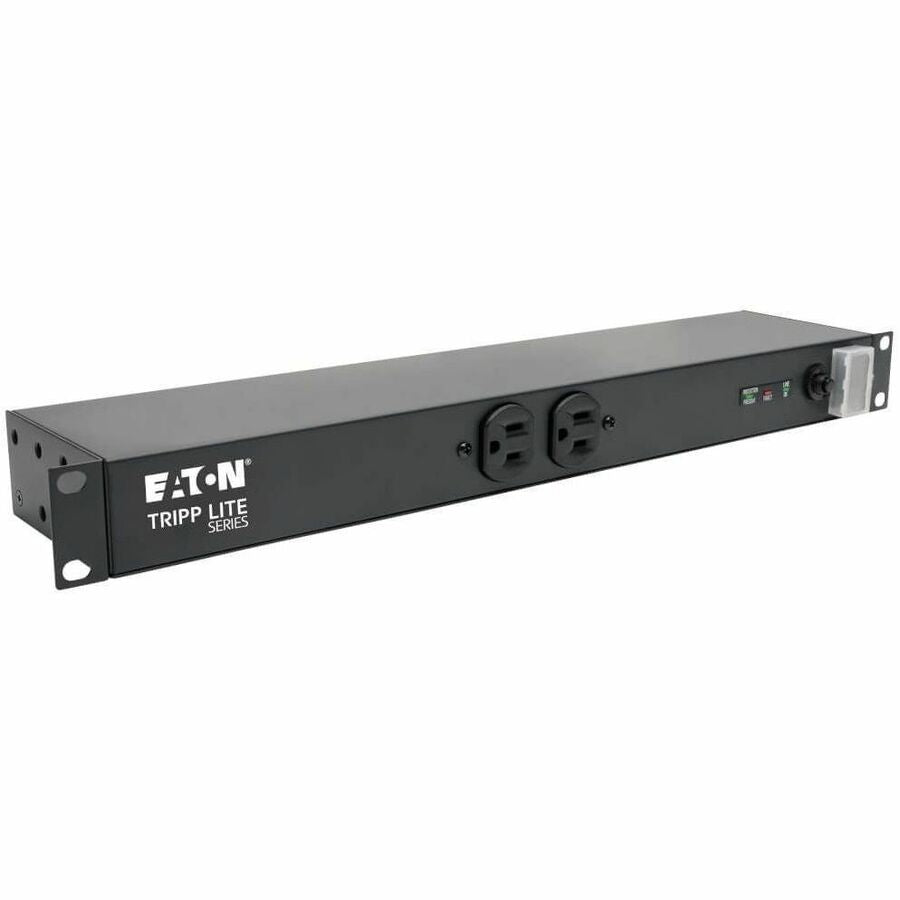

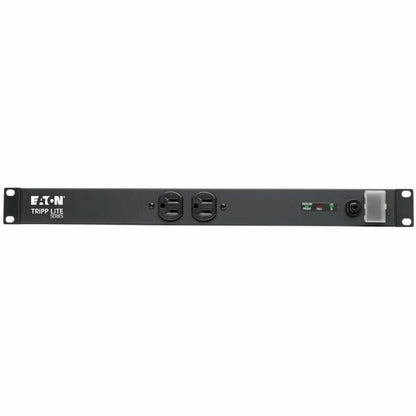

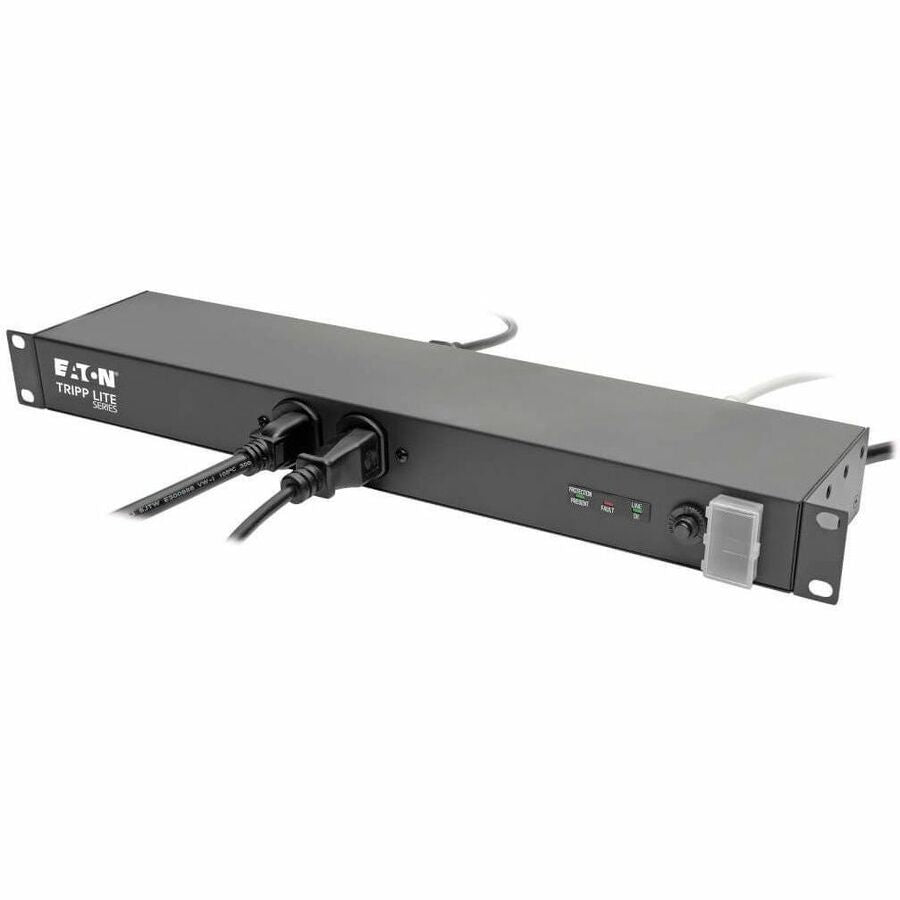

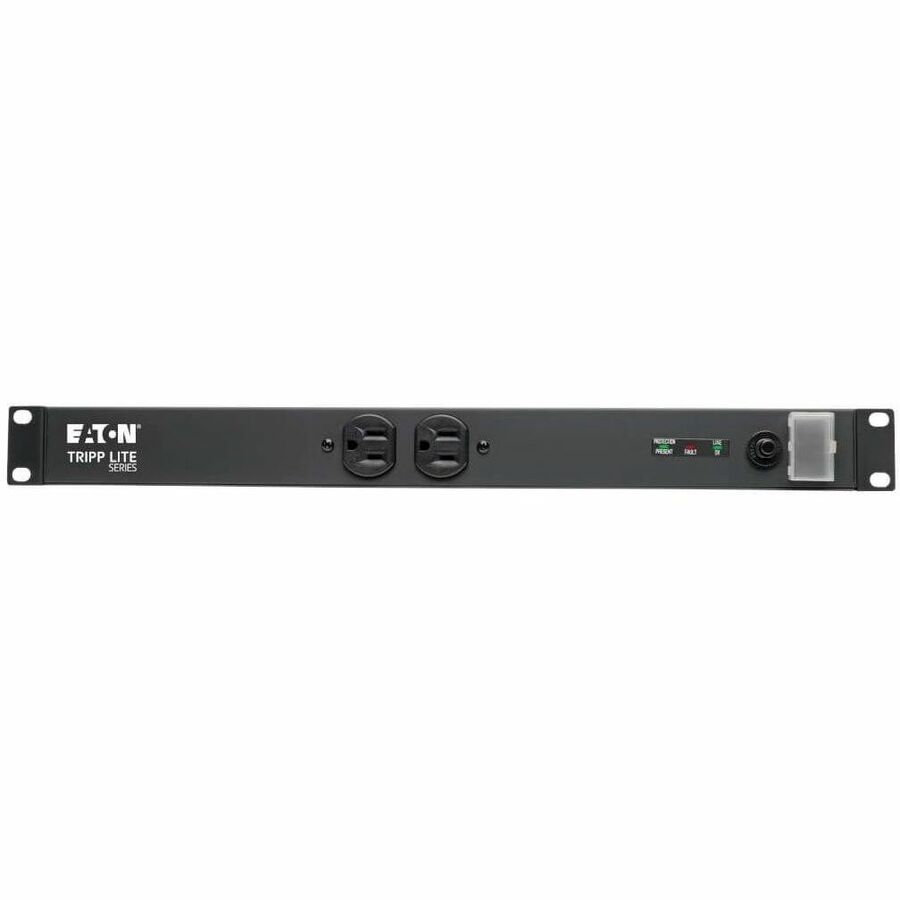

Tripp Lite by Eaton Isobar Surge Protector Rackmount 12 Outlet 15' Cord Metal 1URM - IBAR12
Key Features
- 12 x NEMA 5-15R receptacles protects your devices from electric power surges and spikes
- 3840 J offers great protection against surges and line noise
- Easily connect to a wall outlet with 15 ft cord
- Installing a surge protector gives you peace of mind
Product Overview

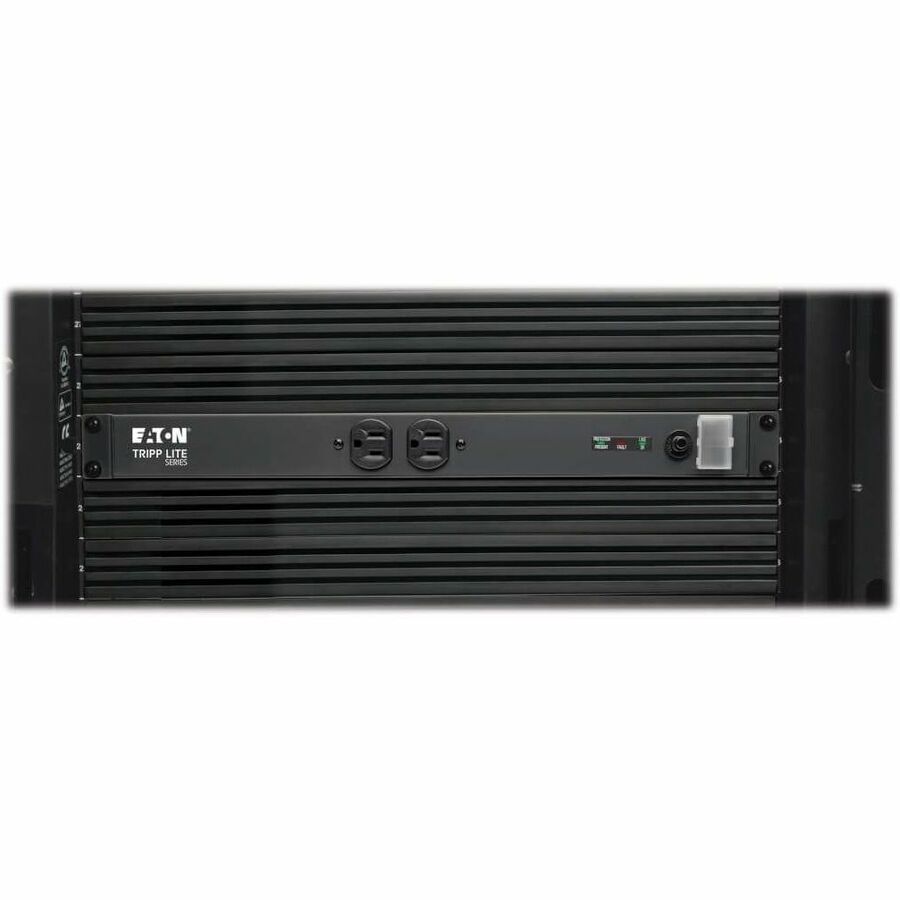

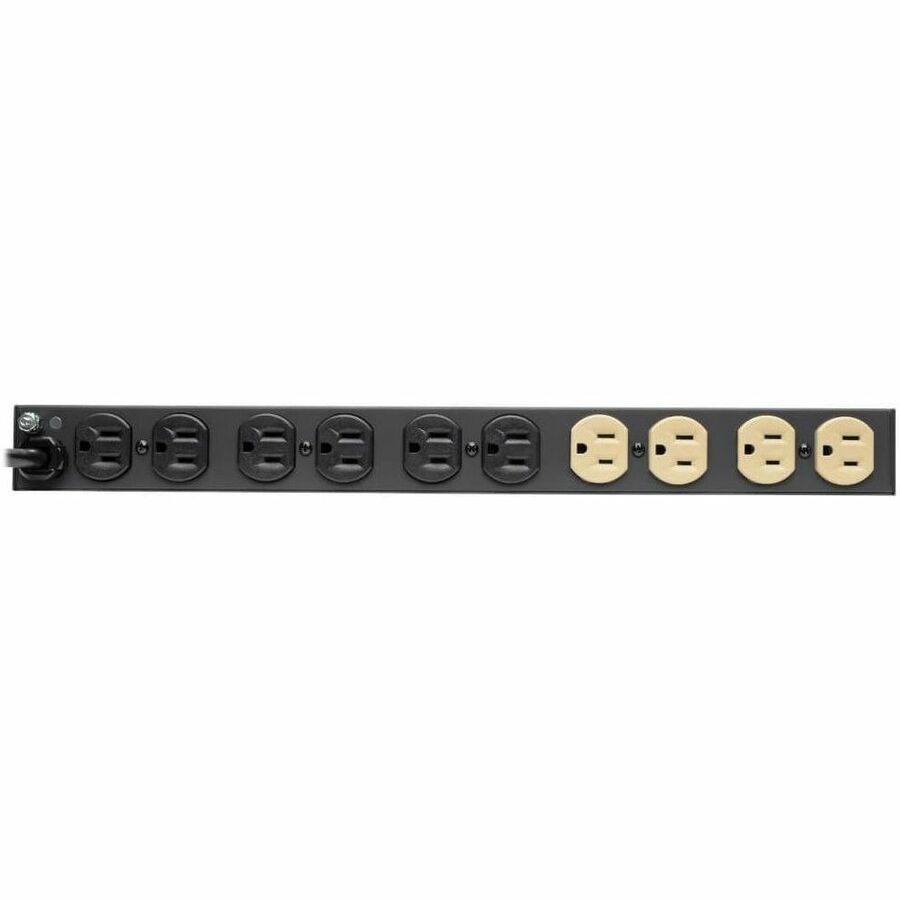

Tripp Lite's IBAR12 offers network-grade surge and noise suppression in a versatile all-metal multi-mount cabinet. Detachable mounting flanges are configurable for rackmount, wallmount and under-counter installation. Uses only 1 rack space (1U) when installed in any 19 inch EIA standard rack. Features network grade AC surge suppression with EMI/RFI noise filtering. Outlets are arranged in exclusive isolated filter banks to limit noise interaction among connected items. Includes 12 outlets (2 front/10 rear), 15 ft AC power cord and guarded power switch to reduce the risk of accidental shutoff. Lifetime warranty with ,25,000 Ultimate Lifetime Insurance (USA & Canada Only) coverage.PLUG/OUTLETS: Input: NEMA 5-15P/Output: 12 NEMA5-15R (2 front & 10 rear)ELECTRICAL: 120V AC, 50/60Hz, 15A (Requires standard NEMA 5-15R wall receptacle)SUPPRESSION: AC: 140V RMS Clamping/3840 joules/60,000 ampsFORMAT: Supports 19 in. rackmount (uses 1 rack space/1U), wallmount, under-counter and more
General Information
- Manufacturer: Eaton Corporation
- Manufacturer Part Number: IBAR12
- Brand Name: Tripp Lite series
- Product Name: Isobar 12 Outlets 120V Surge Suppressor
- Product Type: Surge Suppressor/Protector
Technical Information
- Plug/Connector Type: NEMA 5-15P
- Receptacles: 12 x NEMA 5-15R
Power Description
- Input Voltage: 120 V AC
- Output Voltage: 120 V AC
- Maximum Surge Current: 60 kA
- Power Handling: 1800 VA
- Surge Energy Rating: 3840 J
Physical Characteristics
- Power Cord/Cable Length: 15 ft
- Product Color: Black
- Height: 1.8"
- Width: 17.5"
- Depth: 4"
- Weight (Approximate): 4.60 lb
Miscellaneous

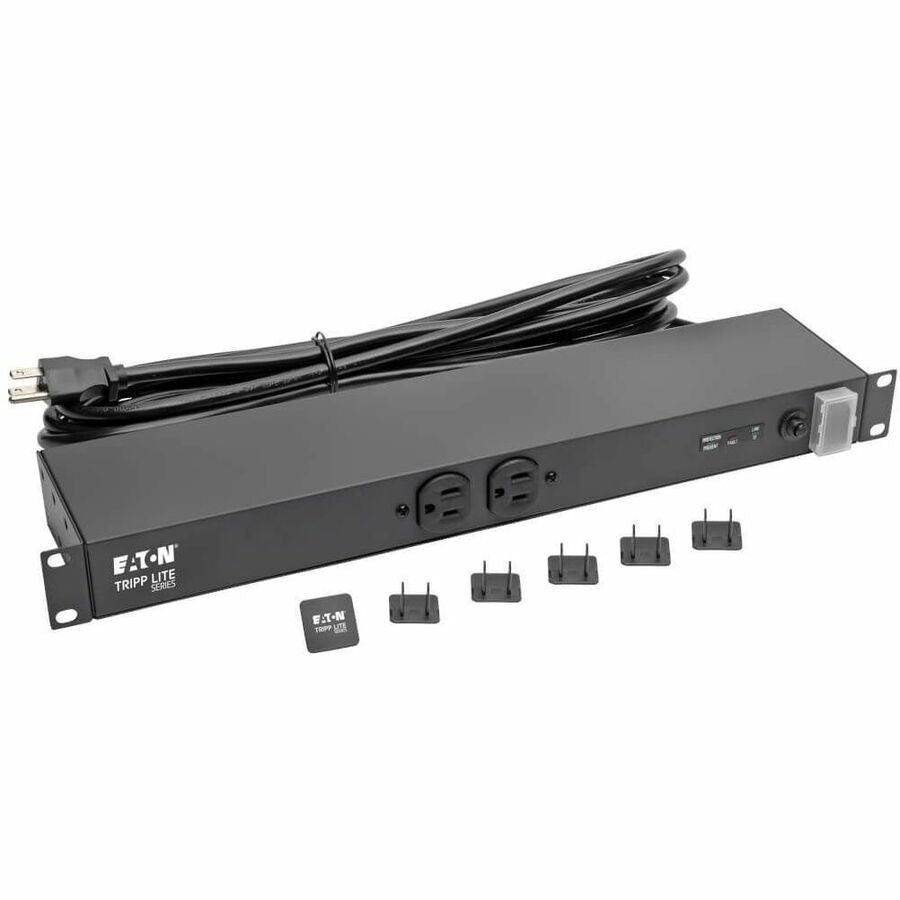

- Package Contents:
- Isobar 12 Outlets 120V Surge Suppressor
- IBAR12 Surge Suppressor
- Warranty information
- Instruction manual
- Country of Origin: Philippines
Warranty
- Limited Warranty: Lifetime
