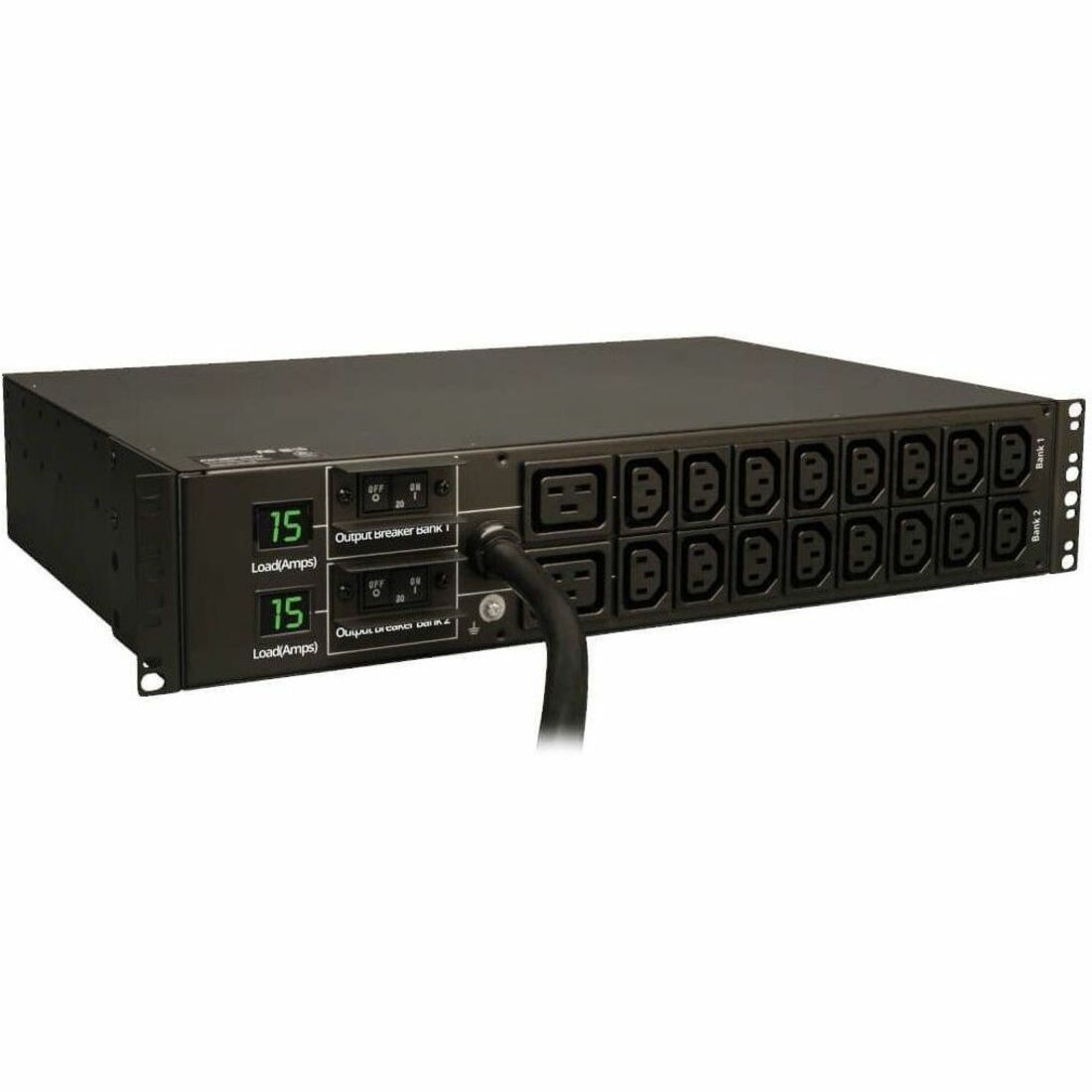

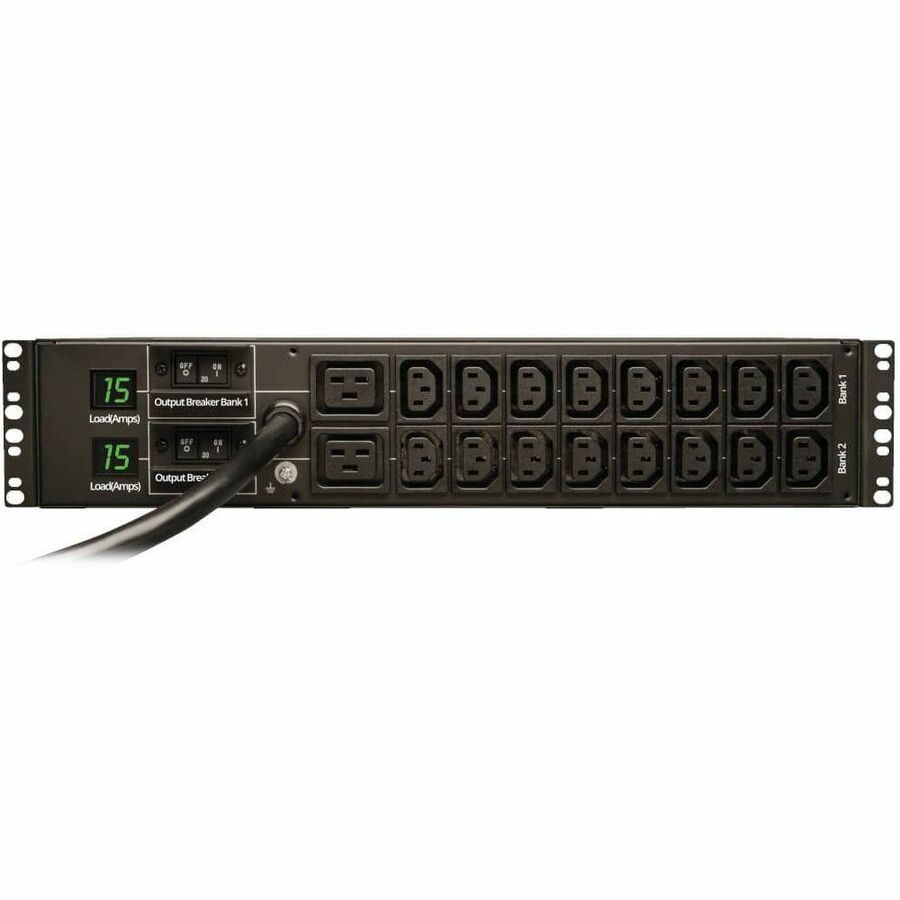

Tripp Lite by Eaton PDU 5.5kW Single-Phase Local Metered PDU 208/230V Outlets (16 C13 & 2 C19) L6-30P 12 ft. (3.66 m) Cord 2U Rack-Mount TAA - PDUMH30HV
Key Features
- 18 total outlets (16 C13, 2 C19)

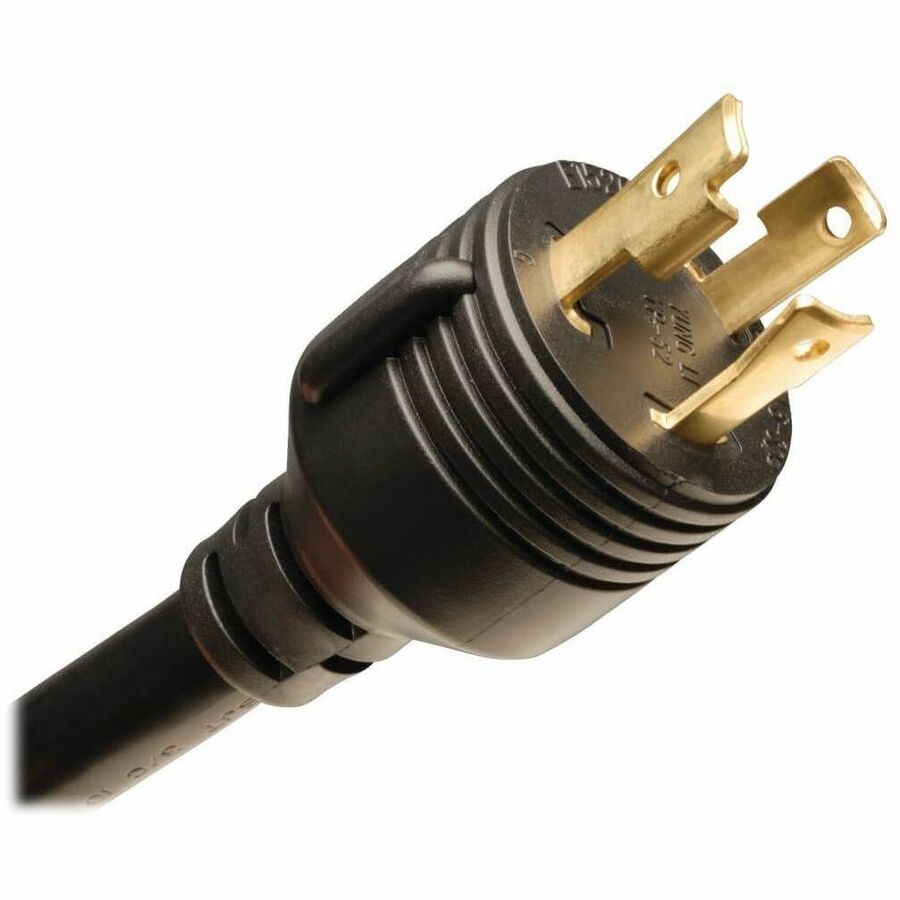

- Attached 12ft / 3.6m cord with NEMA L6-30P input plug
- Metered single phase 30A 208/240V 2U horizontal rackmount PDU
- Reversible housing, 2U 208/240V rackmount metered PDU
- TAA Compliant
- Two built-in meters report output current in amps for each load bank
Product Overview
PDUMH30HV horizontal 2U metered rack PDU supports 30A maximum capacity at 208/240V (agency derated to 24A continuous). Includes 12 ft / 3.6m attached line cord with L6-30P input plug and 18 output receptacles (16 C13, 2 C19). Outlets are arranged in two separately breakered 9 outlet load banks. Set of two visual current meters tracks the output current of each load bank separately. Supports 2U rackmount installation in 19 inch racks. Included cord retention brackets keeps vital network equipment plugged in and continuously powered.
General Information
- Manufacturer: Eaton Corporation
- Manufacturer Part Number: PDUMH30HV
- Brand Name: Tripp Lite series
- Product Series: Metered
- Product Model: PDUMH30HV
- Product Name: Metered PDUMH30HV 18-Outlets PDU
- Product Type: PDU
Technical Information
- Plug/Connector Type: NEMA L6-30P
- Receptacle Type:
- IEC 60320 C19
- IEC 60320 C13
- Receptacle Detail:
- 2 x IEC 60320 C19
- 16 x IEC 60320 C13
- Protection Type: Overload Protection
Power Description
- Input Voltage: 230 V AC
- Input Voltage Range: 208 V AC - 240 V AC
- Output Voltage:
- 208 V AC
- 240 V AC
Physical Characteristics
- Mounting Orientation: Horizontal
- Mount Type: Rack-mountable
- Rack Height: 2U
- Height: 3.5"
- Width: 17.5"
- Depth: 12.5"
- Weight (Approximate): 13.70 lb
Miscellaneous

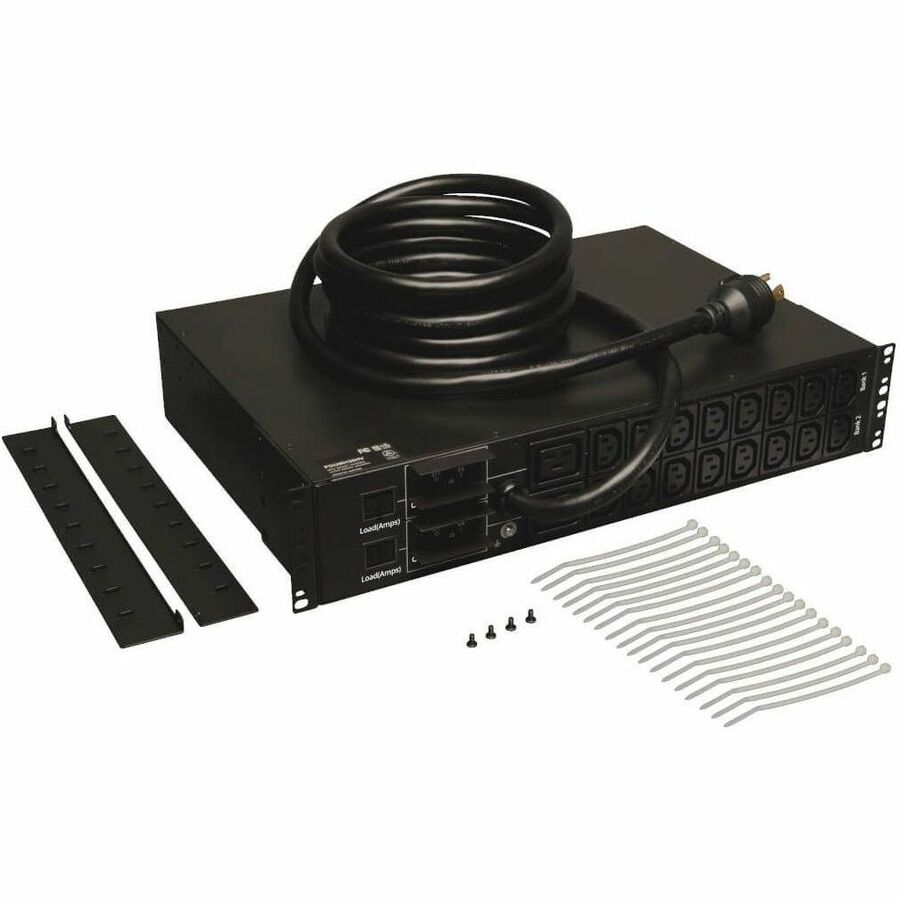

- Package Contents:
- Metered PDUMH30HV 18-Outlets PDU
- Mounting Brackets
- Plug Retention Plates
- User Manual
- Country of Origin: Taiwan
- TAA Compliant: Yes
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 2 Year
