25 Gbps Passive Copper DAC for Short Switch-to-Switch Connections

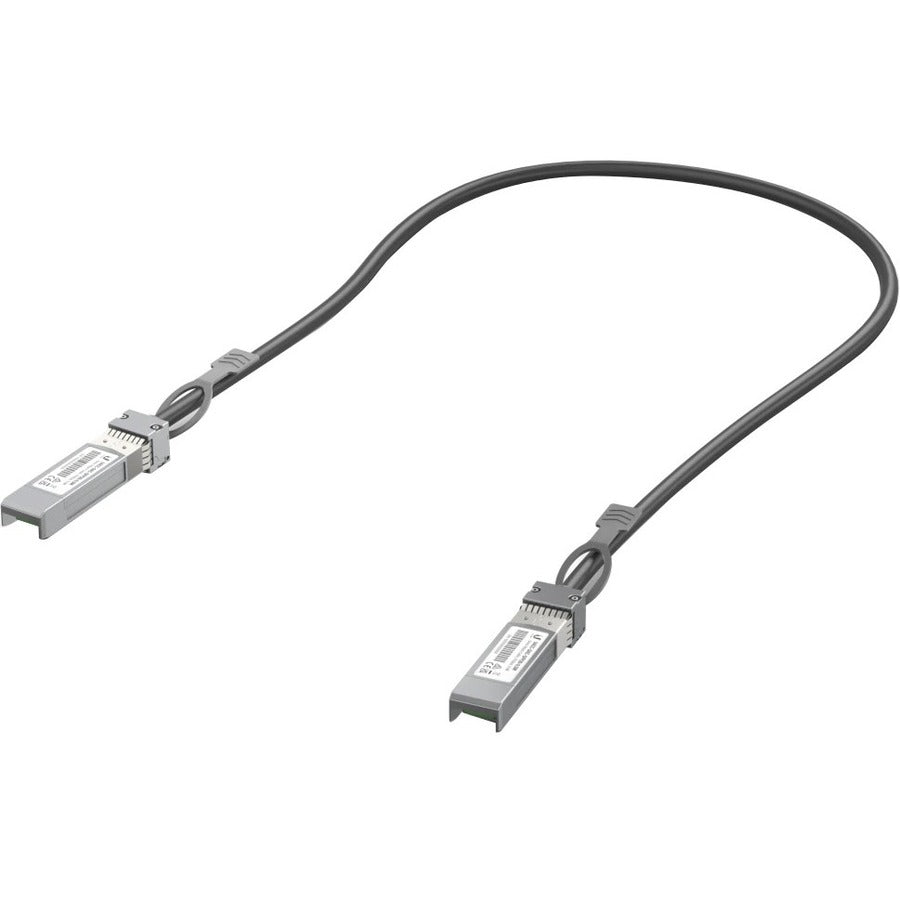

The Ubiquiti UACC-DAC-SFP28-0.5M is a 0.5-meter (1.6-foot) passive copper direct attach cable with SFP28 connectors on both ends, rated for 25 Gbps throughput. It plugs directly into SFP28 slots on UniFi switches for a low-latency, low-power connection between two devices mounted in the same rack or adjacent racks without the cost of separate transceivers and fiber.
DAC cables are the simplest way to connect two SFP28-equipped switches when the distance is under a meter. No transceivers to buy, no fiber to terminate, no optical alignment. The passive copper design uses less power and adds less latency than an active optical connection, which matters in aggregation layers where every link counts.
Where the UACC-DAC-SFP28-0.5M Fits
- Rack-internal switch stacking connecting two UniFi aggregation or Pro Max switches mounted in the same rack at 25 Gbps
- Spine-to-leaf links in small network closets where the aggregation switch and access switches are within half a meter of each other
- Server-to-switch uplinks connecting a 25G NIC directly to an SFP28 switch port for storage, backup, or high-throughput workloads
What the Cable Delivers
- 25 Gbps throughput: Full SFP28 line rate over passive copper. No bottleneck between connected devices.
- SFP28 to SFP28: Plugs into any standard SFP28 slot on UniFi switches and third-party networking equipment. Backward compatible with SFP+ at 10 Gbps.
- Passive copper, zero configuration: No power draw beyond what the SFP28 port provides. No drivers, no optics to align, no configuration. Plug in and link up.
- 0.5M (1.6 ft) length: Purpose-built for same-rack connections where longer cables add unnecessary bulk.
Build and Specs
SFP28 direct attach cable. 25 Gbps data rate. Passive copper, 26/30 AWG. 0.5 m (1.64 ft) length. SFP28 to SFP28 connectors. PVC jacket, black. Compatible with UniFi and third-party SFP28 devices. Part Number: UACC-DAC-SFP28-0.5M.
