Passive 100G Direct Attach Cable for Short Switch-to-Switch Links Without Fiber Optics

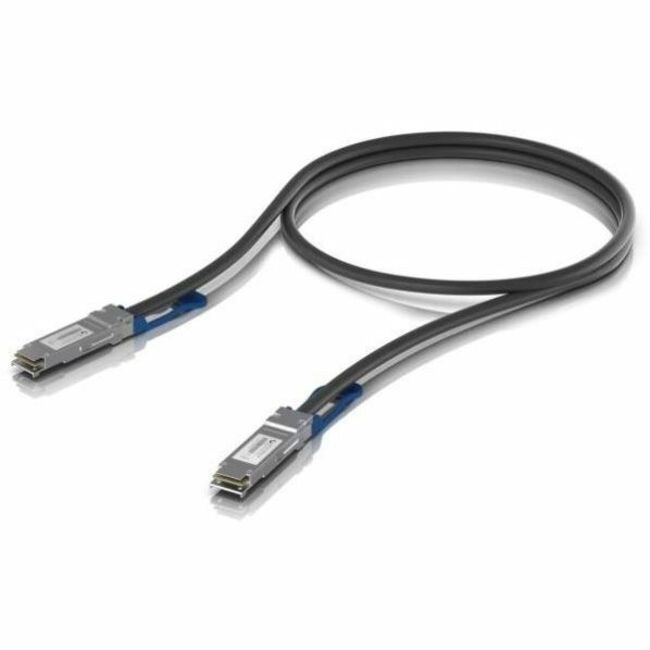

The Ubiquiti UACC-DAC-QSFP28-0.5M is a 0.5-meter (1.64 ft) passive direct attach cable with QSFP28 connectors on both ends. It delivers 100 Gbps throughput between two QSFP28 ports or 40 Gbps between QSFP+ ports, connecting adjacent switches, routers, or storage devices in the same rack without the cost and complexity of fiber transceivers and patch cables.
DAC cables are the preferred interconnect for short runs (under 3 meters) where two devices sit in the same rack or adjacent rack units. They cost less than a pair of 100G transceivers plus fiber, draw less power (passive cable needs no laser), and introduce lower latency than optical modules. The 0.5M length is sized for switch-to-switch stacking or connecting devices mounted directly above or below each other.
Where the UACC-DAC-QSFP28-0.5M Fits
- Switch-to-switch stacking in the same rack where two UniFi or Enterprise switches need a 100G interconnect and the 0.5M length spans the 1-2U gap between them
- Switch-to-server/NAS connections where a 100G NIC in a server or storage appliance connects to the top-of-rack switch at full speed without fiber transceivers
- Lab and test environments where cost per link matters, the devices are co-located in the same rack, and passive cables simplify inventory by eliminating separate transceivers
What the Cable Delivers
- 100 Gbps / 40 Gbps: Full 100G line rate on QSFP28 ports. Backward-compatible at 40G on QSFP+ ports. One cable type covers both speeds depending on the port it plugs into.
- Passive, zero power draw: No laser, no power consumption beyond the port itself. Lower latency than active optical modules and no thermal output to manage in dense rack configurations.
- 0.5M length: 1.64 feet of cable spans 1-2 rack units. Short enough to stay out of the cable management path and avoid excess coiled cable behind the rack.
- QSFP28 to QSFP28: Standard QSFP28 connector on both ends. Compatible with any QSFP28 or QSFP+ port on UniFi, Enterprise, and third-party switches and NICs.
Build and Specs
Passive direct attach cable. QSFP28 male to QSFP28 male. Data rate: 100/40 Gbps. Length: 0.5m (1.64 ft). Wire gauge: 30 AWG. Jacket: PVC, black. Compatible with QSFP28 and QSFP+ interfaces. Part Number: UACC-DAC-QSFP28-0.5M.
