24-Port Rack-Mount Ethernet Surge Protection with 10 GbE Passthrough, PoE++ Support, and 20kA Discharge Rating

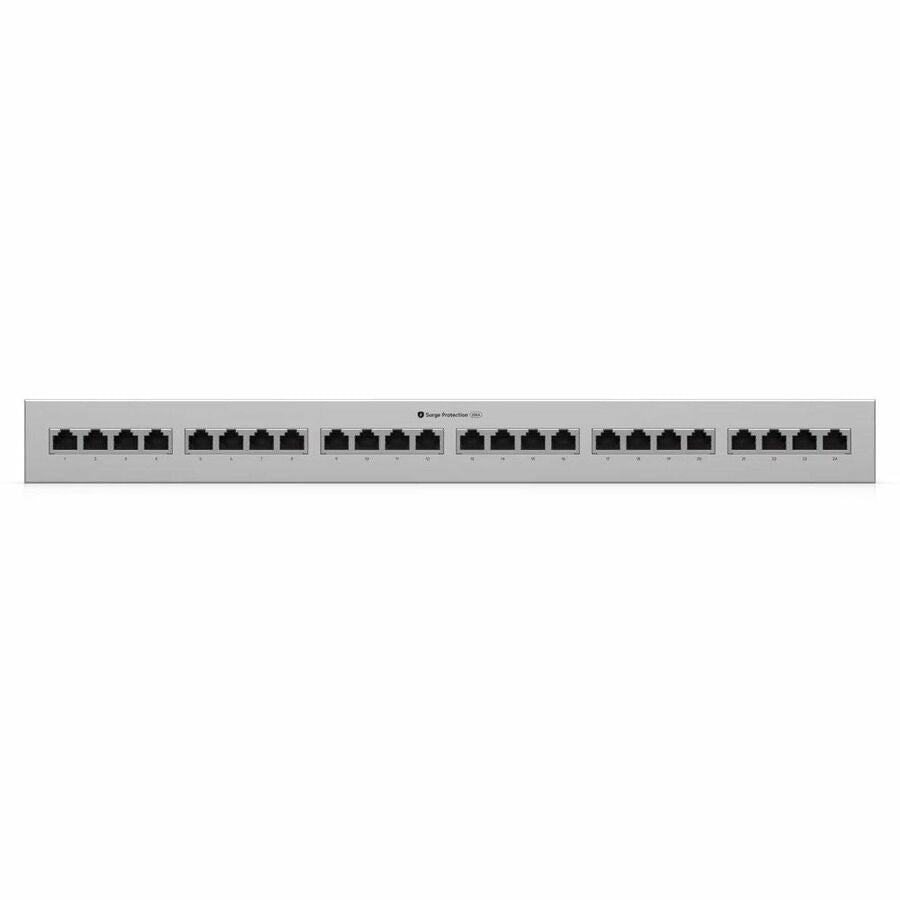

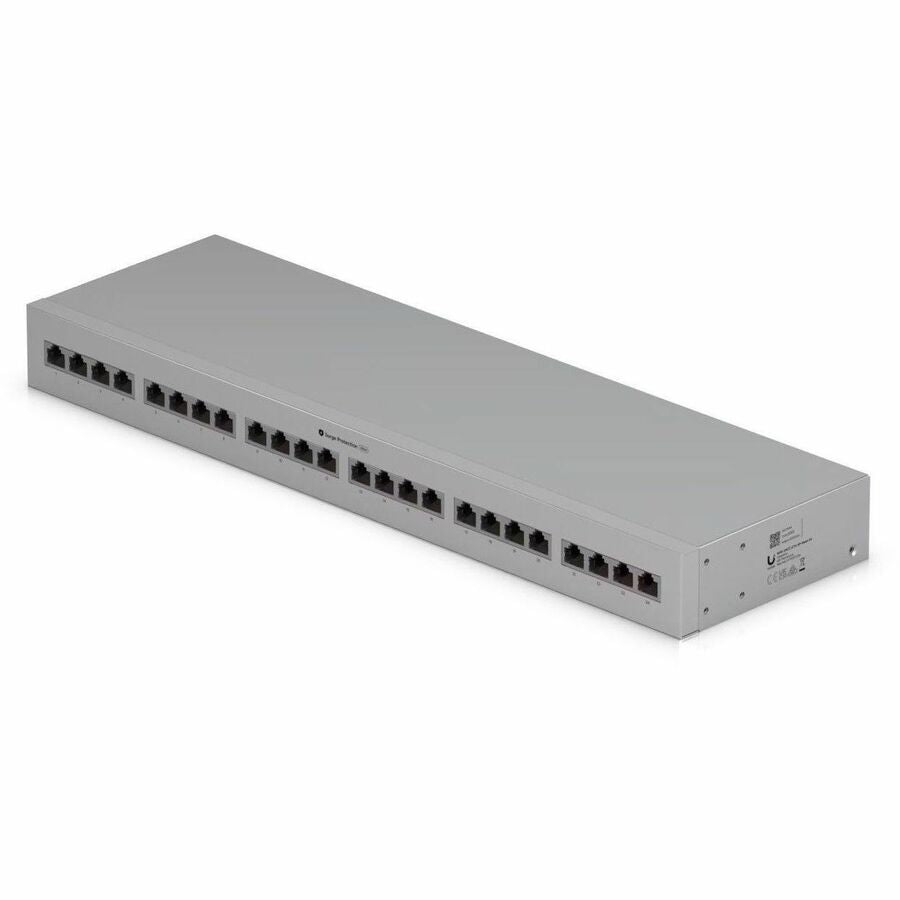

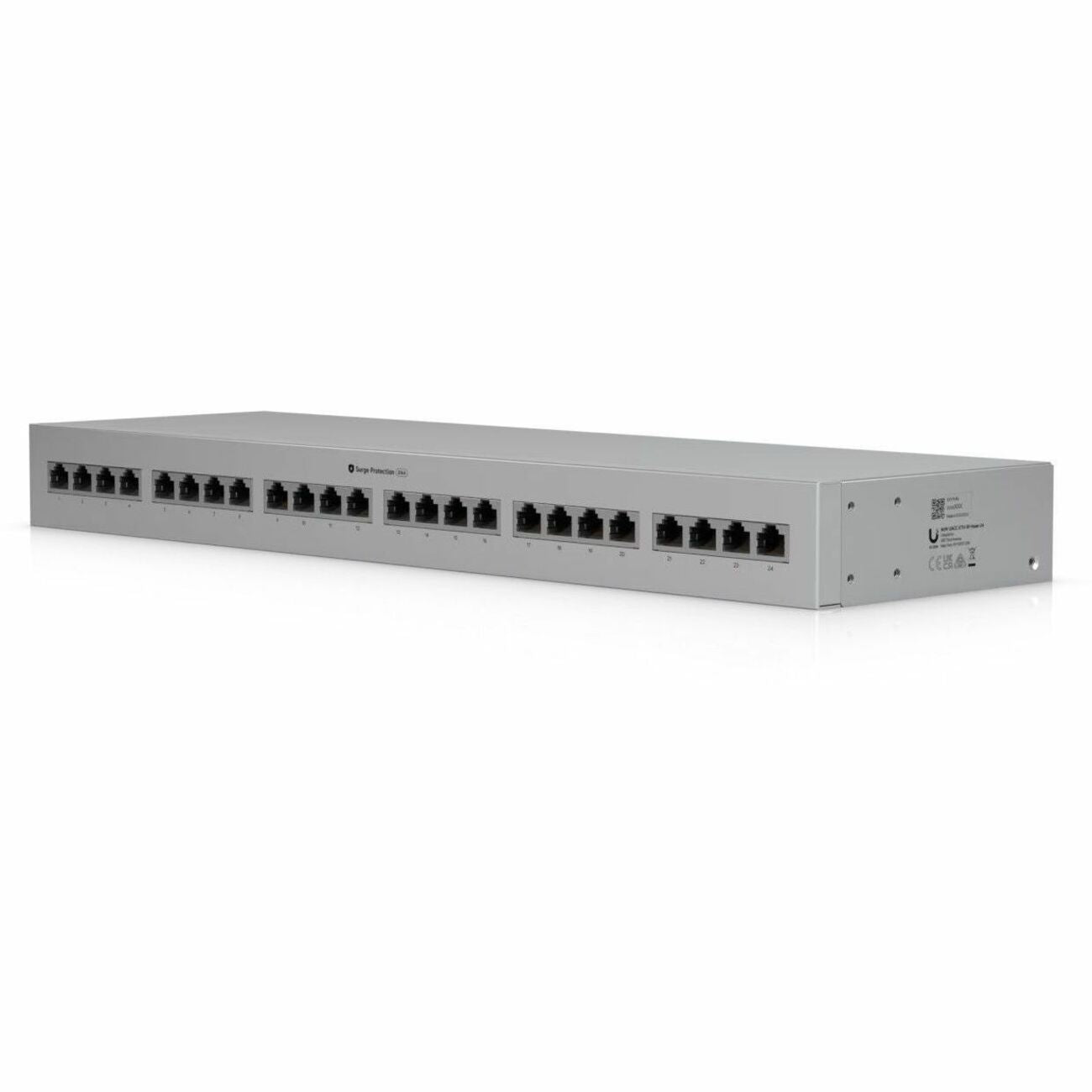

The Ubiquiti UACC-ETH-SP-Panel-24 is a 24-port, 1U rack-mount Ethernet surge protection panel that sits between incoming Ethernet runs and your switch, protecting connected equipment from voltage spikes up to 20kA per port. Each port supports passthrough speeds up to 10 GbE and PoE++ power delivery, so surge protection does not compromise network performance or power availability. Built from steel with 48 RJ45 connectors (24 in, 24 out) for clean pass-through network infrastructure wiring.
Surge damage from lightning strikes, ground faults, and power line coupling is one of the most common causes of network equipment failure in buildings with outdoor cable runs. The Panel-24 provides centralized protection at the rack level, covering all 24 ports in a single 1U device rather than requiring individual inline protectors on each cable. This is the rack-scale solution for protecting switches, NVRs, and other equipment connected to outdoor cameras, wireless APs, and building-to-building cable runs.
Where the Surge Protection Panel Fits
- Network racks with outdoor cable runs where Ethernet cables to outdoor cameras, access points, and building-to-building links carry lightning and surge risk back to the indoor switch equipment
- Centralized surge protection where a single 1U panel replaces 24 individual inline surge protectors, simplifying installation and maintaining clean cable management in the rack
- PoE-powered deployments where the panel passes PoE++ power through to connected devices while protecting both the switch and the powered endpoints from surge events
What the Surge Protection Panel Delivers
- 24 ports, 20kA per port: Each of the 24 ports handles surge events up to 20,000 amps, protecting connected switches and endpoints from lightning-induced spikes and ground faults.
- 10 GbE and PoE++ passthrough: Full 10-Gigabit Ethernet and PoE++ (802.3bt) passthrough on every port. No bandwidth throttling or PoE limitation from the protection circuitry.
- 1U rack-mount, steel construction: Fits a standard 19-inch rack in a single rack unit. Steel chassis provides structural durability and proper grounding for the surge protection circuitry.

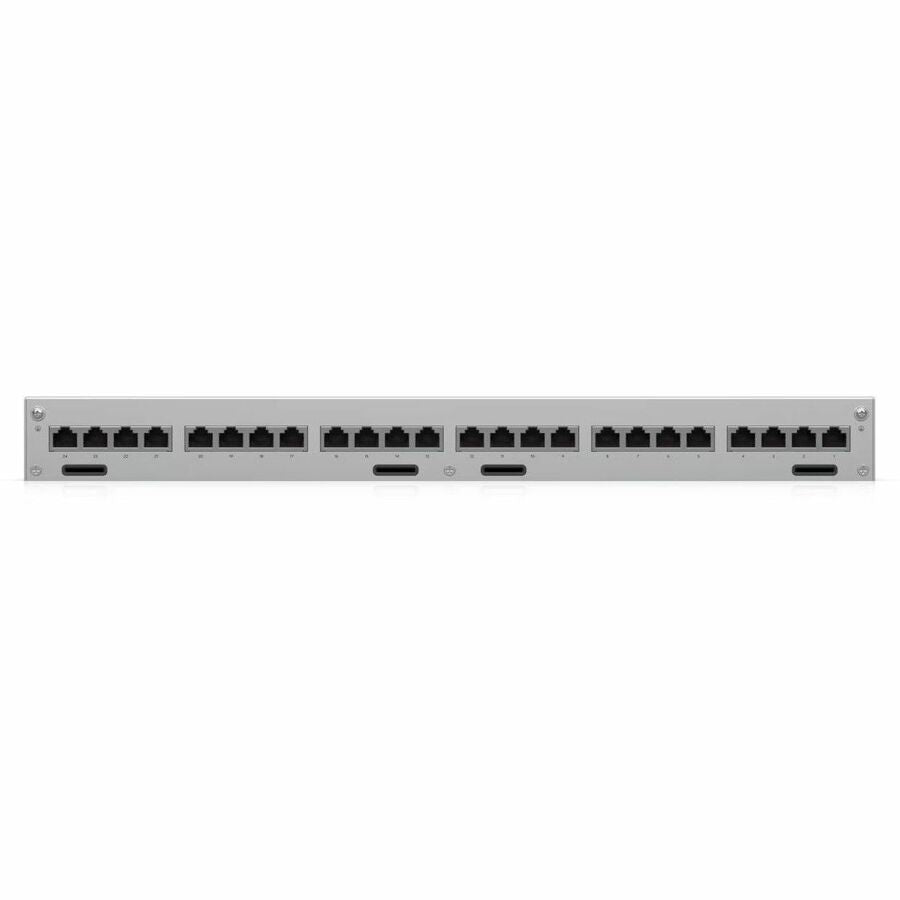

- 48 RJ45 connectors (24 in / 24 out): Clean pass-through wiring with dedicated input and output jacks per port. Incoming cables from the field terminate on one side, patch cables to the switch on the other.
