Toolless Ball-Joint Mount for Fast Pole and Wall Installation of airMAX and LTU CPE Devices

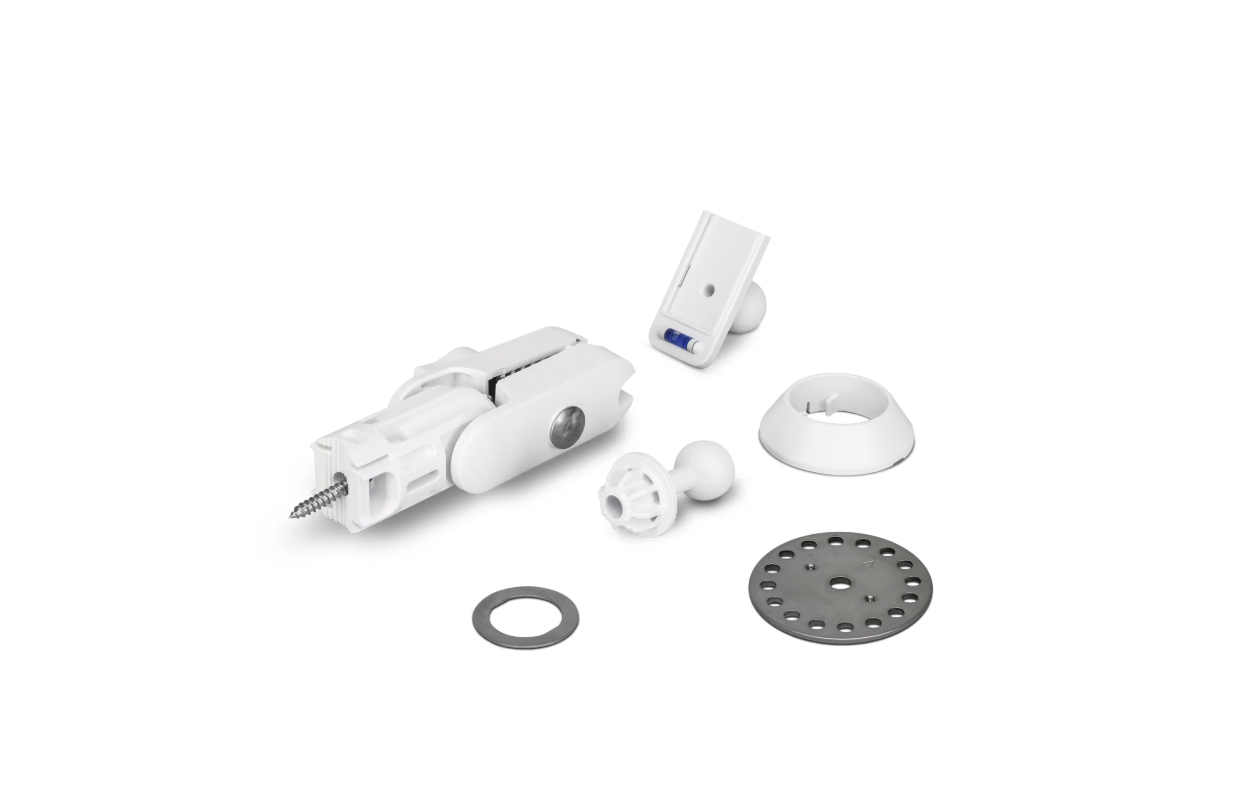

The Ubiquiti Quick-Mount is a toolless mounting bracket with a ball-joint system for airMAX and LTU CPE radios. It allows multi-angle positioning on poles or walls without tools, supports fast field swaps when replacing or repositioning radios, and works with NanoBeam, NanoStation, LTU Lite, GigaBeam, and other compatible Ubiquiti outdoor devices. Lightweight plastic and metal construction rated for outdoor use.
Traditional CPE mounts require wrenches to adjust aim and a full disassembly to swap a radio. The Quick-Mount's ball-joint design lets installers set azimuth and elevation by hand, lock the joint, and move on. For WISPs and integrators deploying dozens of CPEs per week, the time saved per installation adds up across every truck roll.
Where the Quick-Mount Fits
- High-volume WISP subscriber installs where techs mount and aim CPE radios at the customer premises daily and toolless adjustment cuts minutes off every appointment
- Temporary or seasonal deployments where radios need to be repositioned, swapped, or removed frequently and the toolless ball joint allows quick changes without climbing with a wrench set
- Pole and wall installations in tight spaces where limited access makes traditional bolt-based mounting impractical and the Quick-Mount's compact design fits where larger brackets cannot
What the Quick-Mount Delivers

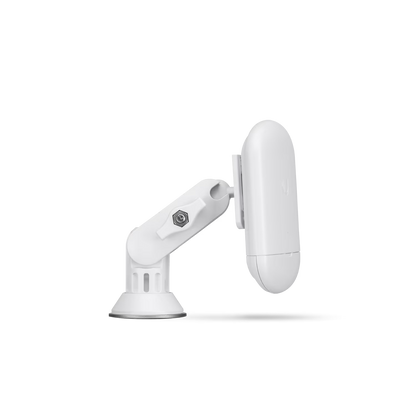

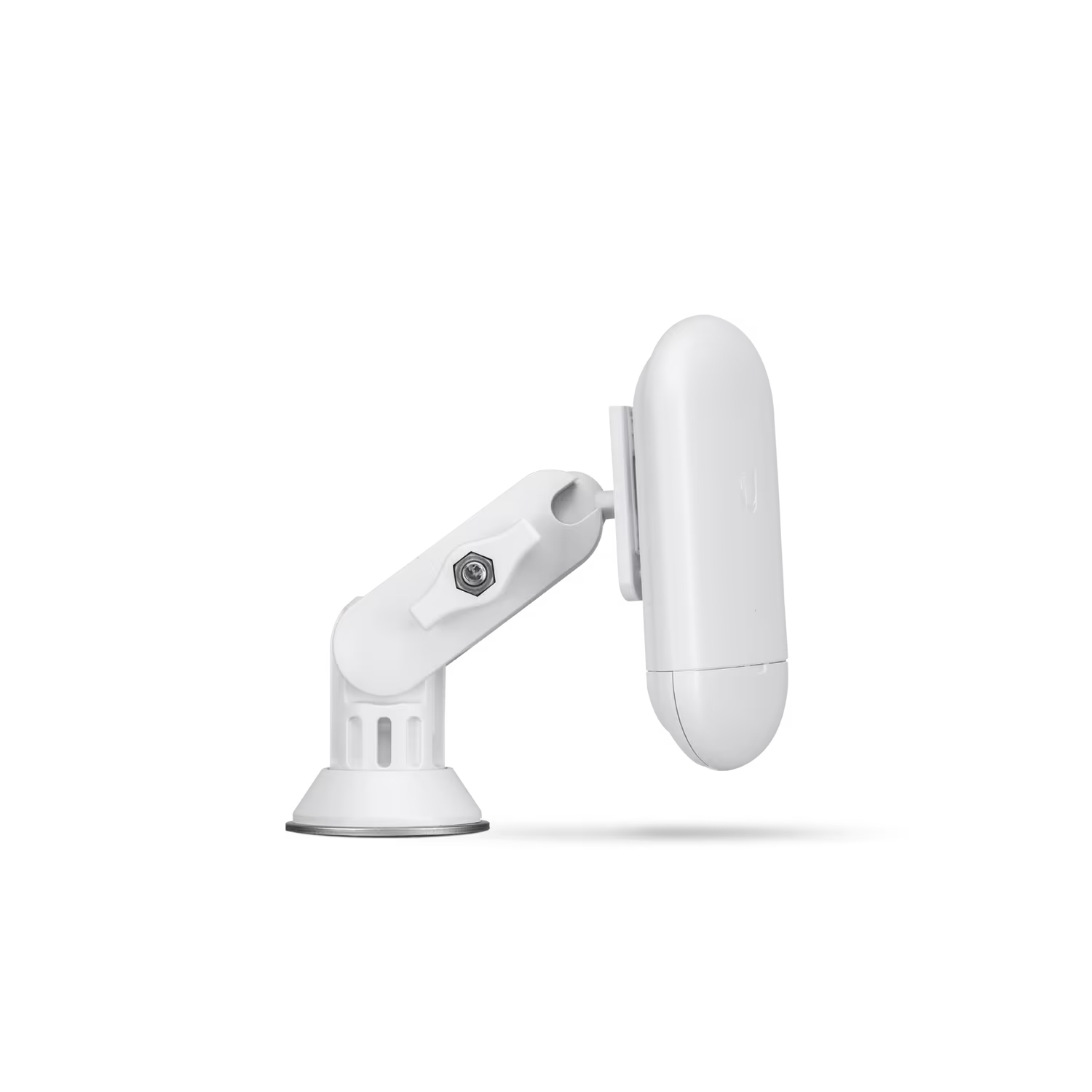

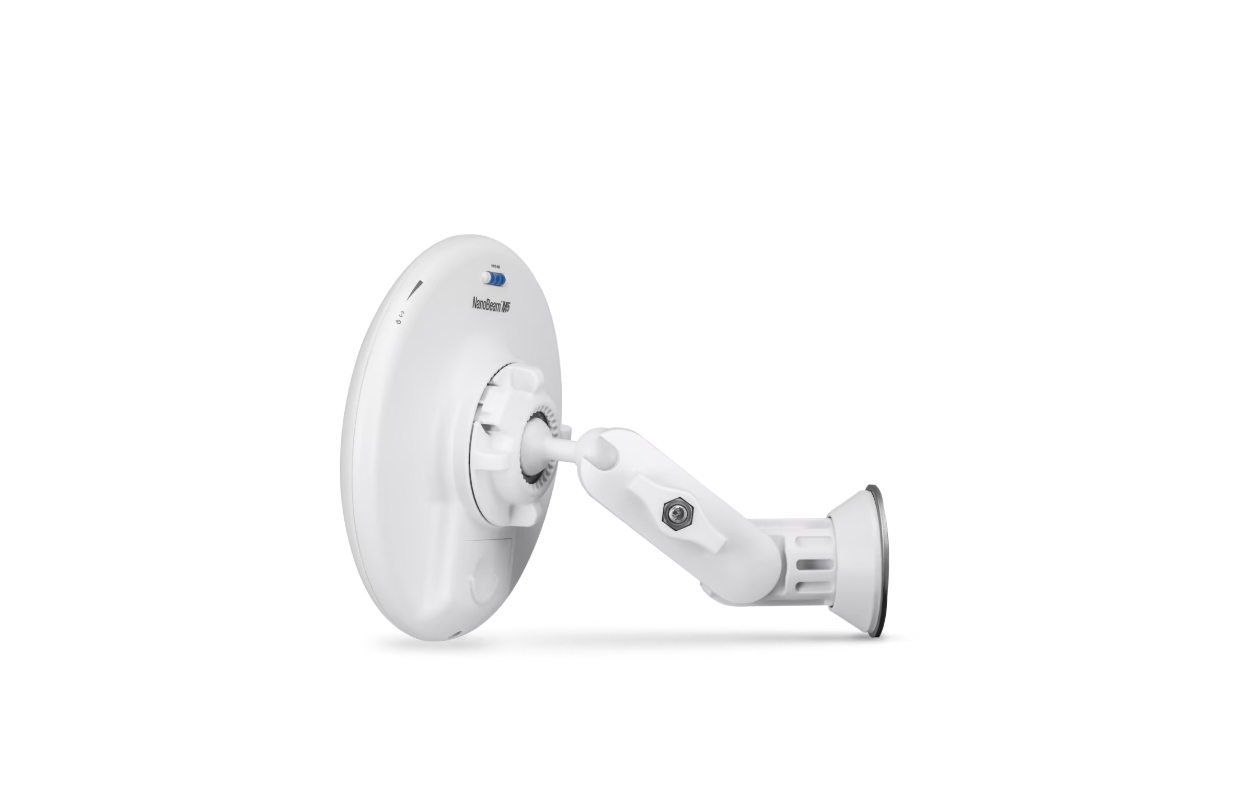

- Toolless ball-joint mounting: Set azimuth and elevation by hand, tighten to lock. No wrenches or hex keys needed for positioning. Full range of motion for aiming at base stations or remote endpoints.
- Broad device compatibility: Works with NBE-2AC-13, NBE-M5-16, NBE-M5-19, NBE-5AC-Gen2, loco5AC, NS-5AC, LTU-Lite, UBB, GBE, and UDB-Pro via ball joint or metal washer attachment.
- Wall and pole mounting: Mounts to any flat wall surface or pole. Compact footprint keeps the overall installation profile low.
- Outdoor-rated construction: Plastic and metal materials designed for continuous outdoor exposure. Lightweight enough that it does not add meaningful wind load to the installation.
