Ubiquiti UISP Console - UISP-Console
Key Features
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 8 ports
- Effectively reduces downtime with improved network performance
- Gigabit Ethernet port for ultra-fast network speeds
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- Management capability allows maximum efficiency and with unrestricted control
- Rack-mountable form factor allows hassle-free and easy usage with increased efficiency
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
Product Overview

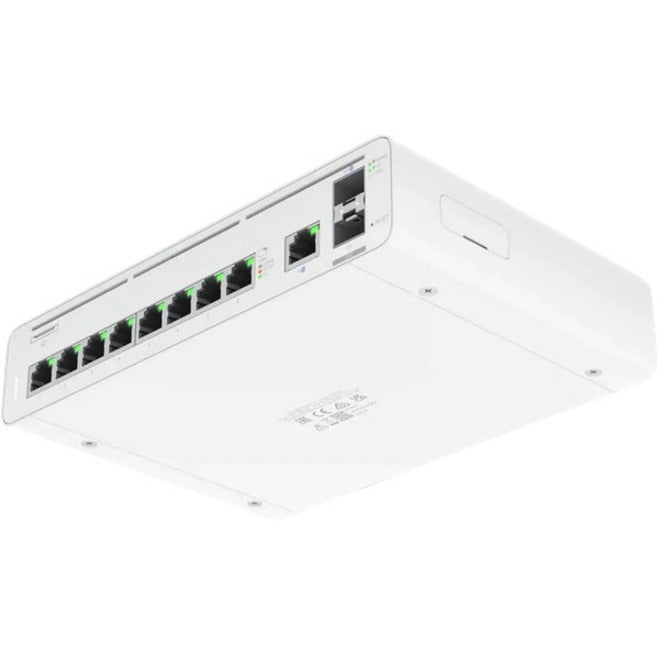

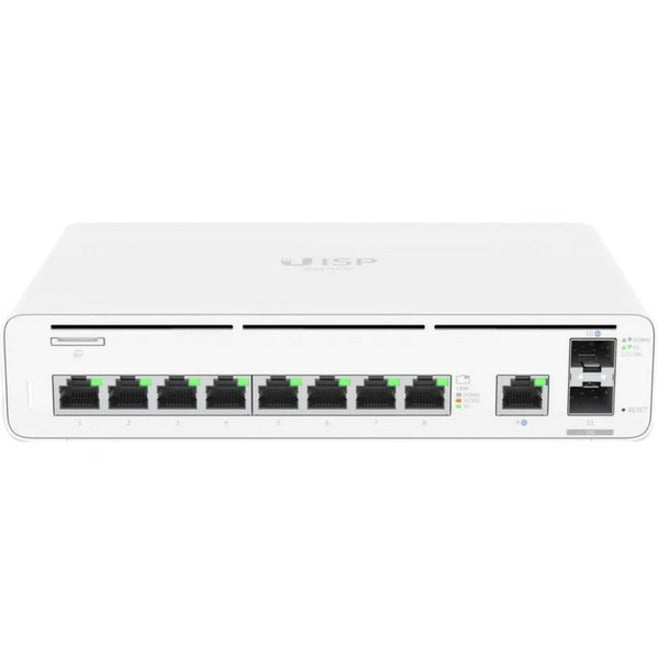

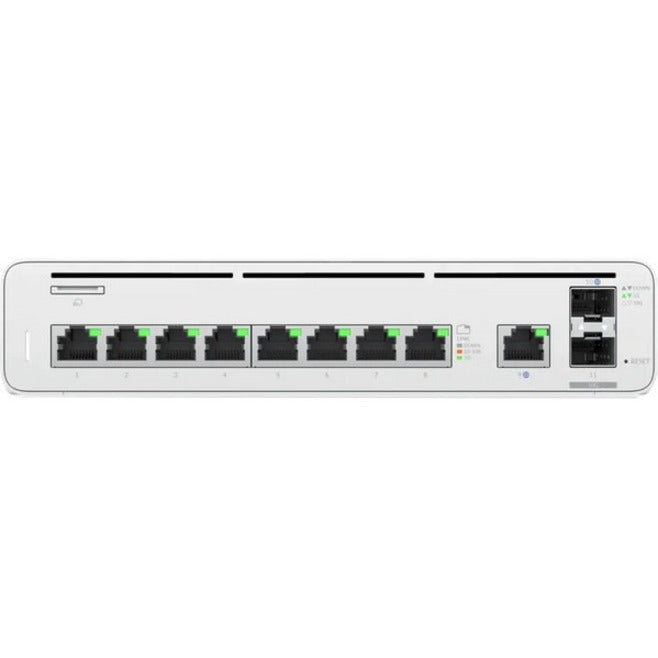

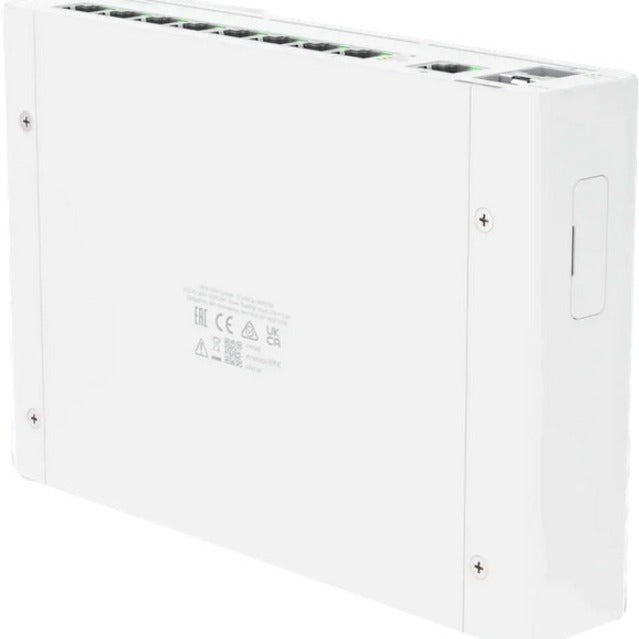

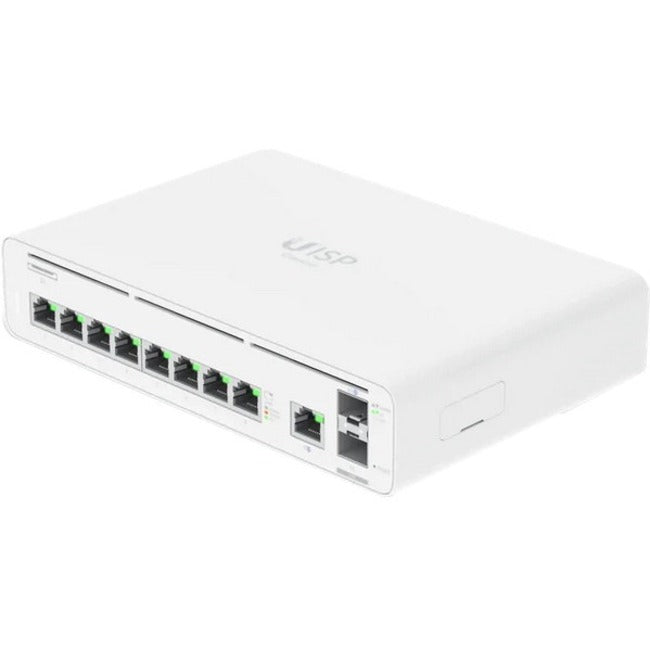

UISP host console with an integrated switch and multi-gigabit Ethernet gateway.
The UISP® Console is designed to support small to moderate UISP deployments with its built-in switch equipped with (8) GbE RJ45 LAN ports. The UISP Console also serves as a high-performance gateway with (1) 10G SFP+ LAN port and (2) WAN ports (10G SFP+ and GbE RJ45) that provide an ample connectivity range capable of supporting the most data-intensive deployments.
Features:
- (2) 10G SFP+ ports
- (9) GbE RJ45 ports
- Powered by an external AC/DC adapter (included)
- Compact, durable metal casing
- 1U rack or wall-mountable (kits included)
- Easy, Bluetooth-powered setup via the UISP Mobile app
- Pre-installed UISP application
General Information
- Manufacturer: Ubiquiti Inc.
- Manufacturer Part Number: UISP-Console
- Brand Name: Ubiquiti
- Product Line: UISP
- Product Name: UISP Console
- Product Type: Ethernet Switch
Interfaces/Ports
- Total Number of Network Ports: 8
- Network (RJ-45): Yes
- Modular: Yes
- Port/Expansion Slot Details:
- 8 x Gigabit Ethernet Network
- 1 x 10 Gigabit Ethernet Expansion Slot
Media & Performance
- Media Type Supported:
- Twisted Pair
- Optical Fiber
- Ethernet Technology:
- Gigabit Ethernet
- 10 Gigabit Ethernet
- Network Technology:
- 1000Base-T
- 10GBase-X
I/O Expansions
- Total Number of Expansion Slots: 1
- Expansion Slot Type: SFP+
- Number of SFP+ Slots: 1
Network & Communication
- Layer Supported: 2
Management & Protocols
- Manageable: Yes
Power Description
- Input Voltage:
- 24 V DC
- 28 V DC
- Power Source:
- AC/DC
- Power Adapter
- Power Consumption: 30 W
Physical Characteristics
- Product Material:
- Metal
- Steel
- Polycarbonate
- Compatible Rack Unit: 1U
- Form Factor:
- Rack-mountable
- Wall Mountable
- Compact
- Height: 1.7"
- Width: 8.3"
- Depth: 5.5"
- Weight (Approximate): 3.31 lb
Miscellaneous
- Package Contents:
- UISP Console
- 24V DC, 2.5A Power Adapter
- Rack or Wall-mountable Kits
