Overview
In the Box:
(1) Door Hub
(1) G2 Reader
(10) Access Cards
Door Hub
Dimensions:
174.9 x 126 x 32.9 mm (6.9 x 5 x 1.3")
Supported Doors:
1
Input Terminals:
(2) Door exit request
(1) Door position
(1) Emergency
Power Method:
PoE++
UL 294 Power-limited Class 2 PSU
UL 60950-1/62368-1 LPS/PS2 PSU
Weight:
363 g (12.8 oz)
Enclosure / Mount Material:
Polycarbonate
Mounting:
DIN-rail (Included)
Ambient Operating Temp:
0 to 40° C (32 to 104° F)
Ambient Operating Humidity:
5 to 95% noncondensing
Networking Interface:
(5) 10/100/1000 Base-T
PoE Interface:
(1) PoE++ input, 50V DC, 1A
(4) PoE outputs, 50V DC, 15.4W/port (Max. 28W aggregated)
Max Power Consumption:
30W (without PoE output)
50W (with PoE output)
Digital Input:
Request to exit, enter, remote release, door position sensor
Dry Output Relay:
Lock: 30V DC, 1A
Aux: 30V DC, 1A
Powered Output Relay:
Lock: 12V DC, 1A
Aux: 12V DC, 0.33A
LEDs:
White/Blue
Button:
(1) Factory-reset
Recommended Max Cable Lengths:
UA-Lock-Electric (400mA):
24 AWG: 25 m (82 ft)
22 AWG: 42 m (138 ft)
20 AWG: 66 m (217 ft)
18 AWG: 100 m (328 ft)
UA-Lock-Magnetic-540kg (500mA):
24 AWG: 20 m (66 ft)
22 AWG: 32 m (105 ft)
20 AWG: 51 m (167 ft)
18 AWG: 80 m (262 ft)
UA-Lock-Magnetic-270kg (800mA):
24 AWG: 12 m (29 ft)
22 AWG: 20 m (98 ft)
20 AWG: 30 m (167 ft)
18 AWG: 46 m (151 ft)
Other locks (1A):
24 AWG: 9 m (30 ft)
22 AWG: 15 m (49 ft)
20 AWG: 24 m (79 ft)
18 AWG: 36 m (118 ft)
PoE Cabling Requirements:
Cat 5e or better; min. 26 AWG (patch cords), 24 AWG (horizontal/riser cable)
UL 294 Level:
Destructive attack, line security, endurance, standby power: Level I
UL 294 Statement:
Compliance with IEEE 802.3 not verified as part of UL 294.
Follows NEC ANSI/NFPA 70, Article 725.121.
CAN/ULC-60839-11-1 Grade:
Grade 1
Certifications:
CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
NDAA Compliant: Yes
Document Number:
UA-Hub-Door002, V01
G2 Reader
Dimensions:
93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4")
NFC Card & Keyfob Access:
Yes
Mobile Unlock / Handwave Request to Exit:
Yes
Weatherproofing:
IP55
Weight:
82 g (2.9 oz)
Enclosure Material:
Polycarbonate, glass
Mount Material:
Aluminum alloy
Mounting:
In-wall, gang box (Included)
Junction box (Optional)
Indoor/Outdoor Use:
Yes
Ambient Operating Temp:
-30 to 45° C (-22 to 113° F)
Ambient Operating Humidity:
5 to 90% noncondensing
Networking Interface:
(1) 10/100 MbE RJ45 port
Connectivity:
BLE 4.1, NFC
Power Method:
PoE
UL 294 Power-limited Class 2 PSU
UL 60950-1/62368-1 LPS/PS2 PSU
Max Power Consumption:
5W
Supported Voltage Range: 48V DC
ESD/EMP Protection:
Air: ±15kV, Contact: ±8kV
Sensors:
Proximity sensor
Speaker:
Yes, 0.7W
LEDs:
R/G/B/W
Button:
(1) Factory-reset
NFC:
Read Range: < 30 mm (1.18")
Frequency: 13.56 MHz
Technology: ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
MIFARE Classic / MIFARE DESFIRE
Sony FeliCa™ (ID only)
NFC Forum tags T1T–T5T
UL 294 Level:
Destructive attack, line security, endurance, standby power: Level I
UL 294 Statement:
Compliance with IEEE 802.3 not verified as part of UL 294.
Follows NEC ANSI/NFPA 70, Article 725.121.
CAN/ULC-60839-11-1 Grade:
Grade I
Certifications:
CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
NDAA Compliant: Yes
Document Number:
UA-G2/UA-G2-Black, V02

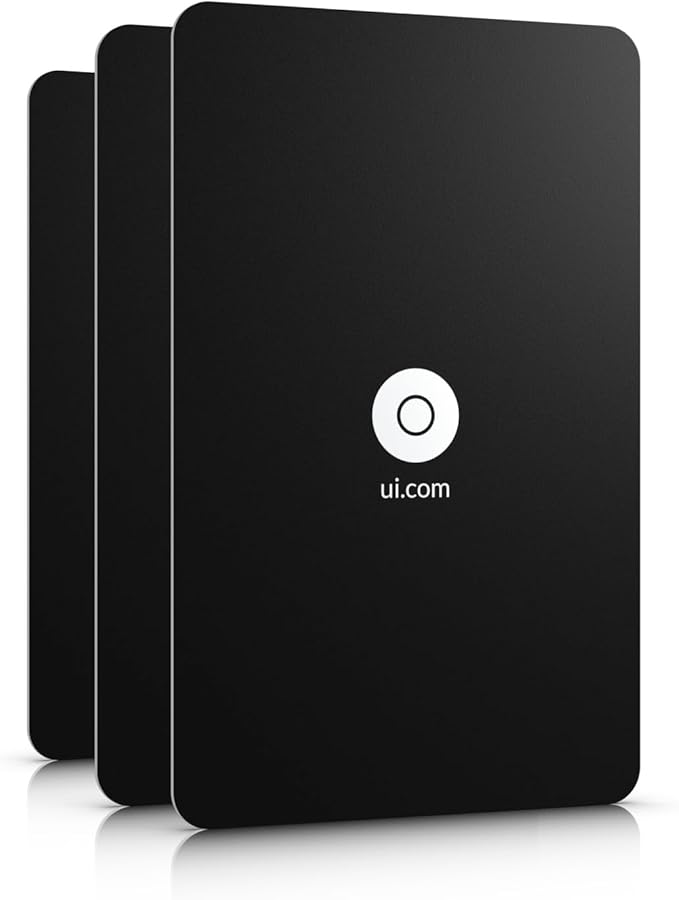

Access Card
Dimensions:
85.6 x 53.98 x 0.84 mm (3.37 x 2.13 x 0.03")
Weight:
5 g (0.18 oz)
Format:
ISO 7810 ID-1
NFC:
Frequency: 13.56 MHz
Technology: ISO/IEC 14443 Type A
MIFARE DESFire
UniFi Access Proprietary Security Protocol
NDAA Compliant:
Yes
