Surface-Mount Junction Box That Adds Housing Depth and Conduit Access to UniFi Access Reader Installations

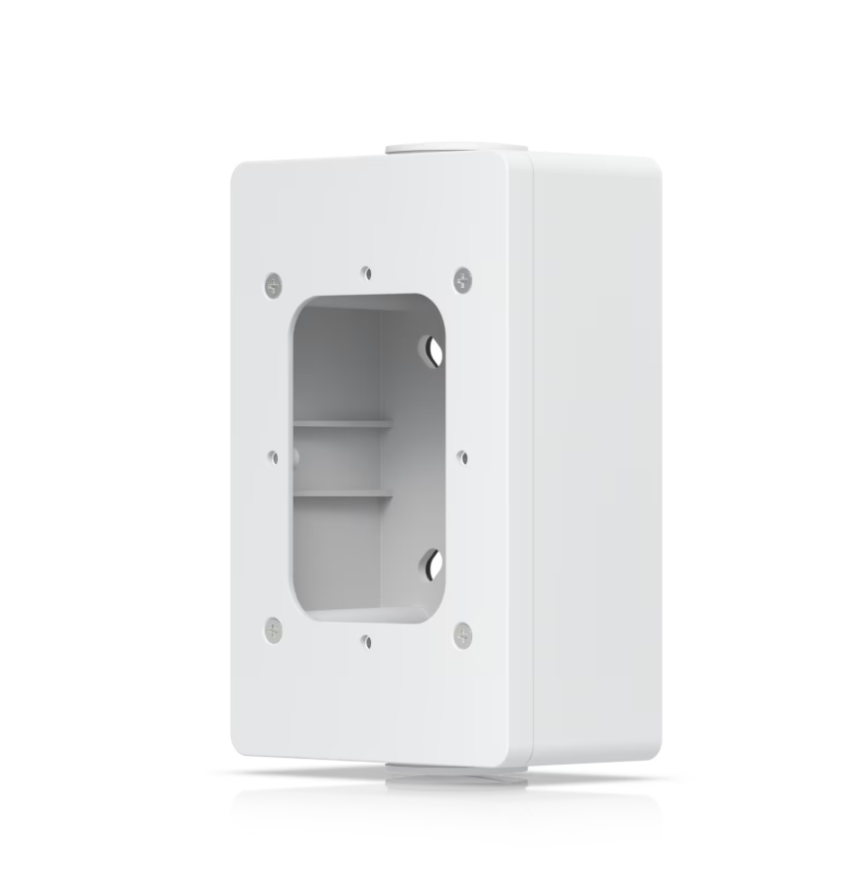

The Ubiquiti UniFi Access Reader Junction Box (UACC-Reader-JB) is a polycarbonate mounting enclosure designed for UniFi Access Readers and Intercom Viewers. It provides additional housing depth for cable management behind the reader, accepts 3/4-inch conduit connections for code-compliant wiring, and supports both flat wall and VESA mounting. Available in black and white to match reader and door frame finishes.
Access reader installations often require more depth behind the device than a standard gang box provides, particularly when conduit runs terminate at the reader location. The UACC-Reader-JB is sized and patterned specifically for UniFi Access hardware, eliminating the need to adapt generic electrical boxes or modify mounting surfaces to fit the reader footprint.
Where the Reader Junction Box Fits
- Commercial door access installations where local electrical code requires conduit connections at every device location and a flush-mounted reader needs concealed cable routing behind the faceplate
- Intercom Viewer deployments where the wall surface is concrete, brick, or masonry and the junction box provides a level mounting plane plus depth for cable slack without chasing into the wall
- Retrofit installations on existing buildings where surface-run conduit needs a clean termination point at the reader location without cutting into finished walls or door frames
What the Reader Junction Box Delivers
- Purpose-built for UniFi Access hardware: Mounting pattern matches UniFi Access Readers and Intercom Viewers directly. No adapter plates or modifications required.
- 3/4-inch conduit entry: Standard conduit knockout accepts 3/4-inch fittings for code-compliant installations. Keeps wiring concealed from the conduit run to the reader.
- Wall and VESA mounting: Mounts directly to flat surfaces or any standard VESA-compatible mount point for flexible placement near doors and entry points.
- Compact polycarbonate enclosure: 145 x 88 x 50 mm. Adds just 2 inches of depth behind the reader while providing full cable management space and weather-resistant sealing.
