50 Ohm Indoor Wall Mount Antenna with 8 dBi Gain, Band 71 Support, and All Worldwide Cellular Bands

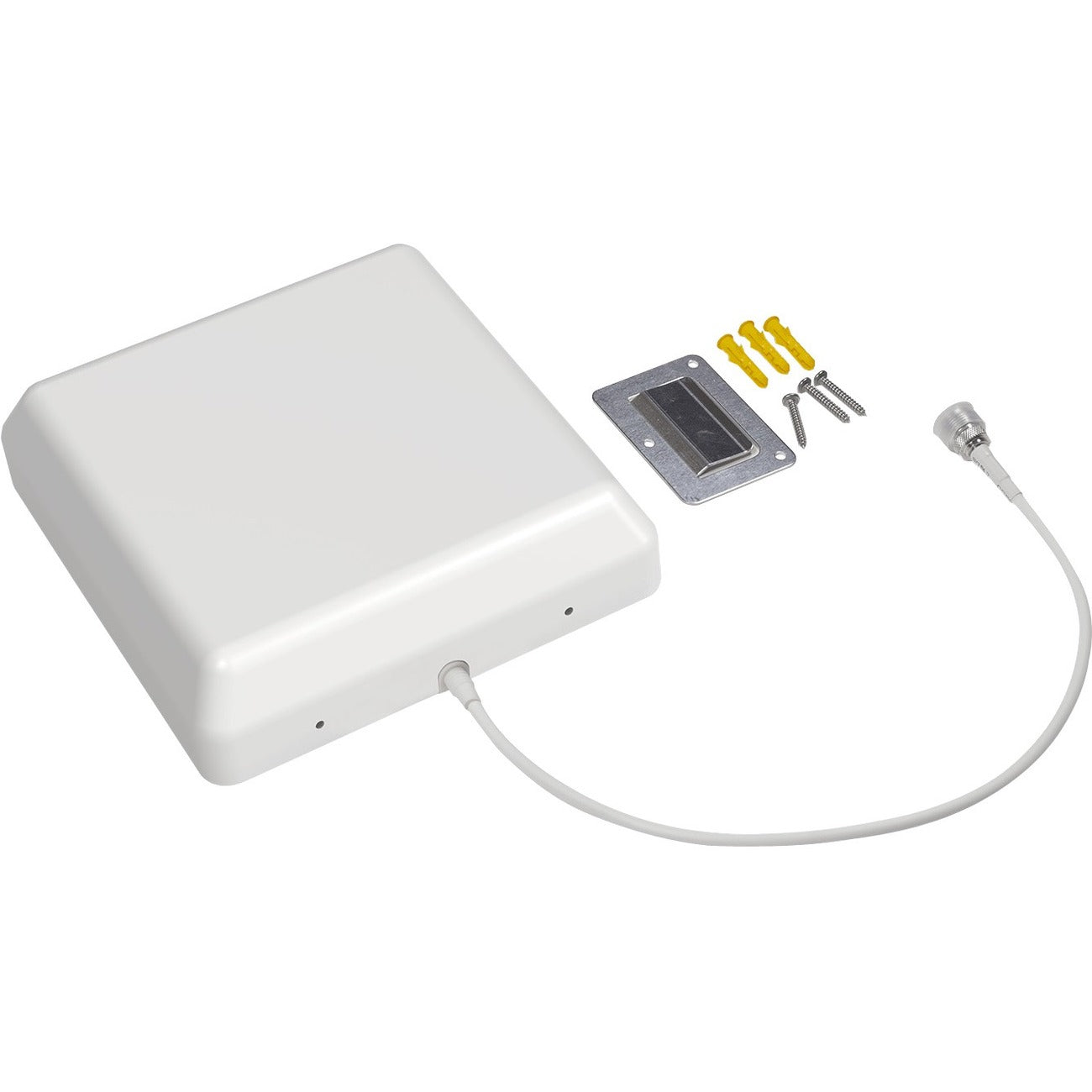

The WilsonPro 311234 is a 50 Ohm indoor wall mount antenna designed for WilsonPro commercial cell signal booster systems. The 8 dBi gain across 617 MHz to 960 MHz and 1710 MHz to 2700 MHz delivers focused indoor coverage with Band 71 support for the latest low-band cellular frequencies. The N-connector provides a secure connection to compatible WilsonPro boosters, and the compact wall mount design keeps a low profile in commercial environments.
Supports all worldwide cellular bands for voice and 4G data including LTE, CDMA, GSM, UMTS, and AWS. Made in the United States. The simple install kit includes a wall mount bracket with hardware. Dimensions: 6.60" x 6.20" x 1.80". 1.32 lb. 2-year limited warranty.
Where the WilsonPro 311234 Fits
- Commercial buildings with WilsonPro 50 Ohm booster systems that need an indoor broadcast antenna with Band 71 support where the 617-2700 MHz range covers all cellular frequencies including low-band 5G for maximum device compatibility
- Offices, conference rooms, and retail spaces where a low-profile indoor antenna needs to blend into the environment where the compact 6.60" x 6.20" x 1.80" form factor mounts flush to the wall without obstructing workspace
- Installers building out WilsonPro commercial booster networks who need a 50 Ohm indoor antenna with standard N-connector where the included wall mount bracket and hardware provide a clean, professional installation
What the WilsonPro 311234 Delivers
- 8 dBi Gain with Band 71: 617 MHz to 2700 MHz dual-band coverage supports all worldwide cellular bands including low-band 5G.
- 50 Ohm Impedance: Matched for WilsonPro commercial booster systems with N-connector interface.
- All Cellular Bands: Works with LTE, CDMA, GSM, UMTS, and AWS for voice and 4G data on any carrier.

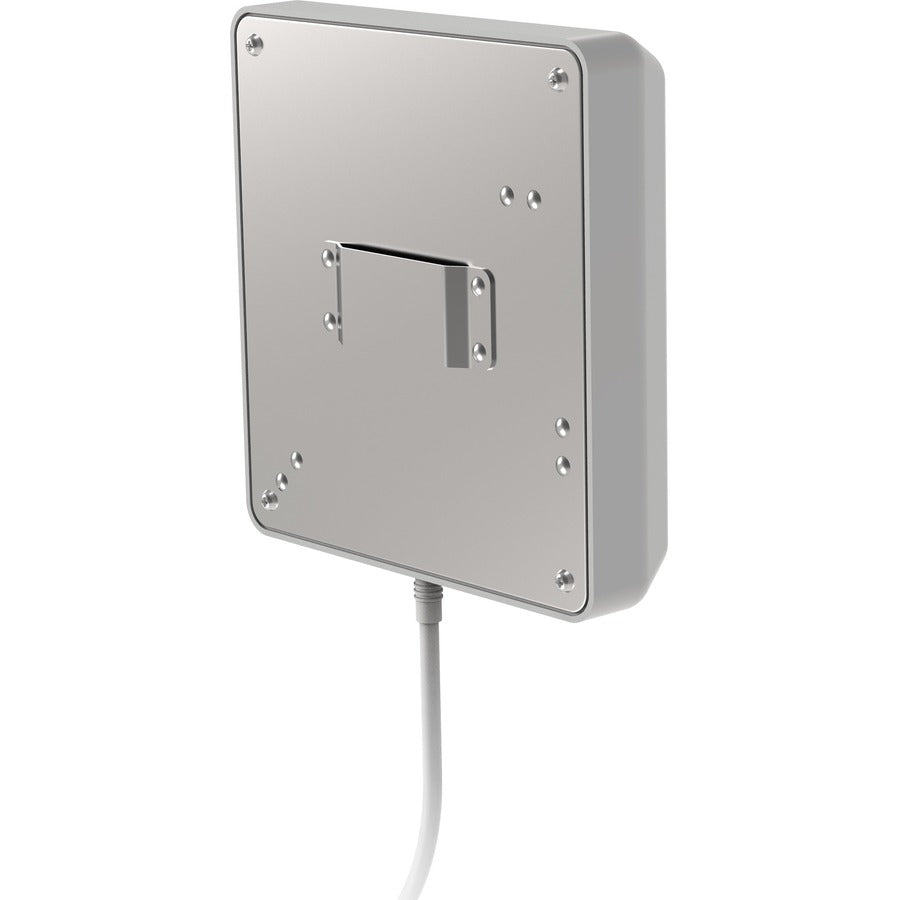

- Compact Wall Mount: 6.60" x 6.20" x 1.80" at 1.32 lb with included bracket and hardware. Made in USA.
- 2-Year Warranty: WilsonPro 311234 backed by a 2-year limited warranty from Wilson Electronics.
