2-Way Coaxial PoE Ceiling Speaker with 5.7-Inch Woofer, 1.1-Inch Tweeter, Dante-Ready Audio Networking, 88dB Sensitivity, and Paintable Magnetic Grille for Conference Room Installations

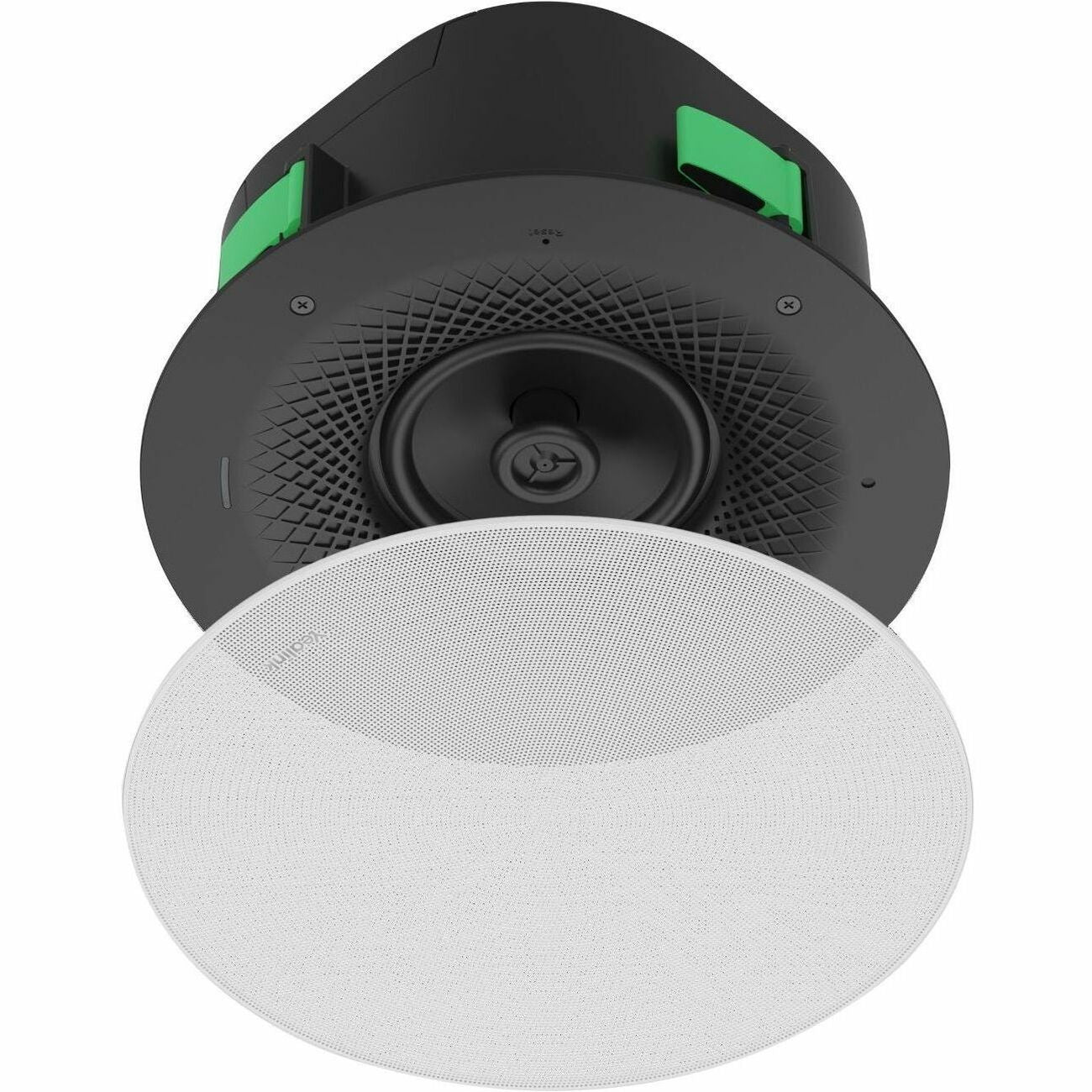

The Yealink SkySound CS10 (1303094) is a 2-way coaxial PoE ceiling speaker that delivers high-fidelity conference room audio through a 5.7-inch woofer and 1.1-inch tweeter with 88dB sensitivity and a frequency range of 100 Hz to 20 kHz. The CS10 is an active speaker with an integrated DAC that processes digital audio directly from the network, and powers through PoE or PoE+ for single-cable installation from the network switch to the ceiling mount position.
Available in both Dante-enabled and standard versions, the CS10 integrates into existing Dante audio networks for multi-zone and multi-room conferencing deployments, or operates as a standalone network speaker connected directly to a PoE switch. The low-profile design at 120mm height with an 11.3-inch diameter fits flush into standard ceiling grids and drop ceilings, and the paintable magnetic grille ships ready to match any interior finish.
Where the CS10 Fits

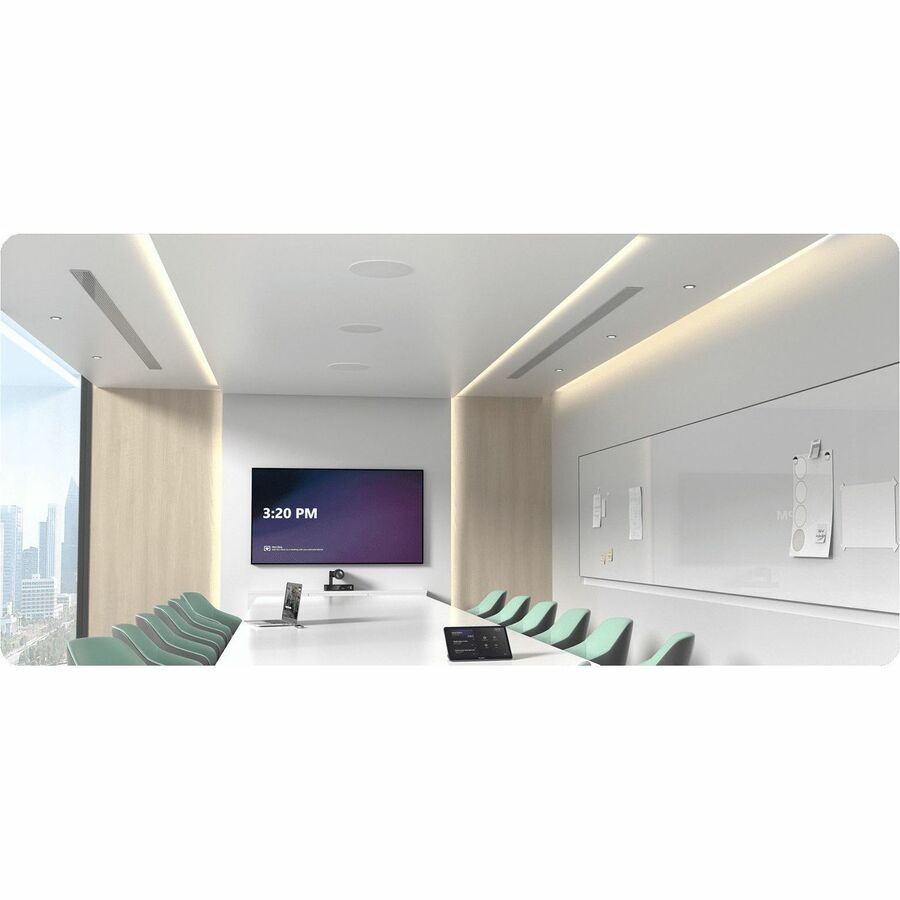

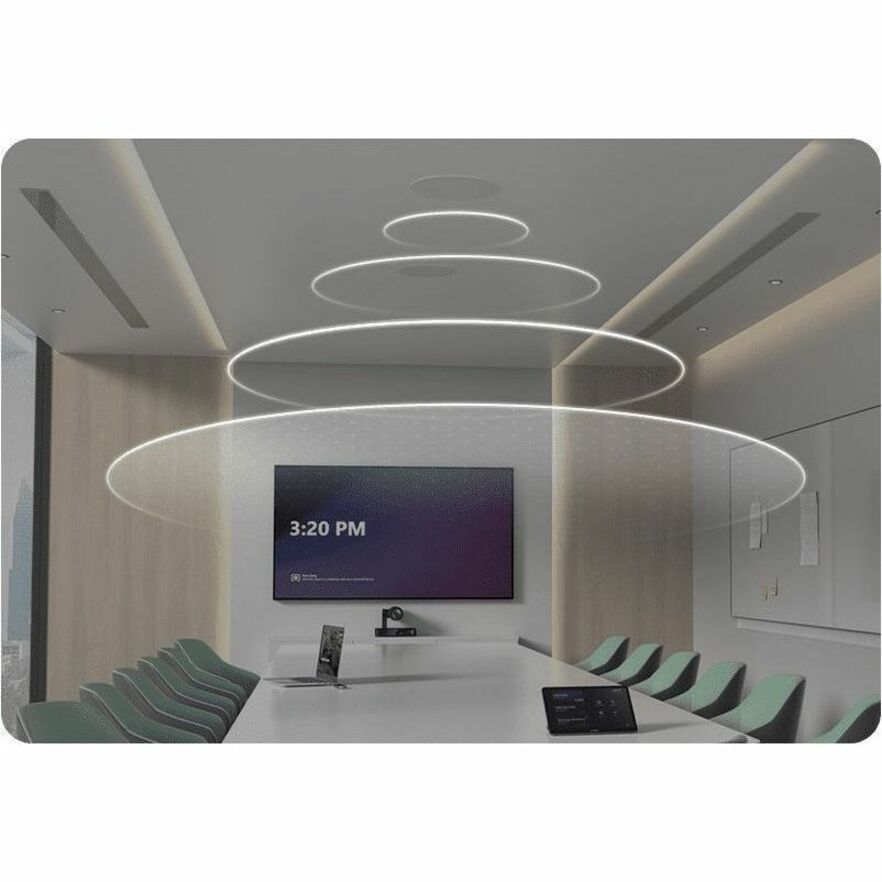

- Mid-size conference and meeting rooms where ceiling-mounted speakers deliver even audio coverage without taking desk or wall space, PoE installation eliminates separate power runs, and the 99dB max SPL fills rooms with clear voice reproduction for video conferencing

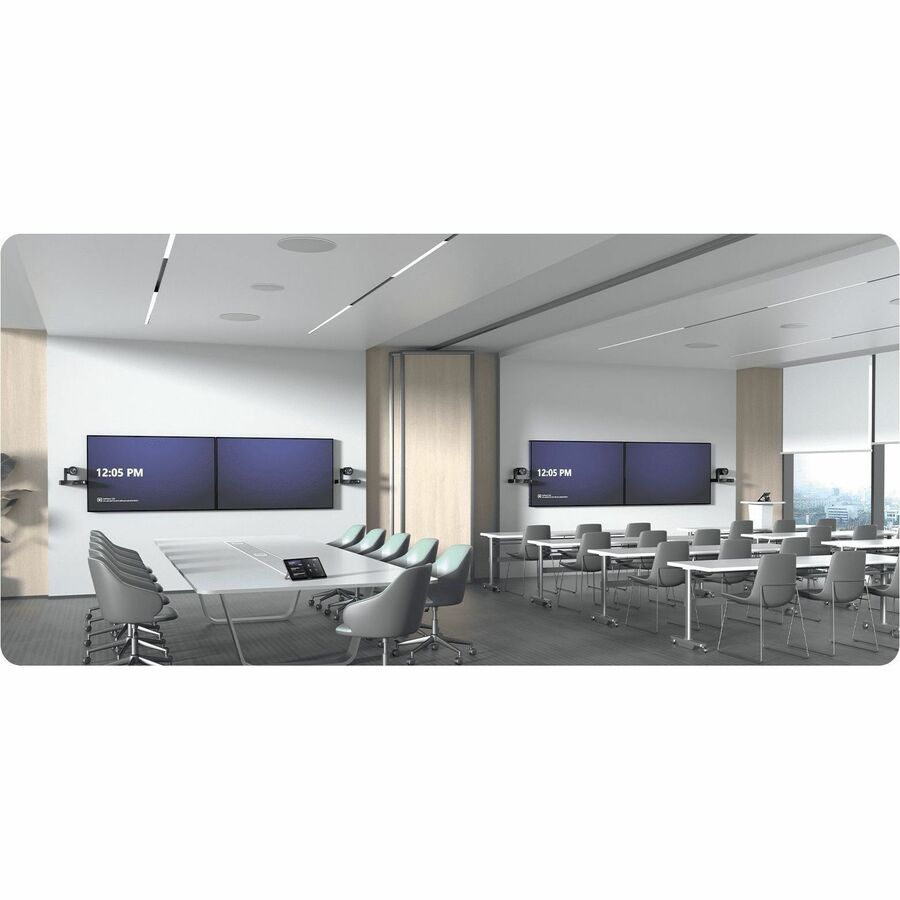

- Dante-networked audio environments where the Dante-ready version connects into enterprise audio distribution systems for multi-room conferencing, background music, and paging across facilities, all managed and routed through standard Ethernet infrastructure

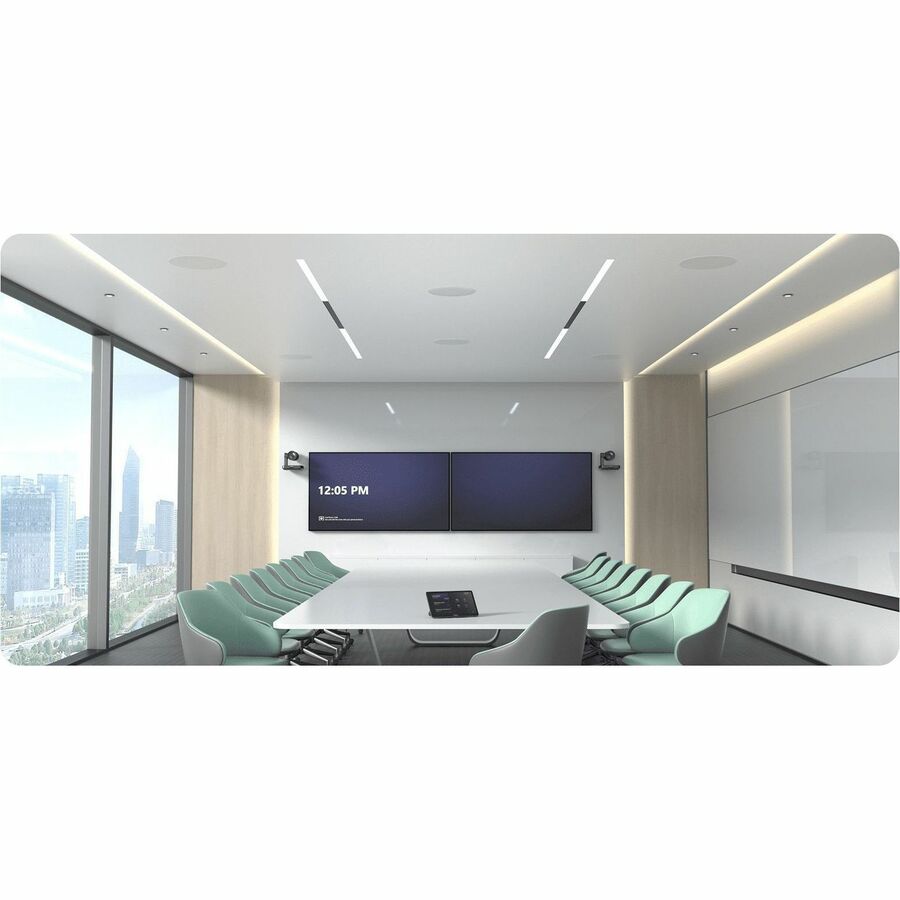

- Architect-designed and executive spaces where the low-profile 120mm ceiling mount disappears into the ceiling plane, the paintable magnetic grille matches any interior color scheme, and the coaxial driver design provides consistent audio dispersion from a single ceiling point
What the CS10 Delivers

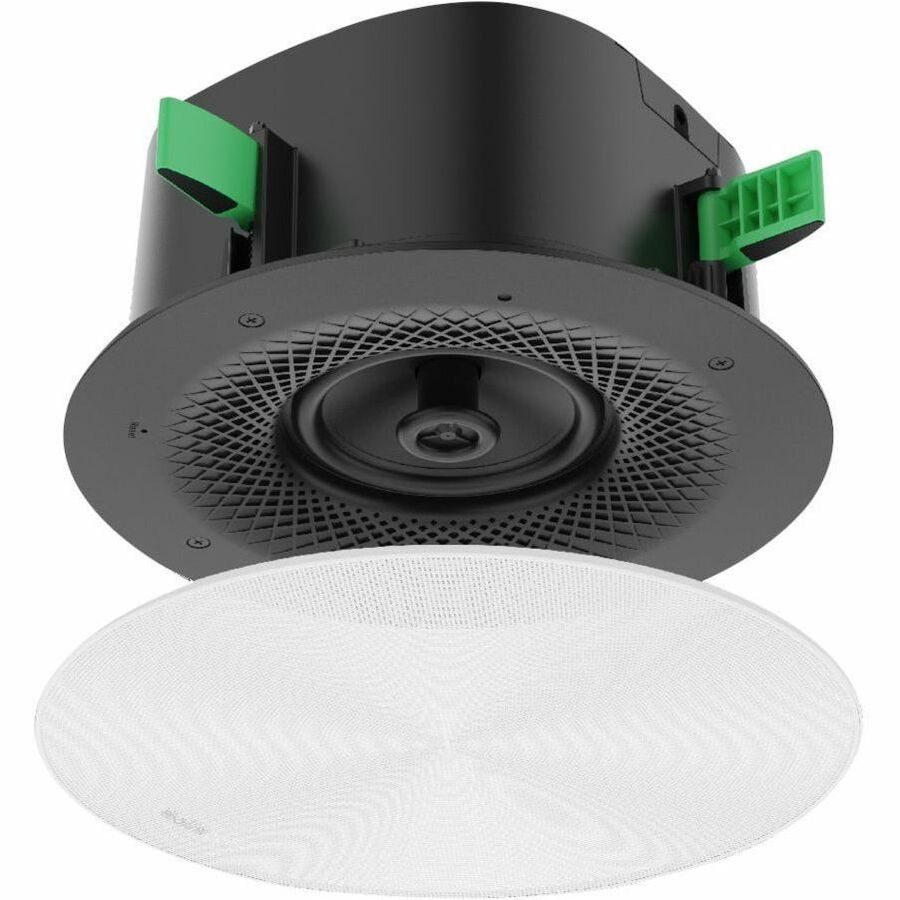

- 2-Way Coaxial Driver Design: 5.7-inch woofer and 1.1-inch tweeter in a coaxial configuration deliver 100 Hz to 20 kHz frequency response with 88dB sensitivity from a single ceiling point. 99dB maximum SPL at 20W ensures clear, room-filling audio for voice and video conferencing.
- PoE-Powered Active Speaker with DAC: Integrated digital-to-analog converter processes network audio directly, while PoE or PoE+ powering delivers both signal and power through a single Ethernet cable for simplified ceiling installation without separate amplifier or power runs.
- Dante-Ready Audio Networking: Available in Dante-enabled and standard versions for integration into professional audio distribution networks. Dante support enables multi-zone routing, low-latency digital audio transport, and centralized management across enterprise installations.

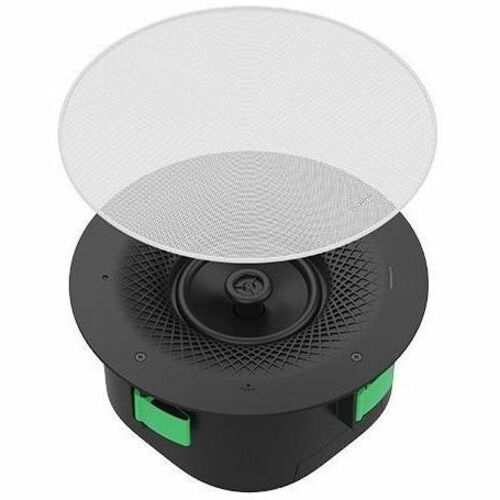

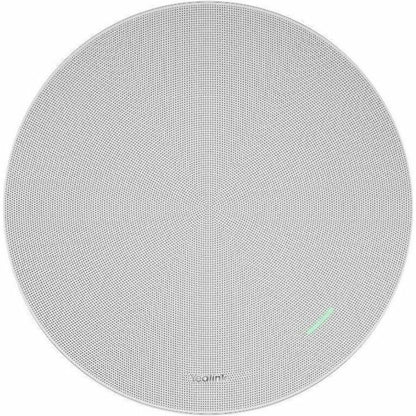

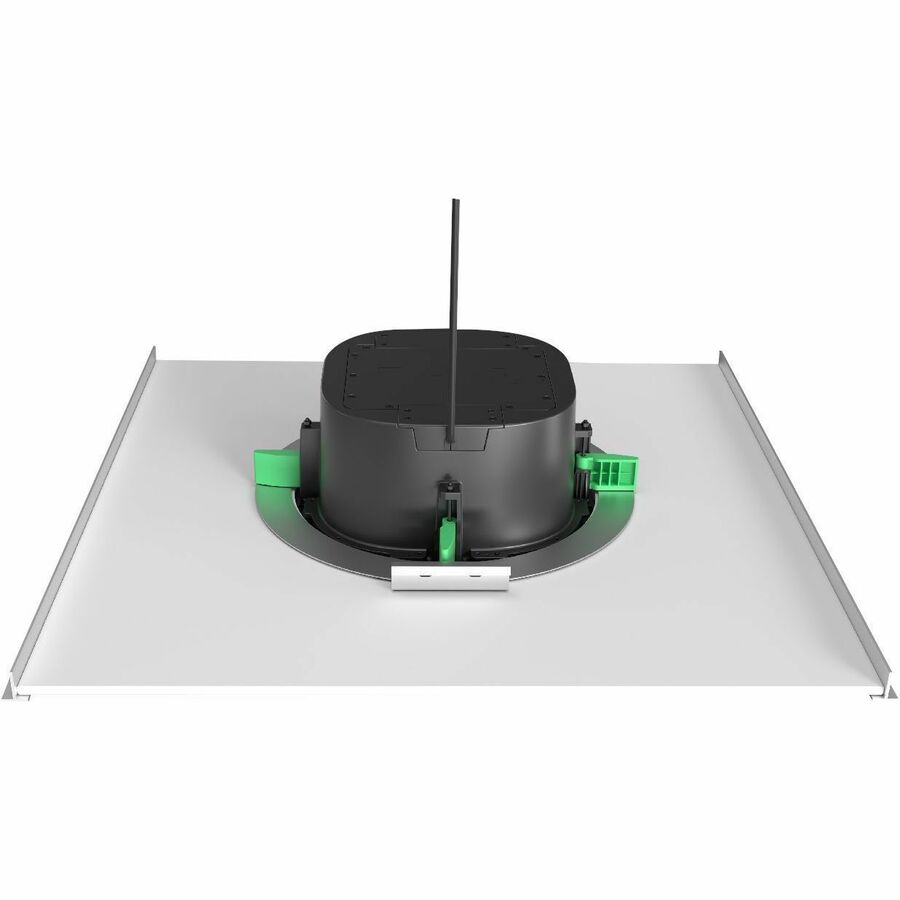

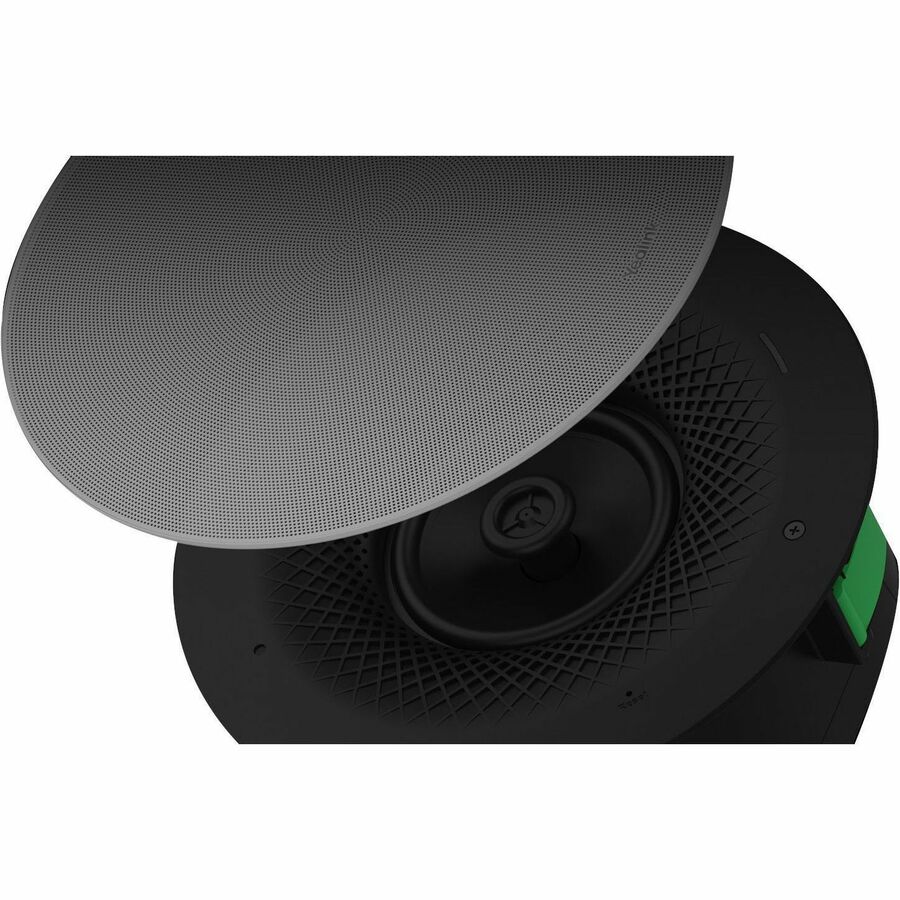

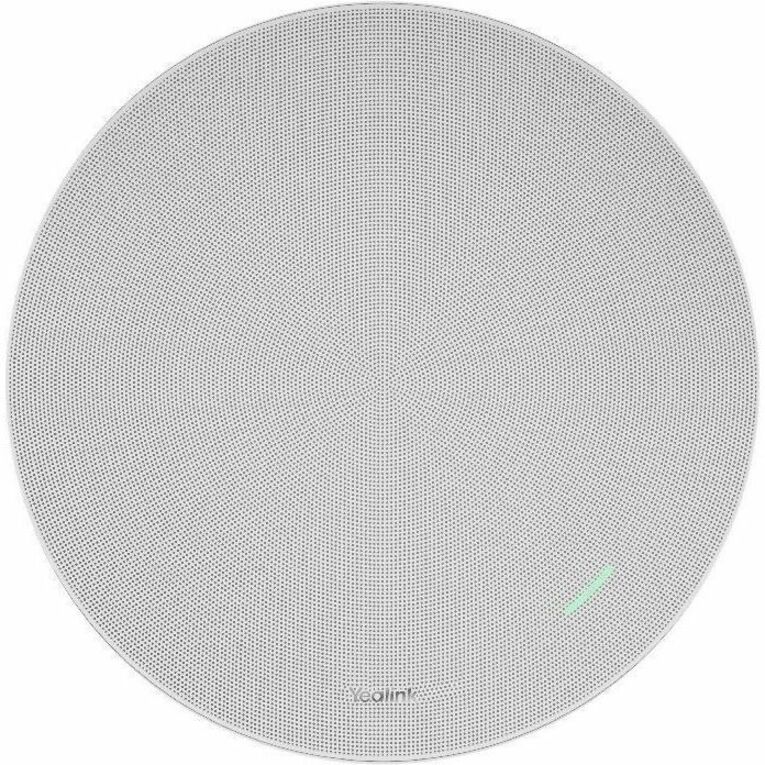

- Low-Profile Ceiling Mount Design: 120mm (4.9-inch) height with 11.3-inch diameter fits flush into standard ceiling grids. Paintable magnetic grille in white adapts to any interior design, and the included assembly bracket, bracing bridge, and dust cover simplify installation across various ceiling types.
