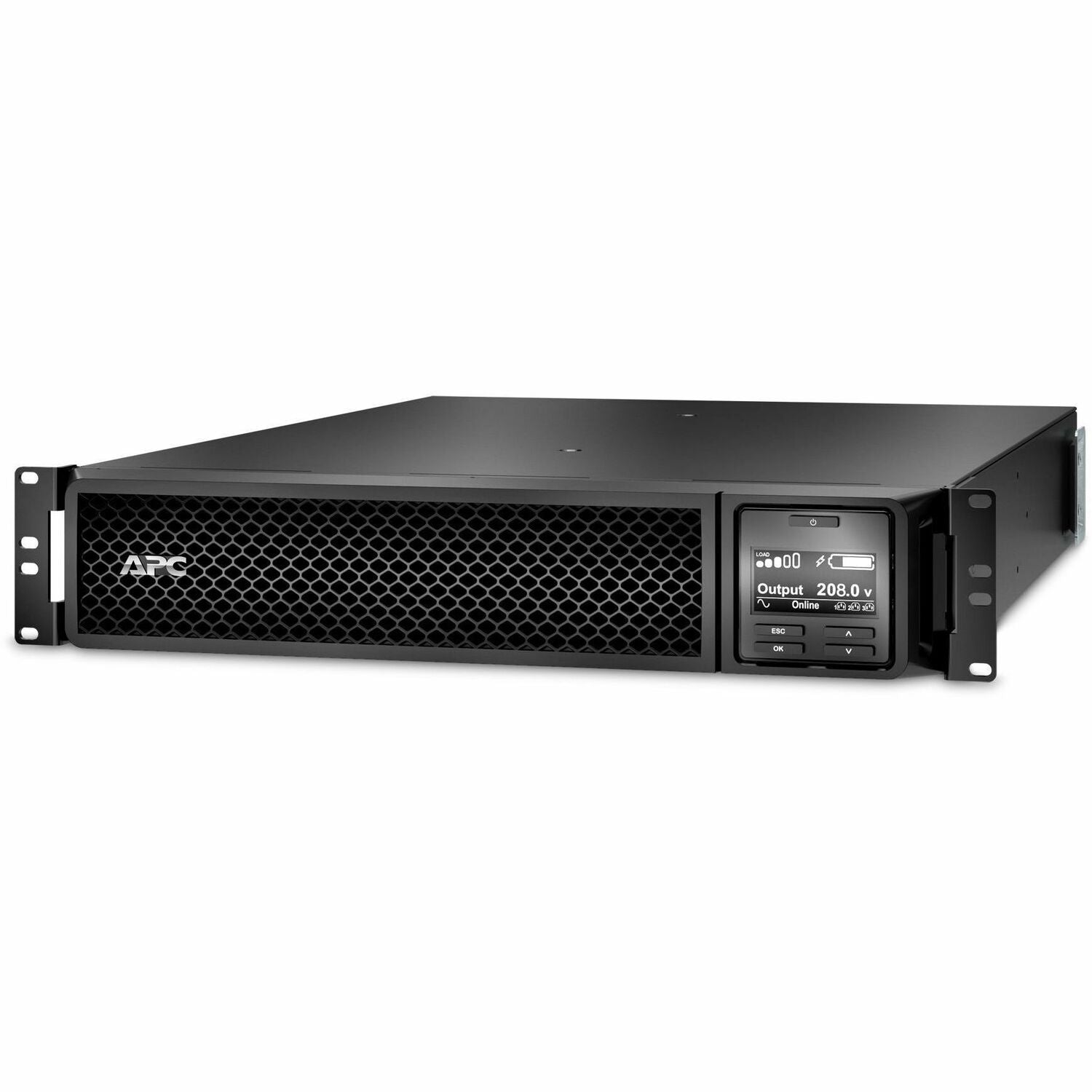

APC Smart-UPS On-Line, 3kVA, Rackmount 2U, 208V, 2x L6-20R+1x L6-30R NEMA outlets, SmartSlot, Extended runtime, W/ rail kit - SRT3000RMXLT
Key Features
- 3kVA/2.7kW double-conversion on-line pure sine wave 2U rackmount UPS
- Add up to 10 external battery packs (SRT96RMBP) for extended runtime
- Delivers clean power with zero transfer time for critical or sensitive devices
- Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
- Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications
- Rack/Tower convertible (rail kit included)
Product Overview
This product is part of the Smart-UPS On-Line range that provides high density, true double-conversion on-line power protection. This 3000VA/2700W On-line pure sine wave UPS provides scalable runtime while minimizing maintenance. The 2U rack/tower convertible SRT is external battery compatible for more runtime during prolonged outages. The UPS has an optional Network Management Card for network-based monitoring and PowerChute Business Edition for unattended shutdown. It comes with NEMA L6-20P input, 1x NEMA L6-30R and 2x NEMA L6-20R outlets. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. Its dimensions are 635mm (depth) x 85mm (height) x 432mm (width) and weighs 31.30kg. Ideal for servers, voice/data networks, medical labs, and light industrial applications. It conforms to CSA C22.2 No 107.3-05, ENERGY STAR V2.0 (USA), FCC part 15 class A, OSHPD, UL 1778. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
General Information
- Manufacturer: Schneider Electric SA
- Manufacturer Part Number: SRT3000RMXLT
- Brand Name: APC by Schneider Electric
- Product Line: Smart-UPS On-Line
- Product Name: Smart-UPS SRT 3000VA RM 208V
- Product Type: Double Conversion Online UPS
Technical Information
- Plug/Connector Type: NEMA L6-20P
- Receptacle Type: NEMA L6-20P
- Receptacle Detail:
- 1 x NEMA L6-30R
- 2 x NEMA L6-20R
- Number of Battery & Surge Outlets: 3
- Cord Length: 10.01 ft
- Phase: Single Phase
Power Description
- Load Capacity (VA): 3000 VA
- Load Capacity (Watt): 2700 W
- Input Voltage: 208 V AC
- Output Voltage: 208 V AC
- Waveform Type: Sine Wave
- Surge Energy Rating: 340 J
Battery Information
- Battery Chemistry: Lead Acid
- Backup/Run Time (Full Load): 4 Minute
- Typical Battery Recharge Time: 3 Hour
Physical Characteristics
- Product Color: Black
- Height: 3.3"
- Width: 17"
- Depth: 25"
- Rack Height: 2U
- Form Factor: Rack-mountable
- Weight (Approximate): 69 lb
Miscellaneous
- Package Contents:
- Smart-UPS SRT 3000VA RM 208V
- CD with software
- Documentation CD
- Installation guide
- Rack mounting brackets
- Rack mounting hardware
- Rack mounting support rails
- USB cable
- Warranty card
- Software Included: Powerchute Serial Edition
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 3 Year
- Additional Warranty Information: UPS: 36 month(s)|Battery: 24 month(s)
