CyberPower AVRG750LCD Intelligent LCD UPS Systems - AVRG750LCD
Key Features
- $150,000
- 12 (6 surge, 6 surge + battery backup)
- 120 VAC ± 5%
- 3 year
- 750 VA / 450 W
- Capacity:
- Connected Equipment Guarantee:
- Data line protection:
- Line Interactive
- Management software:
- NEMA 5-15P, 5 ft. cord
- Outlets:
- Output:
- Plug type & cord:
- PowerPanel® Personal
- Simulated Sine Wave
- Telephone
- Topology:
- Warranty:
- Waveform:

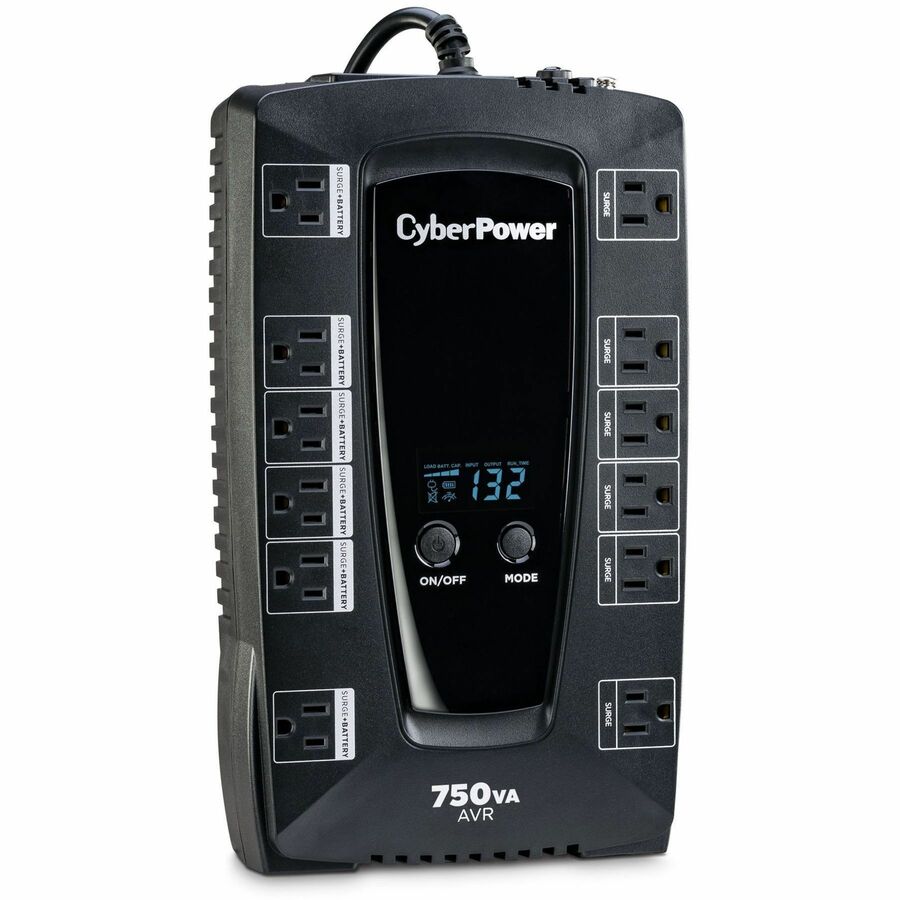

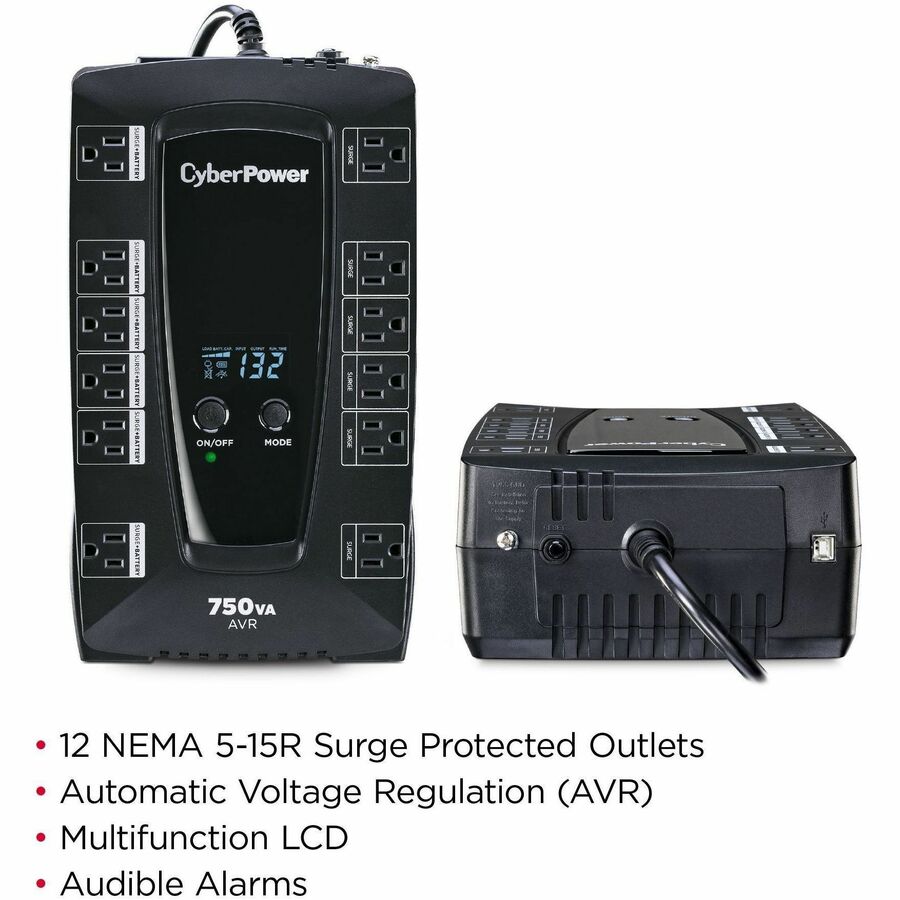

Product Overview
A compact UPS with line interactive topology, the CyberPower AVRG750LCD provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. The AVRG750LCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The AVRG750LCD comes with a three-year warranty (including coverage of batteries) and a ,150,000 Connected Equipment Guarantee.
General Information
- Manufacturer: CyberPower Systems, Inc
- Manufacturer Part Number: AVRG750LCD
- Brand Name: CyberPower
- Product Series: Intelligent LCD UPS
- Product Model: AVRG750LCD
- Product Name: AVRG750LCD Intelligent LCD UPS Systems
- Product Type: Line-interactive UPS
Technical Information
- AVR: Yes
- AVR Range: Boost +10% / Buck -10%
- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15R
- Receptacle Detail: 12 x NEMA 5-15R
- Number of Battery & Surge Outlets: 6
- Number of Surge-only Outlets: 6
- Dataline Protection: RJ-11
- EMI/RFI Noise Filter: Yes
- Energy Saving: GreenPower UPS™ Bypass Design
- Application/Usage:
- Desktop Computer
- Workstation
- Home Theater
- Personal Electronic
- Home Network
- Router
- Modem
- VoIP Phone System
Power Description
- Load Capacity (VA): 750 VA
- Load Capacity (Watt): 450 W
- Input Voltage: 120 V AC
- Input Voltage Range: 90 V AC - 148 V AC
- Output Voltage: 120 V AC
- Input Frequency: 60 Hz
- Output Frequency: 60 Hz
- Waveform Type: Simulated Sine Wave
- Surge Energy Rating: 1030 J
Management
- Alarm:
- On Battery
- Low Battery
- Overload
- Fault

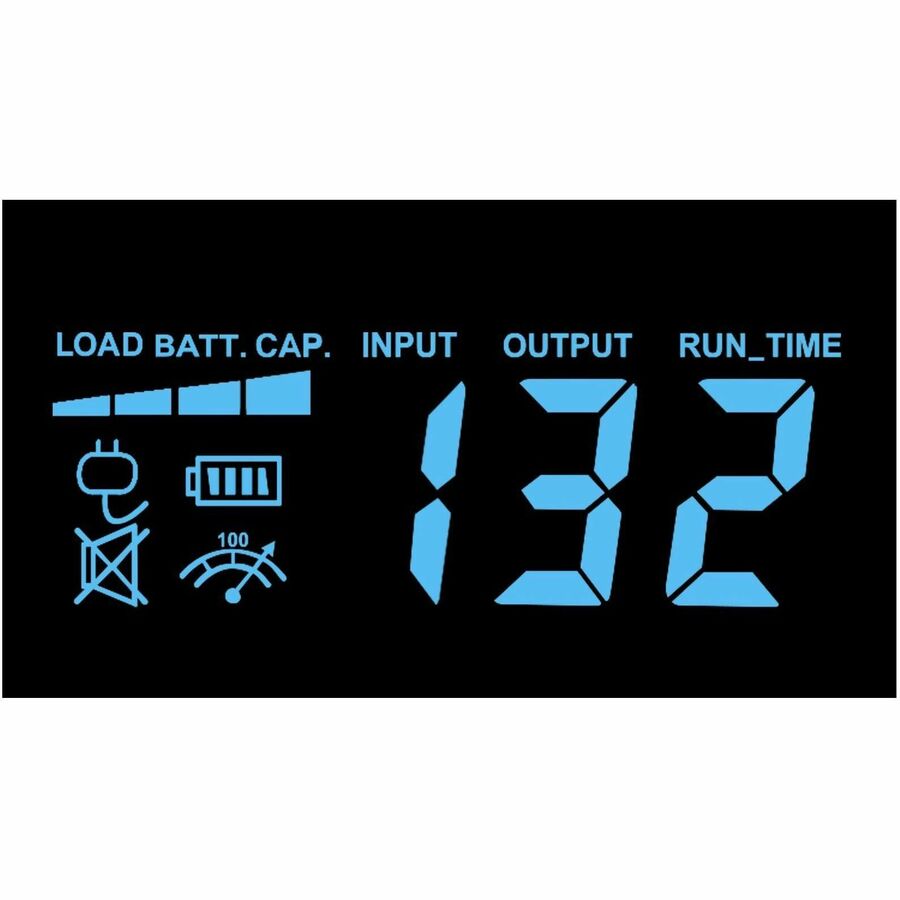

Controls/Indicators
- Status Indicators:
- Power On
- Wiring Fault

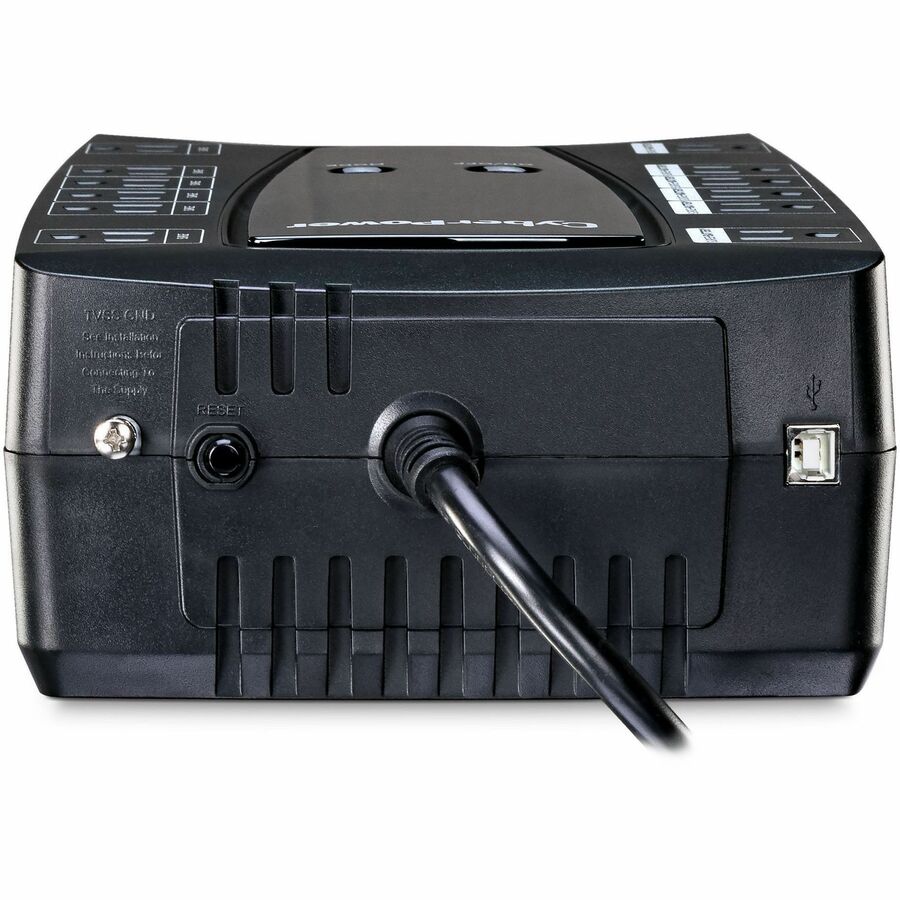

Interfaces/Ports
- USB: Yes
- USB (HID Compliant) Port: Yes
Battery Information
- Number of Batteries: 1
- Battery Characteristics: Maintenance-free
- Battery Chemistry: Lead Acid
- Battery Size: 12V
- Battery Capacity: 7000 mAh
- Backup/Run Time (Full Load): 2.50 Minute
- Backup/Run Time (Half Load): 7.60 Minute
- Hot Swappable: No
- Typical Battery Recharge Time: 8 Hour
- Replaceable Battery: Yes
Environmental Conditions
- Maximum Operating Elevation: 6562 ft
- Maximum Storage Elevation: 50000 ft
- Storage Temperature: 5°F (-15°C) - 113°F (45°C)
- Operating Humidity: 0% - 90%
- Maximum Operating Temperature: 104°F (40°C)
Physical Characteristics
- Height: 7"
- Width: 12.2"
- Depth: 3.5"
- Form Factor: Compact
- Weight (Approximate): 12.40 lb
Miscellaneous
- Package Contents:
- Intelligent LCD Series AVRG750LCD 750VA 450W UPS
- User Manual
- USB A+B Type Cable
- Warranty Registration Card
- Software Included: PowerPanel Personal Edition Software available for free download from cyberpowersystems.com
- Energy Star: No
- Country of Origin: China
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 3 Year
