- Description
- Specifications
CyberPower AVRG750U AVR UPS Systems - AVRG750U
Key Features
- $150,000
- 12 (6 surge, 6 surge + battery backup)
- 120 VAC ± 5%
- 3 year
- 750 VA / 450 W
- Capacity:
- Connected Equipment Guarantee:
- Data line protection:
- Energy Star Certified:
- Line Interactive
- Management software:
- NEMA 5-15P, 5 ft. cord
- Outlets:
- Output:
- Plug type & cord:
- PowerPanel® Personal
- Simulated Sine Wave
- Telephone
- Topology:
- Warranty:
- Waveform:
- Yes
Product Overview

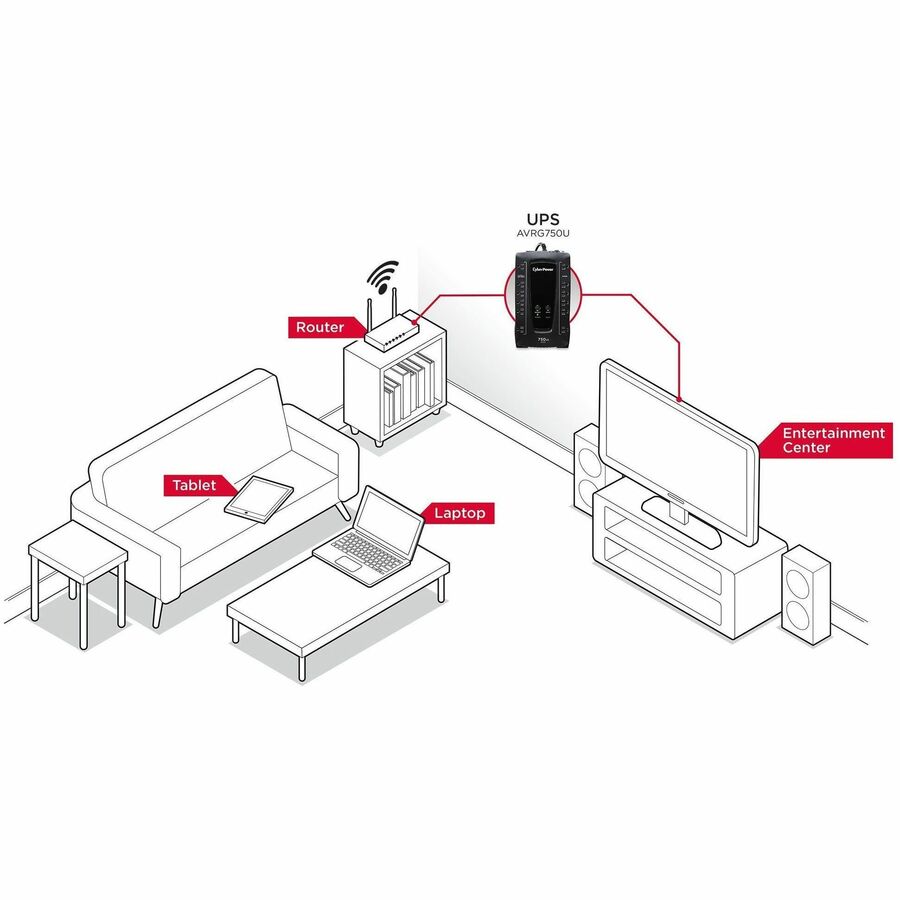

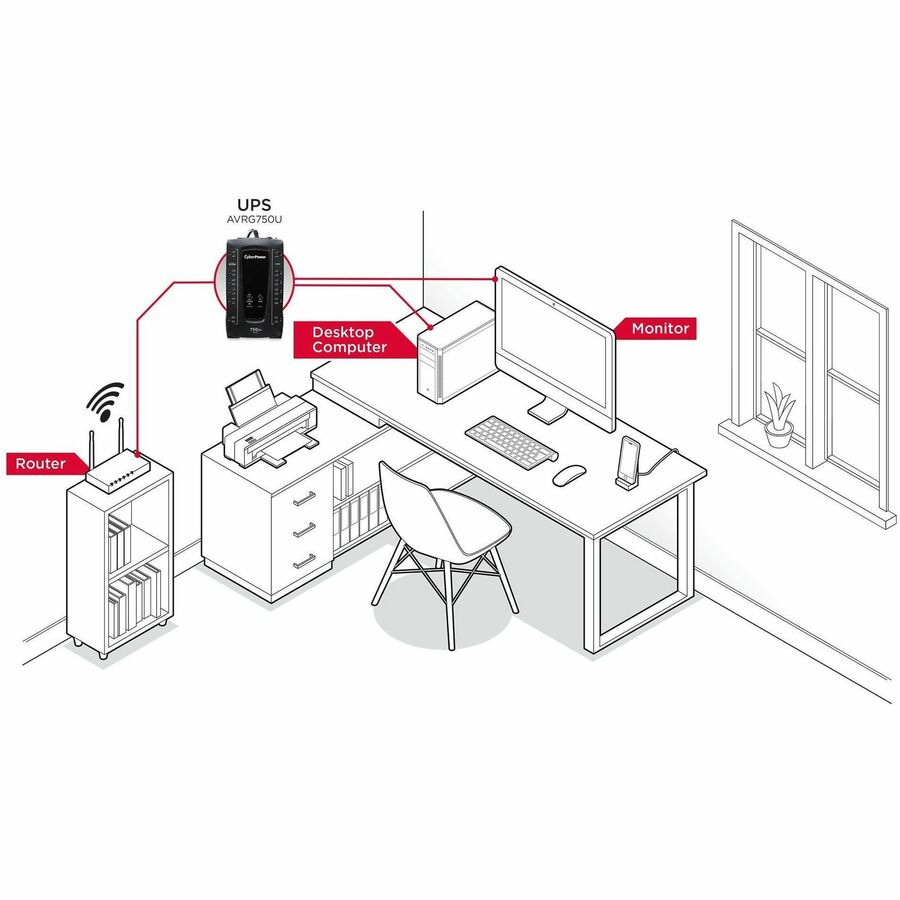

A compact UPS with line interactive topology, the CyberPower AVRG750U provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. The AVRG750U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The AVRG750U comes with a three-year warranty (including coverage of batteries) and a ,150,000 Connected Equipment Guarantee.
General Information
- Manufacturer: CyberPower Systems, Inc
- Manufacturer Part Number: AVRG750U
- Brand Name: CyberPower
- Product Series: AVR UPS
- Product Model: AVRG750U
- Product Name: AVRG750U AVR UPS Systems
- Product Type: Line-interactive UPS
Technical Information
- AVR: Yes
- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15R
- Receptacle Detail: 12 x NEMA 5-15R
- Number of Battery & Surge Outlets: 6
- Number of Surge-only Outlets: 6
- Dataline Protection: RJ-11
- Overload Protection: Yes
- Cord Length: 5 ft
- Transfer Time: 4 ms
- EMI/RFI Noise Filter: Yes
- Energy Saving: GreenPower UPS™ Bypass Technology
- Application/Usage:
- Desktop Computer
- Workstation
- Network Device
- Home Entertainment System
- Personal Electronic
- Home Network
- Router
- Modem
- VoIP Phone
- Surge Suppression: Yes
- Features: Audible Alarm
Power Description
- Load Capacity (VA): 750 VA
- Load Capacity (Watt): 450 W
- Input Voltage: 120 V AC
- Output Voltage: 120 V AC
- Input Frequency:
- 57 Hz
- 63 Hz
- Output Frequency: 60 Hz
- Waveform Type: Simulated Sine Wave
- Surge Energy Rating: 1030 J
- Circuit Breaker: Yes
- Output Power Factor: 0.6
Management
- Network Management: USB
- Alarm:
- Battery Mode
- Low Battery
- Overload
- Fault
Controls/Indicators
- Status Indicators:
LED Indicators:
- Power On
- Wiring Fault
Interfaces/Ports
- USB: Yes
- USB (HID Compliant) Port: Yes
Battery Information
- Number of Batteries: 1
- Battery Characteristics: Sealed
- Battery Chemistry: Lead Acid
- Battery Size: 12V
- Battery Capacity: 7000 mAh
- Backup/Run Time (Full Load): 2.50 Minute
- Backup/Run Time (Half Load): 7.60 Minute
- Hot Swappable: No
- Typical Battery Recharge Time: 8 Hour
- Replaceable Battery: Yes
Environmental Conditions
- Maximum Operating Elevation: 6561.68 ft
- Maximum Storage Elevation: 49996.72 ft
- Storage Temperature: 5°F (-15°C) - 113°F (45°C)
- Operating Humidity: 0% - 90%
- Minimum Operating Temperature: 32°F (0°C)
- Maximum Operating Temperature: 104°F (40°C)

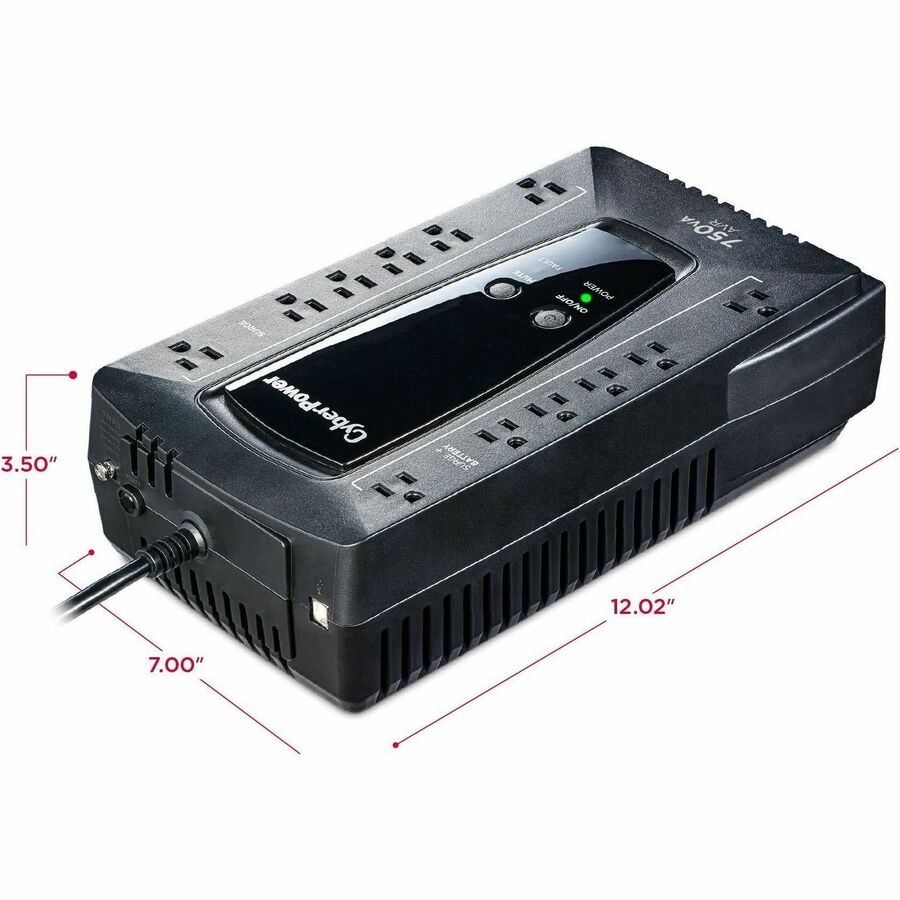

Physical Characteristics
- Product Color: Black
- Height: 7"
- Width: 12.2"
- Depth: 3.5"
- Form Factor: Compact
- Weight (Approximate): 13.45 lb
Miscellaneous
- Energy Star: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 3 Year
- Additional Warranty Information:
Three-year warranty (including coverage of batteries)
