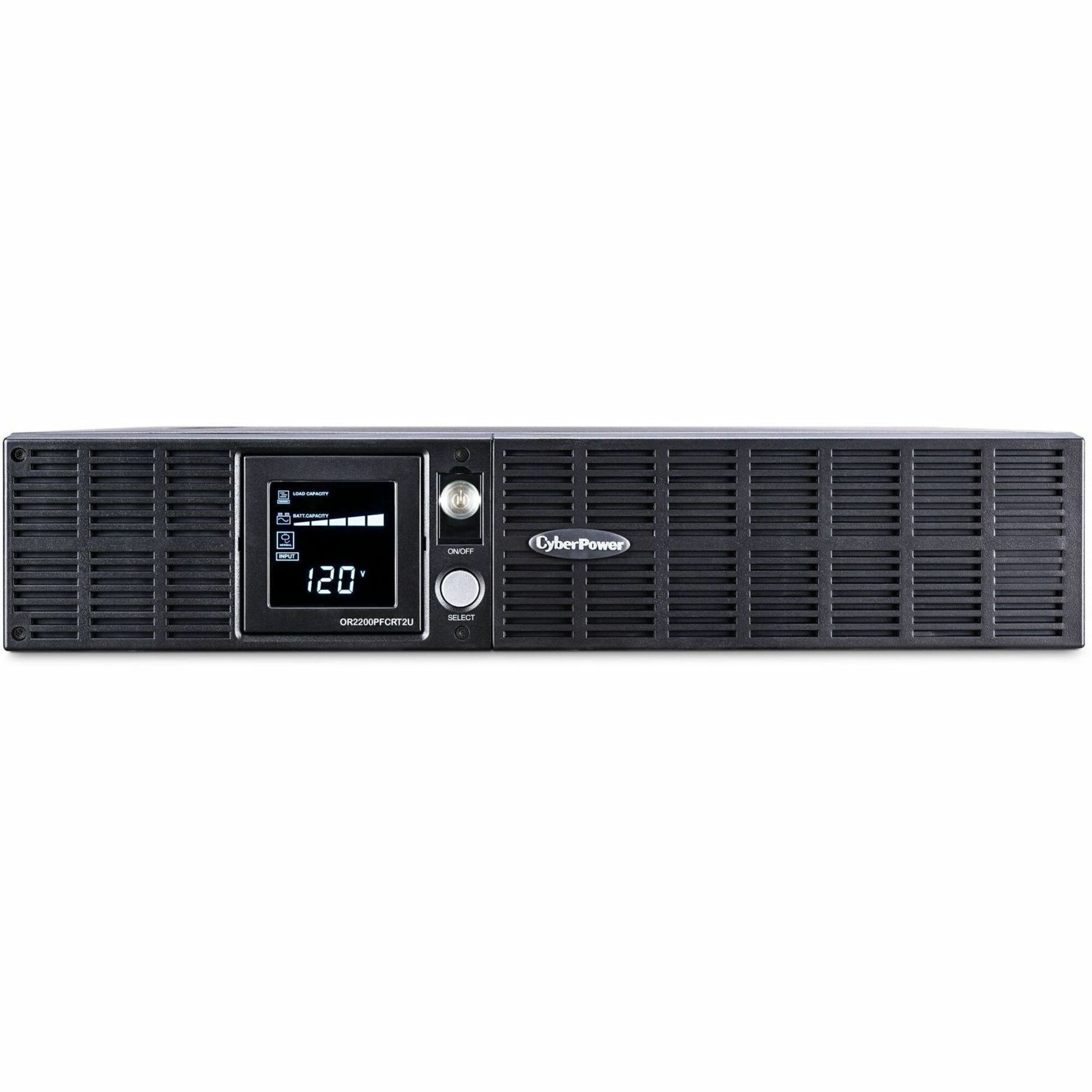

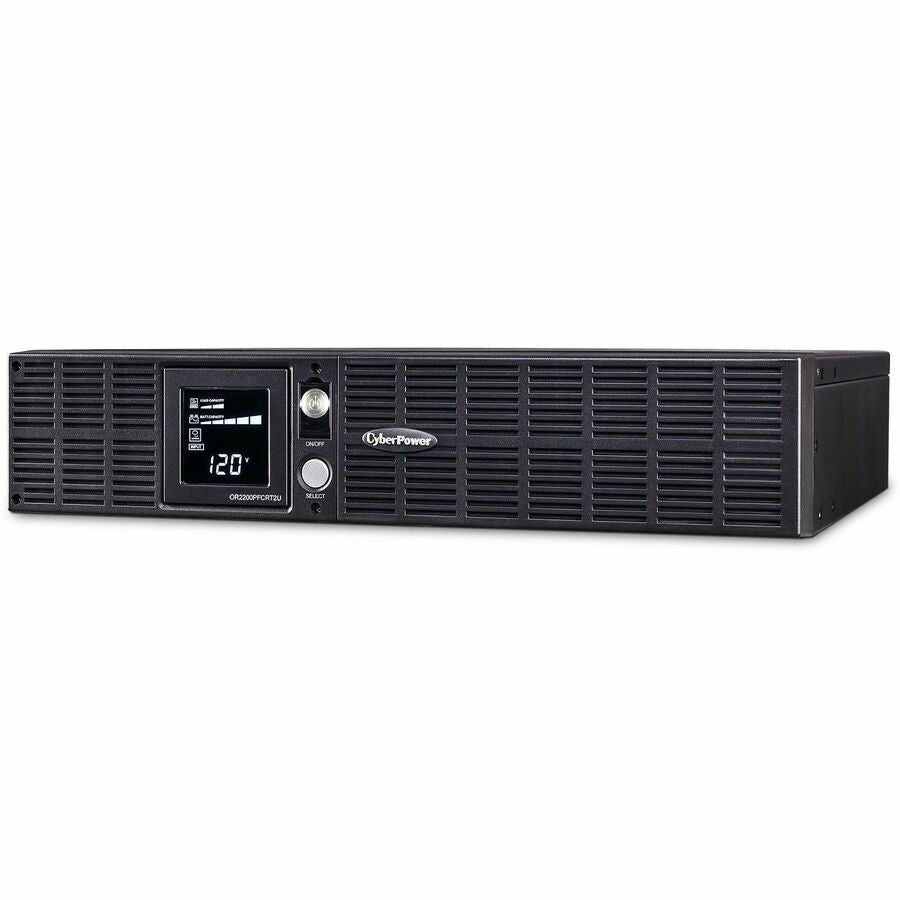

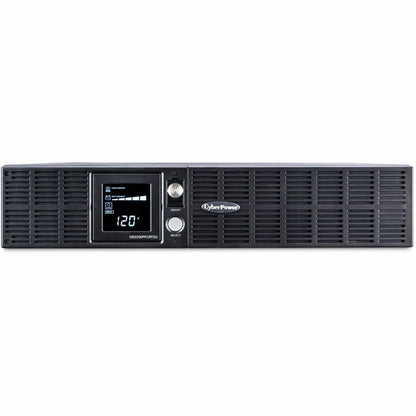

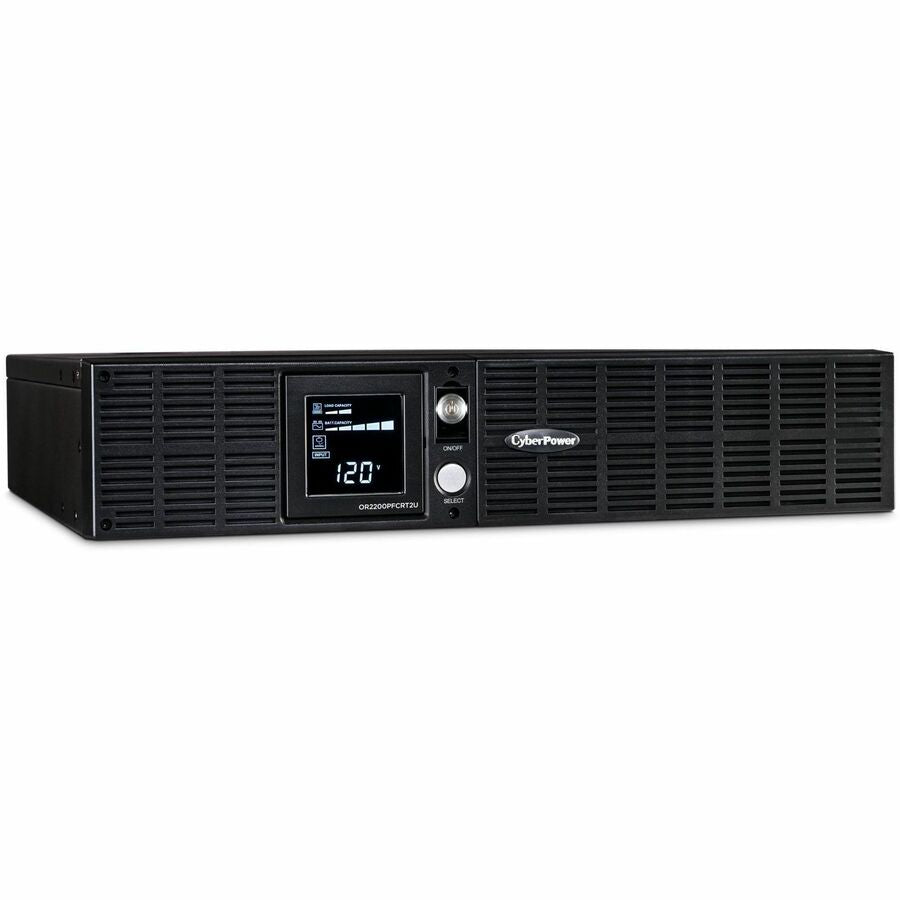

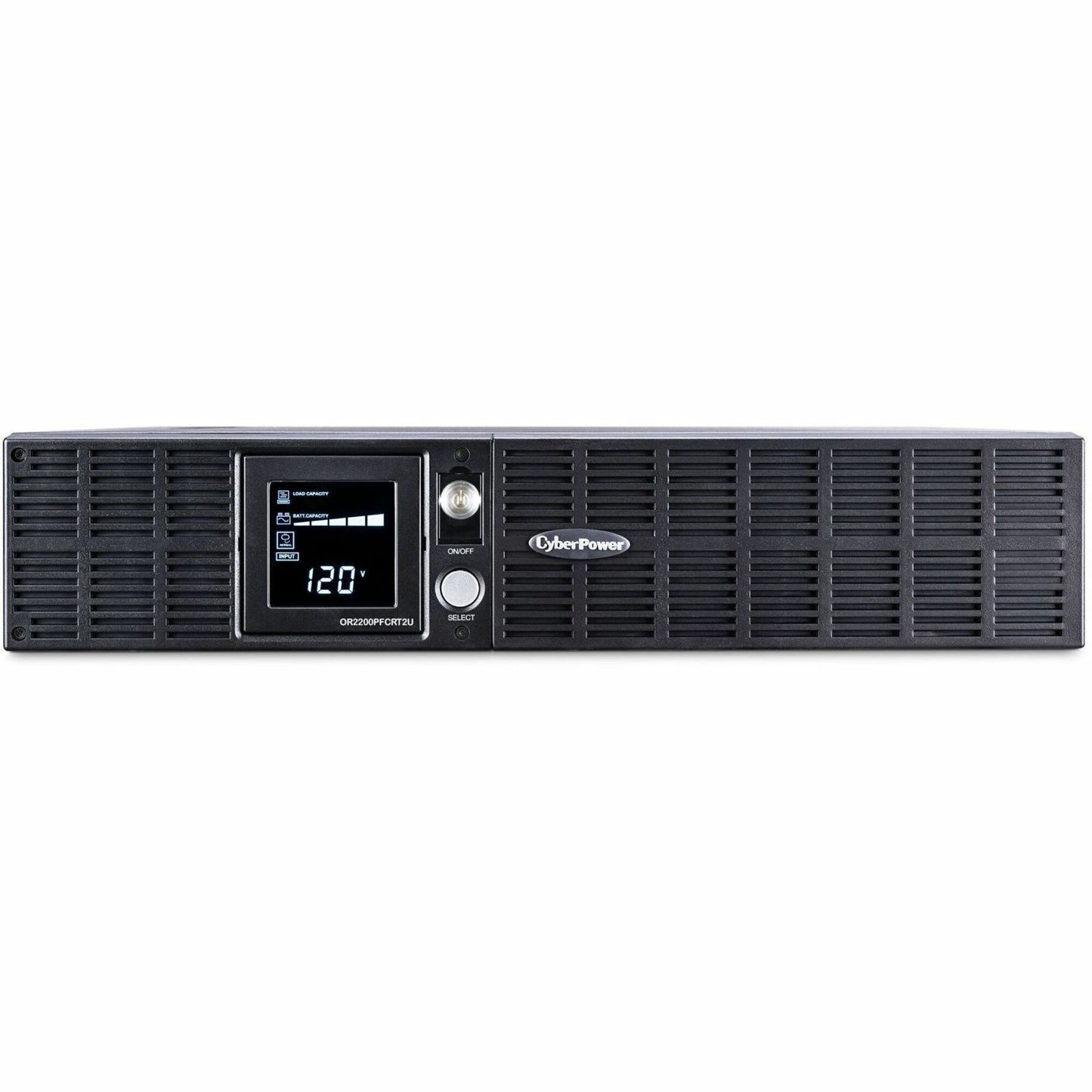

CyberPower OR2200PFCRT2U PFC Sinewave UPS Systems - OR2200PFCRT2U
Key Features
- $300,000

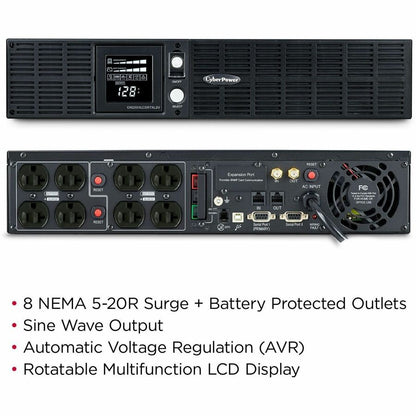

- 2 × NEMA 5-20R, 6 × NEMA 5-15R
- 2000 VA / 1540 W
- 3 year
- Capacity:
- Communication:
- Connected Equipment Guarantee:
- Data line protection:
- Line Interactive
- Management software:
- NEMA 5-20P, 10 ft. cord
- Outlet types:
- Plug type & cord:
- PowerPanel® Business Edition
- Sine Wave
- Telephone, Ethernet
- Topology:
- USB, Serial, EPO
- Warranty:
- Waveform:
Product Overview

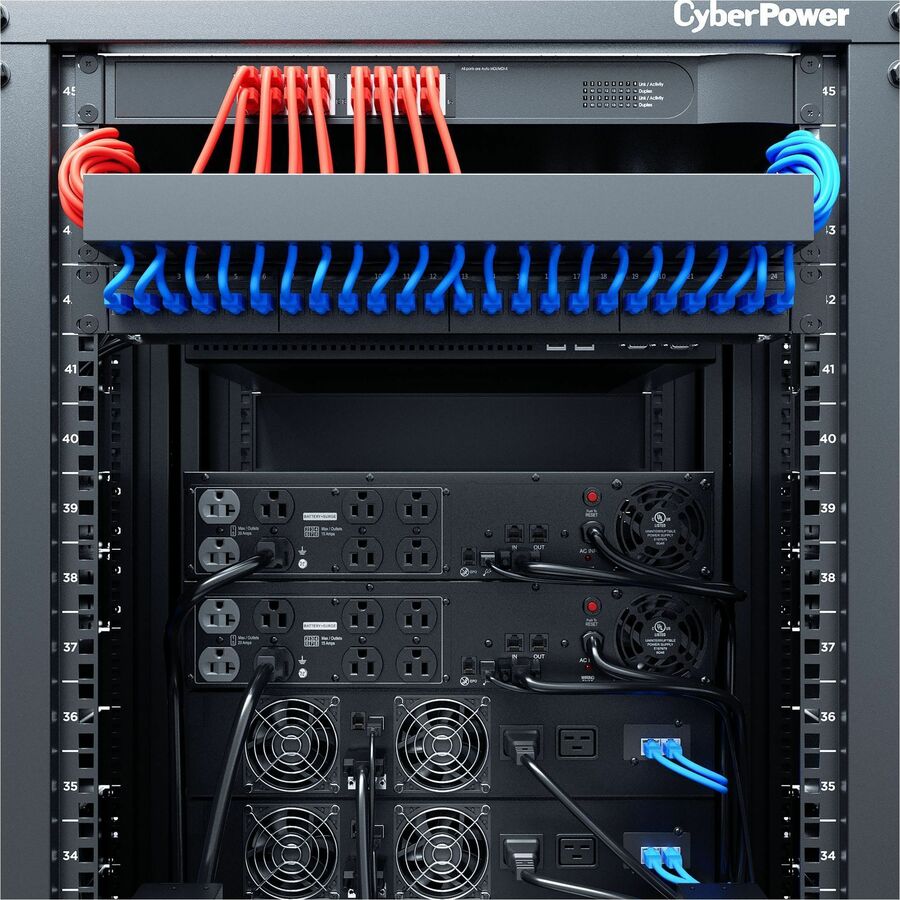

A rack/tower UPS with line interactive topology, the CyberPower PFC Sinewave OR2200PFCRT2U provides power protection (using sine wave output) and surge protection for department servers, workgroup servers, network devices, telecom appliances, and high-end audio/video equipment requiring active PFC power source compatibility. The OR2200PFCRT2U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The OR2200PFCRT2U comes with a three-year warranty and a ,300,000 Connected Equipment Guarantee.
General Information
- Manufacturer: CyberPower Systems, Inc
- Manufacturer Part Number: OR2200PFCRT2U
- Brand Name: CyberPower
- Product Series: PFC Sinewave UPS
- Product Model: OR2200PFCRT2U
- Product Name: OR2200PFCRT2U PFC Sinewave UPS Systems
- Product Type: Line-interactive UPS
Technical Information
- Plug/Connector Type: NEMA 5-20P
- Receptacle Type:
- NEMA 5-20R
- NEMA 5-15R

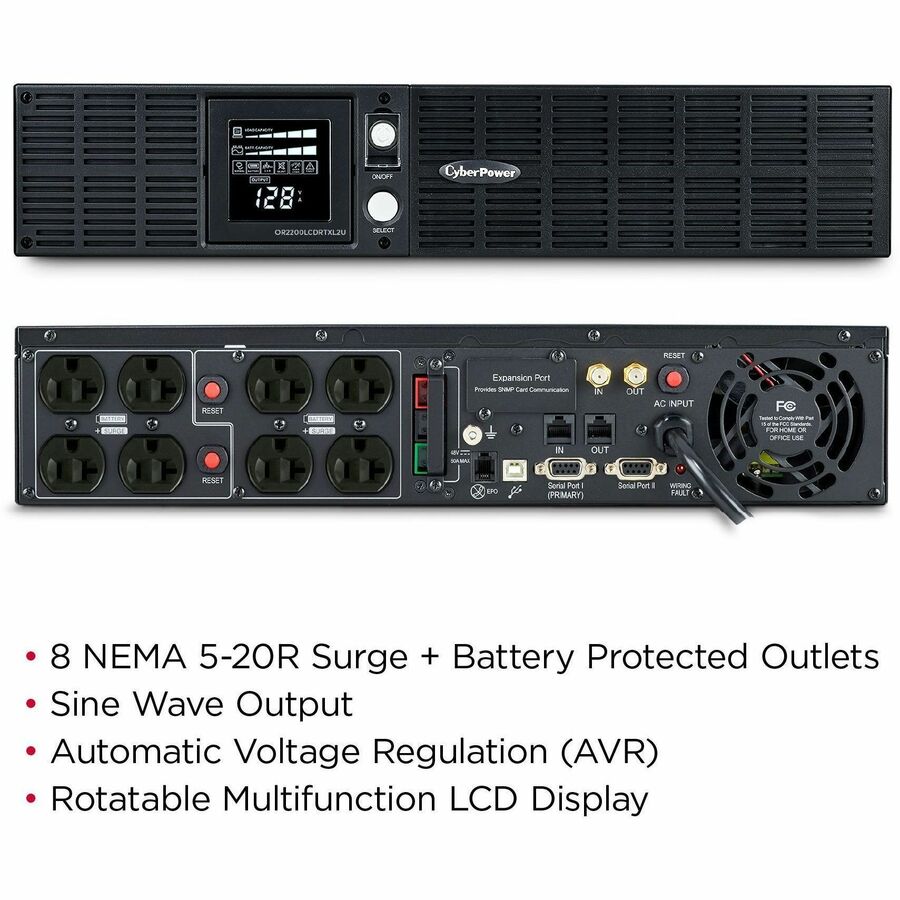

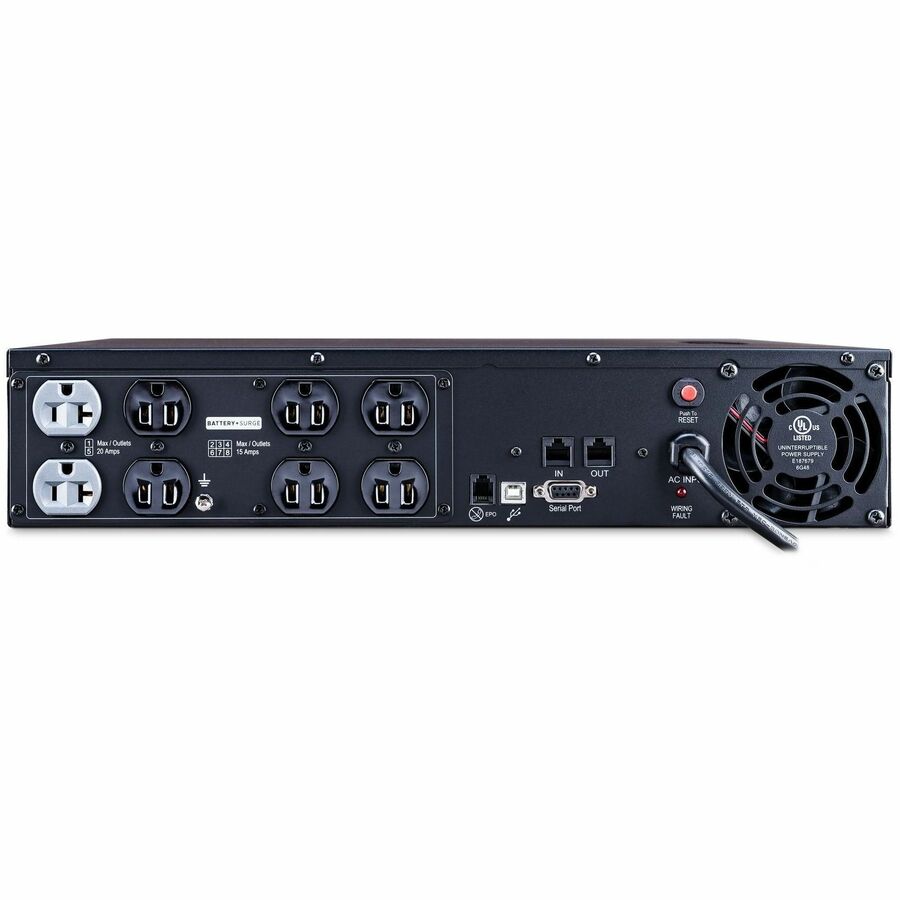

- Receptacle Detail:
- 2 x NEMA 5-20R
- 6 x NEMA 5-15R
- Dataline Protection:
- RJ-45
- RJ-11
- Transfer Time: 4 ms
- EMI/RFI Noise Filter: Yes
Power Description
- Load Capacity (VA): 2000 VA
- Load Capacity (Watt): 1540 W
- Input Voltage: 110 V AC
- Output Voltage: 120 V AC
- Waveform Type: Sine Wave
Controls/Indicators
- Status Indicators:
- Power On
- Wiring Fault
Interfaces/Ports
- Serial Port: Yes
- USB: Yes
Battery Information
- Number of Batteries: 4
- Battery Characteristics: Maintenance-free
- Battery Chemistry: Lead Acid

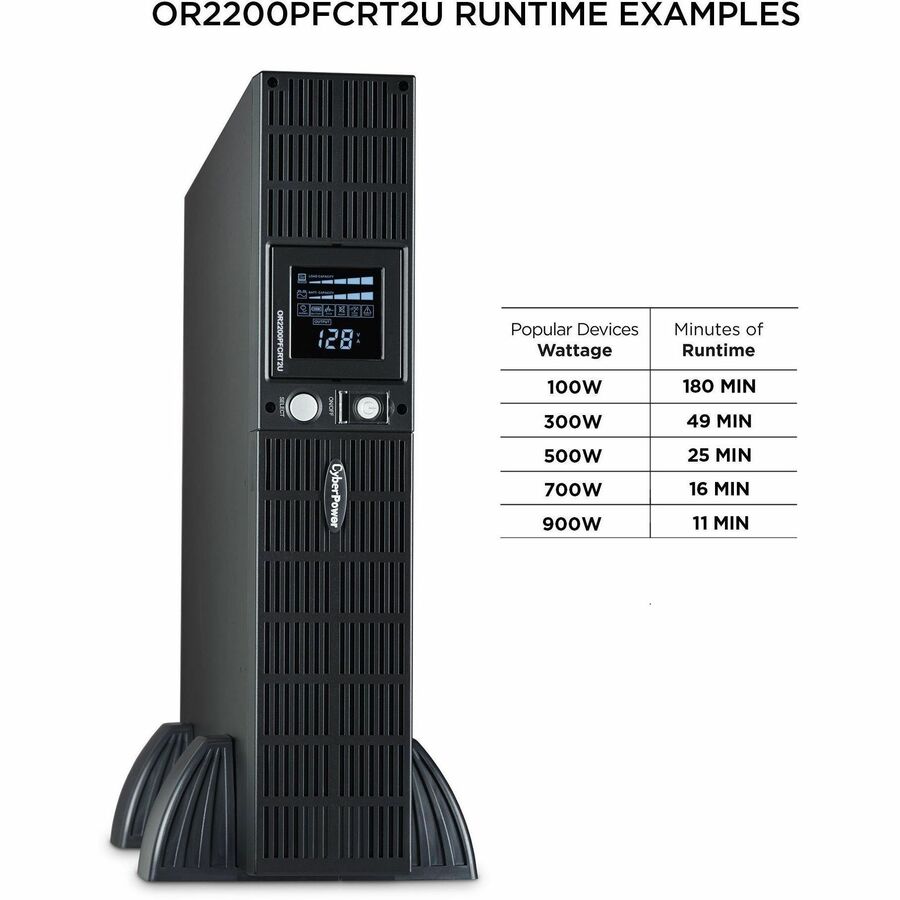

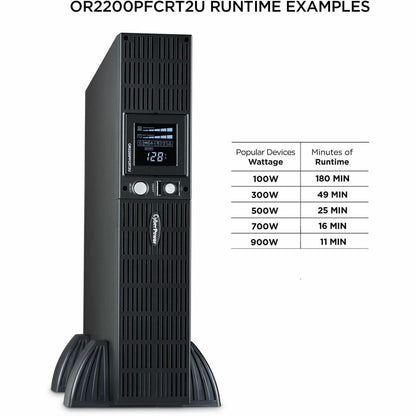

- Backup/Run Time (Full Load): 4.50 Minute
- Backup/Run Time (Half Load): 19.80 Minute
- Hot Swappable: Yes
- Typical Battery Recharge Time: 10 Hour

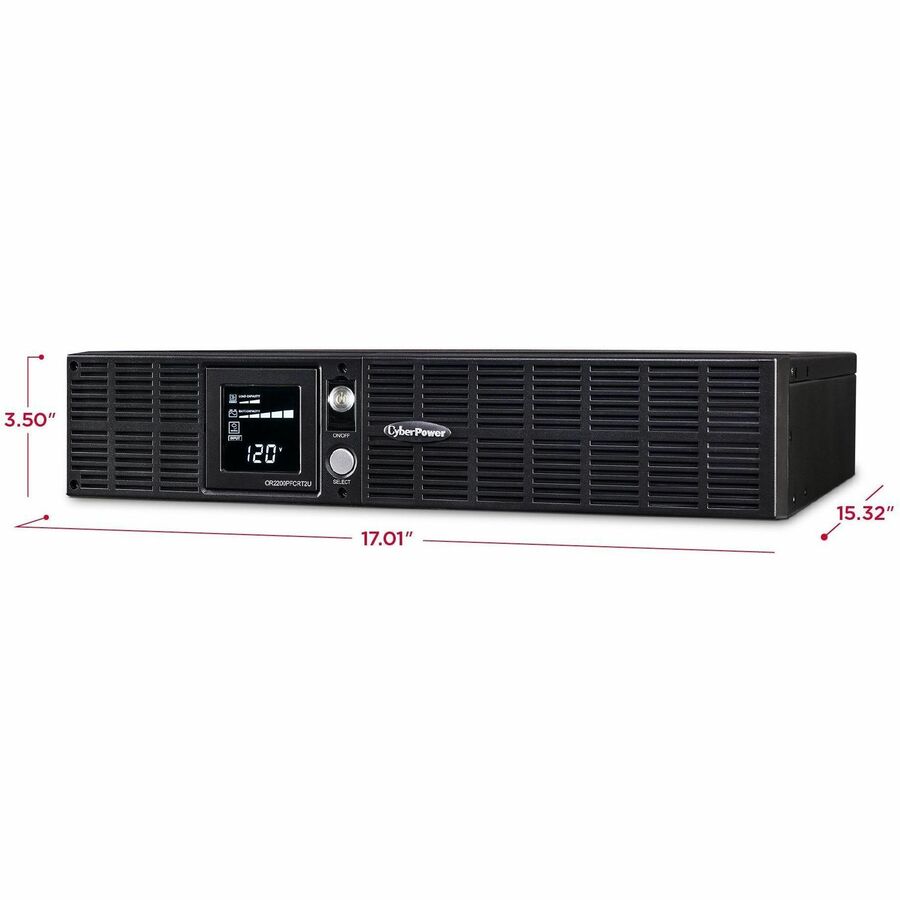

Physical Characteristics
- Height: 3.5"
- Width: 17"
- Depth: 15.3"
- Rack Height: 2U

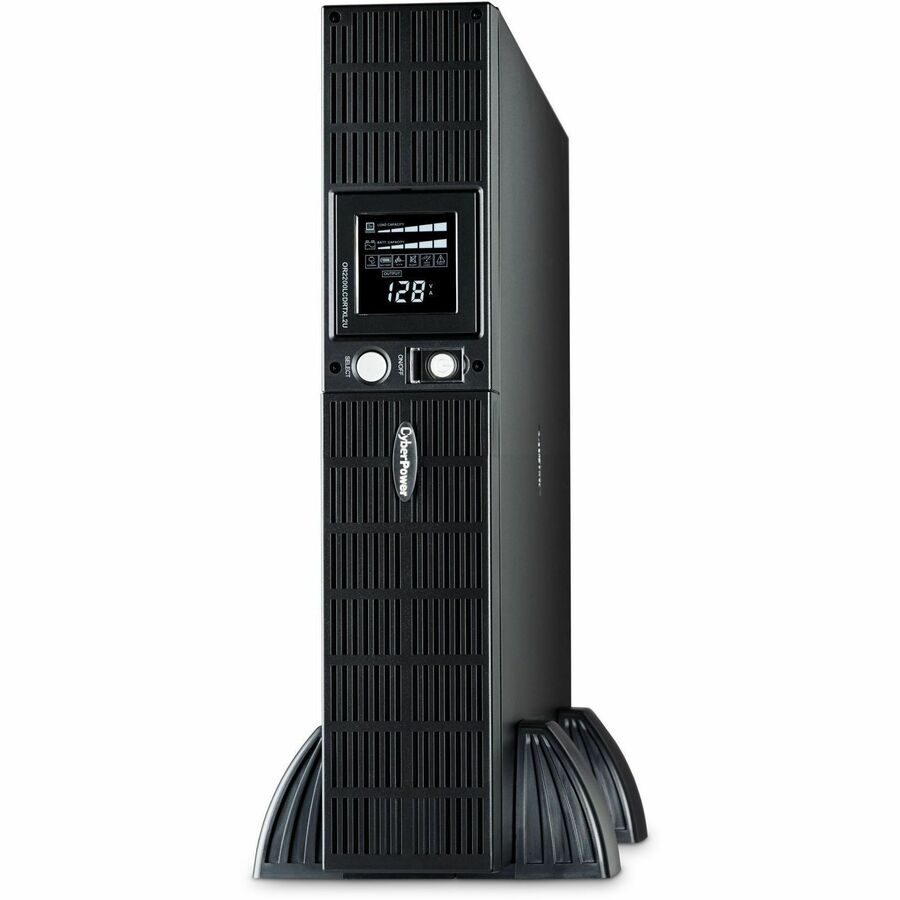

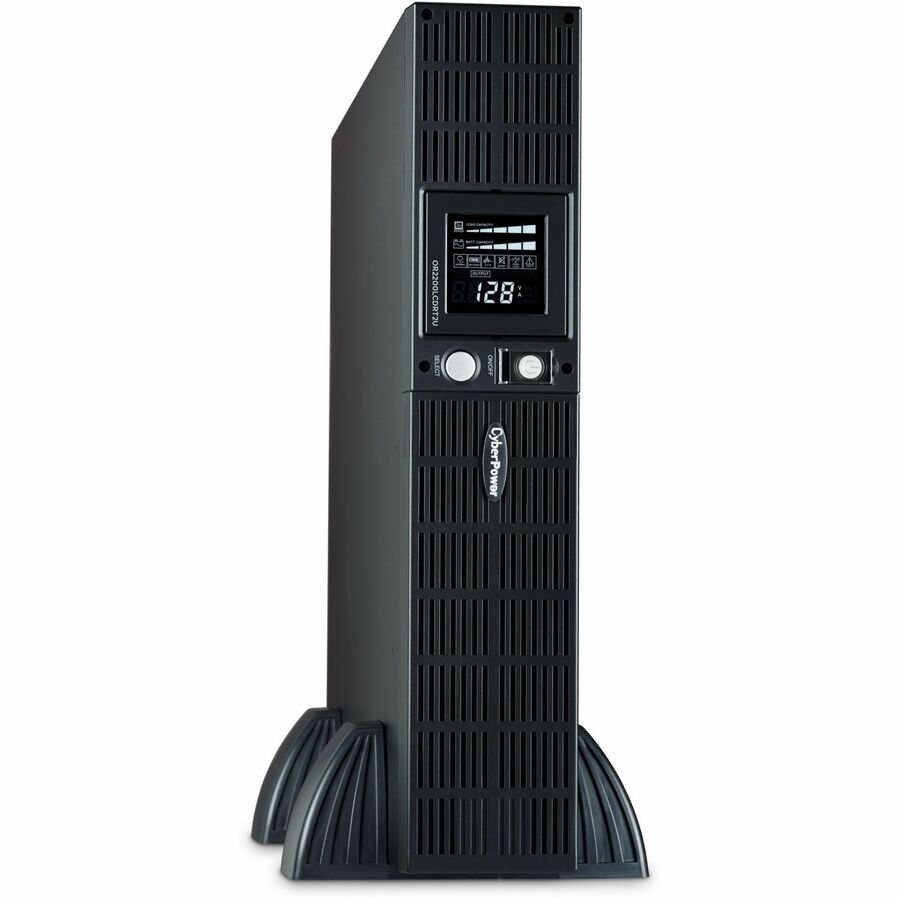

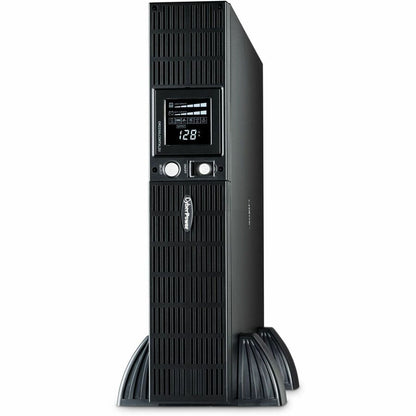

- Form Factor: Rack/Tower
- Weight (Approximate): 57.20 lb
Miscellaneous
- Package Contents:
- Intelligent LCD PFC Sinewave OR2200PFCRT2U Line-interactive UPS
- USB A-B Cable
- User's Manual
- Software Download Card
- Registration Info Card
- Software Included: PowerPanel Business Edition Software
- Energy Star: No
- Country of Origin: China
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 3 Year
