CyberPower PR1500LCD Smart App Sinewave UPS Systems - PR1500LCD
Key Features
- 120 VAC ± 5%
- 1500 VA / 1500 W
- 3 year
- 8 × NEMA 5-15R
- Capacity:
- Communication:
- Line Interactive
- Management software:
- NEMA 5-15P, 6 ft. cord
- Outlet types:
- Output:
- Plug type & cord:
- PowerPanel® Business Edition
- Remote management:
- Sine Wave
- Topology:
- USB, Serial, SNMP, Relay, EPO
- Warranty:
- Waveform:
- Yes, with optional RMCARD205
Product Overview

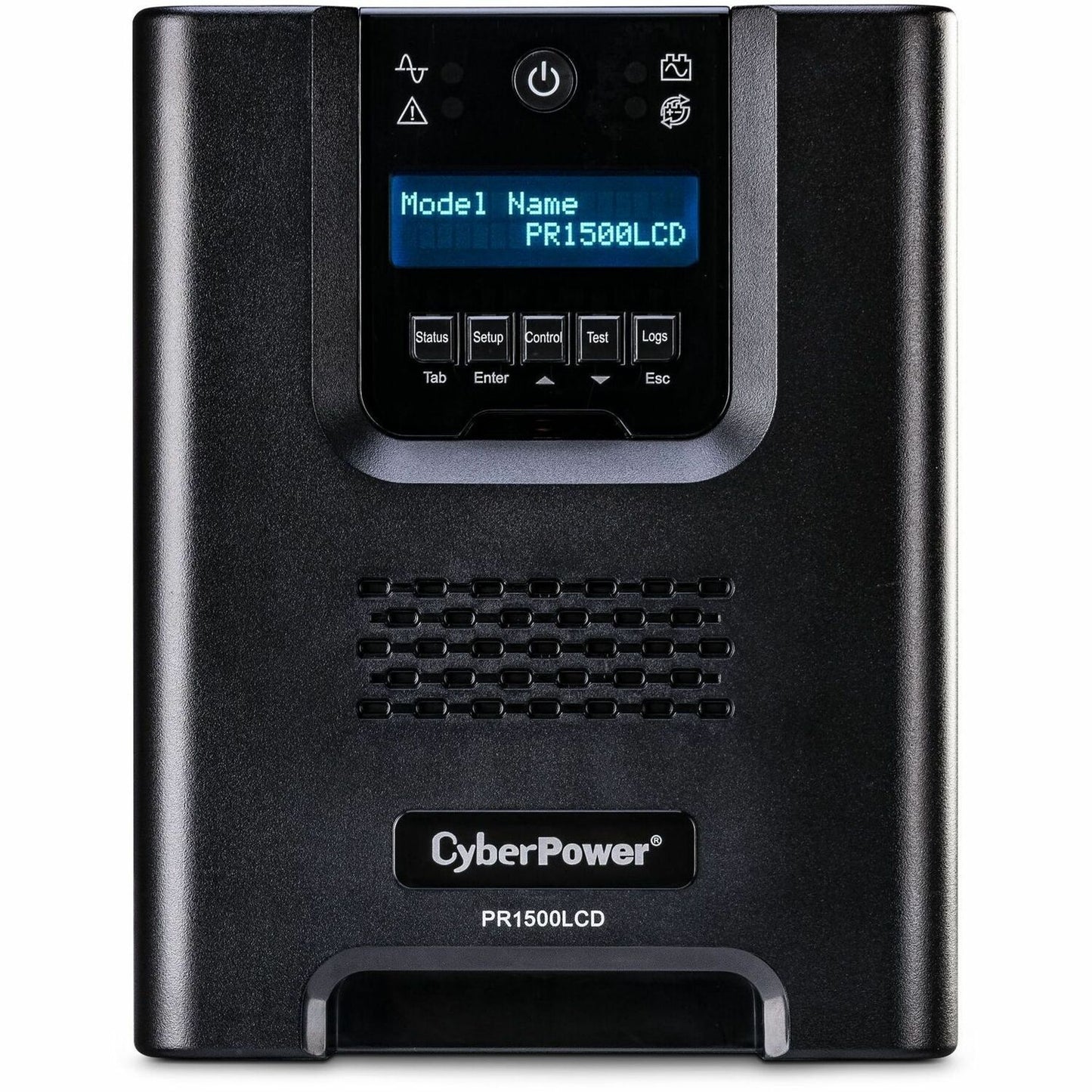

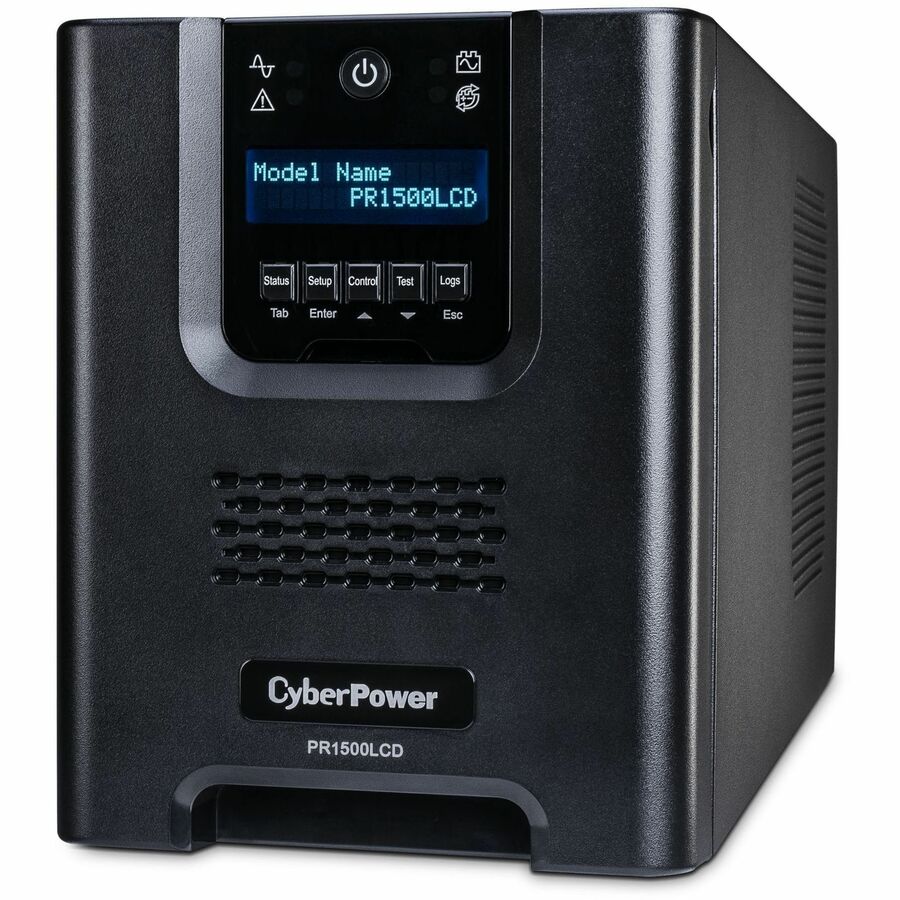

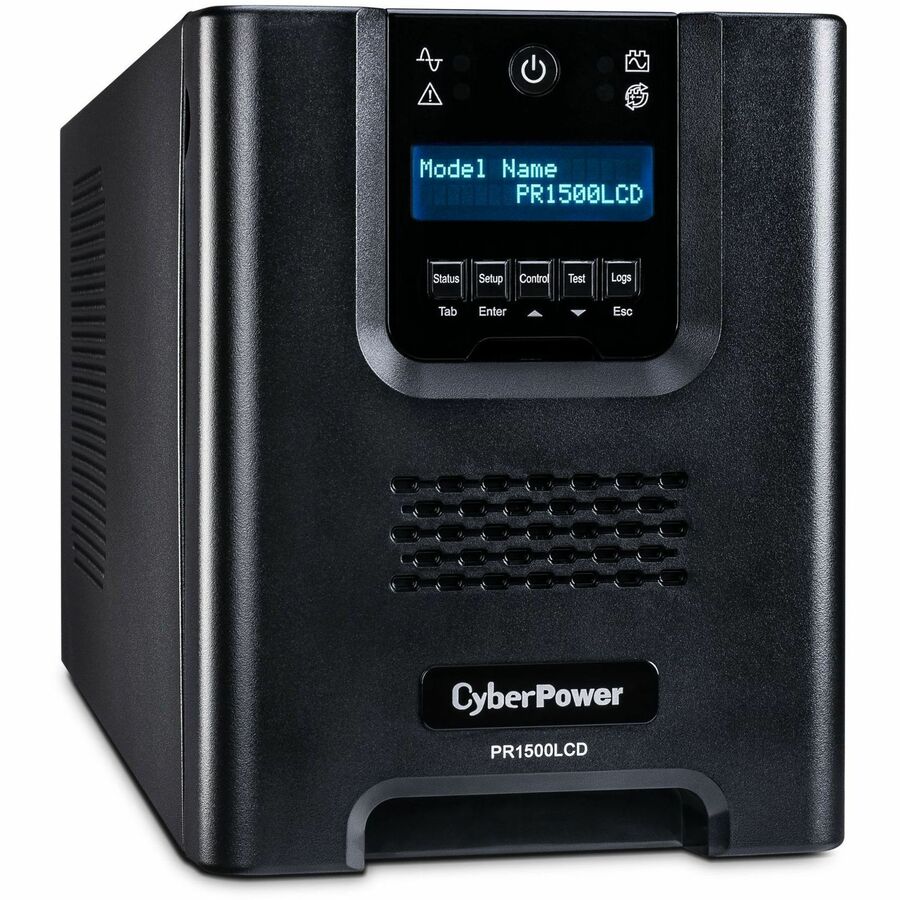

A mini-tower UPS with line interactive topology, the CyberPower Smart App Sinewave PR1500LCD provides battery backup, power protection (using sine wave output), and surge protection for corporate servers, department servers, storage appliances, network devices, and telecom installations requiring Active PFC power source compatibility. The PR1500LCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The PR1500LCD comes with a three-year warranty and a ,375,000 Connected Equipment Guarantee.
General Information
- Manufacturer: CyberPower Systems, Inc
- Manufacturer Part Number: PR1500LCD
- Brand Name: CyberPower
- Product Series: Smart App Sinewave UPS
- Product Model: PR1500LCD
- Product Name: PR1500LCD Smart App Sinewave UPS Systems
- Product Type: Line-interactive UPS
Technical Information
- AVR: Yes
- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15R

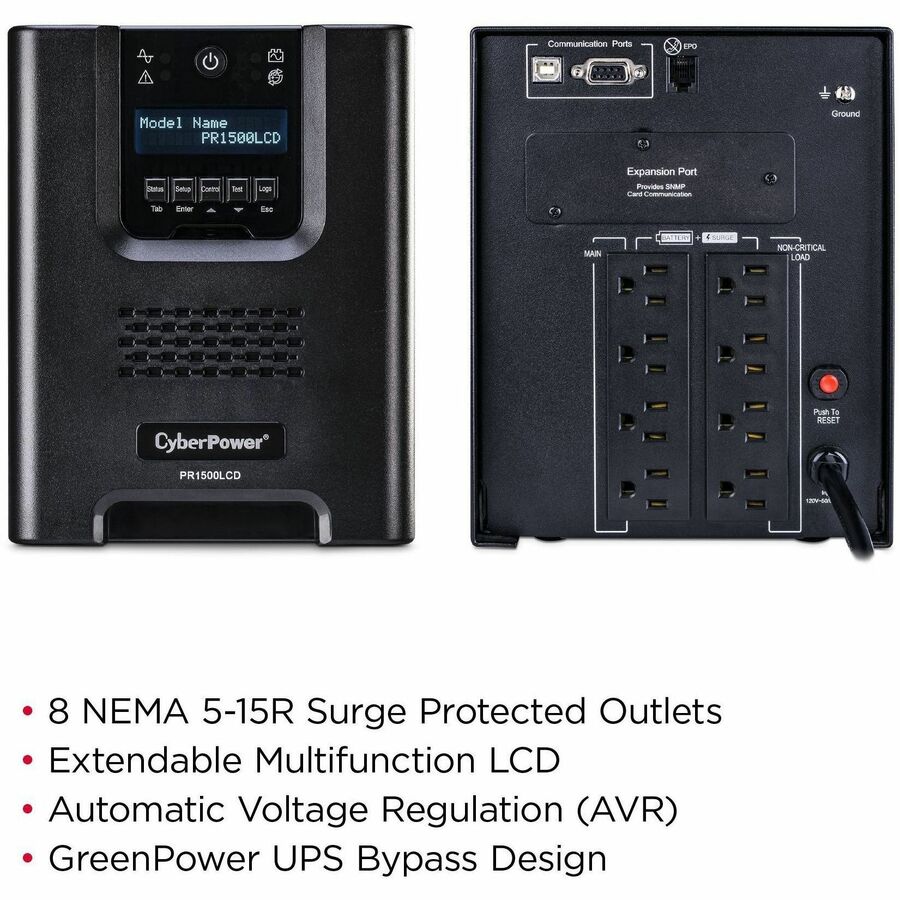

- Receptacle Detail: 8 x NEMA 5-15R
- Number of Battery & Surge Outlets: 8
- Number of Critical Load Outlets: 4
- Transfer Time: 4 ms
- Overload Protection: Yes
- Energy Saving: GreenPower UPS™ Bypass
- Application/Usage:
- Server
- Corporate
- Storage Device
- Network Device
- Telecommunication
Power Description
- Load Capacity (VA): 1500 VA
- Input Voltage: 120 V AC
- Input Voltage Range: 78 V AC - 149 V AC
- Output Voltage: 120 V AC
- Input Frequency: 60 Hz
- Output Frequency: 60 Hz
- Waveform Type: Sine Wave
- Surge Energy Rating: 1030 J
Management
- Network Management: SNMP/HTTP Remote Monitoring
- Alarm:
- On Battery
- Low Battery
- Overload
- Fault Mode
- Replace Battery

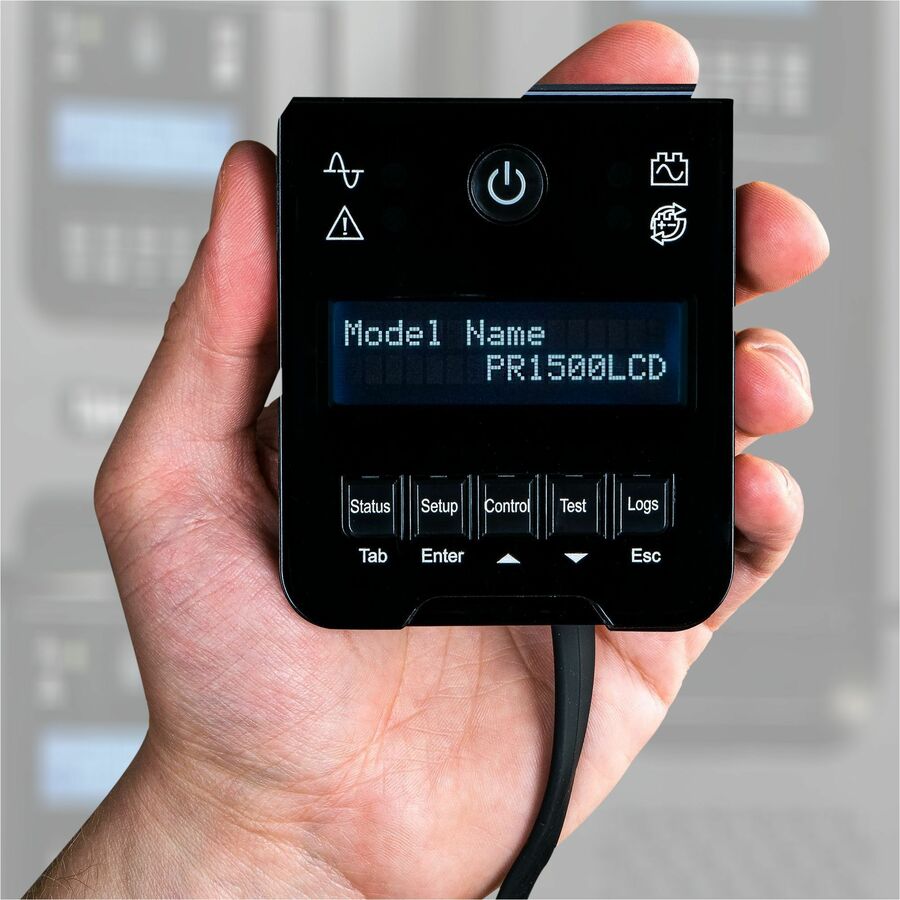

Controls/Indicators
- Status Indicators:
- Power On
- Wiring Fault
- AC Power
- Battery Power
- Replace Battery

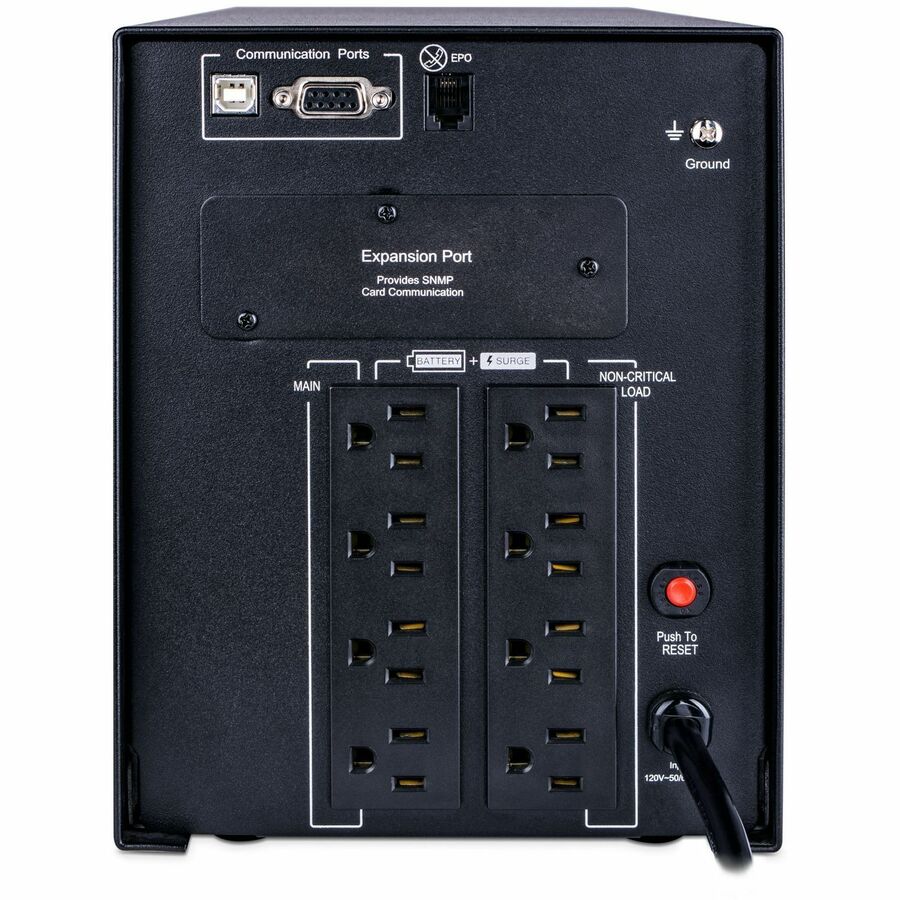

Interfaces/Ports
- Serial Port: Yes
- USB: Yes
- USB (HID Compliant) Port: Yes
- EPO Port: Yes
Battery Information
- Number of Batteries: 2
- Battery Characteristics: Maintenance-free/Sealed
- Battery Chemistry: Lead Acid
- Battery Size: 12V
- Battery Capacity: 17000 mAh

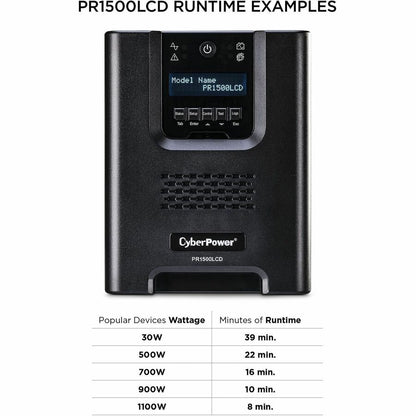

- Backup/Run Time (Full Load): 4.70 Minute
- Backup/Run Time (Half Load): 15.10 Minute
- Typical Battery Recharge Time: 3 Hour
- Replaceable Battery: Yes
Environmental Conditions
- Maximum Operating Elevation: 10000 ft
- Maximum Storage Elevation: 50000 ft
- Storage Relative Humidity: 0% - 95%

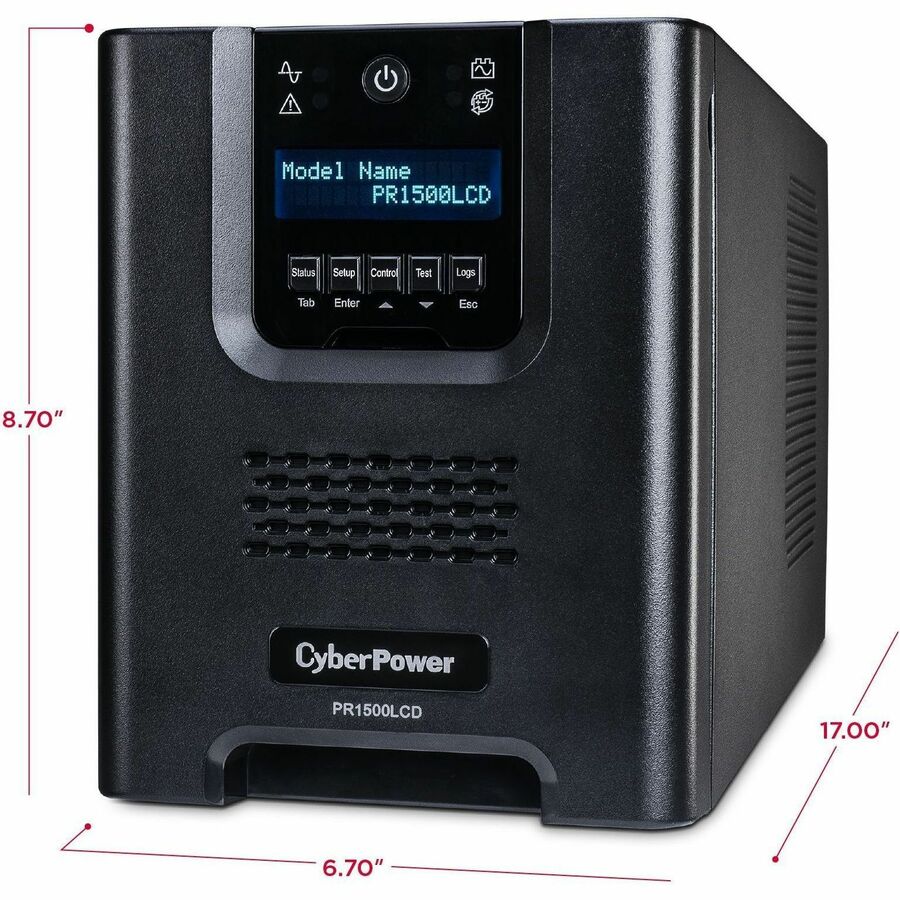

Physical Characteristics
- Product Color: Black
- Form Factor: Mini-tower
- Height: 8.7"
- Width: 6.7"
- Depth: 17"
- Weight (Approximate): 54 lb
Miscellaneous
- Package Contents:
- Smart App Sinewave PR1500LCD 1500VA UPS
- PowerPanel Business Edition Software CD
- User Manual
- Functional Setup Guide
- USB Cable
- Serial Cable
- Emergency Power Off (EPO) Cable
- Registration Card
- Software Included: PowerPanel Business Edition Software
- Energy Star: No
- Country of Origin: China
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 3 Year
