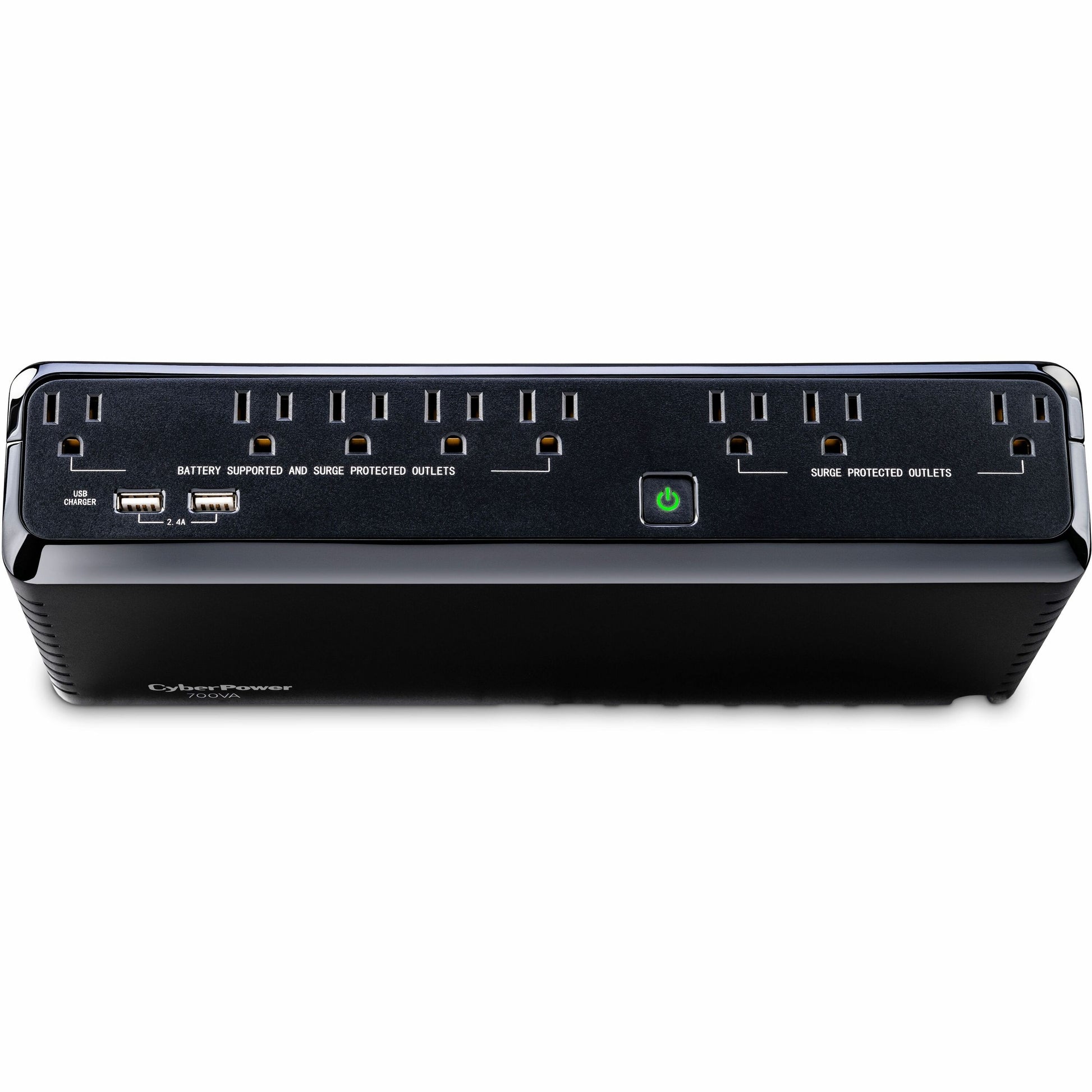

CyberPower SL700U Standby UPS Systems - SL700U
Key Features
- $100,000
- 120 VAC ± 5%
- 3 year
- 700VA / 370W
- 8 × NEMA 5-15R
- Capacity:
- Communication ports:
- Connected Equipment Guarantee:
- ENERGY STAR® certified:
- Management software:
- NEMA 5-15P, 5 ft. cord
- Outlet types:
- Output:
- Plug type & cord:
- PowerPanel® Personal
- Simulated Sine Wave
- Standby
- Topology:
- USB
- Warranty:
- Waveform:
- Yes
Product Overview
The CyberPower SL700U uninterruptible power supply (UPS) system provides surge protection for lightning-induced surges and other power events that can damage electronic equipment. This unit delivers enough battery backup to connected devices during a utility power failure, so you can perform a graceful shutdown to protect against the loss of data and damage to valuable electronics including computers, gaming consoles, and home networking equipment.
The SL700U has two Type A USB charging ports with 2.4A shared total output which gives you a faster charging time and can be used while on battery backup power. The slim profile and full-motion power cord allows for discrete installation and keyhole mounting slots allow for wall-mount applications as well.
With a ,100,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to the quality of the SL700U.
General Information
- Manufacturer: CyberPower Systems, Inc
- Manufacturer Part Number: SL700U
- Brand Name: CyberPower
- Product Series: Standby UPS
- Product Model: SL700U
- Product Name: SL700U Standby UPS Systems
- Product Condition: New
- Product Type: Standby UPS
Technical Information
- Plug/Connector Type: NEMA 5-15P
- Receptacle Type:
- NEMA 5-15R
- USB Type A
- Receptacle Detail:
- 8 x NEMA 5-15R
- 2 x USB Type A
- Number of Battery & Surge Outlets: 5
- Number of Surge-only Outlets: 3
- Overload Protection: Yes
- Cord Length: 5 ft
- Transfer Time: 8 ms
- EMI/RFI Noise Filter: Yes
- Energy Saving: GreenPower UPS™ High-Efficiency
- Application/Usage:
- Electronic Equipment
- Computer
- Gaming Console
- Home Network
Power Description
- Load Capacity (VA): 700 VA
- Load Capacity (Watt): 370 W
- Input Voltage: 120 V AC
- Input Voltage Range: 96 V AC - 140 V AC
- Output Voltage: 120 V AC
- Input Frequency: 63 Hz
- Output Frequency: 60 Hz
- Waveform Type: Simulated Sine Wave
- Surge Energy Rating: 890 J
- Circuit Breaker: Yes
Management
- Alarm:
- On Battery
- Low Battery
- Overload
- Fault
Controls/Indicators
- Status Indicators: LED Indicators:
- Power on
- Wiring fault
Interfaces/Ports
- USB (HID Compliant) Port: Yes
Battery Information
- DC System Voltage: 12 V DC
- Number of Batteries: 1
- Battery Characteristics: Sealed
- Battery Chemistry: Lead Acid
- Battery Size: 12V
- Battery Capacity: 5500 mAh
- Backup/Run Time (Full Load): 2 Minute
- Backup/Run Time (Half Load): 9 Minute
- Typical Battery Recharge Time: 8 Hour
- Replaceable Battery: No
Environmental Conditions
- Maximum Operating Elevation: 10000 ft
- Maximum Storage Elevation: 50000 ft
- Storage Temperature: 5°F (-15°C) - 113°F (45°C)
- Storage Relative Humidity: 0% - 95%
- Maximum Operating Temperature: 104°F (40°C)

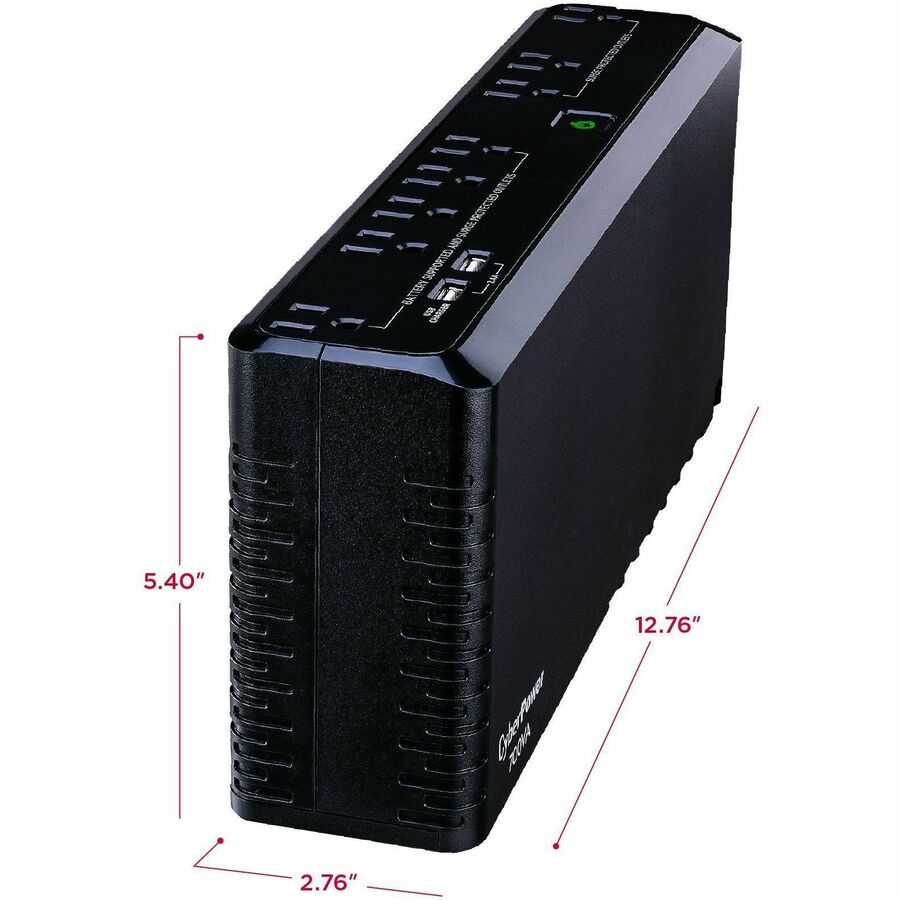

Physical Characteristics
- Product Color: Black
- Height: 5.4"
- Width: 12.8"
- Depth: 2.8"
- Form Factor: Compact
- Weight (Approximate): 6.77 lb
Miscellaneous
- Software Included: PowerPanel® Personal
- Energy Star: Yes
- Country of Origin: Philippines
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 3 Year
