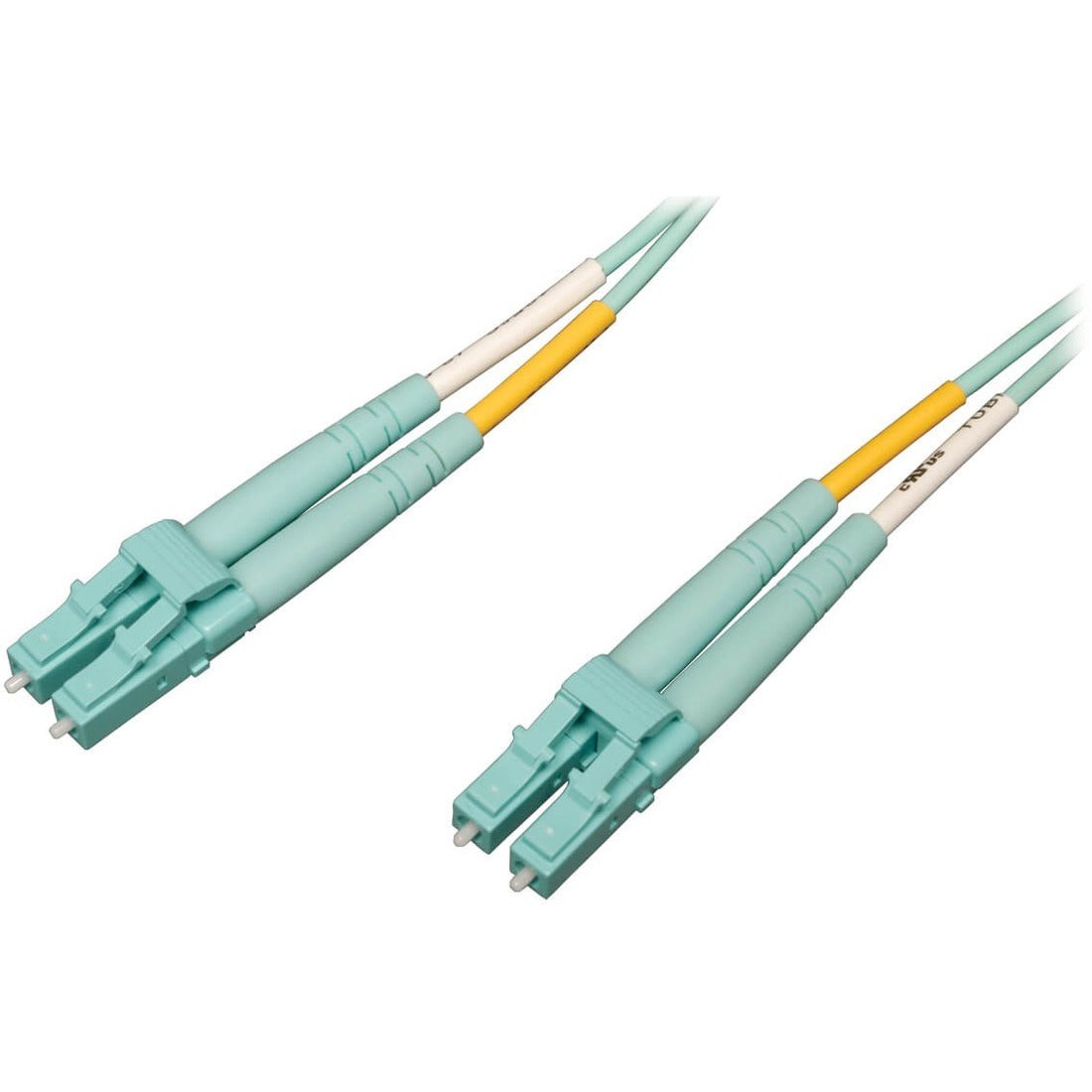

Eaton Tripp Lite Series 10Gb/40Gb/100Gb Duplex Multimode 50/125 OM4 LSZH Fiber Patch Cable (LC/LC), Aqua, 1M (3.3 ft.) - N820-01M-OM4
Key Features
- Backward compatible with existing 50/125 fiber
- Designed for 40/100-Gig Ethernet applications...OM4 Rated
- Low-Smoke, Zero Halogen (LSZH) Aqua jacket
- Max 40/100Gb distance of 300 meters @850nm
Product Overview
Tripp Lite's new OM4 enter it-Optimized Multimode Fiber Laser (LOMMF) "Aqua" cables, For Use With 40/100Gb Ethernet applications. These new technology, 50/125um, LC/LC Fiber Optic cables, provide nearly three times the bandwidth over conventional 62.5um multimode fiber, with performance rivaling that of Singlemode cable, at a much reduced cost. These new technology, 50/125um, LC / LC Fiber Optic cables, three times the Provide Nearly bandwidth multimode fiber over 62.5um Conventional, With performance rivaling That of Singlemode cable, at a much reduced cost. LOMMF cable allows 40/100Gb serial transmission over extended distances in the 850nm wavelength window, where low-cost Vertical Cavity Surface Emitting Lasers (VCSELs) enable a cost-effective, high-bandwidth solution. Cable LOMMF allows serial transmission over extended 40/100Gb distances in the 850nm wavelength window, where, low-cost Vertical Cavity Surface Emitting Lasers (VCSELs) enable a cost-effective, high-bandwidth solution. LOMMF is ideally suited for LAN's, SAN's, and high-speed parallel interconnects for head-ends, central offices, and data centers. Ideally suited for LOMMF is LAN's, SAN's, and high-speed parallel Interconnects for head-ends, central offices, and data centers. Tripp Lite warrants this product to be free from defects in material and workmanship for Life. Tripp Lite warrants this product to be free from defects in material and workmanship for Life.
General Information
- Manufacturer: Eaton Corporation
- Manufacturer Part Number: N820-01M-OM4
- Brand Name: Tripp Lite series
- Product Model: N820-01M-OM4
- Product Name: N820-01M-OM4 Fiber Optic Duplex Patch Cable
- Product Type: Network Cable
Technical Information
- Cable Type: Fiber Optic
- Cable Characteristic: Patch Cable
- Fiber Optic Mode: Multi-mode
- Fiber Optic Cable Core/Cladding Specification: 50/125 µm
- Cable Length: 3.30 ft
- Connector Type on First End: LC Network - Male
- Connector on First End Details: 2 x LC Network - Male
- Connector Type on Second End: LC Network - Male
- Connector on Second End Details: 2 x LC Network - Male
- Jacket Type: LSZH
- Device Supported: Network Device
Physical Characteristics
- Color Family: Other
- Product Color: Seawater
Miscellaneous
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
- Country of Origin: Vietnam
Warranty
- Limited Warranty: Lifetime
