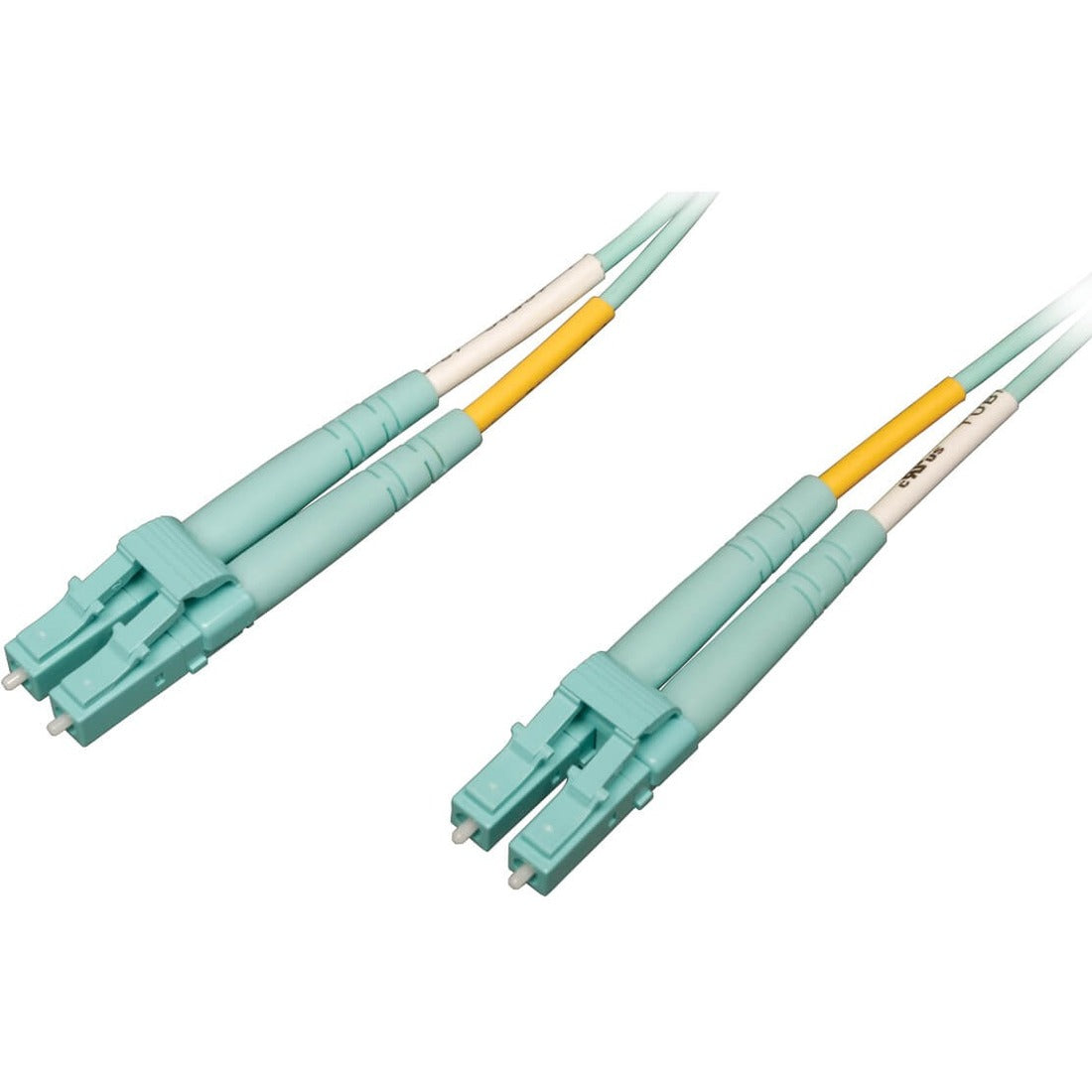

Eaton Tripp Lite Series 10Gb/40Gb/100Gb Duplex Multimode 50/125 OM4 LSZH Fiber Patch Cable (LC/LC), Aqua, 2M (6.6 ft.) - N820-02M-OM4
Key Features
- Backward compatible with existing 50/125 fiber
- Designed for 40/100-Gig Ethernet applications...OM4 Rated
- Low-Smoke, Zero Halogen (LSZH) Aqua jacket
- Max 40/100Gb distance of 300 meters @850nm
Product Overview
Tripp Lite's new OM4 enter it-Optimized Multimode Fiber Laser (LOMMF) "Aqua" cables, For Use With 40/100Gb Ethernet applications. These new technology, 50/125um, LC / LC Fiber Optic cables, three times the Provide Nearly bandwidth multimode fiber over 62.5um Conventional, With performance rivaling That of Singlemode cable, at a much reduced cost. Cable LOMMF allows serial transmission over extended 40/100Gb distances in the 850nm wavelength window, where, low-cost Vertical Cavity Surface Emitting Lasers (VCSELs) enable a cost-effective, high-bandwidth solution. Ideally suited for LOMMF is LAN's, SAN's, and high-speed parallel Interconnects for head-ends, central offices, and data centers. Tripp Lite warrants this product to be free from defects in material and workmanship for Life.
General Information
- Manufacturer: Eaton Corporation
- Manufacturer Part Number: N820-02M-OM4
- Brand Name: Tripp Lite series
- Product Model: N820-02M-OM4
- Product Name: N820-02M-OM4 Fiber Optic Duplex Patch Cable
- Product Type: Network Cable
Technical Information
- Cable Type: Fiber Optic
- Cable Characteristic: Patch Cable
- Fiber Optic Mode: Multi-mode
- Fiber Optic Cable Core/Cladding Specification: 50/125 µm
- Cable Length: 6.60 ft
- Connector Type on First End: LC Network - Male
- Connector on First End Details: 2 x LC Network - Male
- Connector Type on Second End: LC Network - Male
- Connector on Second End Details: 2 x LC Network - Male
- Jacket Type: LSZH
- Device Supported: Network Device
Physical Characteristics
- Color Family: Green
- Product Color: Aqua
Miscellaneous
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
- Country of Origin: Vietnam
Warranty
- Limited Warranty: Lifetime
