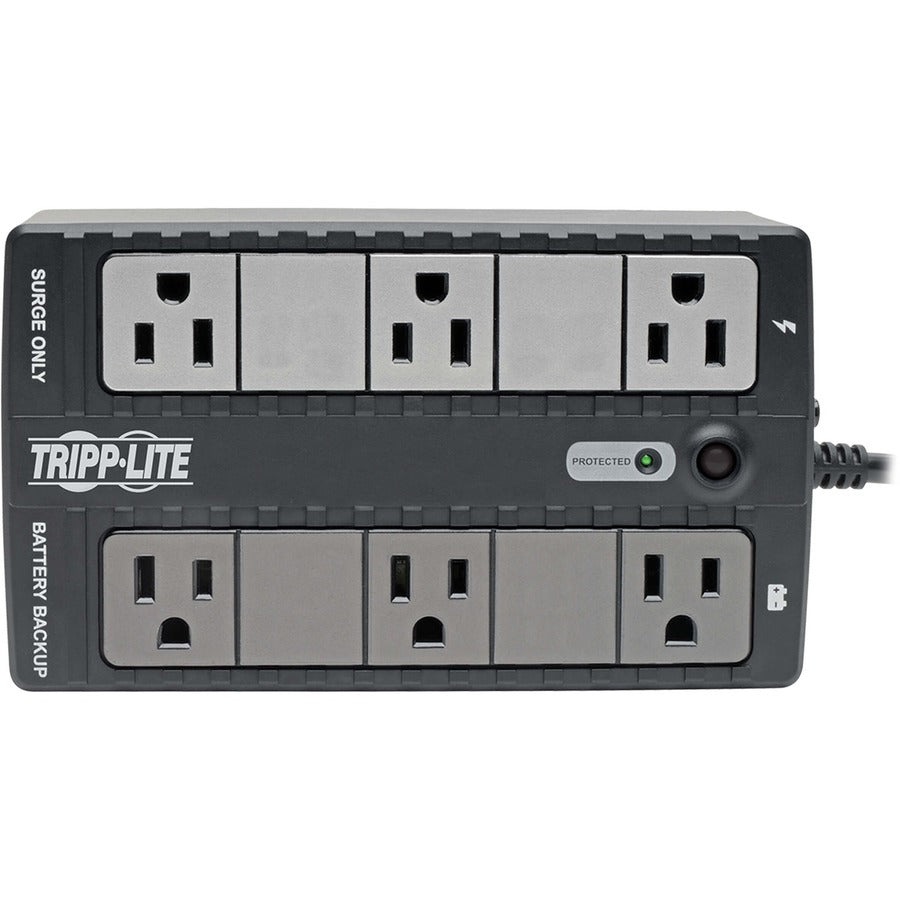

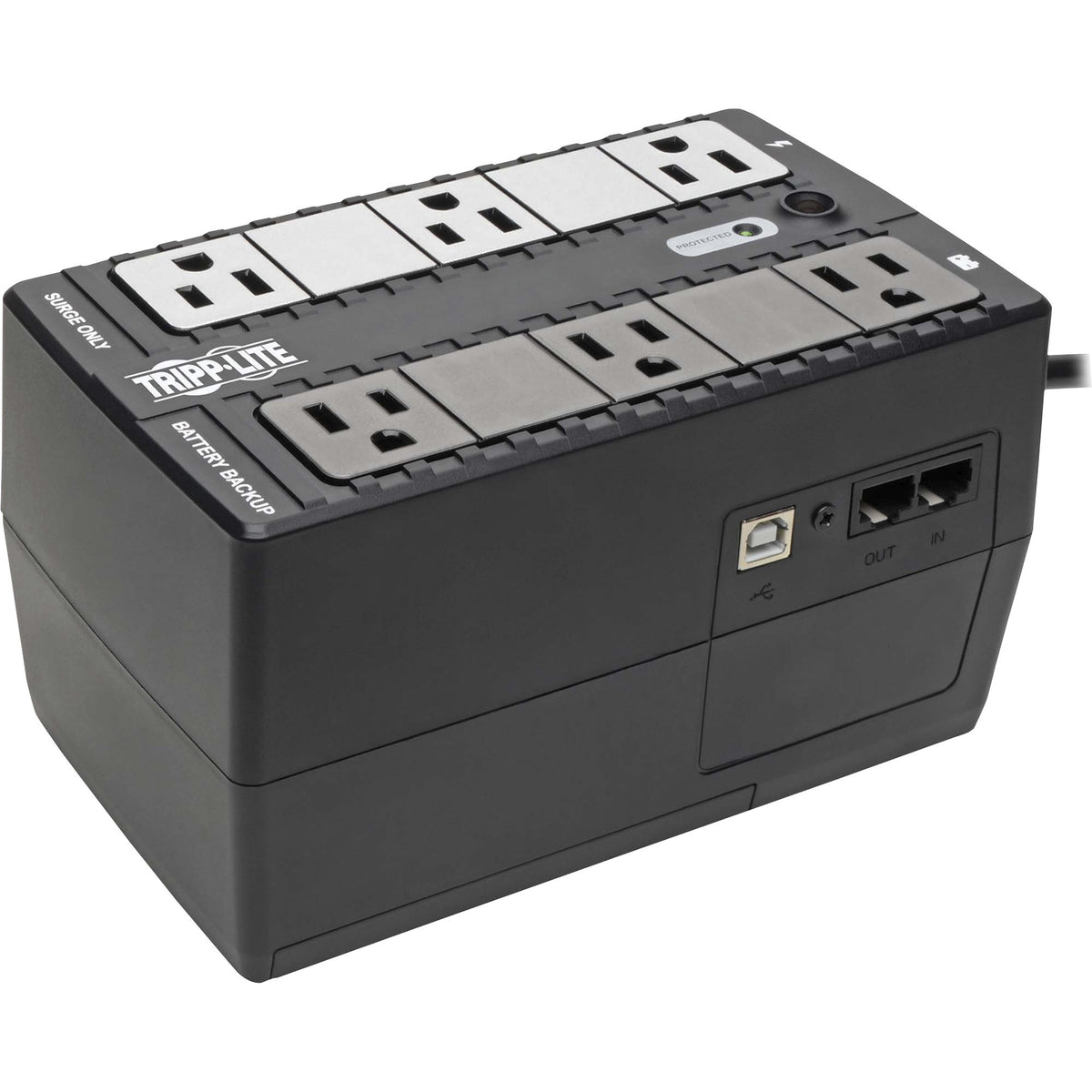

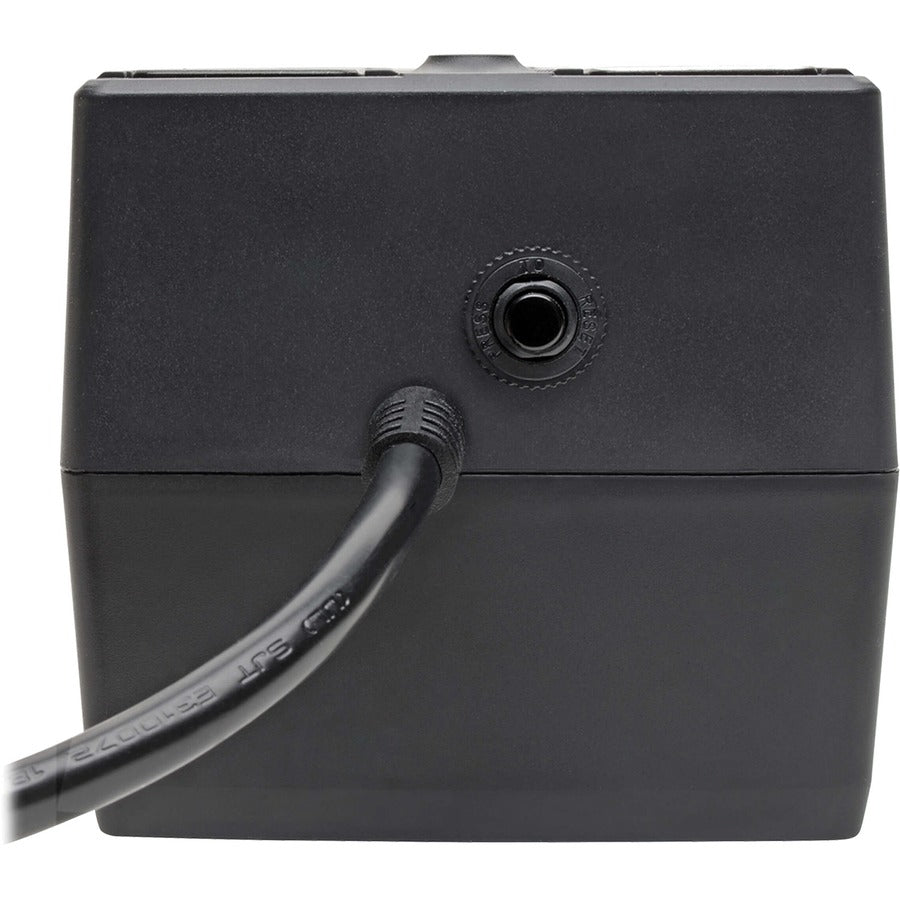

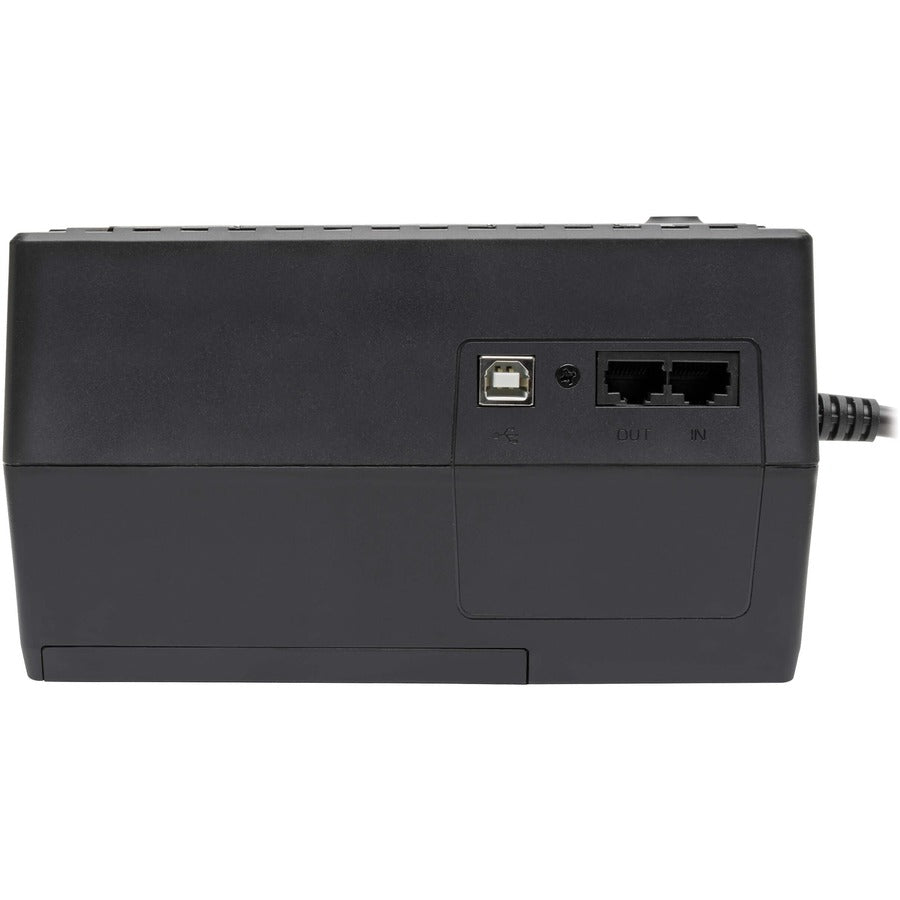

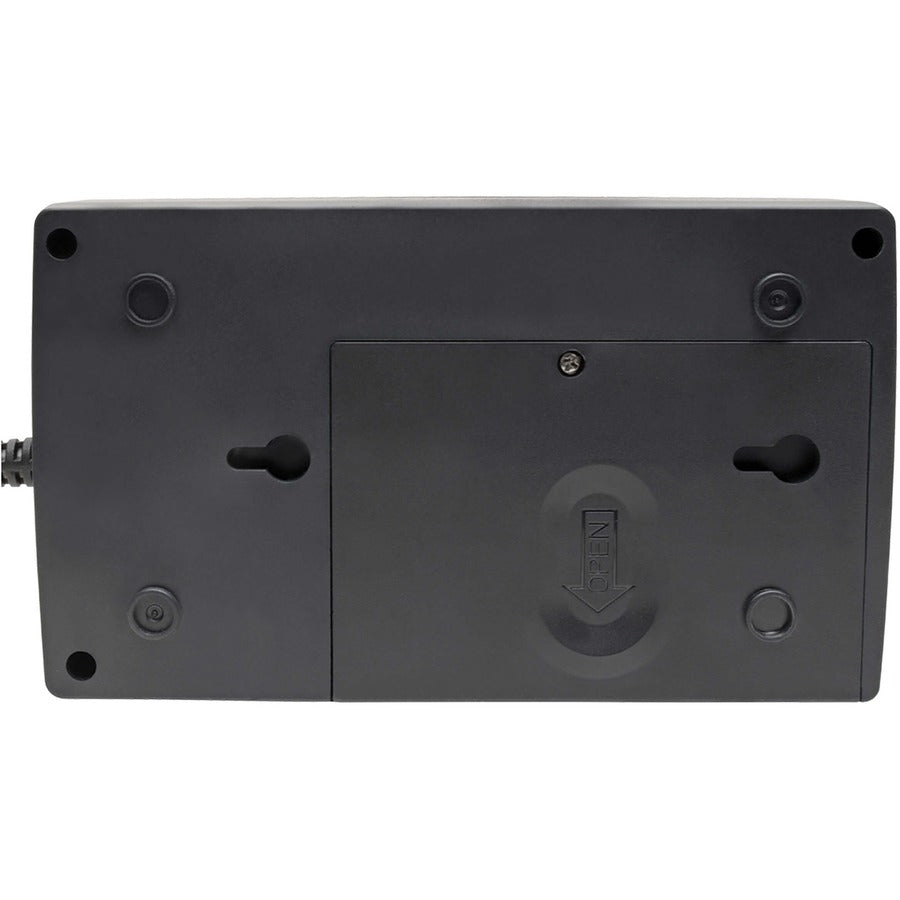

Eaton Tripp Lite Series 350VA 210W Standby UPS - 6 NEMA 5-15R Outlets, 120V, 50/60 Hz, USB, 5-15P Plug, Desktop/Wall Mount - INTERNET350U
Key Features
- 6 NEMA 5-15R outlets power and protect PC, home theater or digital signage equipment
- High >98% efficiency with low BTU ratings saves electricity and lowers your energy costs
- Home-friendly alarm remains silent in backup mode, sounding only when imperative
- Keeps AC power running during blackouts to allow time for file saves and safe shutdown
- Protects equipment against blackouts, brownouts, overvoltages, surges and line noise
Product Overview
UPS offers standby protection for PCs and peripherals to prevent data loss and system downtime by providing battery-supported AC output during brownouts, blackouts and transient surges on both AC and dial-up modem lines. Wall-mountable, ultra-compact, flat-pack UPS includes three battery supported outlets for computer, monitor and one vital system peripheral plus three additional surge suppression-only outlets for printers and other system accessories not requiring battery support. Built-in, single-line, RJ11 phone suppression jacks with line splitter protects up to two directly connected modems, fax machines, cordless phones or other peripherals with a standard, dial-up phone connection. Built-in audible alarm and front panel LEDs offer continuous status information regarding line and battery power operation. 350VA/180 watt power handling ability supports entry-level PCs for up to 15 minutes during power failures.General Information
- Manufacturer: Eaton Corporation
- Manufacturer Part Number: INTERNET350U
- Brand Name: Tripp Lite series
- Product Model: INTERNET350U
- Product Name: INTERNET350U 350VA Ultra-compact Desktop/Tower/Wall Mount UPS
- Packaged Quantity: 1 Each
- Product Type: Standby UPS
Technical Information
- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15R
- Receptacle Detail: 6 x NEMA 5-15R
- Number of Surge-only Outlets: 3
- Dataline Protection: RJ-11
- Overload Protection: Yes
- Cord Length: 6 ft
- Transfer Time: 6 ms
- Phase: Single Phase
- Application/Usage:
- Home/Office
- Computer
- Router
- Audio Receiver
- DVR
- Printer
- Media Player
- HDTV
- Blu-ray Player
Power Description
- Load Capacity (VA): 350 VA
- Load Capacity (Watt): 210 W
- Input Voltage: 120 V AC
- Output Voltage:
- 110 V AC
- 115 V AC
- 120 V AC
- Output Frequency: 60 Hz
- Waveform Type: Pure Sine Wave
- Surge Energy Rating: 316 J
Management
- Alarm:
- Overload
- UPS Fault
- Low Battery
Controls/Indicators
- Status Indicators:
- Line Power
- Battery Power Status
Interfaces/Ports
- USB: Yes
- USB (HID Compliant) Port: Yes
Battery Information
- DC System Voltage: 12 V DC
- Battery Characteristics: Valve-regulated
- Battery Chemistry: Lead Acid
- Backup/Run Time (Full Load): 2 Minute
- Backup/Run Time (Half Load): 7 Minute
- Battery Life: 6 Year
- Hot Swappable: Yes
- Typical Battery Recharge Time: 6.50 Hour
- Replaceable Battery: Yes
Environmental Conditions
- Storage Temperature: 5°F (-15°C) - 113°F (45°C)
- Minimum Operating Temperature: 32°F (0°C)
- Maximum Operating Temperature: 104°F (40°C)
- Sound Emission: 40 dB
Physical Characteristics
- Product Color: Black
- Height: 4.1"
- Width: 4.3"
- Depth: 7.3"
- Rack Height: 2U
- Form Factor: Ultra-compact Desktop/Tower/Wall Mount
- Weight (Approximate): 3.96 lb
Miscellaneous
- Package Contents:
- INTERNET350U 350VA Ultra-compact Desktop/Tower/Wall Mount UPS
- USB Cable
- Owner's Manual
- Software Included: PowerAlert Software
- Country of Origin: China
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 2 Year
- Additional Warranty Information:
2 year warranty.
- 100,000connected equipment insurance (USA, Puerto Rico, & Canada Only).
