Omada 10-Port Gigabit Easy Managed Switch with 8-Port PoE+ - ES210GMP
Key Features
- 123W Power Budget, with up to 30W for each PoE port
- 1× Gigabit RJ45 port, 1× Gigabit SFP/RJ45 Combo port
- 8× Gigabit 802.3af/at-compliant PoE+ RJ45 ports
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Centralized Cloud Management via the web or the Omada app
- Durable metal casing and desktop/wall mounting design
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Fanless design for silent operation
- Up to 250m PoE, QoS, PoE Auto Recovery, and Port Isolation for reliable surveillance networking
Product Overview

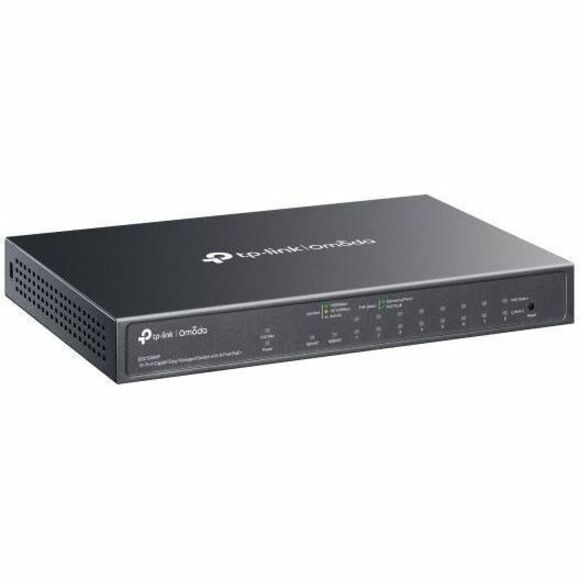

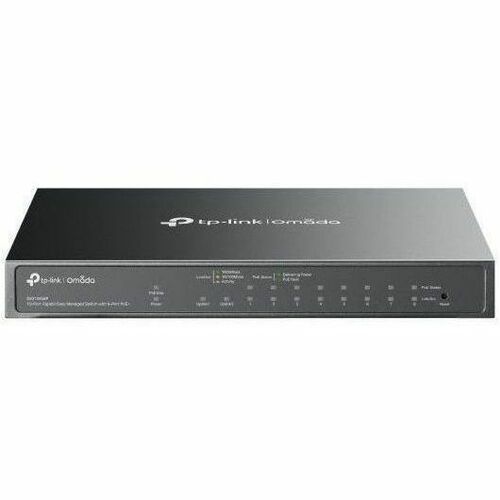

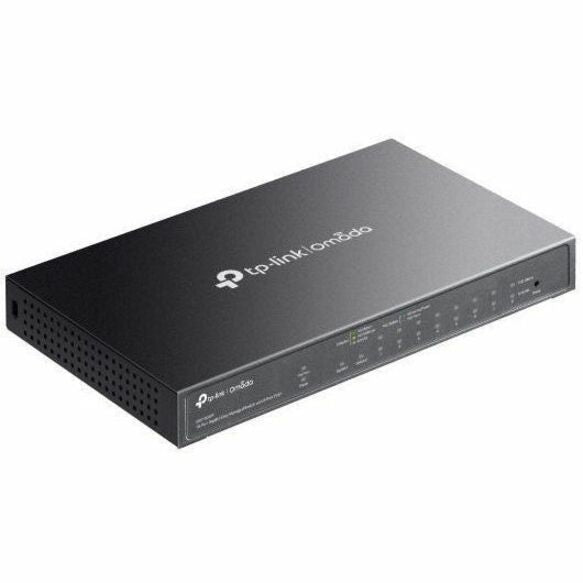

Omada 10-Port Gigabit Easy Managed Switch with 8-Port PoE+
ES210GMP

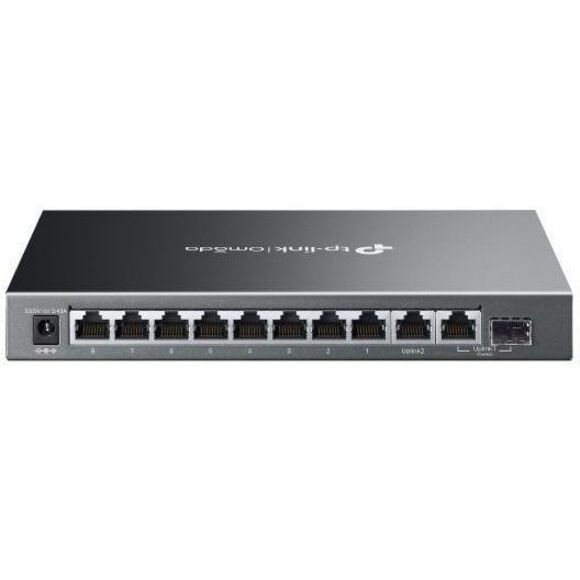

10× Gigabit Ports (8× PoE+, 1× RJ45, 1× RJ45/SFP Combo)
123 W Total PoE Budget
Fanless Design for Silent Operation
Easy Centralized Management
Automatic Loop Prevention
PoE Auto Recovery
Traffic Separation
Traffic Prioritization
Omada Cloud Essentials - A Free and Easy Cloud-Based Network Management
Omada Cloud Essentials is a free, easy-to-usecloud-based management option for the Omada networking system, covering access points, switches, and gateways. It enables simple, centralized network management and monitoring with essential features, making it ideal for surveillance networks and small businesses that don't require the complexity of larger operations.
- Lifetime Free Cloud without Any Additional Fees
- Exists Entirely in the Cloud.No Hardware or Software
- Controller Needed Cloud Centralized
- Management for Multiple Sites
- Access Anytime via Omada App or Web
- Easy Setup, Use, and Maintenance
- Unlimited Management Scale
- Zero-Touch Provisioning (ZTP) without Unboxing
- Upgrade to Standard with a Seamless Subscription
Abundant Functions for Reliable Surveillance Networking
- Transmission Distance up to 250 m
- Priority Video Quality Guaranteed
- Secure Traffic Separation via Port Isolation
- PoE Auto Recovery
Multiple Application Scenarios | Surveillance
Works with IP Cameras
Conference Calls
Works with IP Phones
Wi-Fi Coverage
Works with Access Points
Wired Connections
Works with Non-PoE Devices such as PCs and Printers

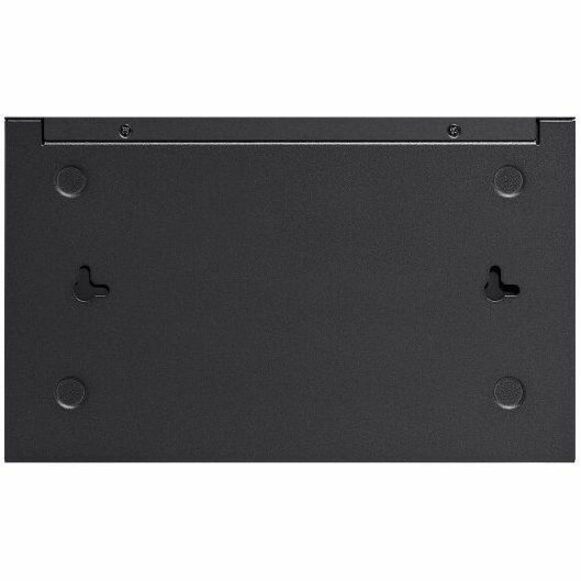

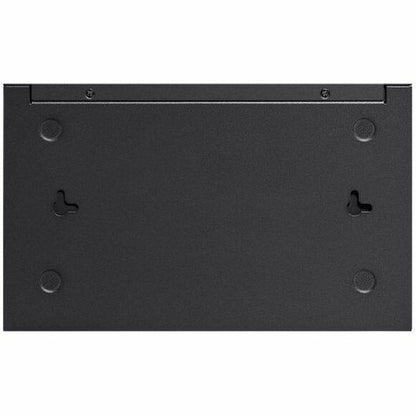

Durable Metal Casing, Featuring Desktop/Wall Mounting and a Fanless Design
General Information
- Manufacturer: TP-LINK Technologies Co., Ltd
- Manufacturer Part Number: ES210GMP
- Brand Name: Omada
- Product Model: ES210GMP
- Product Name: 10-Port Gigabit Easy Managed Switch with 8-Port PoE+
- Product Type: Ethernet Switch
Technical Information
- Features:
- Fanless
- Plug and Play
- Zero-Touch Provisioning (ZTP)
- Reset Button
- Loop Protection
Interfaces/Ports
- Total Number of Network Ports: 10
- Network (RJ-45): Yes
- Modular: Yes
- Port/Expansion Slot Details:
- 8 × Gigabit Ethernet PoE+
- 1 × Gigabit Ethernet Network
- 1 x Gigabit Ethernet Expansion TP/SFP Combo
Media & Performance
- Media Type Supported:
- Twisted Pair
- Optical Fiber
- Ethernet Technology: Gigabit Ethernet
- Network Technology:
- 10/100/1000Base-T
- 1000Base-X
I/O Expansions
- Total Number of Expansion Slots: 1
- Expansion Slot Type: SFP (mini-GBIC)
- Shared SFP Slot: Yes
- Number of SFP Slots: 1
Network & Communication
- Layer Supported: 2
- Networking Standards:
- IEEE 802.3at
- IEEE 802.3af
- IEEE 802.3i
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3x
- IEEE 802.1p
- IEEE 802.1Q
Management & Protocols
- Manageable: Yes
Power Description
- PoE (RJ-45) Port: Yes
- PoE Budget: 123 W
- Power Source: Power Adapter
Physical Characteristics
- Product Material: Metal
- Form Factor:
- Desktop
- Wall Mountable
- Height: 1"
- Width: 8.2"
- Depth: 4.9"
Miscellaneous
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
