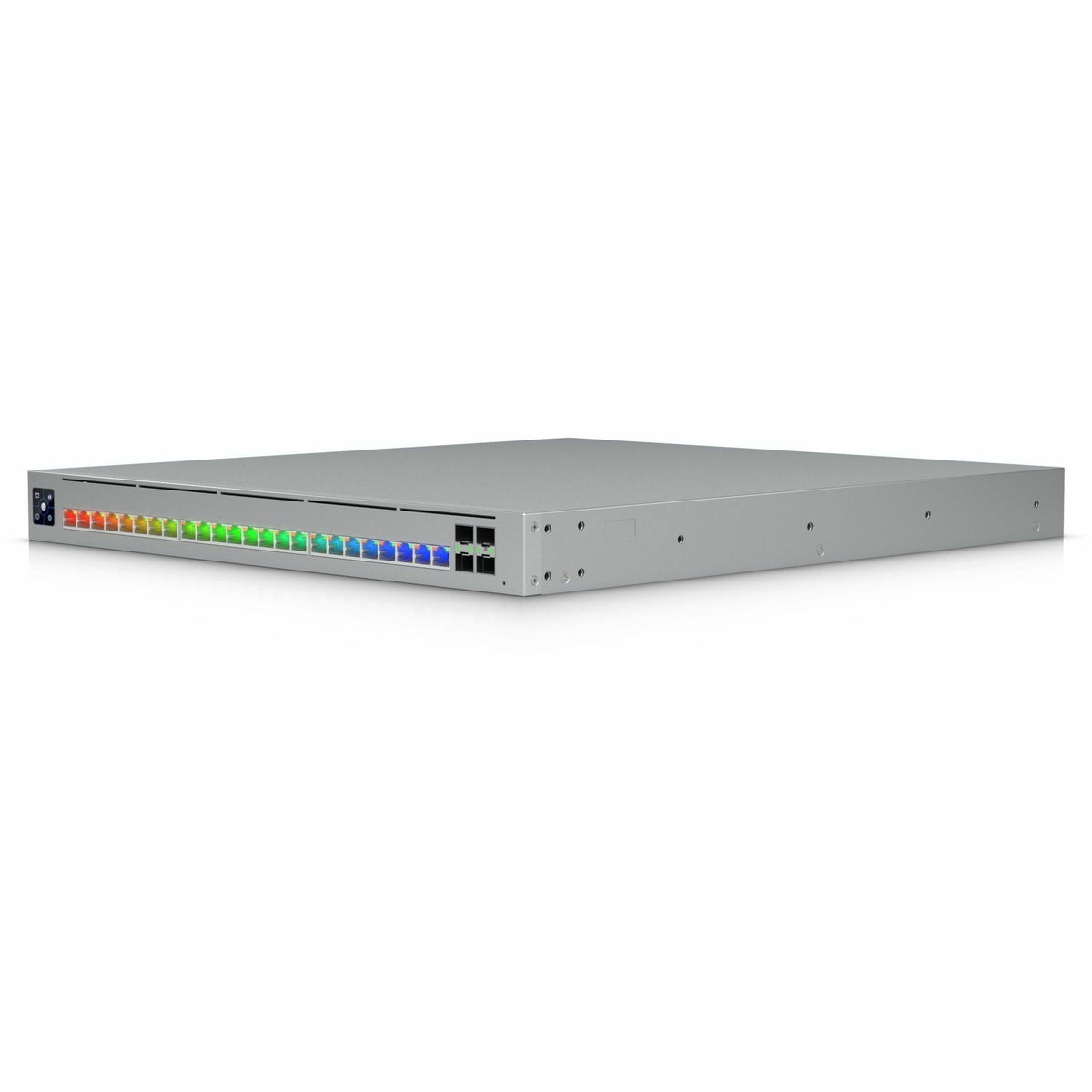

Ubiquiti Enterprise Campus 24S PoE - ECS-24S-POE
Key Features
- Built?in power supply supports internal components by providing required operating voltage
- Ethernet connections support basic network data transfer rates within defined technical limits
- Ethernet Switch supports network continuity by maintaining data transmission during operation
- Features 24 networking ports to support the connection requirements of larger workgroups using wired infrastructure
- Layer 3 support allows routing functionality that supports network scalability through structured traffic handling
- Management functionality enables centralized control to support efficient configuration and operational oversight

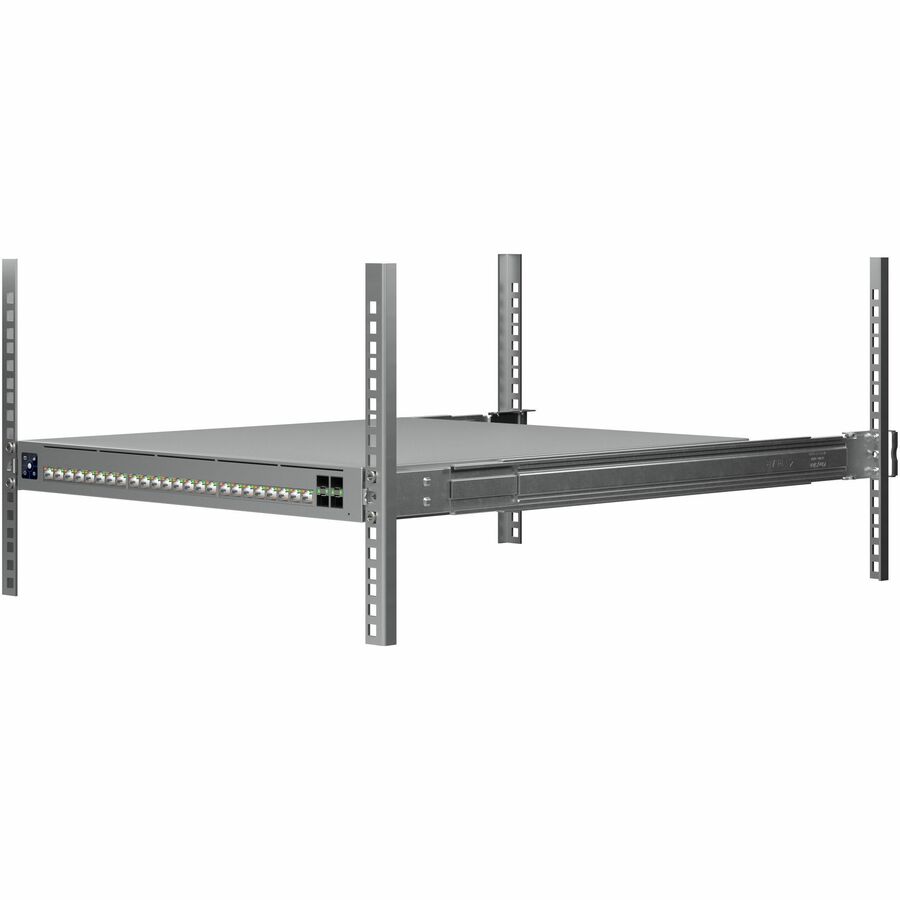

- Rack?mountable design supports installation within standard equipment racks to accommodate organized hardware placement
- Stack port supports interconnection with other ethernet switch units within a stack
- Twisted pair cable support enables cost?efficient network connections for data transmission across distances
Product Overview

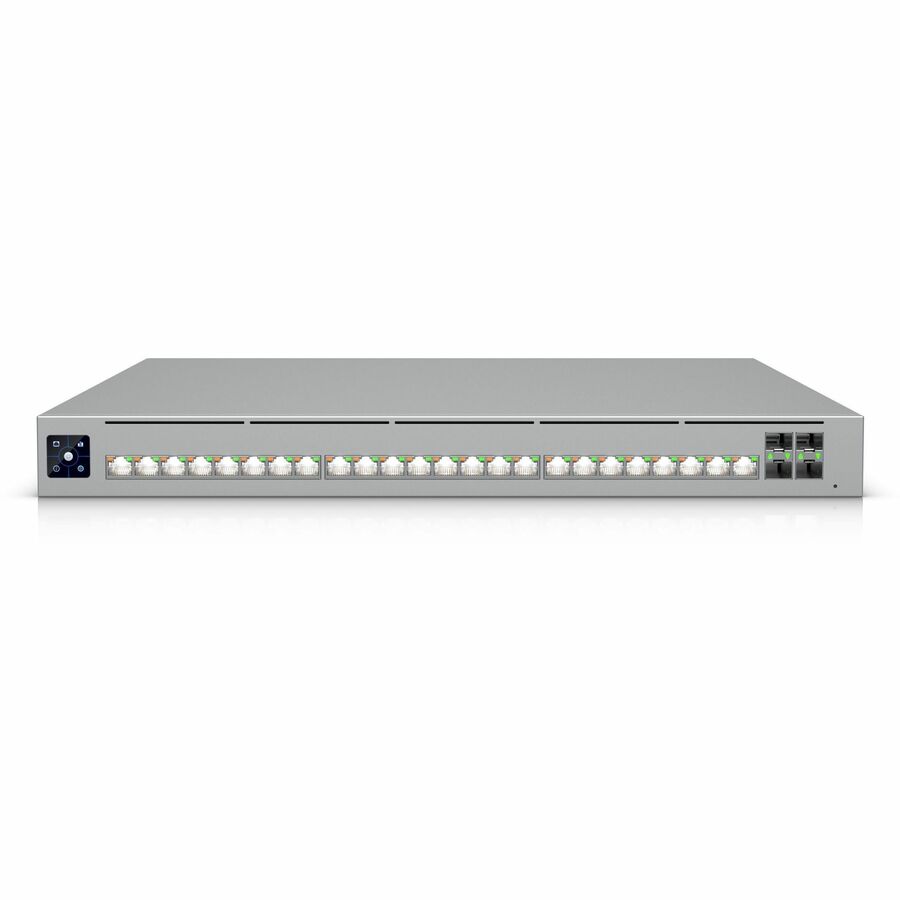

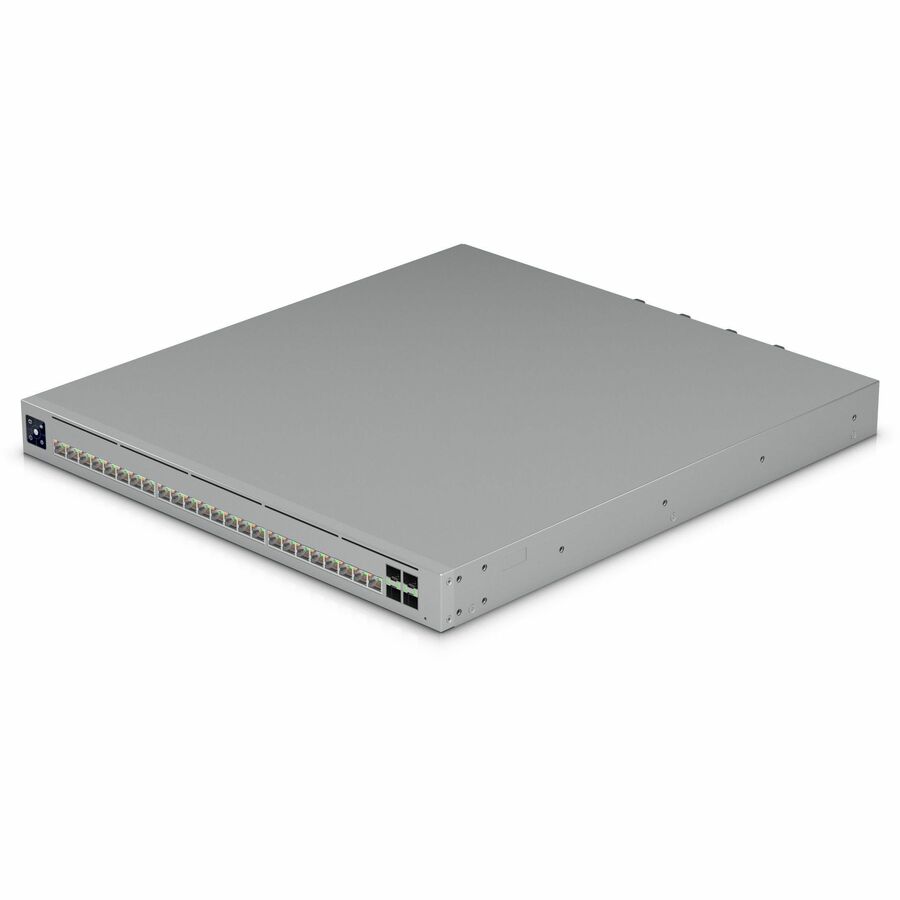

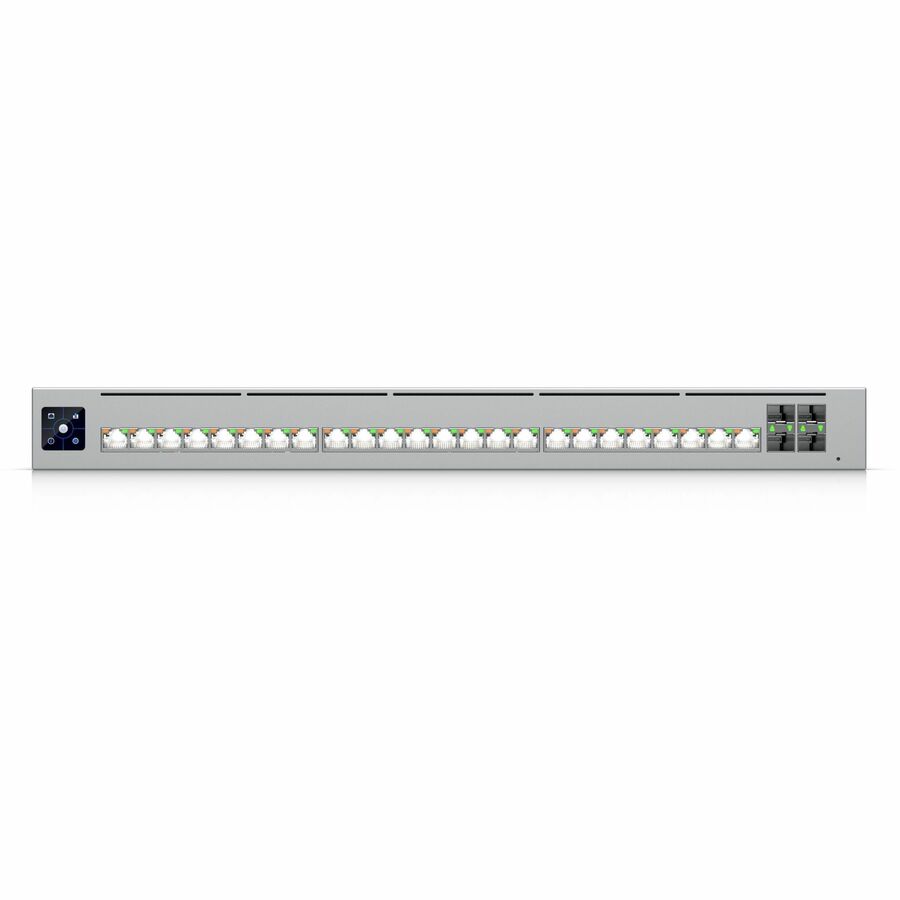

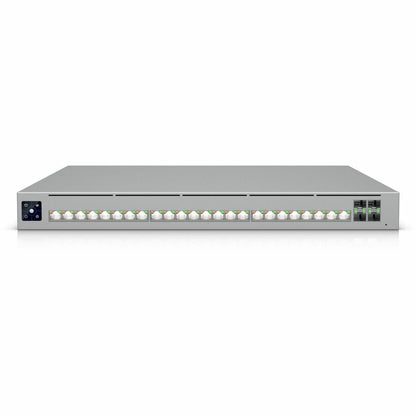

Enterprise-grade 24-port, Layer 3 Etherlighting PoE+++ switch with Stacking support and high-capacity 10 GbE RJ45 and 25G SFP28 connections for high availability system design.
General Information
- Manufacturer: Ubiquiti Inc.
- Manufacturer Part Number: ECS-24S-POE
- Brand Name: Ubiquiti
- Product Line: Enterprise Campus
- Product Model: ECS-24S-PoE
- Product Name: Enterprise Campus 24S PoE
- Product Type: Ethernet Switch
Technical Information
- Features:
- Reset Button
- DHCP Relay
- Virtual LAN (VLAN)
- Quality of Service (QoS)
- IGMP Snooping
- DHCP Snooping
- Flow Control
- Port Mirroring
- Loop Protection
- ESD Protection
- Built-in Fan
Interfaces/Ports
- Total Number of Network Ports: 24
- Network (RJ-45): Yes
- Stack Port: Yes

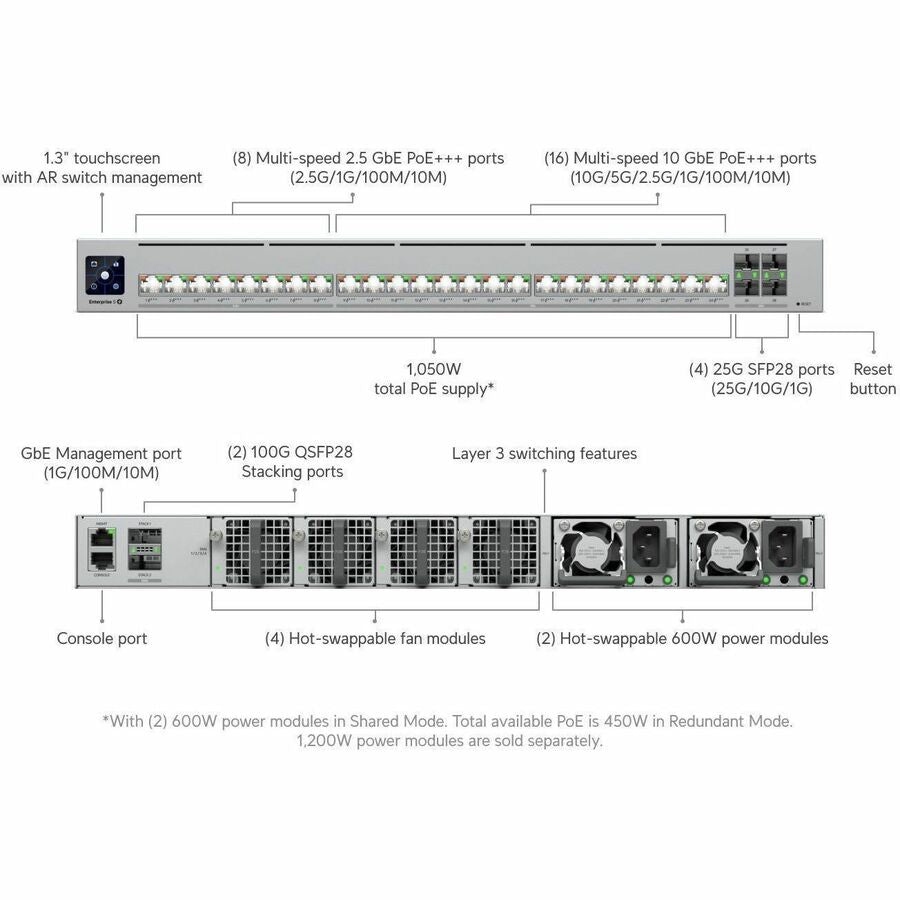

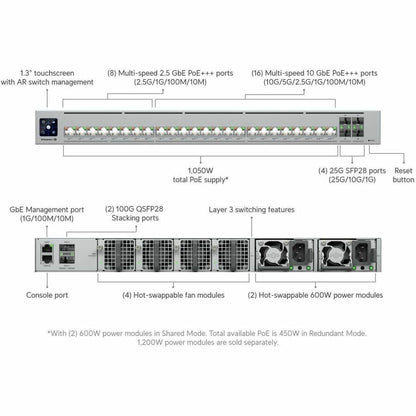

- Port/Expansion Slot Details:
- 8 x 2.5 Gigabit Ethernet PoE+++ Network Port
- 16 x 10 Gigabit Ethernet PoE+++ Network Port
- 4 x 25 Gigabit Ethernet Expansion Slot
- 1 x Gigabit Ethernet Management Port
- 1 x Console Port
- 2 x 100 Gigabit Ethernet Stacking Port
Media & Performance
- Media Type Supported:
- Twisted Pair
- Optical Fiber
- Ethernet Technology:
- Ethernet
- Fast Ethernet
- Gigabit Ethernet
- 2.5 Gigabit Ethernet
- 5 Gigabit Ethernet
- 10 Gigabit Ethernet
- 25 Gigabit Ethernet
- 100 Gigabit Ethernet
- Maximum Data Transfer Rate: 12.50 GB/s
- Switching Capacity: 57.50 GB/s
I/O Expansions
- Total Number of Expansion Slots: 6
- Expansion Slot Type:
- SFP28
- QSFP28
Network & Communication
- Layer Supported: 3
- Networking Standards: IEEE 802.1x
Management & Protocols
- Manageable: Yes
Power Description
- PoE (RJ-45) Port: Yes
- PoE Budget: 2250 W
- Input Voltage:
- 120 V AC
- 230 V AC

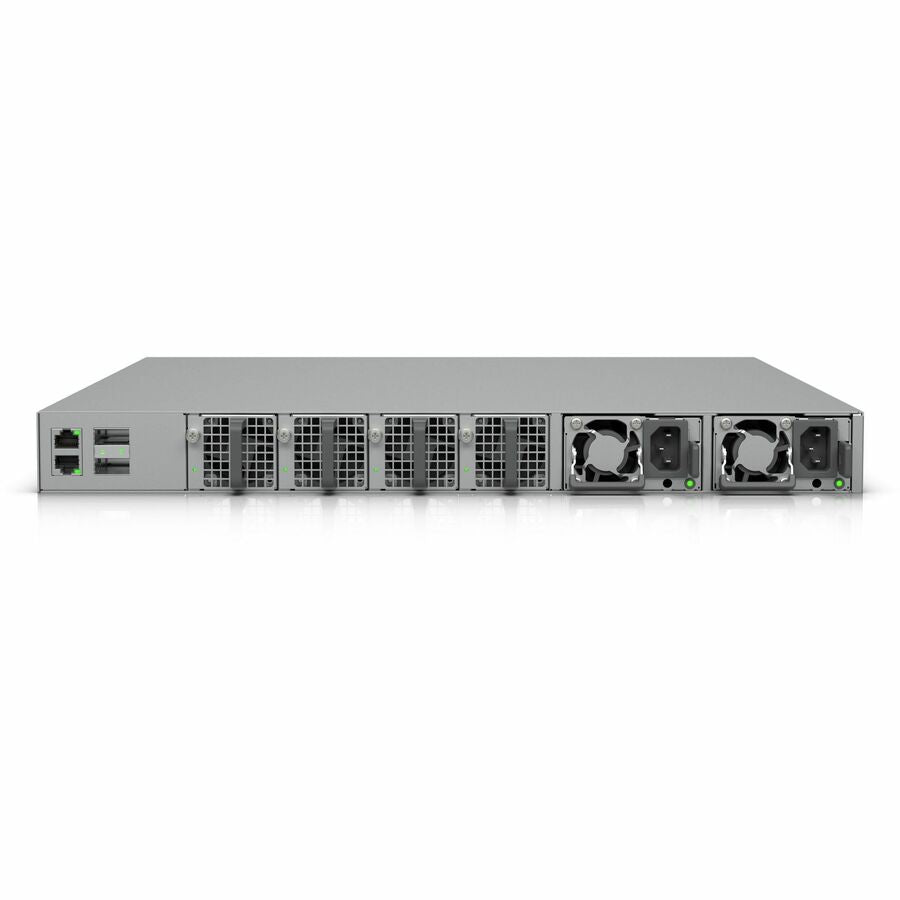

- Power Source:
- Power Supply
- AC/DC

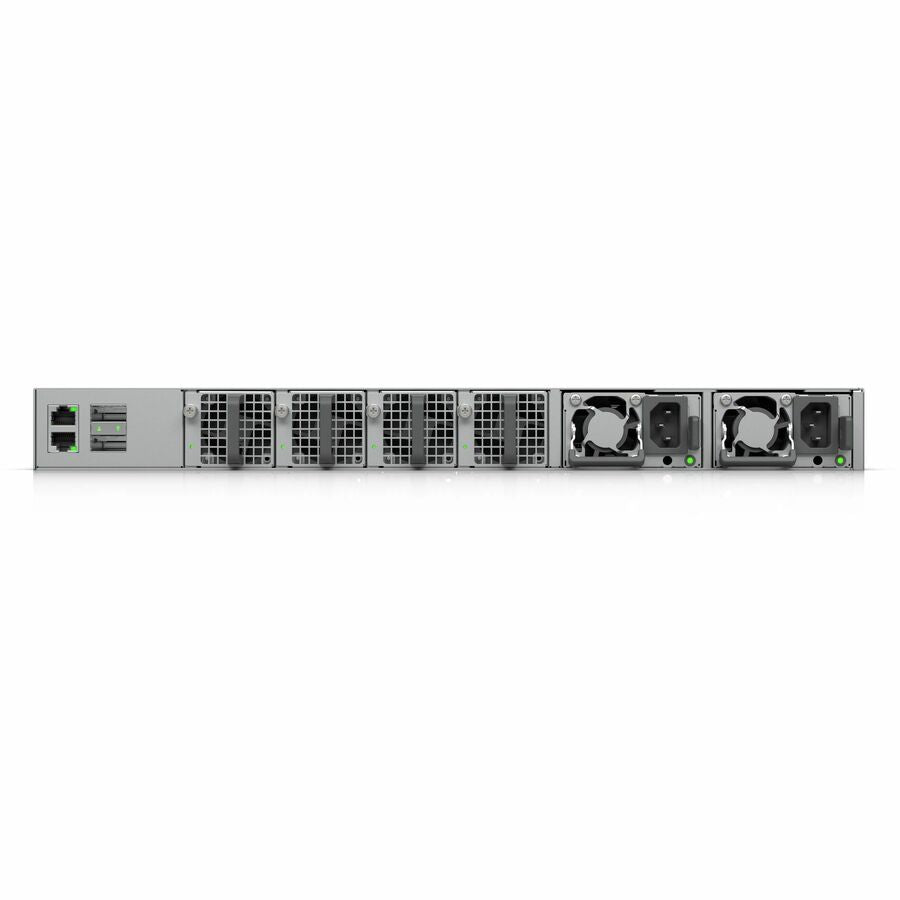

- Redundant Power Supply Supported: Yes
- Power Consumption: 2400 W

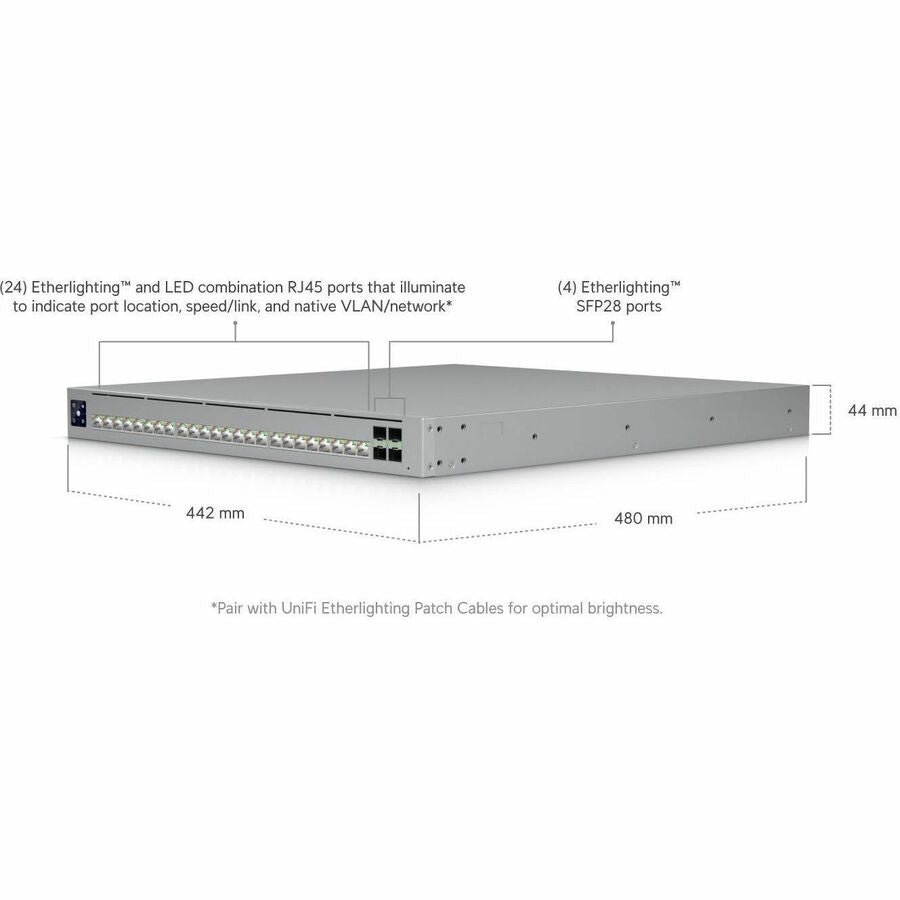

Physical Characteristics
- Product Material: SGCC Steel
- Compatible Rack Unit: 1U
- Form Factor:
- Rack-mountable
- Enclosure
- Height: 1.7"
- Width: 19.5"
- Depth: 17.4"
- Weight (Approximate): 20.28 lb
