CyberPower CP850PFCLCD PFC Sinewave UPS Systems - CP850PFCLCD
Key Features
- $250,000
- 10 × NEMA 5-15R
- 120Vac ± 5%
- 3 year
- 850VA/510 W
- Capacity:
- Communication:
- Connected Equipment Guarantee:
- Data line protection:
- ENERGY STAR® certified:
- Line Interactive
- Management software:
- NEMA 5-15P, 5 ft. cord
- Network
- Outlet types:
- Output:
- Plug type & cord:
- PowerPanel® Personal
- Sine Wave
- Topology:
- USB, Relay
- Warranty:
- Waveform:
- Yes
Product Overview
A mini-tower UPS with line interactive topology, the CyberPower PFC Sinewave CP850PFCLCD provides battery backup (using sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems requiring active PFC power source compatibility.

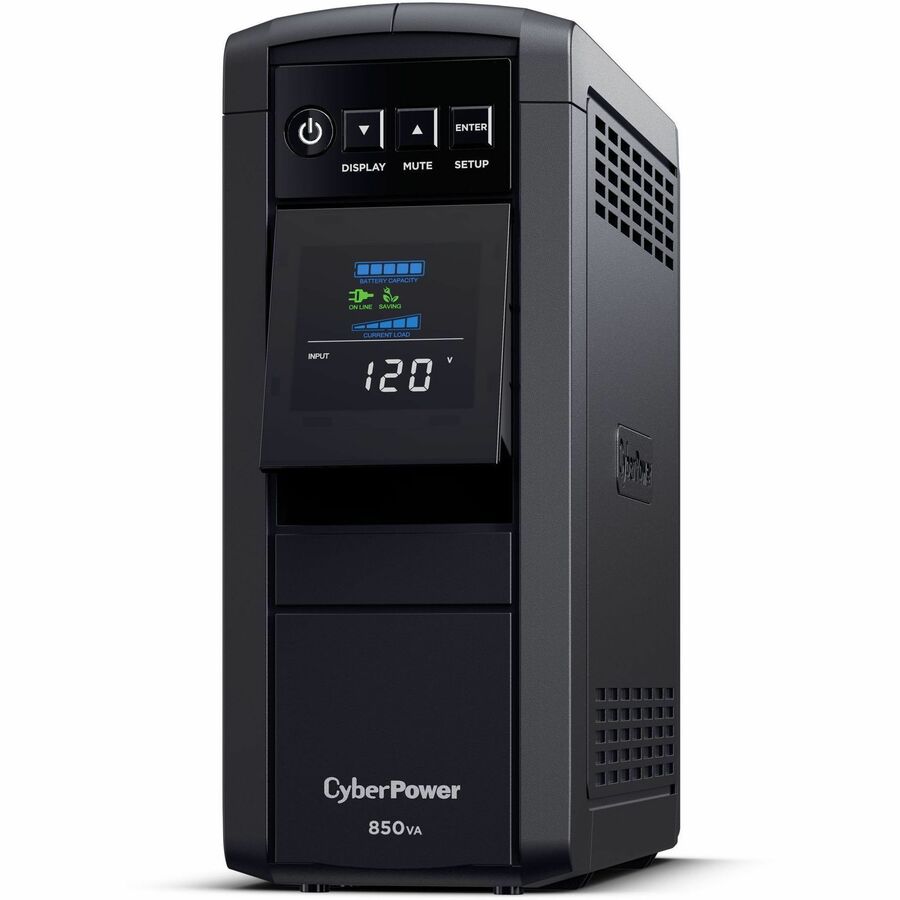

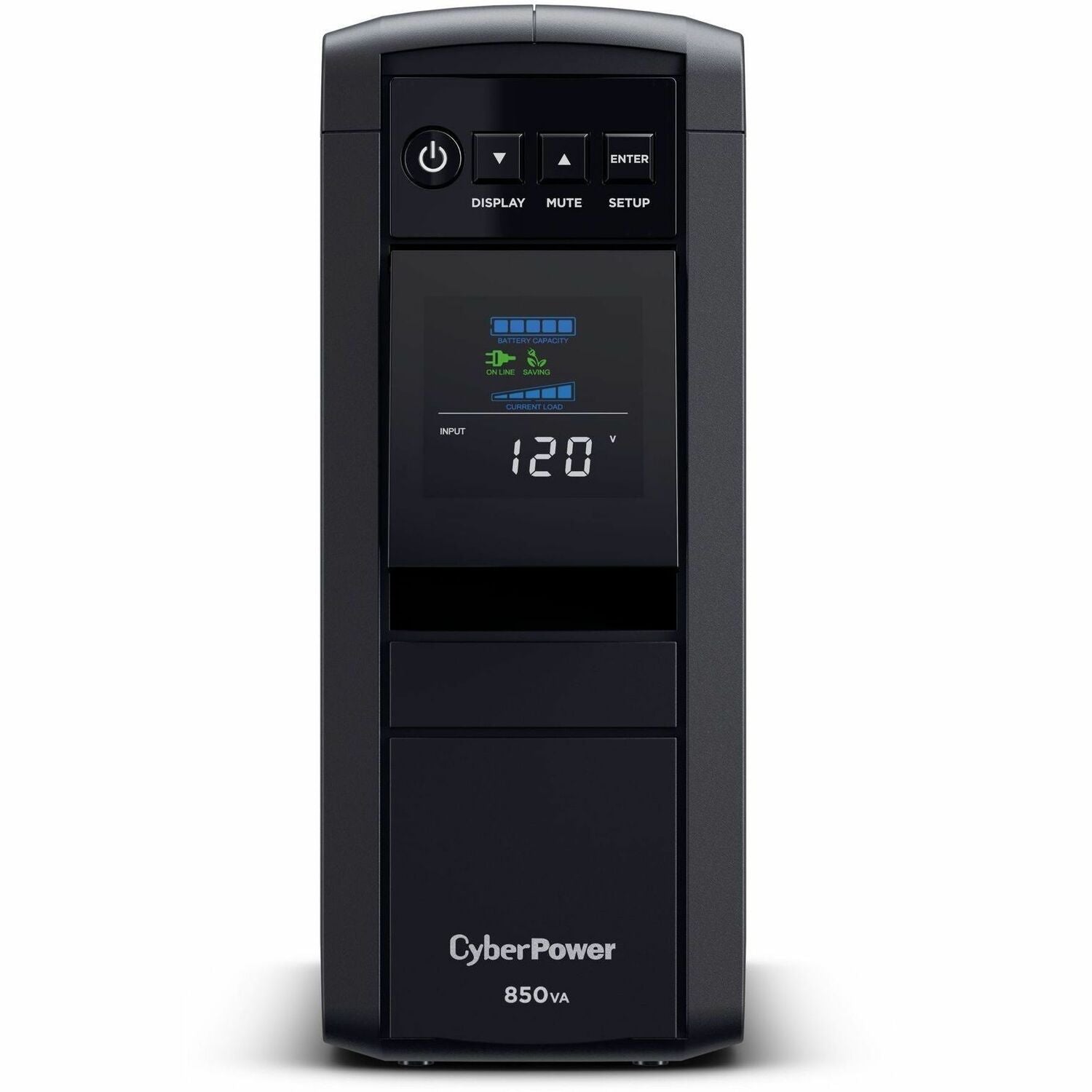

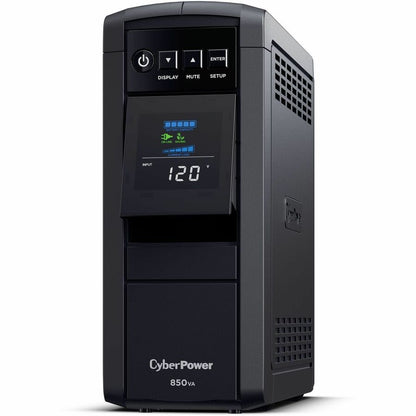

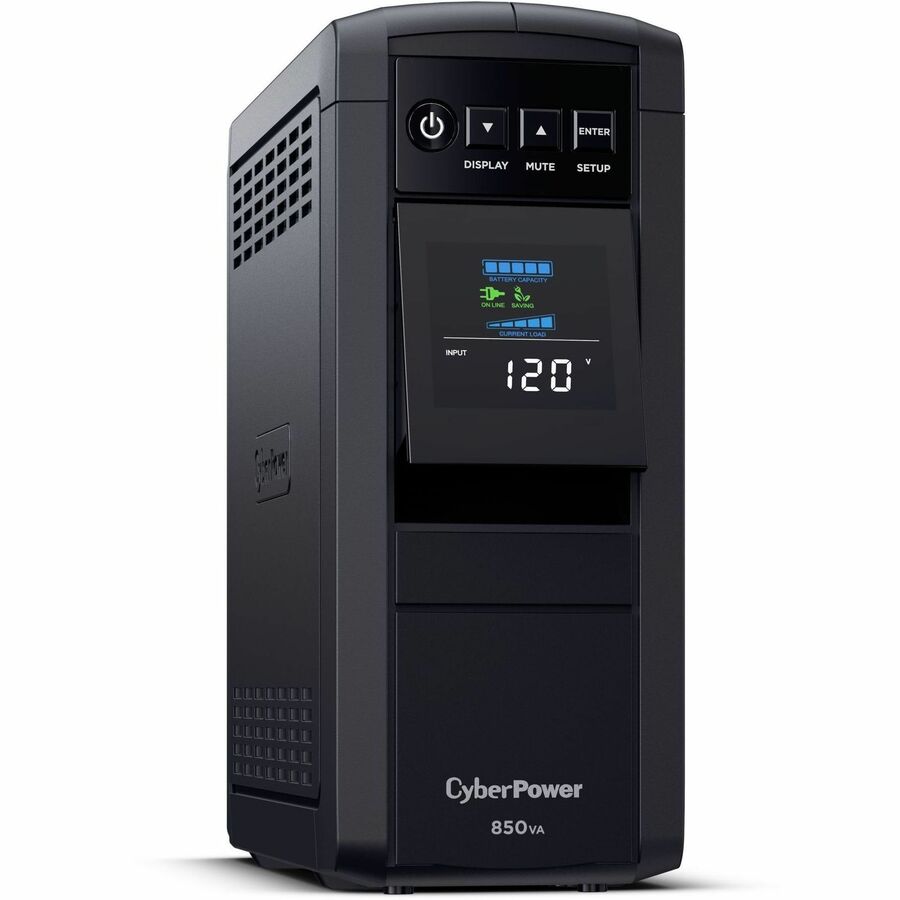

The CP850PFCLCD features an advanced multifunction control panel with a color LCD to quickly confirm status and alerts at-a-glance. The screen tilts for easy viewing when the UPS is placed in a low position such as under a desk.
The CP850PFCLCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The CP850PFCLCD comes with a three-year warranty (including coverage of batteries) and a ,250,000 Connected Equipment Guarantee.
General Information
- Manufacturer: CyberPower Systems, Inc
- Manufacturer Part Number: CP850PFCLCD
- Brand Name: CyberPower
- Product Series: PFC Sinewave UPS
- Product Model: CP850PFCLCD
- Product Name: CP850PFCLCD PFC Sinewave UPS Systems
- Product Type: Line-interactive UPS
Technical Information
- AVR: Yes
- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15R

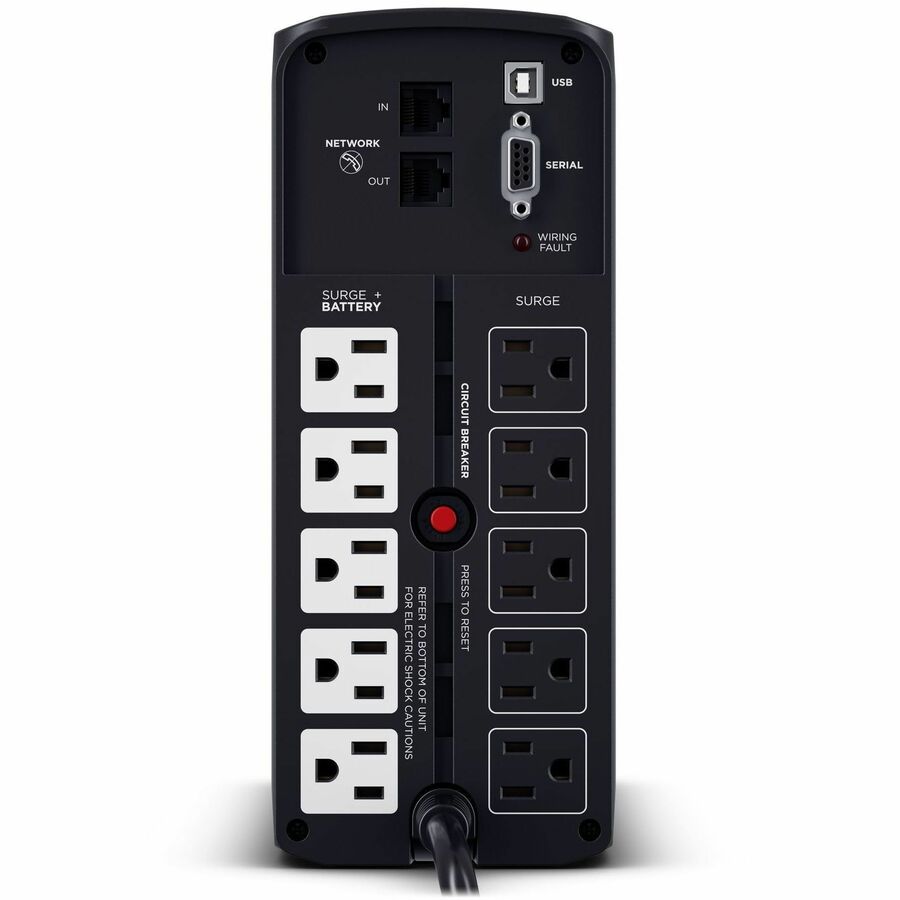

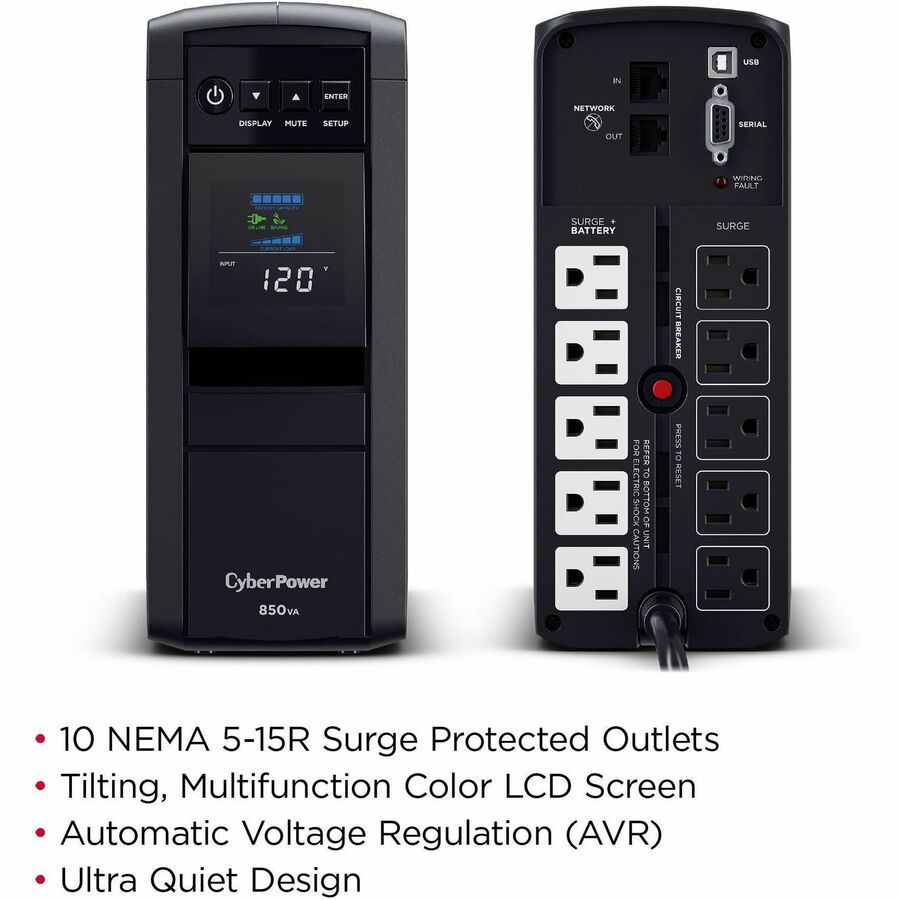

- Receptacle Detail: 10 x NEMA 5-15R
- Number of Battery & Surge Outlets: 5
- Number of Surge-only Outlets: 5
- Dataline Protection: RJ-45
- Overload Protection: Yes
- Cord Length: 5 ft
- Transfer Time: 4 ms
- EMI/RFI Noise Filter: Yes
- Energy Saving: GreenPower UPS™ Bypass Technology
Power Description
- Load Capacity (VA): 850 VA
- Load Capacity (Watt): 510 W
- Input Voltage: 120 V AC
- Input Voltage Range: 88 V AC - 144 V AC
- Output Voltage: 120 V AC
- Input Frequency: 63 Hz
- Output Frequency: 60 Hz
- Waveform Type: Sine Wave
- Surge Energy Rating: 1150 J
Management
- Alarm: Battery Mode
Controls/Indicators
- Status Indicators: Power On
Interfaces/Ports
- Serial Port: Yes
- USB (HID Compliant) Port: Yes
Battery Information
- Number of Batteries: 1
- Battery Characteristics: Maintenance-free
- Battery Chemistry: Lead Acid
- Battery Size: 12V
- Battery Capacity: 9000 mAh
- Backup/Run Time (Full Load): 2 Minute
- Backup/Run Time (Half Load): 11 Minute
- Hot Swappable: Yes
- Typical Battery Recharge Time: 8 Hour
- Replaceable Battery: Yes
Environmental Conditions
- Maximum Operating Elevation: 10000 ft
- Operating Humidity: 0% - 95%
- Maximum Operating Temperature: 104°F (40°C)

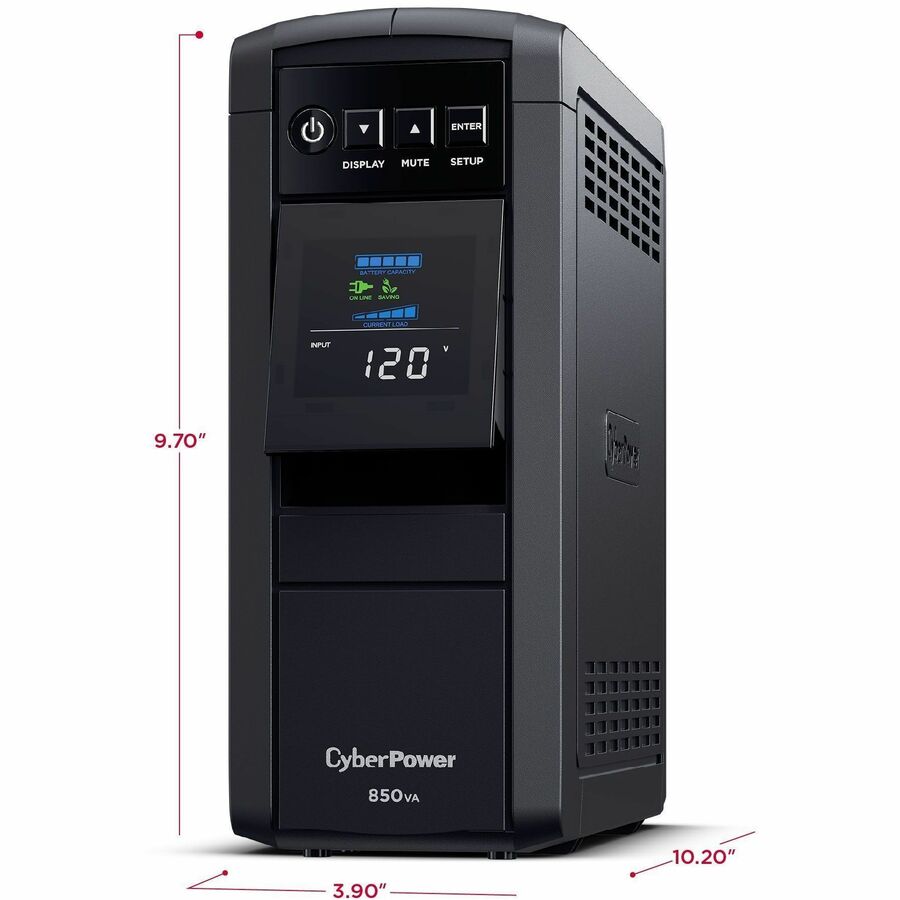

Physical Characteristics
- Product Color: Black
- Height: 9.7"
- Width: 3.9"
- Depth: 10.2"
- Form Factor: Mini-tower
- Weight (Approximate): 14.90 lb
Miscellaneous
- Package Contents:
- CP850PFCLCD UPS 850VA 510W PFC compatible Pure sine wave
- PowerPanel Personal Edition Software
- USB Cable
- Telephone Cable
- User Manual
- Registration Card
- Coax Cable
- Software Included: PowerPanel Personal Edition Software
- Energy Star: Yes
- Country of Origin: Philippines
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 3 Year
