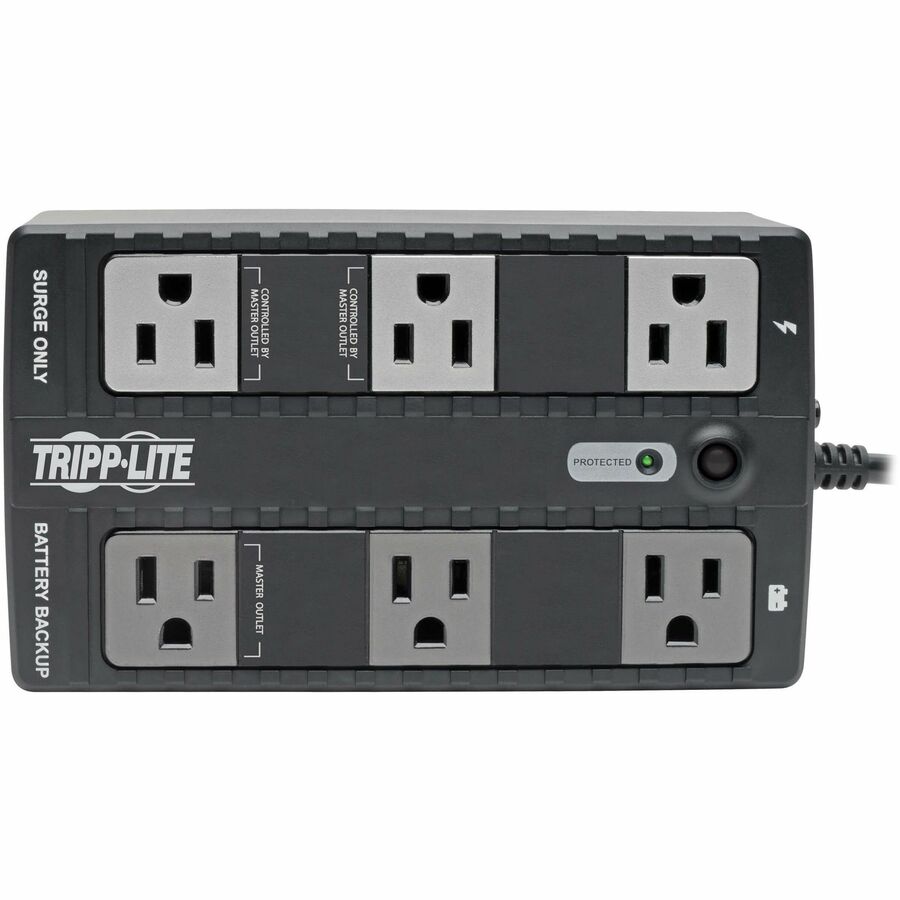

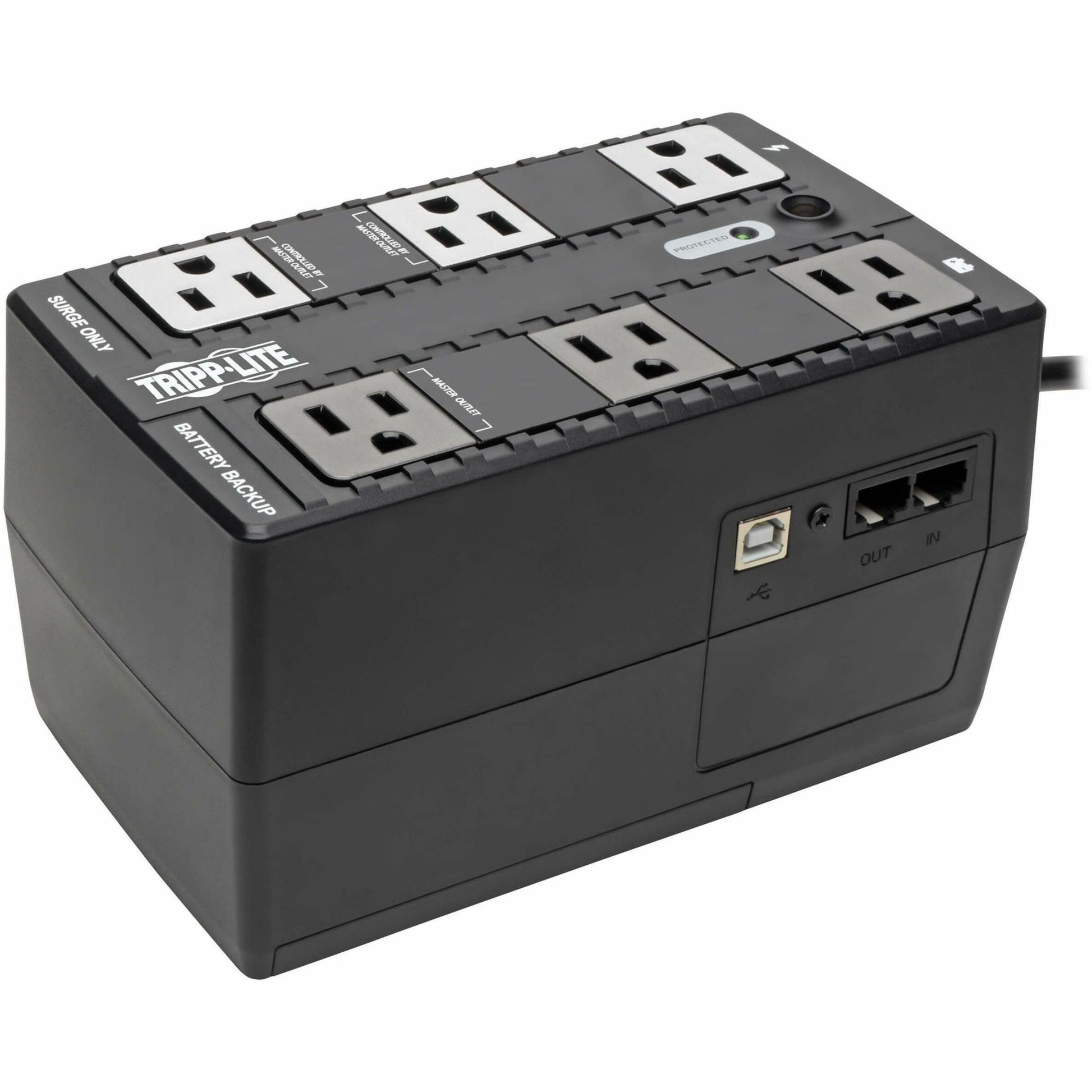

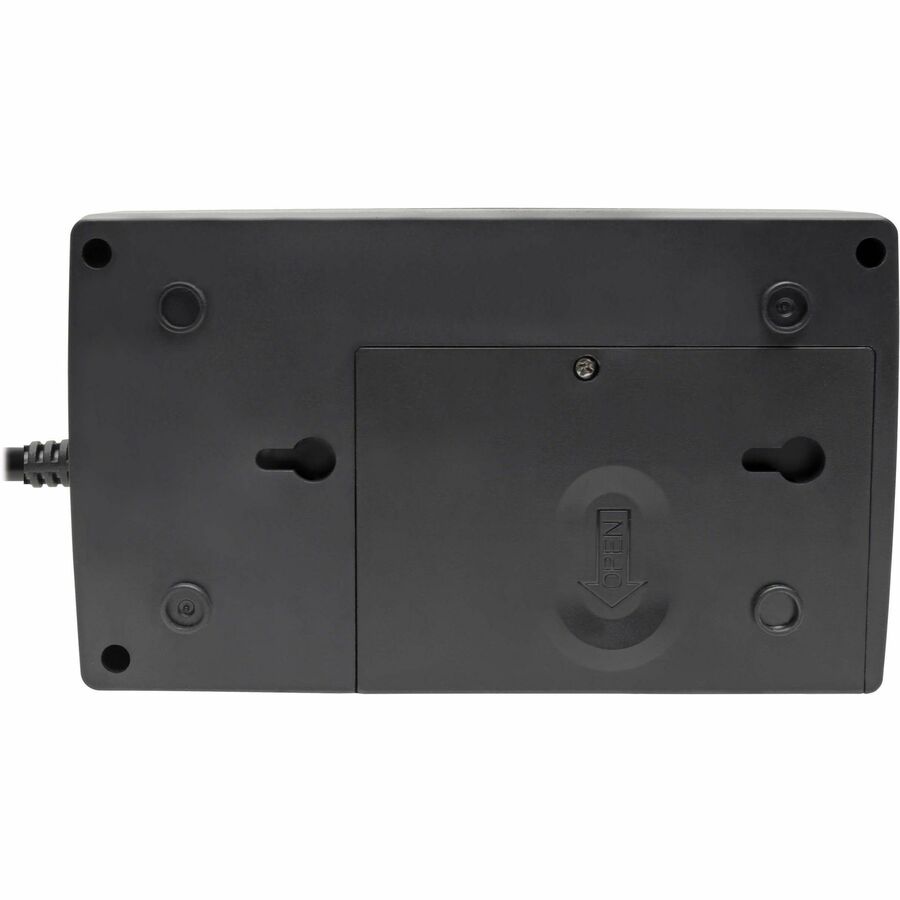

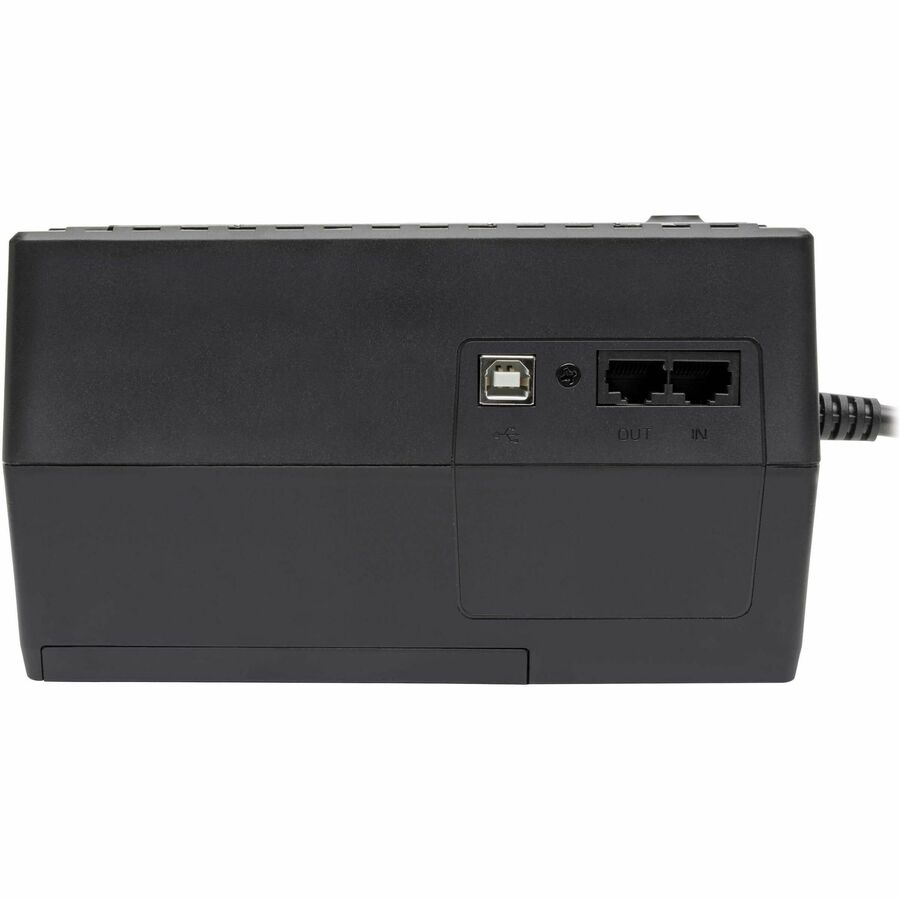

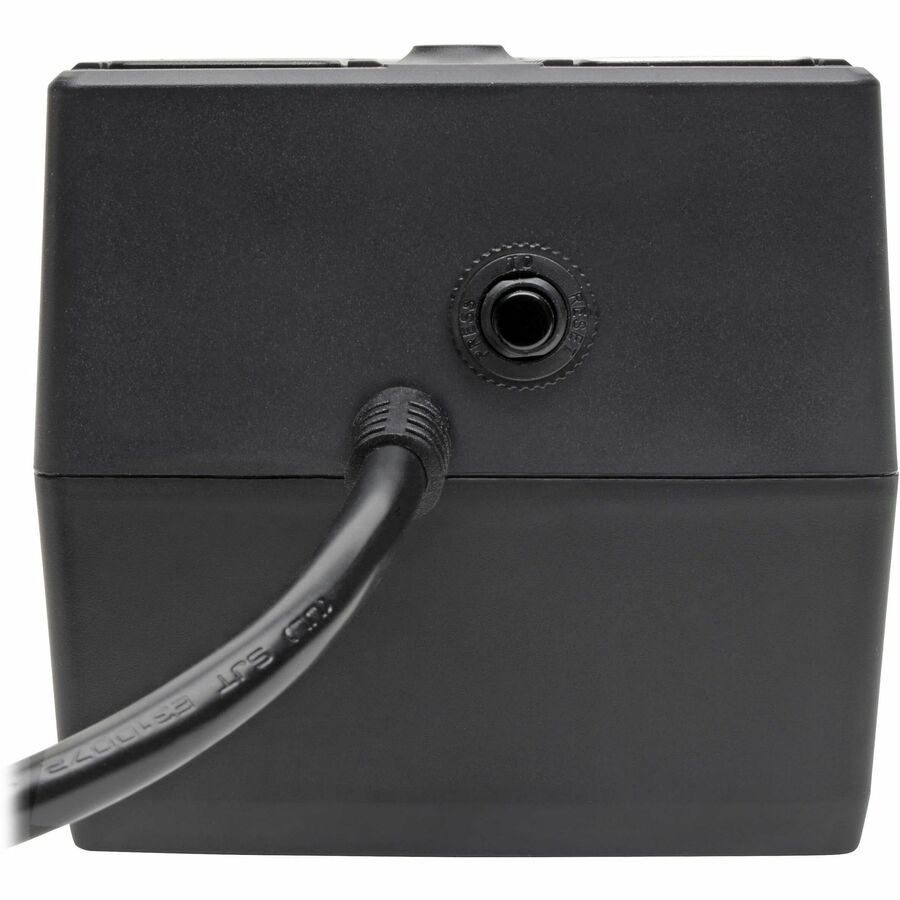

Eaton Tripp Lite Series 350VA 210W Standby UPS - 6 NEMA 5-15R Outlets, 120V, 50/60 Hz, 5-15P Plug, ENERGY STAR, Desktop/Wall - ECO350UPS
Key Features
- 6 NEMA 5-15R outlets power and protect PC, home theater or digital signage equipment
- ENERGY STAR-certified to save electricity, lower costs, and protect the environment
- Home-friendly alarm remains silent in backup mode, sounding only when imperative
- Keeps AC power running during blackouts to allow time for file saves and safe shutdown
- Protects equipment against blackouts, brownouts, overvoltages, surges and line noise
Product Overview
Ultra-high efficiency ECO Series UPS System saves energy by automatically powering off unused computer accessories when the computer is not in use. UPS system uses less electricity than conventional models. Design includes three battery-supported outlets for computer, monitor and one vital system peripheral, plus three additional surge suppression-only outlets for accessories not requiring battery support. Two of the surge-only outlets are designated Eco outlets that can be configured to automatically power off when the computer enters standby mode or is shutdown. USB port enables UPS configuration options and unattended system shutdown without data loss in the case of extended power failure. UPS system meets RoHS standards. 350VA/180-watt power handling ability supports entry-level PC systems for up to 12 minutes during power fail conditions.General Information
- Manufacturer: Eaton Corporation
- Manufacturer Part Number: ECO350UPS
- Brand Name: Tripp Lite series
- Product Series: ECO
- Product Model: ECO350UPS
- Product Name: ECO350UPS 350VA Ultra-compact Desktop/Tower/Wall Mount UPS
- Packaged Quantity: 1 Each
- Product Type: Standby UPS
Technical Information
- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15R
- Receptacle Detail: 6 x NEMA 5-15R
- Number of Surge-only Outlets: 3
- Overload Protection: Yes
- Transfer Time: 6 ms
- Phase: Single Phase
- Application/Usage:
- Retail
- Hospital
- Computer Peripheral
Power Description
- Load Capacity (VA): 350 VA
- Load Capacity (Watt): 210 W
- Input Voltage: 120 V AC
- Output Voltage:
- 110 V AC
- 115 V AC
- 120 V AC
- Output Frequency: 60 Hz
- Waveform Type: Pure Sine Wave
- Surge Energy Rating: 316 J
Management
- Alarm:
- Battery Fault
- Overload
- Low Battery
Interfaces/Ports
- USB: Yes
- USB (HID Compliant) Port: Yes
Battery Information
- DC System Voltage: 12 V DC
- Battery Characteristics: Valve-regulated
- Battery Chemistry: Lead Acid
- Backup/Run Time (Full Load): 2 Minute
- Backup/Run Time (Half Load): 8 Minute
- Typical Battery Recharge Time: 6.50 Hour
- Replaceable Battery: Yes
Environmental Conditions
- Maximum Storage Elevation: 6561 ft
- Storage Temperature: 5°F (-15°C) - 133°F (56.1°C)
- Minimum Operating Temperature: 32°F (0°C)
- Maximum Operating Temperature: 104°F (40°C)
Physical Characteristics
- Product Color: Black
- Height: 4.1"
- Width: 4.3"
- Depth: 7.3"
- Form Factor: Ultra-compact Desktop/Tower/Wall Mount
- Weight (Approximate): 5 lb
Miscellaneous
- Package Contents:
- ECO350UPS 350VA Ultra-compact Desktop/Tower/Wall Mount UPS
- USB Cable
- Owner's Manual
- Energy Star: Yes
- Country of Origin: China
- Environmentally Friendly: Yes
- Energy Efficiency Certification: ENERGY STAR 2.0
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 3 Year
- Additional Warranty Information:
2 year
- 100,000 connected equipment guarantee
