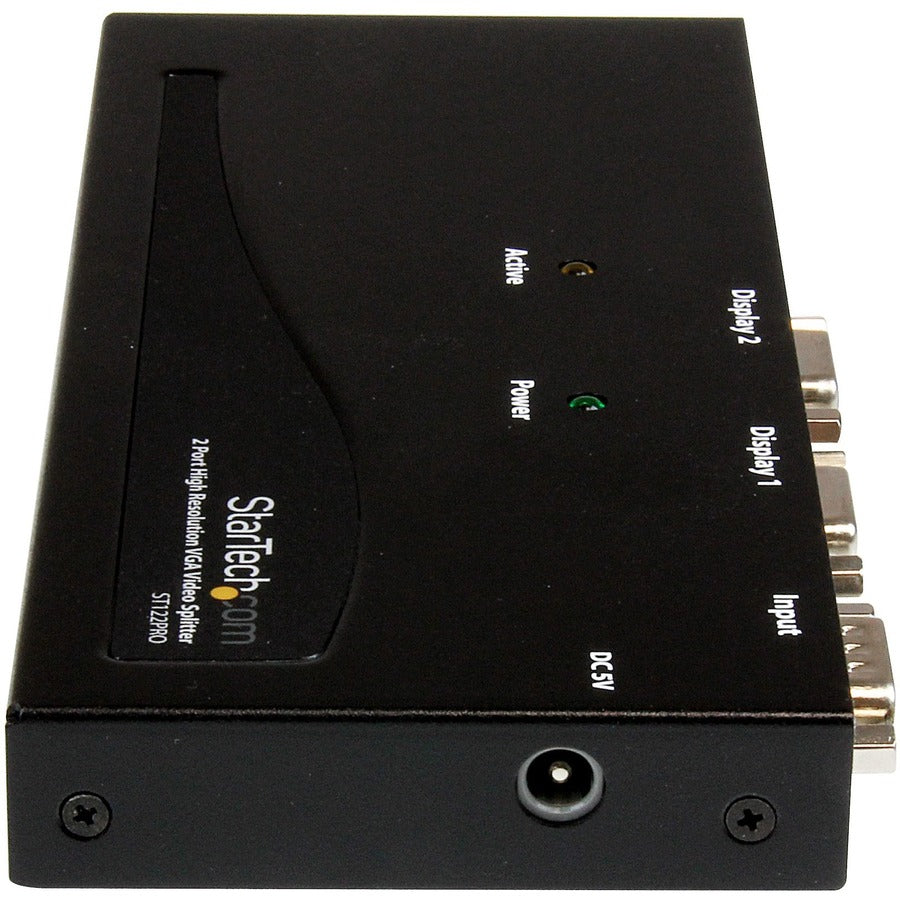

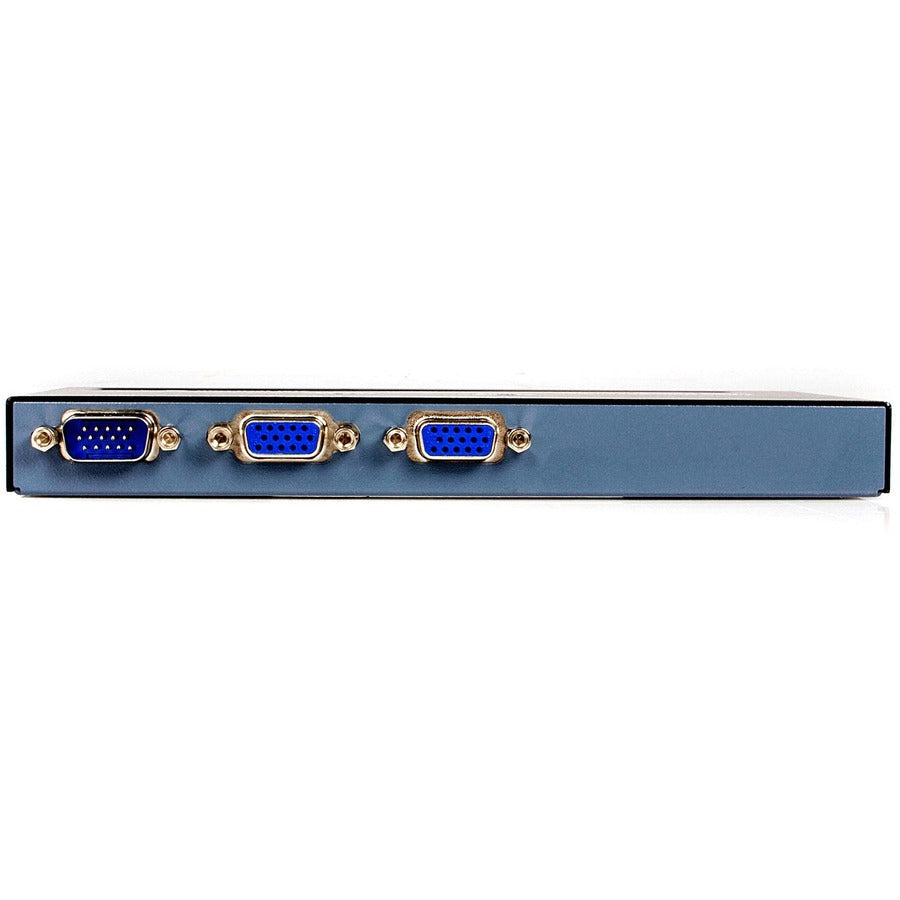

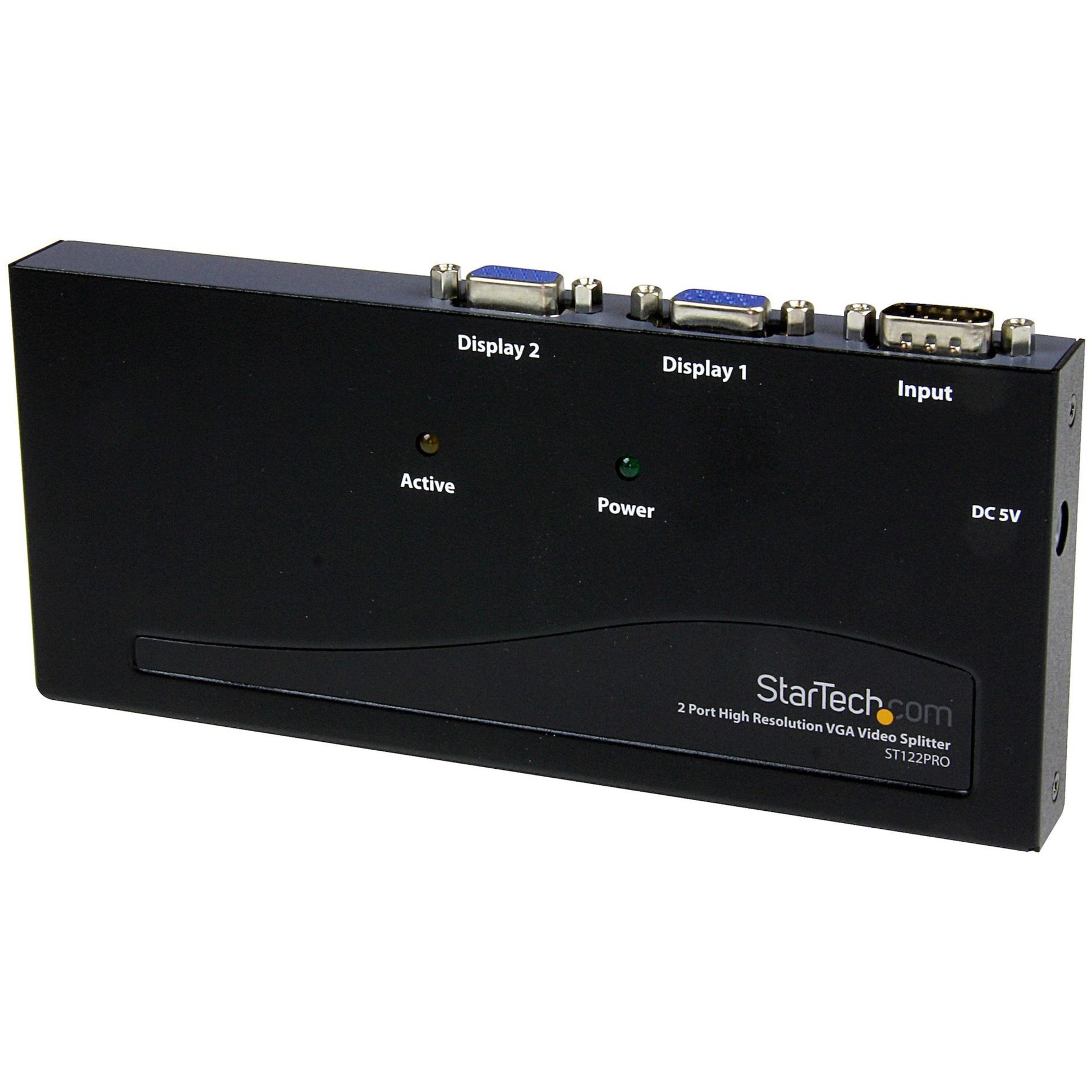

StarTech 2 Port High Resolution VGA Video Splitter - 350 MHz - ST122PRO
Key Features
- Allows 1 VGA video source to simultaneously display on 2 different monitors
- Built-in video amplifier boosts the signal to allow a cable length of up to 210 ft or 65m
- Daisy chainable for almost unlimited expansion
- DDC compatible
- High video bandwidth (350 MHz)
- Includes AC 120V power adapter
- Supports resolutions up to 2048x1536 @ 80Hz
- Uses standard monitor extension cables (See Accessories)
Product Overview
The ST122PRO 2 Port High Resolution VGA Video Splitter - 350 MHz splits a VGA video source signal to 2 monitors or projectors simultaneously - a professional grade solution that is perfect for presentations, classrooms, tradeshows, or in-store displays, where the highest quality video on several monitors is needed.
This High Resolution VGA Splitter supports monitors with up to 350MHz of video bandwidth and display resolutions up to 2048x1536 @80Hz. For added versatility, the VGA splitter features an integrated booster circuit that allows the video signal to be extended up to 210 feet (65 meters), enabling you to situate your displays in the most convenient location based on your application.
This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.
Male to Female VGA extension cable required (MXT101HQ)
More from the Manufacturer
General Information
- Manufacturer: StarTech
- Manufacturer Part Number: ST122PRO
- Brand Name: StarTech
- Product Name: 2 Port High Resolution VGA Video Splitter - 350 MHz
- Packaged Quantity: 1 Each
- Product Type: Signal Splitter
Video
- Maximum Video Resolution: 2048 x 1536
- Maximum Video Bandwidth: 350 MHz
Interfaces/Ports
- VGA In: Yes
- VGA Out: Yes
- Number of VGA Inputs: 1
- Number of VGA Outputs: 2
Media & Performance
- Maximum Operating Distance: 213.25 ft
Power Description
- Input Voltage:
- 120 V AC
- 230 V AC
Physical Characteristics
- Product Color: Black
- Product Material: Steel
- Height: 0.8"
- Width: 3.1"
- Length: 7.1"
- Weight (Approximate): 12.90 oz
Miscellaneous
- Package Contents:
- 2 Port High Resolution VGA Video Splitter - 350 MHz
- 4 x Rubber feet
- 1 x Power Adapter
- 1 x Instruction Manual
- Country of Origin: Taiwan
- TAA Compliant: Yes
- Environmentally Friendly: Yes
- Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
- Limited Warranty: 2 Year
