StarTech.com 4-Post 25U Mobile Open Frame Server Rack, 19in Network Rack with Casters, Rolling Rack for Computer/AV/Data/IT Equipment - 4POSTRACK25U
Key Features
- ADJUSTABLE DEPTH: 4-Post 25U open frame server rack with 4 vertical rails and adjustable mounting depth 22" to 40" (56,0cm to 101,7cm); Compatible with various servers / switches / data / AV and other IT equipment; EIA/ECA-310-E Compliant
- COLD ROLLED STEEL: Durable 4 Post 19in open frame rack designed for ventilation with 25U mounting height and 1200lb (544kg) weight capacity (stationary); 3 install options included: casters, levelling feet, or base-plate to secure rack to the floor
- EASY ASSEMBLY: Mobile network rack with easy-to-follow assembly instructions and online video; Compact flat-pack shipping to avoid damage and facilitate installation; Total product height of 50.8in (129cm) with casters, 48in (122cm) without casters
- HARDWARE INCLUDED: Rolling computer/data rack includes cage nuts and screws to mount equipment, easy to read Units (U) and depth adjustment markings, cable management hooks for organization, and required assembly tools
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this 25U rack is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance~
Product Overview

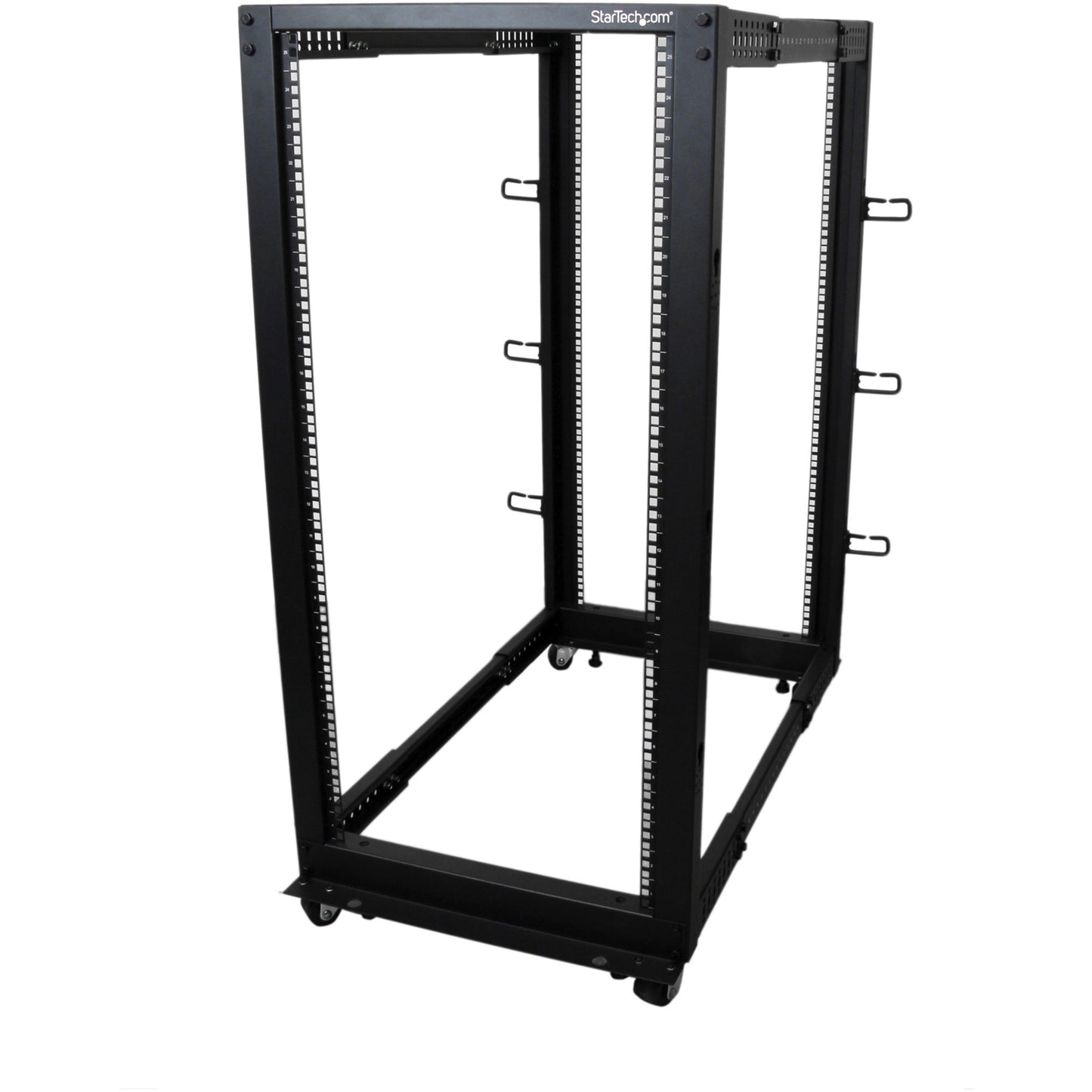

The 4POSTRACK25U 25U Server Rack lets you store your servers, network and telecommunications equipment in a sturdy, adjustable depth open-frame rack.

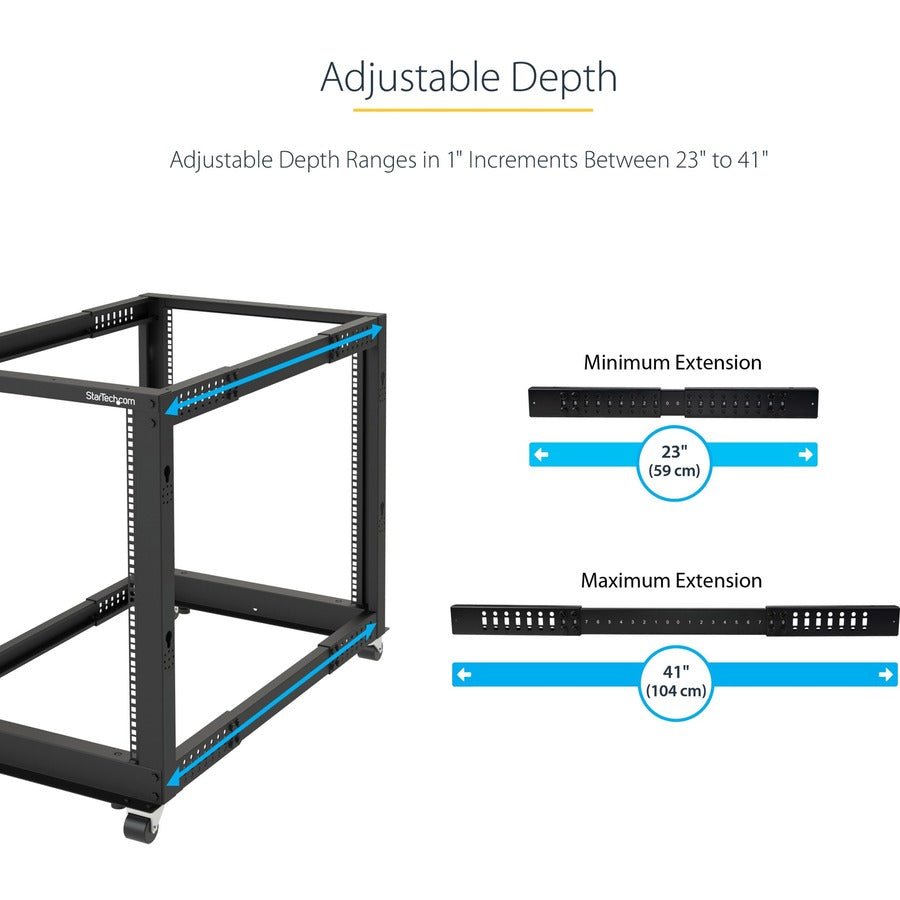

Designed with ease of use in mind, this 25U rack offers easy-to-read markings for both rack units (U) and depth, with a wide range of mounting depth adjustments (22 - 40in) that make it easy to adapt the rack to fit your equipment.
This durable 4-post rack supports a static loading capacity of up to 1200lbs (544kg), and offers compliance with several industry rack standards (EIA/ECA-310, IEC 60297, DIN 40494) for a universal design that's compatible with most rack equipment.
For a complete server storage solution that saves you time and hassle, the rack includes optional accessories such as casters, leveling feet and cable management hooks. The base is also pre-drilled for securely fastening the rack to the floor if needed, providing you with additional stability to better suit your server environment.
General Information
- Manufacturer: StarTech.com
- Manufacturer Part Number: 4POSTRACK25U
- Brand Name: StarTech.com
- Product Model: 4POSTRACK25U
- Product Name: Rack Cabinet
- Packaged Quantity: 1 Each
- Product Type: Rack Frame
Technical Information
- Rack Type: Open Frame
- Application/Usage:
- Server
- LAN Switch
- A/V Equipment
- Patch Panel
- KVM Switch
- Features:
- Casters
- Leveling Feet
- Cable Management
Physical Characteristics
- Form Factor: Floor Standing
- Color Family: Black
- Product Color: Black
- Product Material:
- Steel
- Cold Rolled Steel
- Static/Stationary Weight Capacity: 1199.98 lb

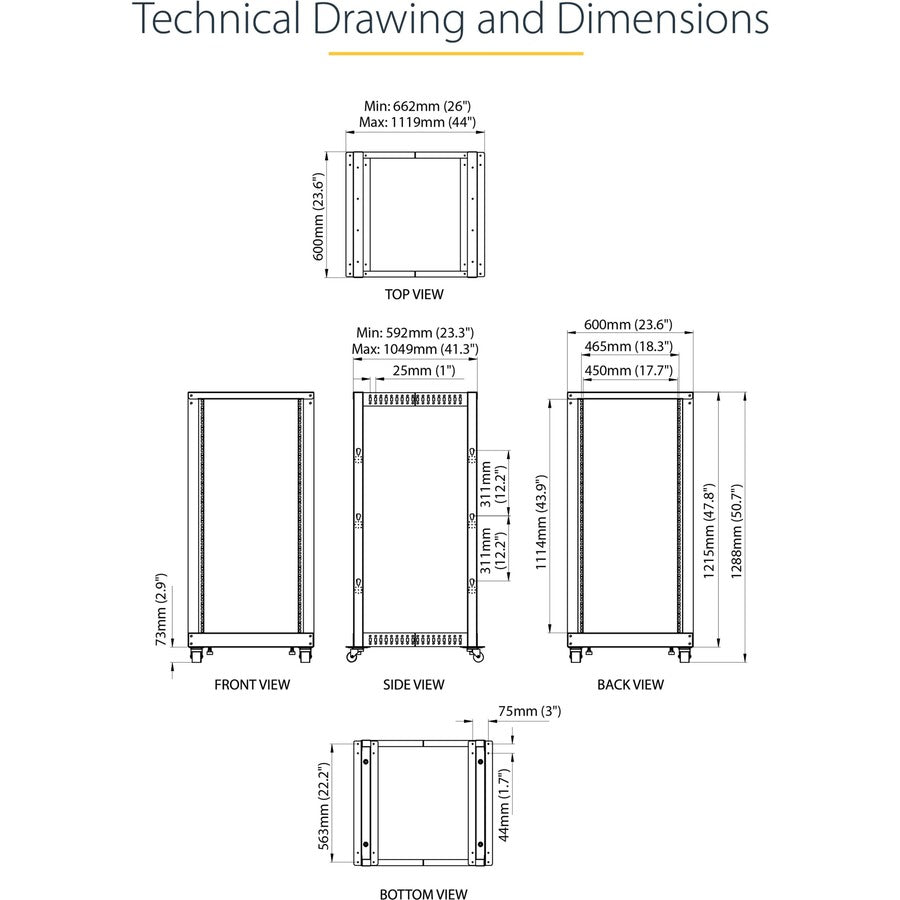

- Height: 50.4"
- Width: 23.8"
- Length: 40.8"
- Rack Height: 25U
- Rack Width: 19"
- Rack Depth: 40"
- Weight (Approximate): 72.90 lb
Miscellaneous

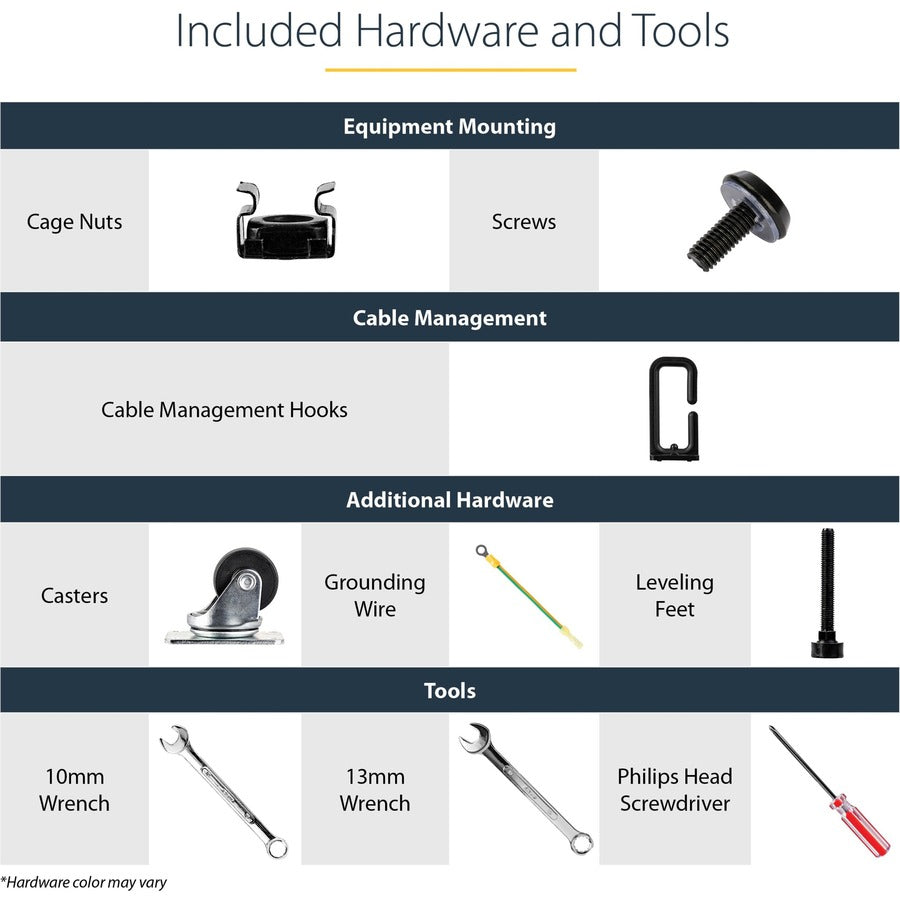

- Package Contents:
- 2 x Left Vertical Rail
- 2 x Right Vertical Rail
- 2 x Base Bracket
- 8 x Corner Section
- 4 x Center Section
- 2 x Top Bracket
- 48 x M8 Bolt
- 48 x M8 Washer
- 1 x M8 (13mm) Wrench
- 1 x M6 (10mm) Wrench
- 1 x Phillips Screwdriver
- 32 x M6 Cage Nut
- 32 x PVC Cup Washer
- 32 x M6 Phillips Head Screw
- 12 x Cable Management Hook
- 12 x Hook Mounting Screw
- 4 x Casters
- 4 x Leveling Feet
- 16 x M6 Screw
- 16 x M6 Flat Washer
- 16 x M6 Flange Nut
- 4 x Grounding Wires
- Assembly Required: Yes
- Country of Origin: China
- Environmentally Friendly: Yes
- Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty
- Limited Warranty: 2 Year
