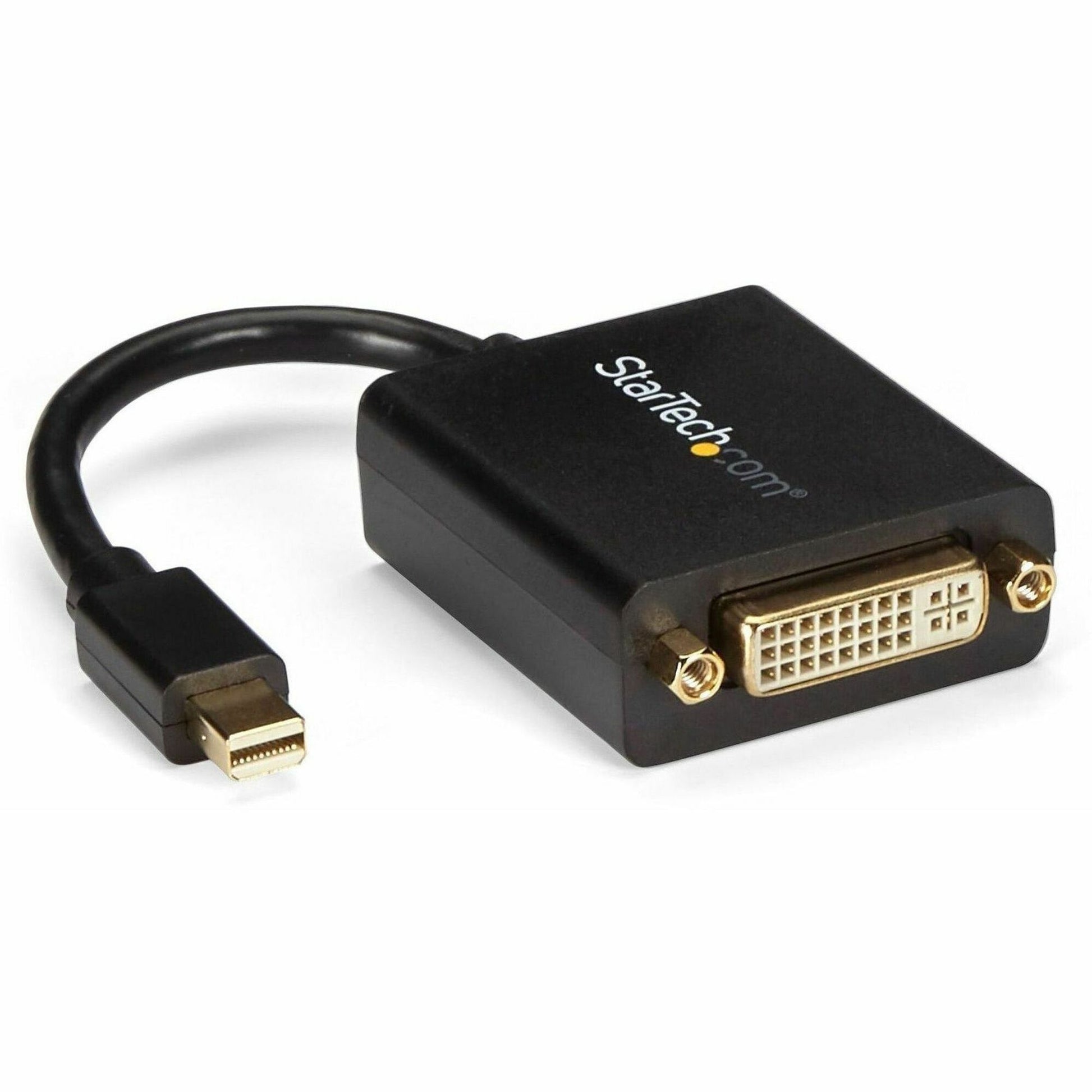

StarTech.com Mini DisplayPort to DVI Video Adapter Converter - MDP2DVI
Key Features
- EASY TO USE: With no software or drivers required, the Mini DP to DVI converter works with any OS including Windows, Ubuntu and macOS; Compatible with MiniDP devices like TB1/TB2 MacBooks with Mini DisplayPort
- HOST COMPATIBILITY: Passive video converter supports mDP++ source including Thunderbolt 1 & 2 MacBooks, MacBook Air & Mac Mini, Microsoft Surface Pro 1-6, desktops (AMD FirePro/NVidia Quadro), laptops, mini itx computers, Intel NUC & docks

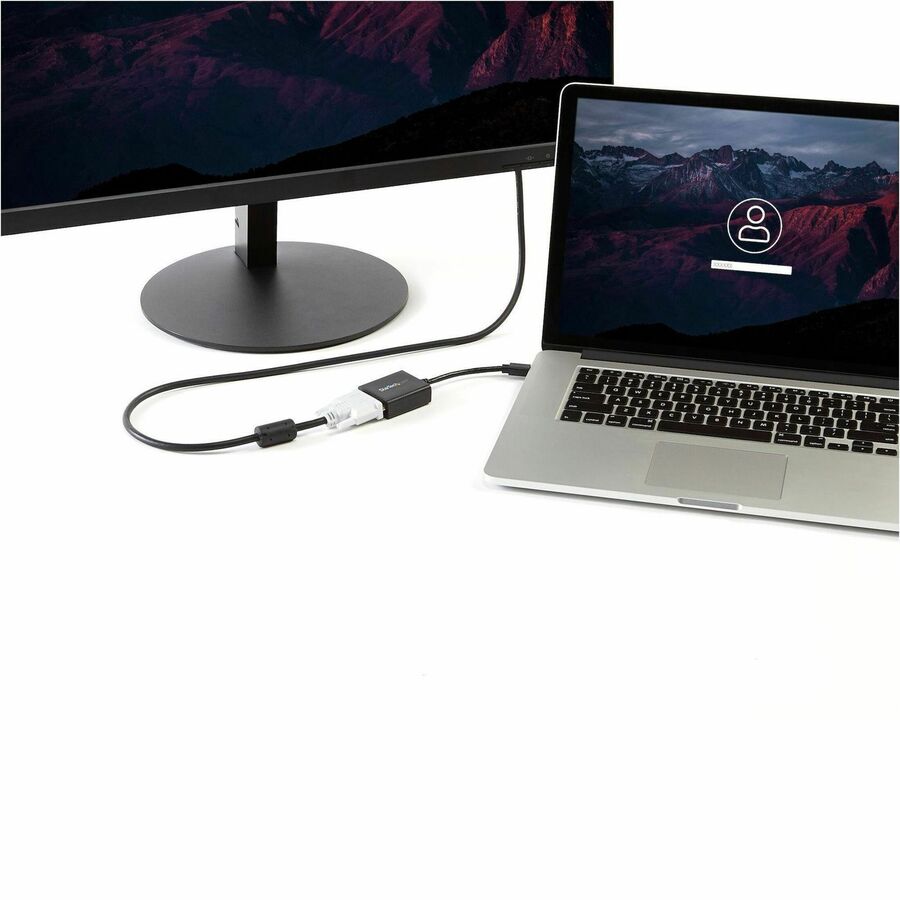

- INCREASE PRODUCTIVITY: Connect a DVI monitor or projector, or add a second display to your workstation using the mDP to DVI adapter dongle
- Compact design makes it ideal for travel
- 5" (13cm) attached cable
- MINI DISPLAYPORT TO DVI ADAPTER: mDP 1.2 (HBR2) to DVI-I (digital only DVI-D) single-link adapter connects a DVI display/projector; 1920x1200/1080p 60Hz video; EDID/DDC pass-through ensure compatibility between source & display; VESA DisplayPort Certified
- SCREW LOCKING DVI: Mini DisplayPort to DVI display adapter supports DVI screw locking cable to prevent cable from coming loose or accidental disconnection from DVI displays/projectors
- Tested with DVI cables up to 25ft

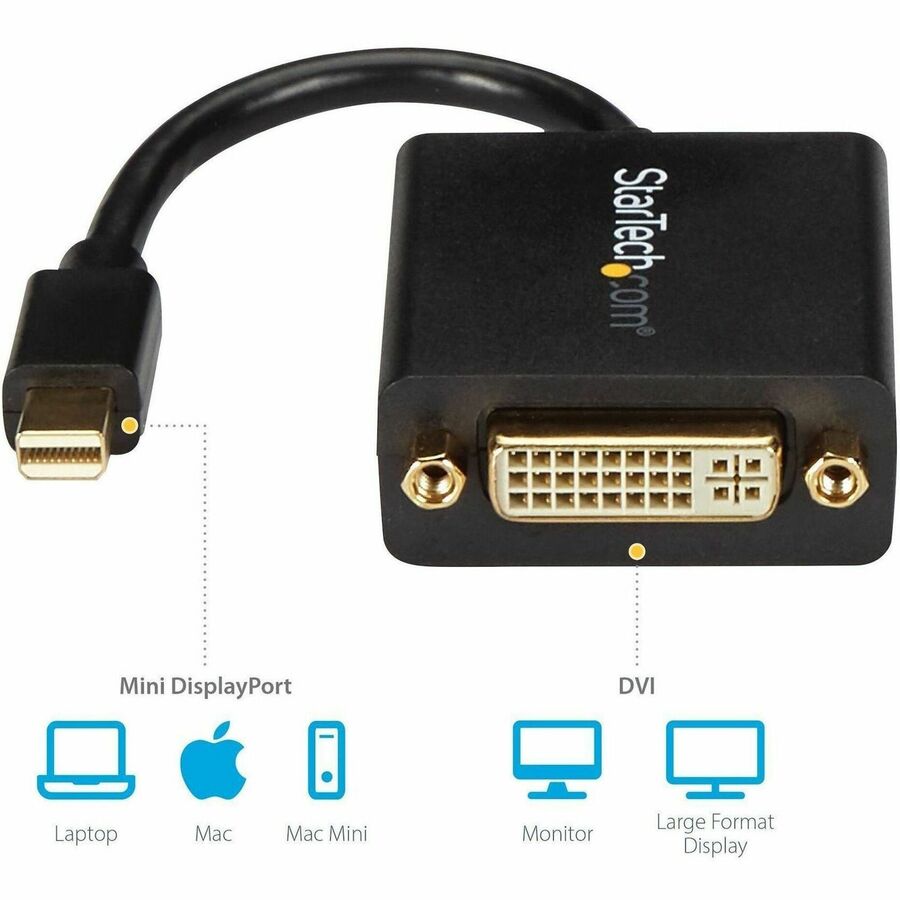

- mDP male to DVI female connector
Product Overview
The StarTech.com MDP2DVI Mini DisplayPort DVI Adapter Cable offers a cost-effective DVI/Mini DisplayPort link, letting you connect a DVI computer monitor to a device with a Mini DisplayPort output while saving the expense of upgrading the monitor for compatibility. This Mini DisplayPort adapter is the perfect accessory for any of your MacBook® or Microsoft® Surface™ Pro devices with mDP.
MDP2DVI is a passive adapter that requires a DP++ port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.
Compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
More from the Manufacturer
General Information
- Manufacturer: StarTech.com
- Manufacturer Part Number: MDP2DVI
- Brand Name: StarTech.com
- Product Model: MDP2DVI
- Product Name: Mini DisplayPort to DVI Video Adapter Converter
- Packaged Quantity: 1 Each
- Product Type: Video Adapter
Technical Information
- Connector Type on First End: Mini DisplayPort Digital Audio/Video - Male
- Connector on First End Details: 1 x 20-pin Mini DisplayPort Digital Audio/Video - Male
- Connector Type on Second End: DVI-D (Single-Link) Digital Video - Female
- Connector on Second End Details: 1 x 29-pin DVI-D (Single-Link) Digital Video - Female
- Features:
- Passive
- Extended Display Identification Data (EDID)
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Weight (Approximate): 1.09 oz
Miscellaneous
- Country of Origin: Vietnam
- Environmentally Friendly: Yes
- Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
