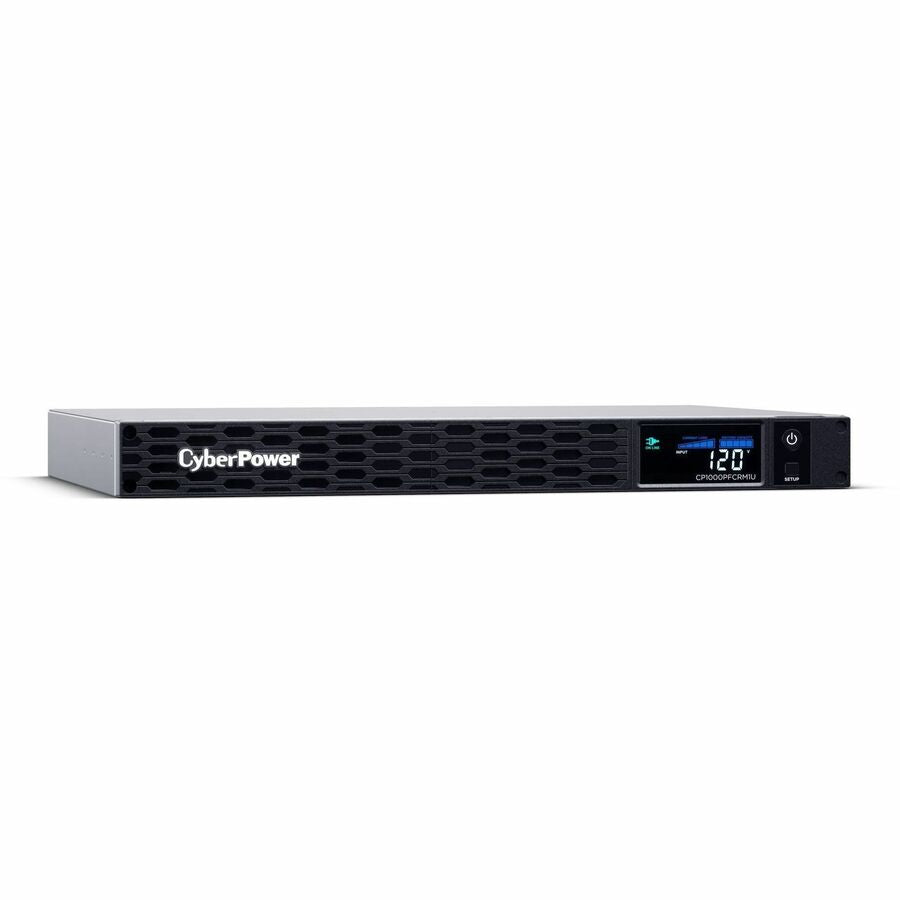

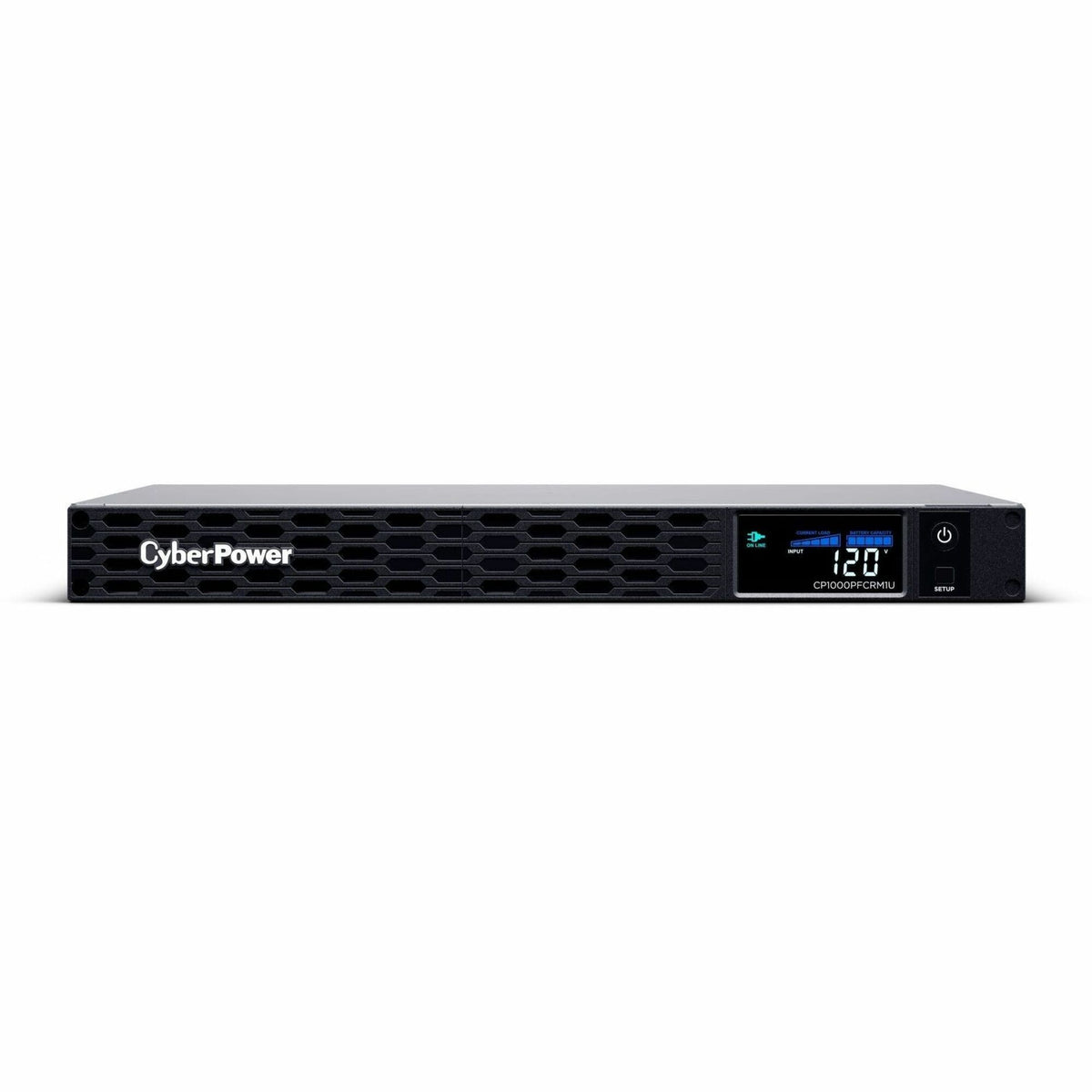

CyberPower CP1000PFCRM1U PFC Sinewave UPS Systems - CP1000PFCRM1U
Key Features
- Capacity: 1000VA / 600W
- Communication: USB, SNMP
- Connected Equipment Guarantee: $300,000
- Data line protection: Network RJ45
- ENERGY STAR® certified: Yes
- Management software: PowerPanel® Business

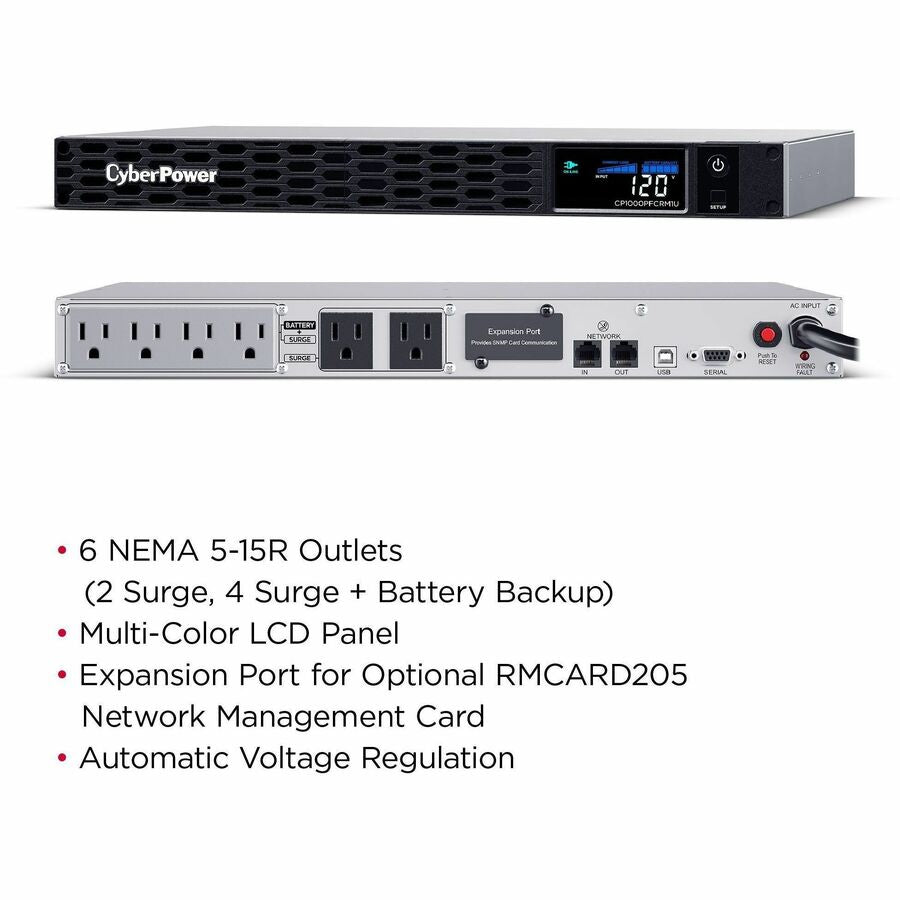

- Outlet types: 6 × NEMA 5-15R
- Outlets: 6 (2 surge, 4 surge + battery backup)
- Output: 120Vac ± 5%
- Plug type & cord: NEMA 5-15P, 10 ft. cord
- Remote management: Yes, with optional RMCARD205
- Runtime (half/full): 11 minutes / 2.8 minutes
- Topology: Line Interactive
- Warranty: 3 year
- Waveform: Sine Wave
Product Overview

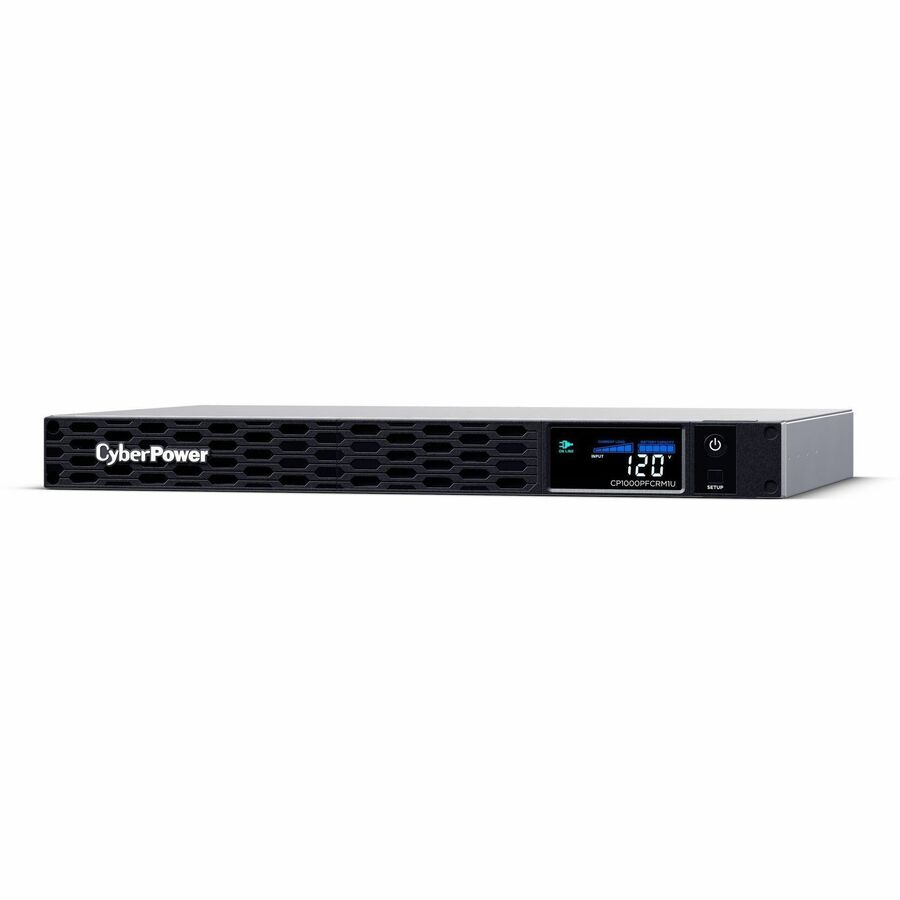

The CP1000PFCRM1U is a PFC Sinewave rackmount UPS that provides battery backup (using sine wave output), surge protection, and EMI/RFI filtration for security systems, audio/visual equipment, and networking equipment requiring active PFC power source compatibility.
The CP1000PFCRM1U features Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power, and a multifunction control panel with a color LCD to quickly confirm status and alerts at-a-glance. Remote management and/or monitoring is available with optional purchase of a Remote Network Management Card or Cloud Monitoring Card.
The CP1000PFCRM1U comes with a three-year warranty (including coverage of batteries) and a ,300,000 Connected Equipment Guarantee.
General Information
- Manufacturer: CyberPower Systems, Inc
- Manufacturer Part Number: CP1000PFCRM1U
- Brand Name: CyberPower
- Product Line: PFC Sinewave
- Product Model: CP1000PFCRM1U
- Product Name: CP1000PFCRM1U PFC Sinewave UPS Systems
- Product Type: Line-interactive UPS
Technical Information
- AVR: Yes
- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15R
- Receptacle Detail: 6 x NEMA 5-15R
- Number of Battery & Surge Outlets: 4
- Number of Surge-only Outlets: 2
- Dataline Protection: RJ-45
- Overload Protection: Yes
- Cord Length: 10 ft
- Transfer Time: 8 ms
- EMI/RFI Noise Filter: Yes
- Energy Saving: GreenPower UPS™ Bypass Technology
- Application/Usage:
- Security System
- Audio/Video Equipment
- Workstation
- Corporate
- Server
- Network Device
- Telecommunication
- Surge Suppression: Yes
- Features: Audible Alarm
Power Description
- Load Capacity (VA): 1000 VA
- Load Capacity (Watt): 600 W
- Input Voltage: 120 V AC
- Input Voltage Range: 88 V AC - 144 V AC
- Output Voltage: 120 V AC
- Input Frequency:
- 50 Hz
- 60 Hz
- Output Frequency: 60 Hz
- Waveform Type: Sine Wave
- Surge Energy Rating: 1150 J
- Circuit Breaker: Yes
- Output Power Factor: 0.6
Display & Graphics
- Display: LCD
Management
- Network Management:
- Dry Contact
- SNMP/HTTP Remote Monitoring
- Alarm: Battery Mode
Controls/Indicators
- Status Indicators: Power On

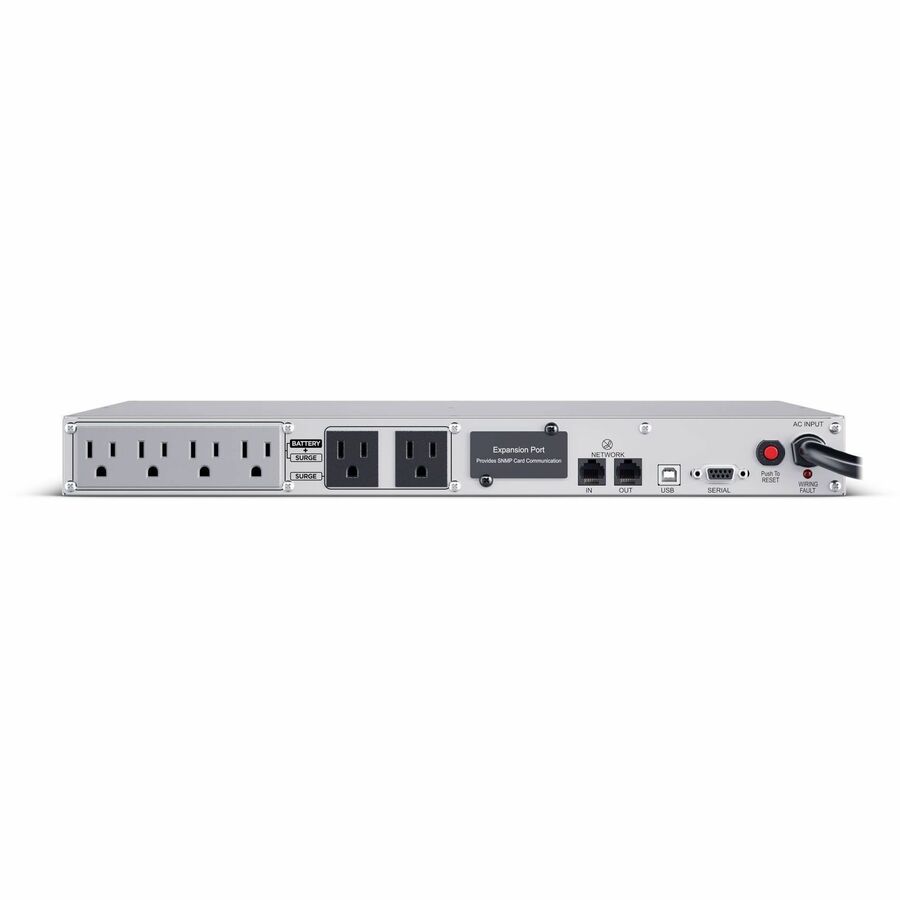

Interfaces/Ports
- Serial Port: Yes
- USB: Yes
- Network (RJ-45): Yes
- USB (HID Compliant) Port: Yes
Battery Information
- Number of Batteries: 4
- Battery Characteristics: Sealed
- Battery Chemistry: Lead Acid
- Battery Size: 6V
- Battery Capacity: 7000 mAh
- Backup/Run Time (Full Load): 1.50 Minute
- Backup/Run Time (Half Load): 10.50 Minute
- Hot Swappable: Yes
- Typical Battery Recharge Time: 8 Hour
- Replaceable Battery: Yes
Environmental Conditions
- Maximum Operating Elevation: 10000 ft
- Maximum Storage Elevation: 50000 ft
- Storage Temperature: 5°F (-15°C) - 113°F (45°C)
- Operating Humidity: 0% - 95%
- Storage Relative Humidity: 0% - 95%
- Minimum Operating Temperature: 32°F (0°C)
- Maximum Operating Temperature: 104°F (40°C)

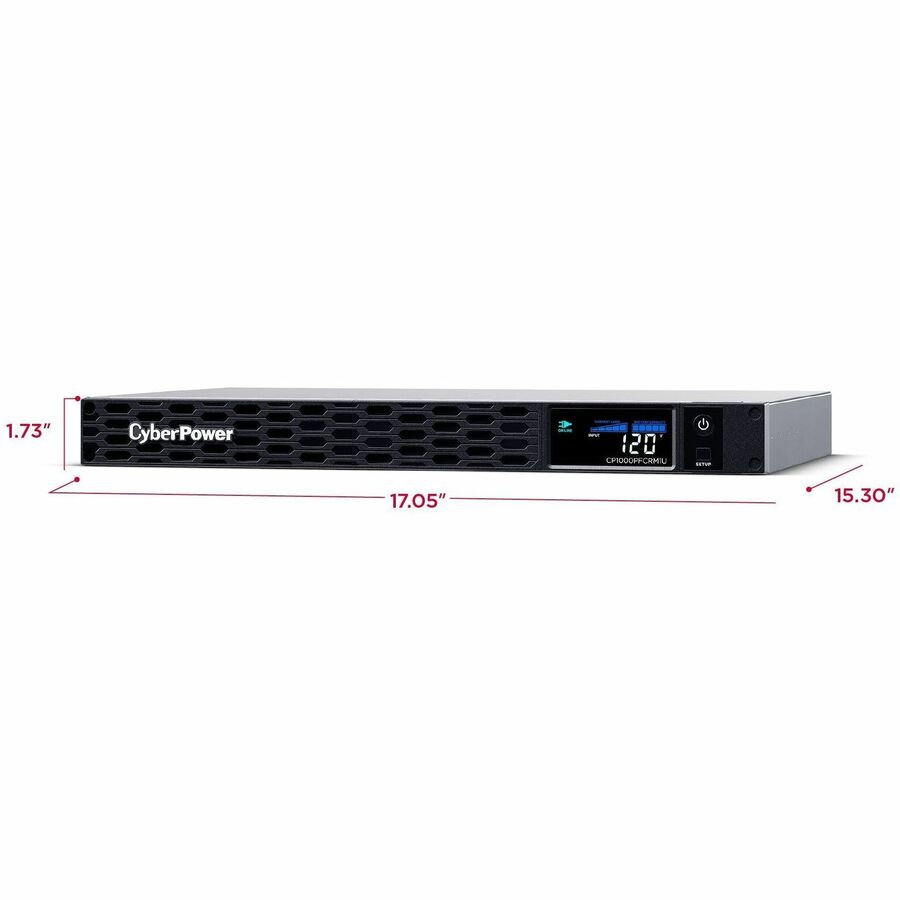

Physical Characteristics
- Product Color: Black
- Height: 1.73"
- Width: 17.05"
- Depth: 15.30"
- Rack Height: 1U
- Form Factor: Rack-mountable
- Weight (Approximate): 30.20 lb
Miscellaneous
- Energy Star: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 3 Year
- Additional Warranty Information:
Three-year warranty (including coverage of batteries)
