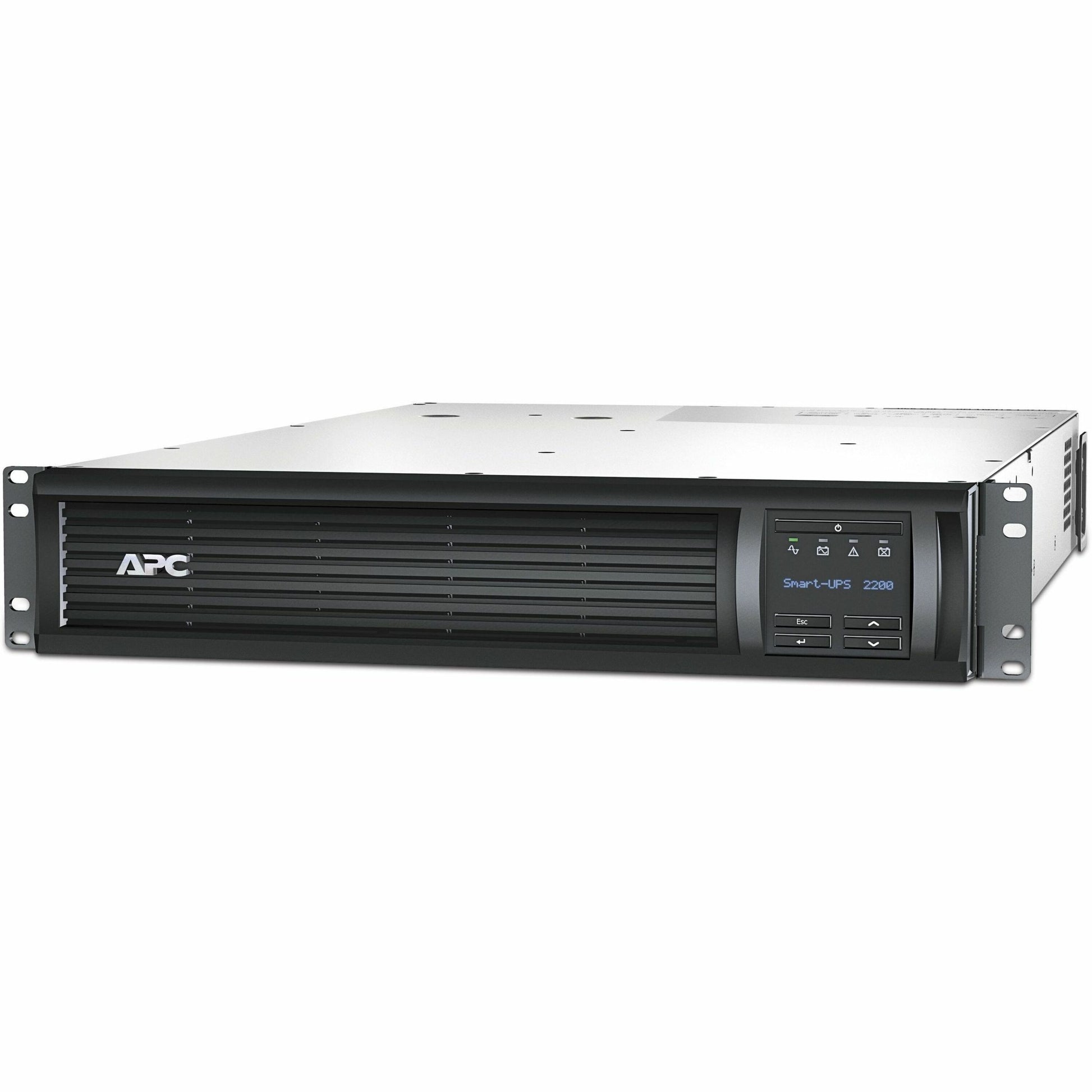

![Main Image for APC Smart-UPS, Line Interactive, 2200VA, Rackmount 2U, 120V, 6x NEMA 5-15R+2x NEMA 5-20R outlets, SmartSlot, AVR, LCD [TAA]](http://islandelectricalsupply.com/cdn/shop/files/1024862301_5b914bbb-e5f7-4832-929f-d94b90df83ee.jpg?v=1764410865&width=1946)

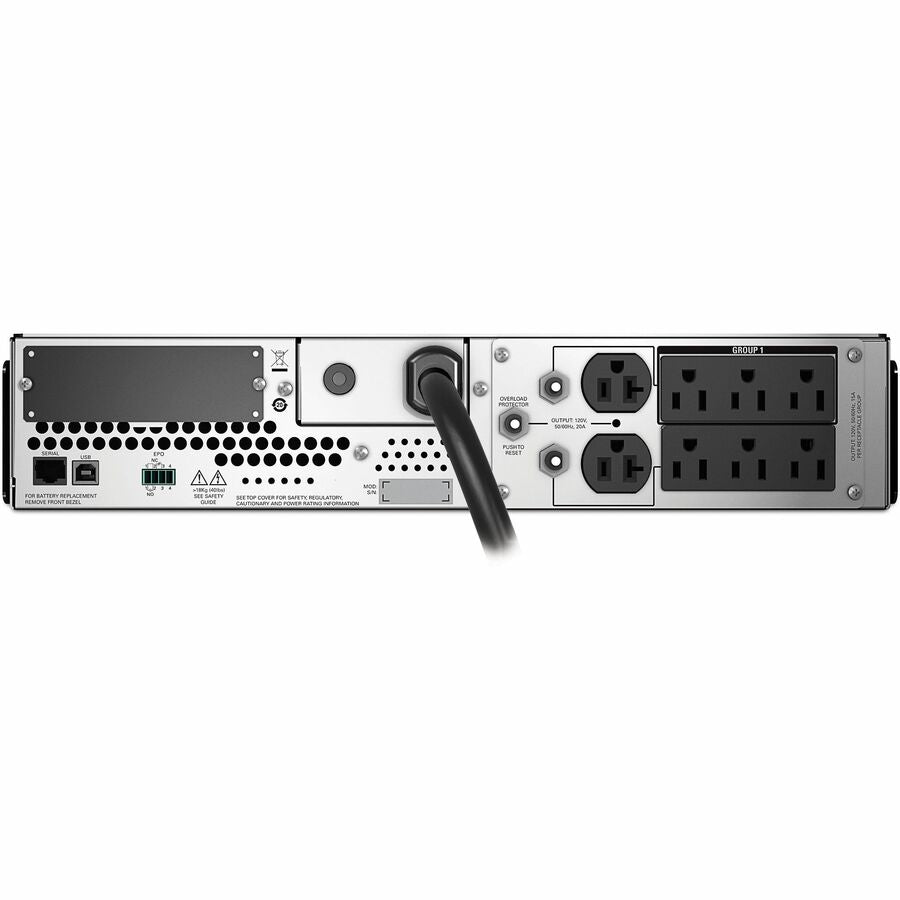

![Rear Image for APC Smart-UPS, Line Interactive, 2200VA, Rackmount 2U, 120V, 6x NEMA 5-15R+2x NEMA 5-20R outlets, SmartSlot, AVR, LCD [TAA]](http://islandelectricalsupply.com/cdn/shop/files/1024862301_bae8d78c-6848-4710-a671-d7688d042e17.jpg?v=1764410865&width=1946)
- Description
- Specifications
APC Smart-UPS, Line Interactive, 2200VA, Rackmount 2U, 120V, 6x NEMA 5-15R+2x NEMA 5-20R outlets, SmartSlot, AVR, LCD [TAA] - SMT2200RMUS
Key Features
- 1920VA/1920W line interactive pure sine wave 2U rackmount UPS
- Automatic Voltage Regulation helps correct utility voltage
- Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
- Ideal for servers, storage, network closets, business VoIP and retail POS
Product Overview
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1920VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-20P input, 6 NEMA 5-15R and 2 NEMA 5-20R outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
General Information
- Manufacturer: Schneider Electric SA
- Manufacturer Part Number: SMT2200RMUS
- Brand Name: APC by Schneider Electric
- Product Line: Smart-UPS
- Product Name: Smart-UPS 2200VA LCD RM 2U 120V US
- Product Type: Line-interactive UPS
Technical Information
- Plug/Connector Type: NEMA 5-20P
- Receptacle Type: NEMA 5-20P
- Receptacle Detail:
- 2 x NEMA 5-20R
- 6 x NEMA 5-15R
- Number of Battery & Surge Outlets: 8
- Cord Length: 8 ft
- Phase: Single Phase
Power Description
- Load Capacity (VA): 1920 VA
- Load Capacity (Watt): 1980 W
- Input Voltage: 120 V AC
- Output Voltage: 120 V AC
- Waveform Type: Sine Wave
- Surge Energy Rating: 530 J
Interfaces/Ports
- USB: Yes
Battery Information
- Battery Characteristics: Spill-proof, Maintenance-free
- Battery Chemistry: Lead Acid
- Backup/Run Time (Full Load): 5 Minute
- Backup/Run Time (Half Load): 16 Minute
- Hot Swappable: Yes
- Typical Battery Recharge Time: 3 Hour
Physical Characteristics
- Product Color: Black
- Height: 3.4"
- Width: 18.9"
- Depth: 26.9"
- Rack Height: 2U
- Form Factor: Rack-mountable
- Weight (Approximate): 93.28 lb
Miscellaneous
- Package Contents:
- Smart-UPS 2200VA LCD RM 2U 120V US
- CD with software
- Documentation CD
- Rack mounting brackets
- Rack mounting support rails
- Smart UPS signalling RS-232 cable
- USB cable
- Software Included: Powerchute Serial Edition
- Energy Star: Yes
- Country of Origin: India
- TAA Compliant: Yes
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 3 Year
- Additional Warranty Information: UPS: 36 month(s)|Battery: 24 month(s)
