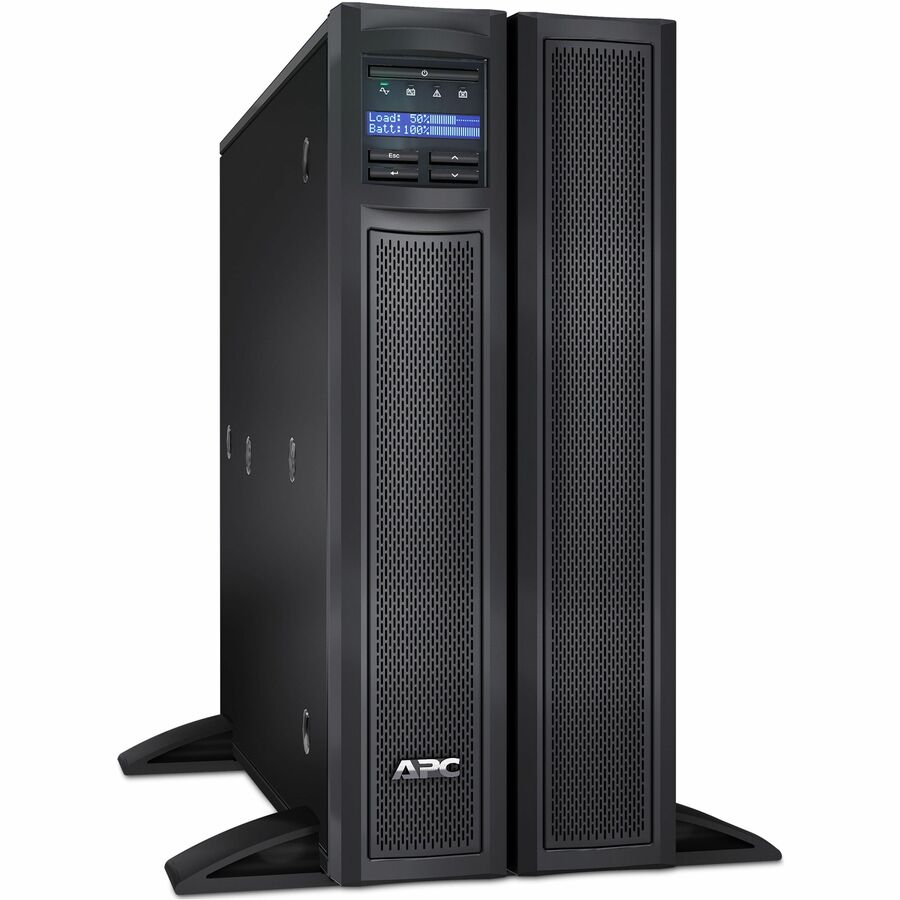

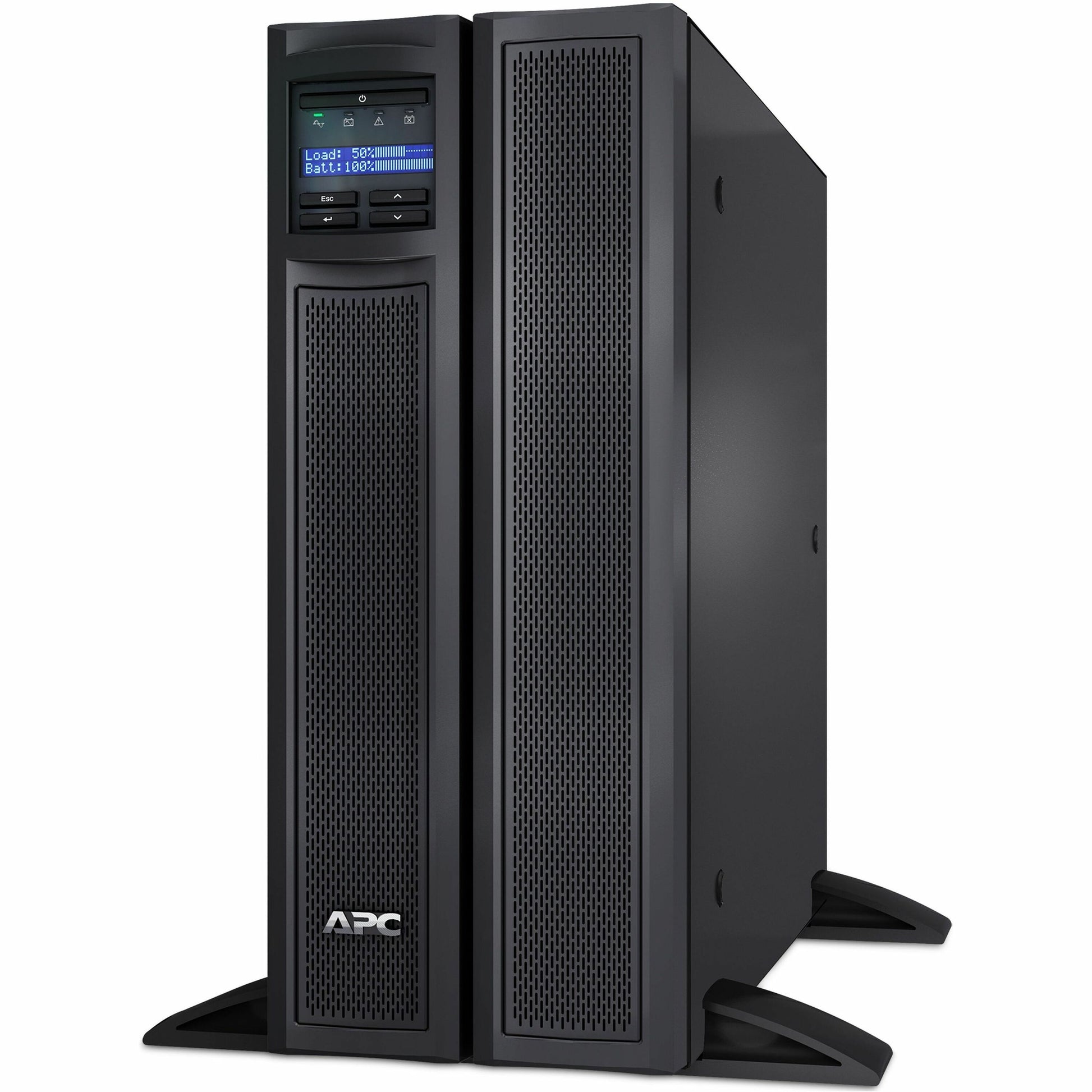

APC Smart-UPS X, Line Interactive, 3kVA, Rack/tower convertible 4U, 100V-127V, 6x 5-15R+3x 5-20R+1x L5-30R NEMA,SmartSlot,Extended runtime,Short depth - SMX3000LV
Key Features

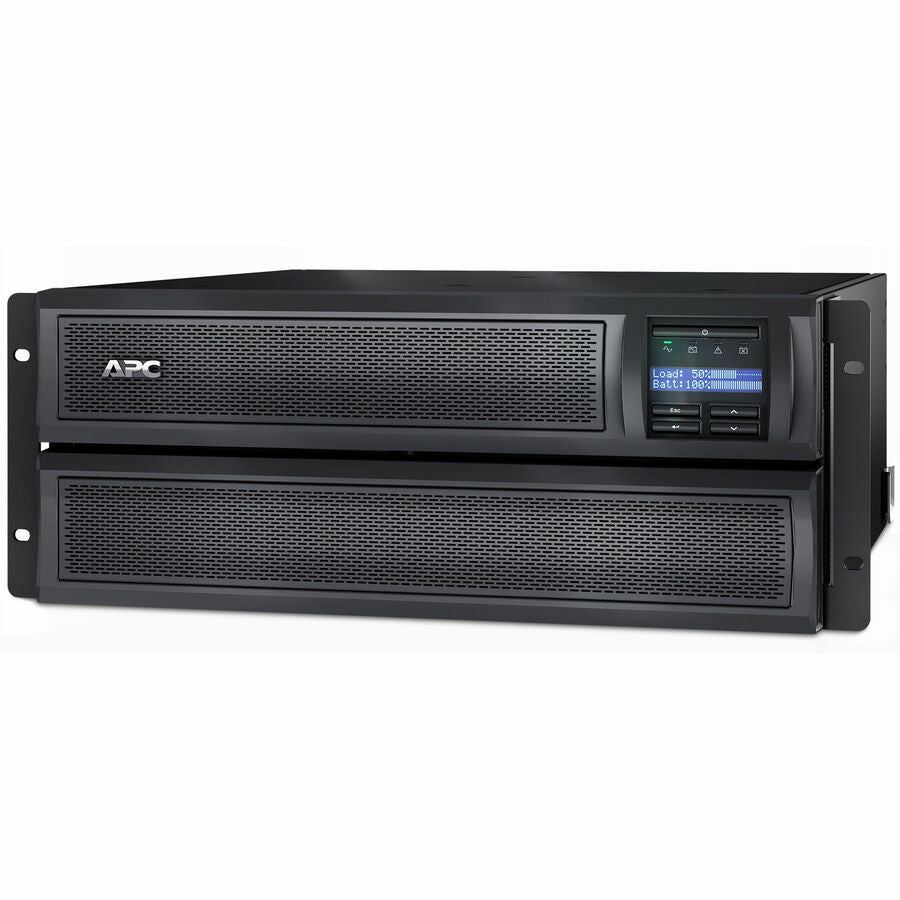

- 2880VA/2700W line interactive pure sine wave 4U rack/tower UPS (rail kit AP9625 sold separately)

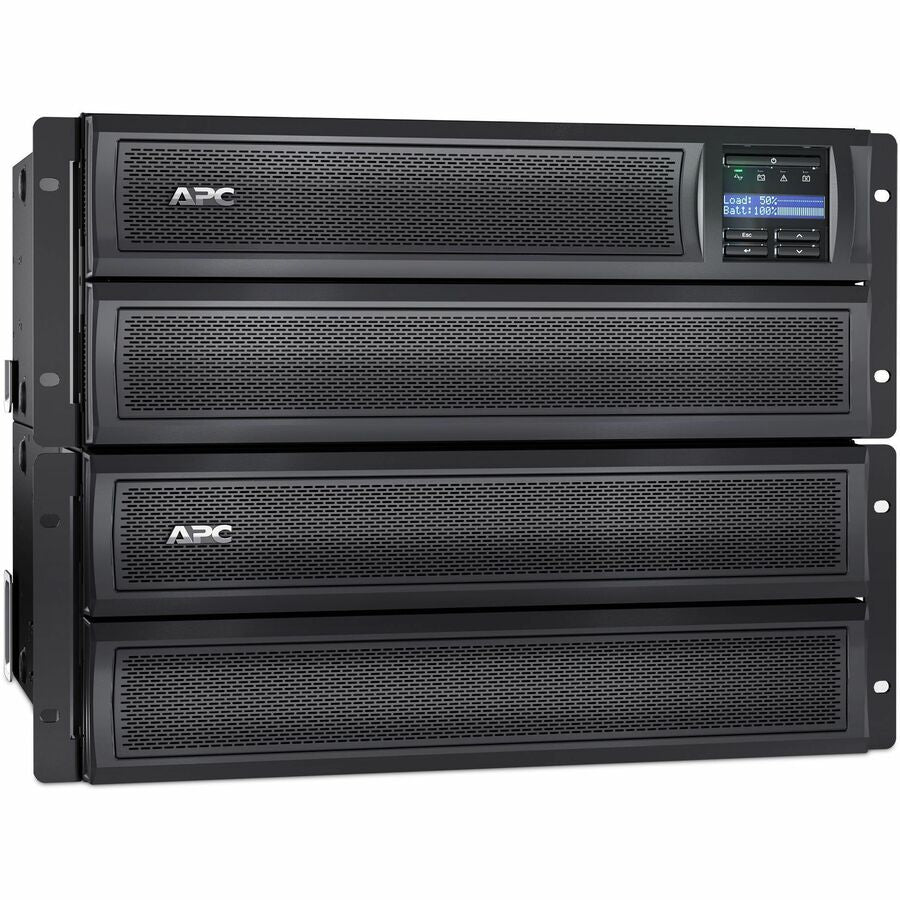

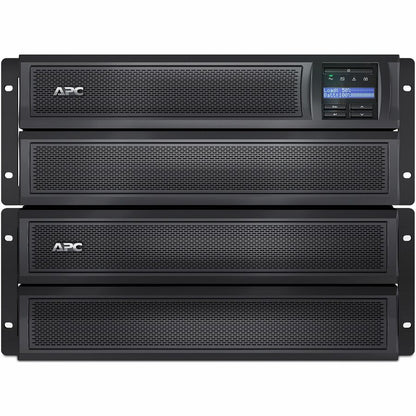

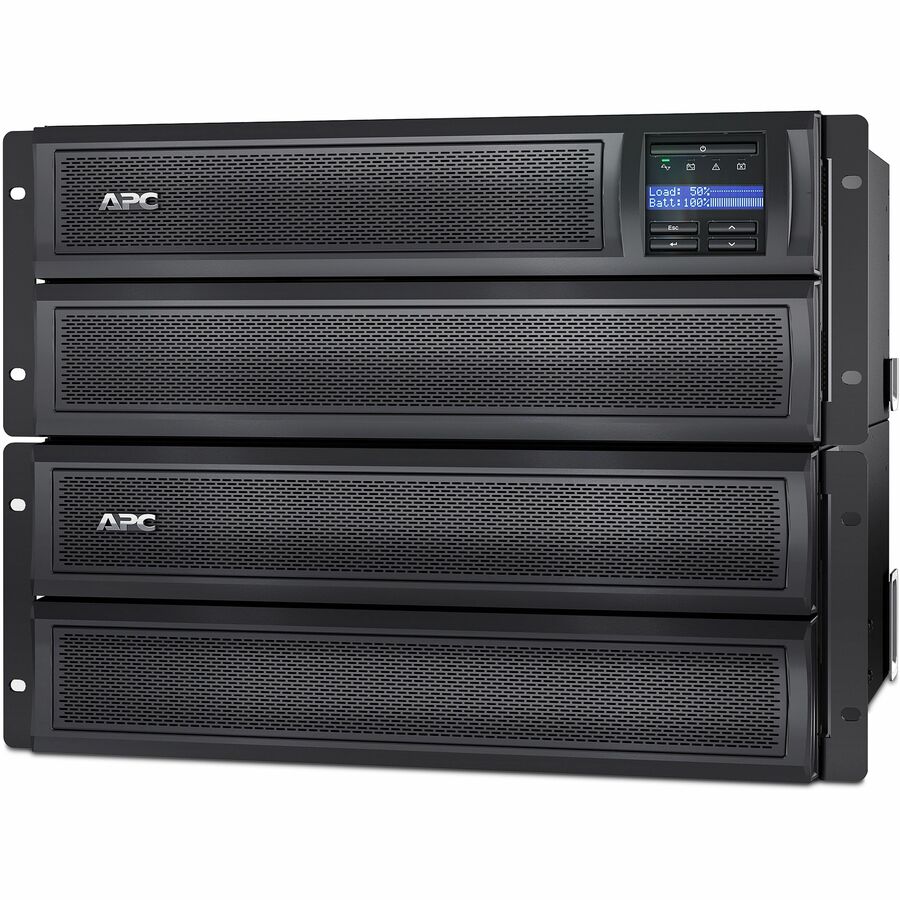

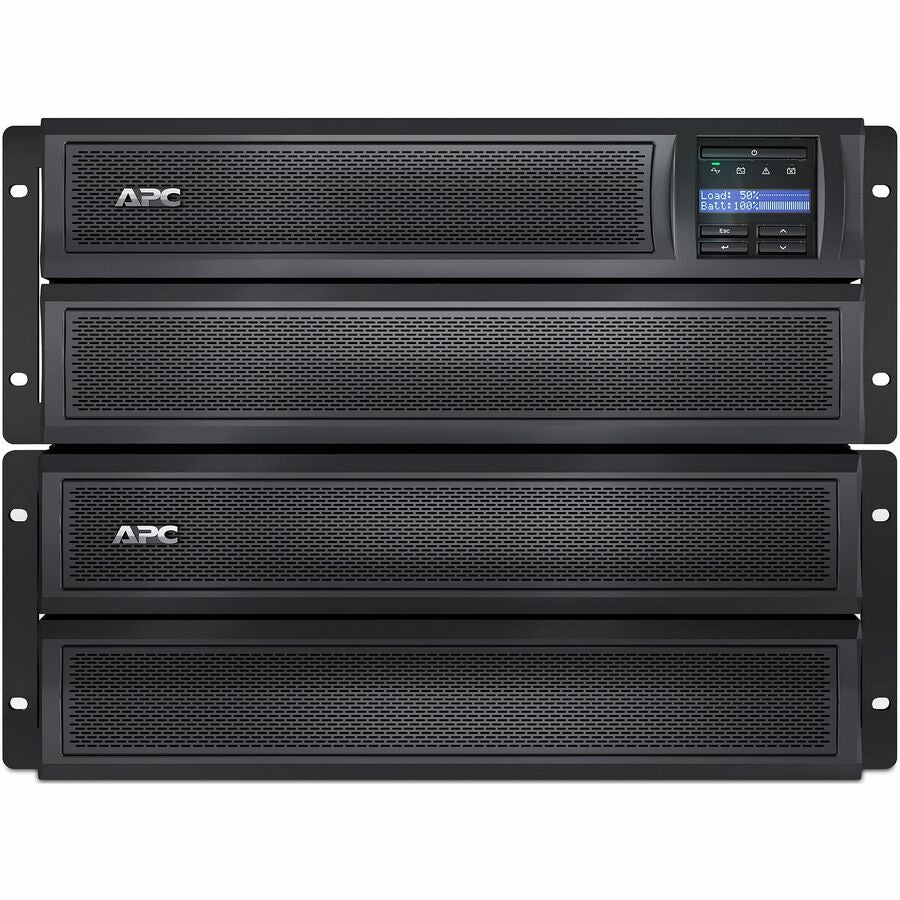

- Add up to 10 external battery packs (SMX120BP)
- Automatic Voltage Regulation keeps output voltage within acceptable user selectable levels
- Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
- Ideal for servers, storage, networking & commercial applications
- Short depth UPS provides extra space for cable management
- User-selectable low voltage setting of 100V-127V
Product Overview
This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 2880VA line interactive 4U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA L5-30P input, 6x NEMA 5-15R, 3x NEMA 5-20R and 1x NEMA L5-30R outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. It comes with NEMA 5-30P input, 6x NEMA 5-15R, 3x NEMA 5-20R and 1x NEMA L5-30R outlets. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.
General Information
- Manufacturer: Schneider Electric SA
- Manufacturer Part Number: SMX3000LV
- Brand Name: APC by Schneider Electric
- Product Line: Smart-UPS
- Product Name: Smart-UPS X 3000VA Rack/Tower LCD 100-127V
- Packaged Quantity: 1 Each
- Product Type: Line-interactive UPS
Technical Information
- Plug/Connector Type: NEMA L5-30P
- Receptacle Type: NEMA L5-30P

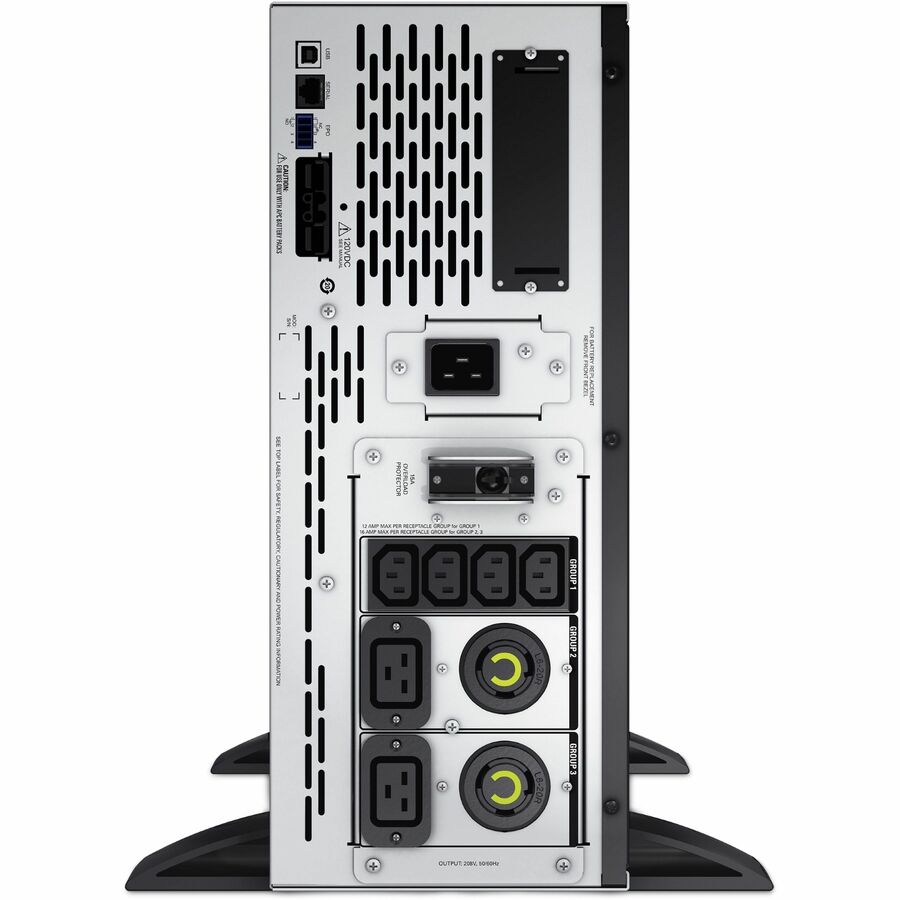

- Receptacle Detail:
- 1 x NEMA L5-30R
- 3 x NEMA 5-20R
- 6 x NEMA 5-15R
- Number of Battery & Surge Outlets: 10
- Cord Length: 8 ft
- Transfer Time: 4 ms
Power Description
- Load Capacity (VA): 2880 VA
- Load Capacity (Watt): 2700 W
- Input Voltage: 120 V AC
- Input Current: 15 A
- Output Voltage: 120 V AC
- Waveform Type: Sine Wave
- Surge Energy Rating: 540 J
Interfaces/Ports
- USB: Yes
Battery Information
- Number of Batteries: 1
- Battery Characteristics: Spill-proof, Maintenance-free
- Battery Chemistry: Lead Acid
- Backup/Run Time (Full Load): 6 Minute
- Backup/Run Time (Half Load): 18 Minute
- Hot Swappable: Yes
- Typical Battery Recharge Time: 3 Hour
Physical Characteristics
- Product Color: Black
- Height: 17"
- Width: 7"
- Depth: 19"
- Rack Height: 4U
- Form Factor: Rack-mountable
- Weight (Approximate): 85.19 lb
Miscellaneous
- Package Contents:
- Smart-UPS X 3000VA Rack/Tower LCD 100-127V
- CD with software
- Documentation CD
- Installation guide
- Rack mounting brackets
- Rack mounting hardware
- Rack mounting support rails
- Removable support feet
- Smart UPS signalling RS-232 cable
- USB cable
- Software Included: Powerchute Serial Edition
- Country of Origin: Philippines
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 3 Year
- Additional Warranty Information: Battery: 24 month(s)|UPS: 36 month(s)
