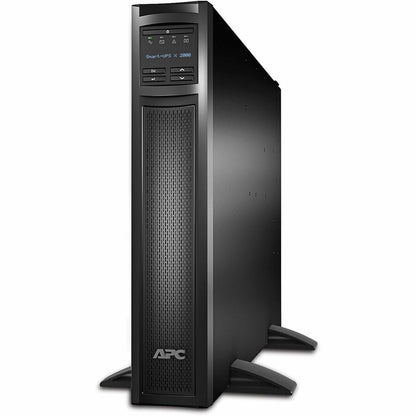

APC Smart-UPS X, Line Interactive, 2000VA, Rack/tower convertible 2U, 100V-127V, 3x 5-15R+3x 5-20R+1x L5-20R NEMA, SmartSlot, Extended runtime - SMX2000RMLV2U
Key Features
- 1920VA/1800W line interactive pure sine wave 2U rack/tower UPS (rail kit included)
- Add up to 10 external battery packs (SMX120RMBP2U)
- Automatic Voltage Regulation keeps output voltage within acceptable user selectable levels
- Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
- Ideal for servers, storage, networking & commercial applications
- User-selectable low voltage setting of 100V-127V
Product Overview

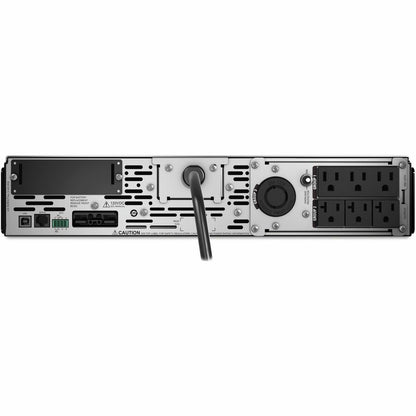

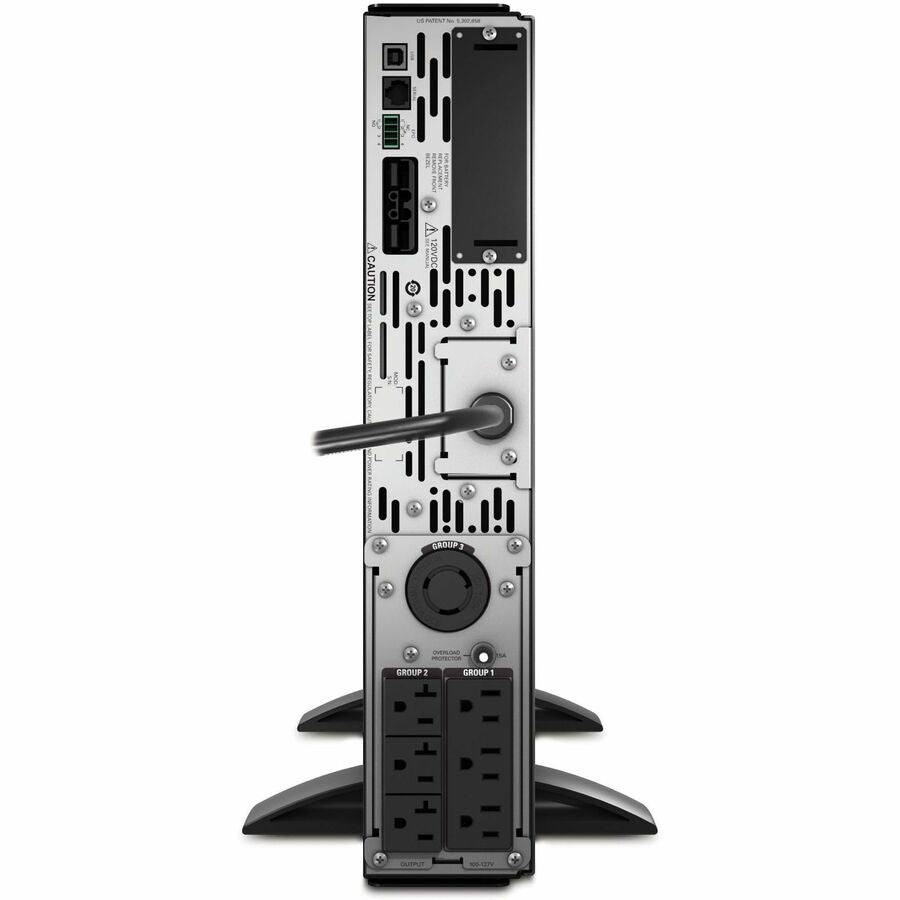

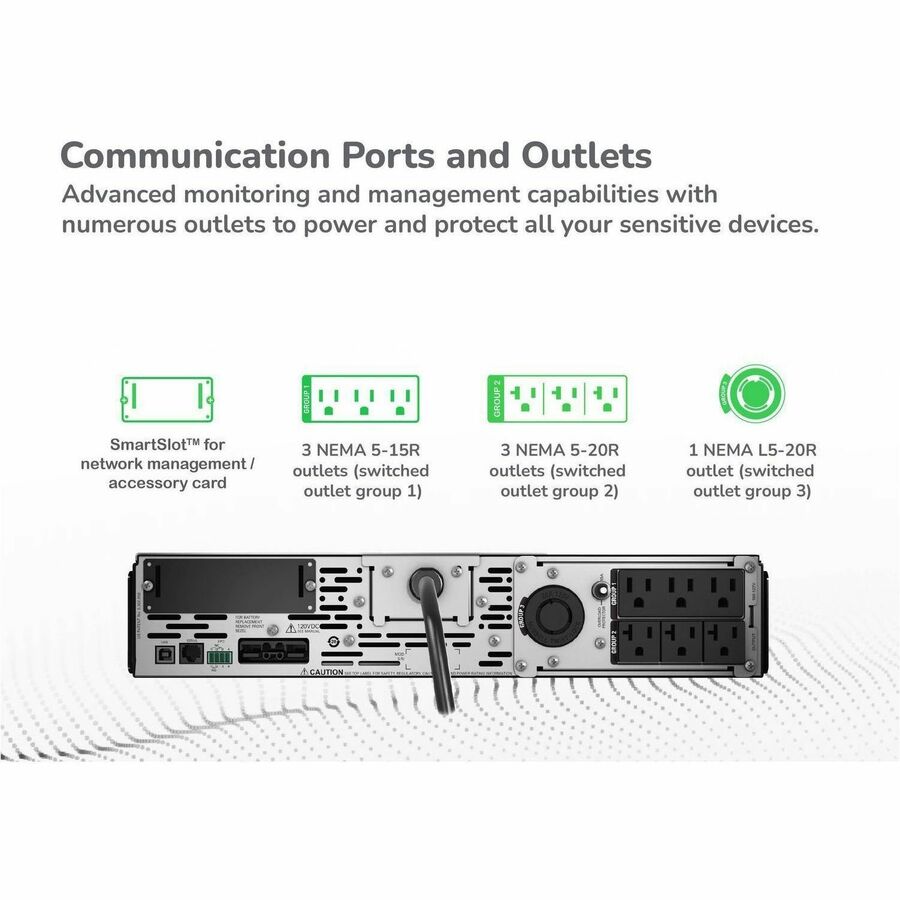

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 1920VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA 5-20P input, 3x NEMA 5-15R, 3x NEMA 5-20R and 1x NEMA L5-20R outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. Connect to 10 of the SMX120RMBP2U external battery packs to increase the amount of time the UPS can provide battery power to devices (battery packs sold separately). Use the intuitive LCD interface and PowerChute software to configure settings and monitor usage. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.
General Information
- Manufacturer: Schneider Electric SA
- Manufacturer Part Number: SMX2000RMLV2U
- Brand Name: APC by Schneider Electric
- Product Line: Smart-UPS
- Product Series: X
- Product Model: SMX2000RMLV2U
- Product Name: Smart-UPS X SMX2000RMLV2U 1920 VA Rack-mountable UPS
- Product Type: Line-interactive UPS
Technical Information
- Plug/Connector Type: NEMA 5-20P
- Receptacle Type: NEMA 5-20P
- Receptacle Detail:
- 1 x NEMA L5-20R
- 3 x NEMA 5-15R
- 3 x NEMA 5-20R
- Number of Battery & Surge Outlets: 7
- Cord Length: 8 ft
- Transfer Time: 4 ms
- Phase: Single Phase
Power Description
- Load Capacity (VA): 1920 VA
- Load Capacity (Watt): 1800 W
- Input Voltage: 120 V AC
- Output Voltage: 120 V AC
- Waveform Type: Sine Wave
- Surge Energy Rating: 540 J
Interfaces/Ports
- Serial Port: Yes
- USB: Yes
Battery Information
- Battery Characteristics: Maintenance-free, Sealed, Spill-proof
- Battery Chemistry: Lead Acid
- Backup/Run Time (Full Load): 11 Minute
- Backup/Run Time (Half Load): 28 Minute
- Hot Swappable: Yes
- Typical Battery Recharge Time: 3 Hour
Physical Characteristics
- Product Color: Black
- Height: 3.3"
- Width: 17"
- Depth: 26.3"
- Rack Height: 2U
- Form Factor: Rack-mountable
- Weight (Approximate): 84.77 lb
Miscellaneous
- Package Contents:
- Smart-UPS X SMX2000RMLV2U 1920 VA Rack-mountable UPS
- CD with software
- Documentation CD
- Installation guide
- Rack mounting brackets
- Rack mounting hardware
- Rack mounting support rails
- Removable support feet
- Smart UPS signalling RS-232 cable
- USB cable
- Software Included: Powerchute Serial Edition
- Country of Origin: Philippines
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 3 Year
- Additional Warranty Information: UPS: 36 month(s)|Battery: 24 month(s)
