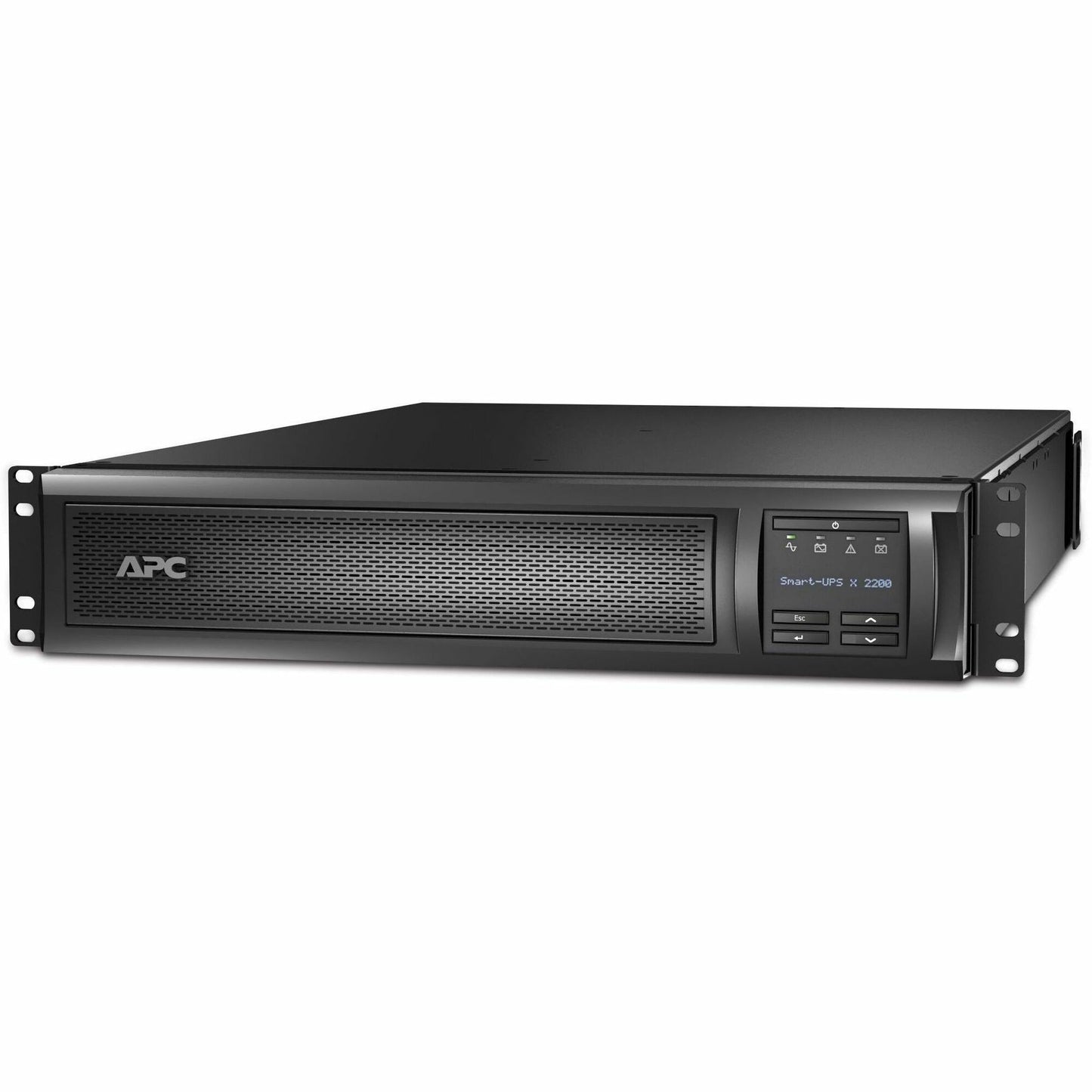

APC Smart-UPS X, Line Interactive, 2200VA, Rack/tower convertible 2U, 100V-127V, 6x 5-15R+2x 5-20R NEMA, SmartSlot, Extended runtime - SMX2200RMLV2U
Key Features

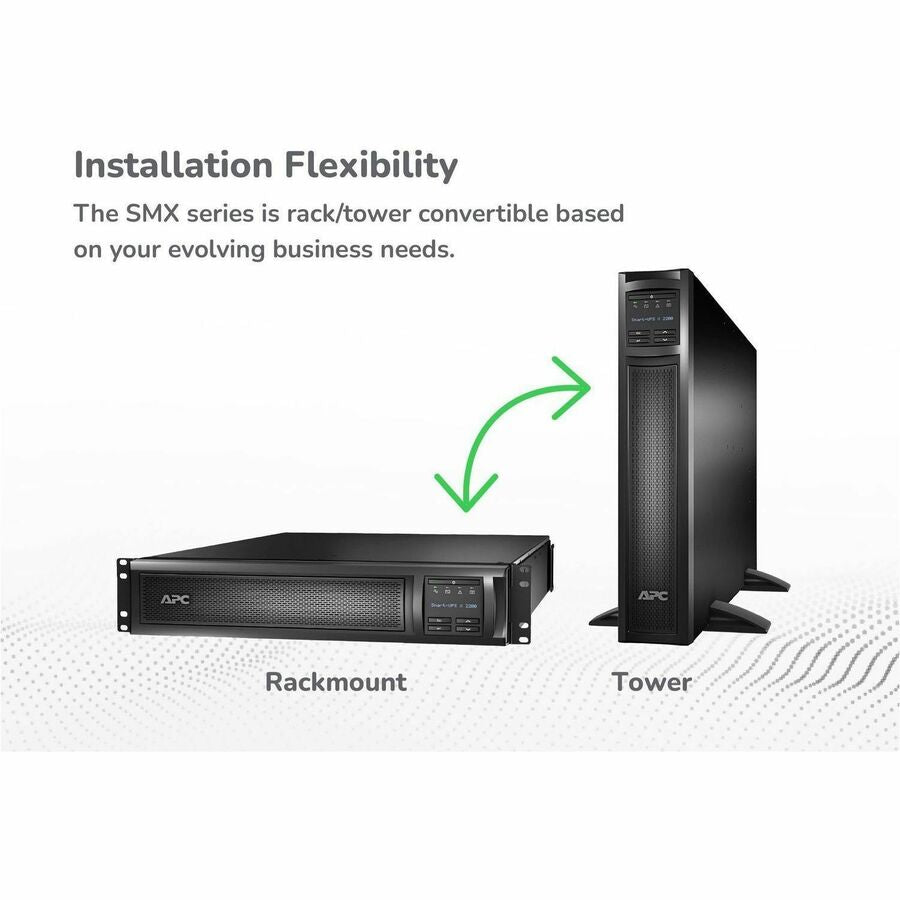

- 2200VA/1980W line interactive pure sine wave 2U rack/tower UPS (rail kit included)

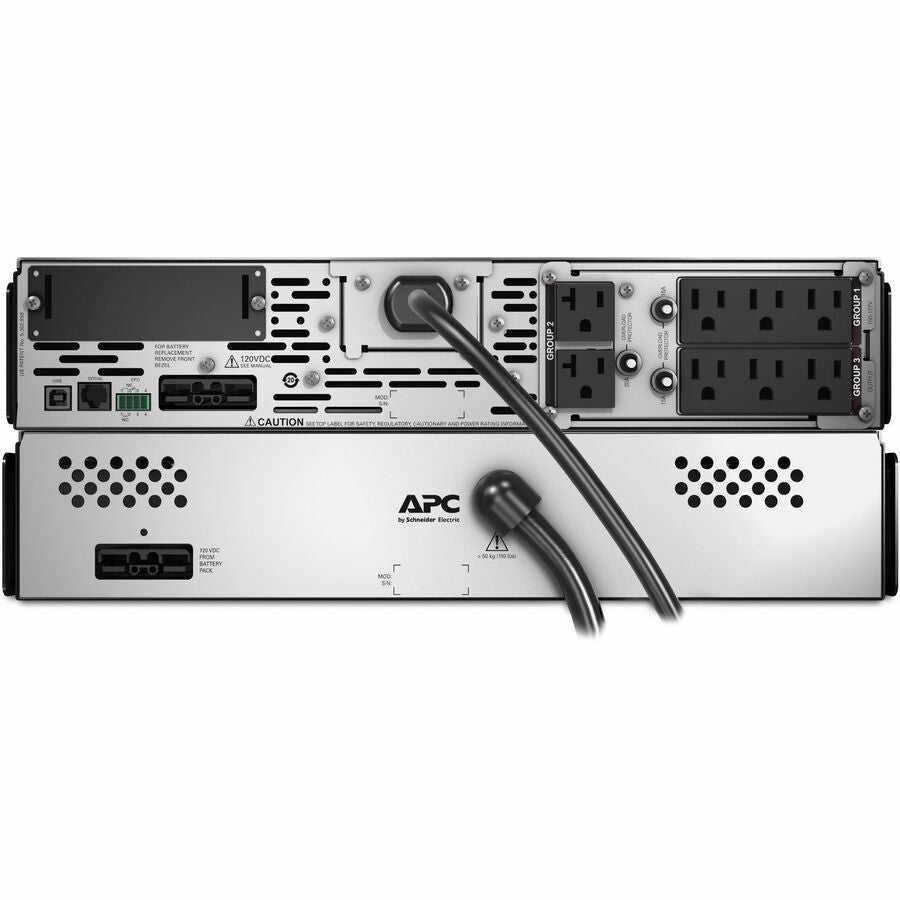

- Add up to 10 external battery packs (SMX120RMBP2U)
- Automatic Voltage Regulation keeps output voltage within acceptable user selectable levels
- Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
- Ideal for servers, storage, networking & commercial applications
- User-selectable low voltage setting of 100V-127V
Product Overview
This product is part of the Smart-UPS range, an intelligent and efficient network power protection offer from entry-level to scalable runtime. This 2200VA/1980W premium and reliable line-interactive UPS provides pure sine wave and scalable runtime for critical applications. The 2U rack/tower convertible SMX has an optional Network Management Card for network-based monitoring and PowerChute Business Edition for unattended shutdown. The UPS comes with extendable batteries (up to 10) for more runtime during prolonged outages. It comes with NEMA L5-30P input, 6x NEMA 5-15R and 2x NEMA 5-20R outlets. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. Its dimensions are 667mm (depth) x 85mm (height) x 432mm (width) and weighs 38.45kg. Ideal for server rooms, network closets, business VoIP, data storage, and network-attached storage (NAS) and small datacenters. It conforms to BSMI, CSA, NOM, TUV, EN 50091-2, EN 55022 class A, FCC part 15 class A, UL 1778, and VCCI class A.
General Information
- Manufacturer: Schneider Electric SA
- Manufacturer Part Number: SMX2200RMLV2U
- Brand Name: APC by Schneider Electric
- Product Line: Smart-UPS
- Product Series: X
- Product Model: SMX2200RMLV2U
- Product Name: Smart-UPS X SMX2200RMLV2U 2200 VA Rack-mountable UPS
- Product Type: Line-interactive UPS
Technical Information
- Plug/Connector Type: NEMA L5-30P
- Receptacle Type: NEMA L5-30P

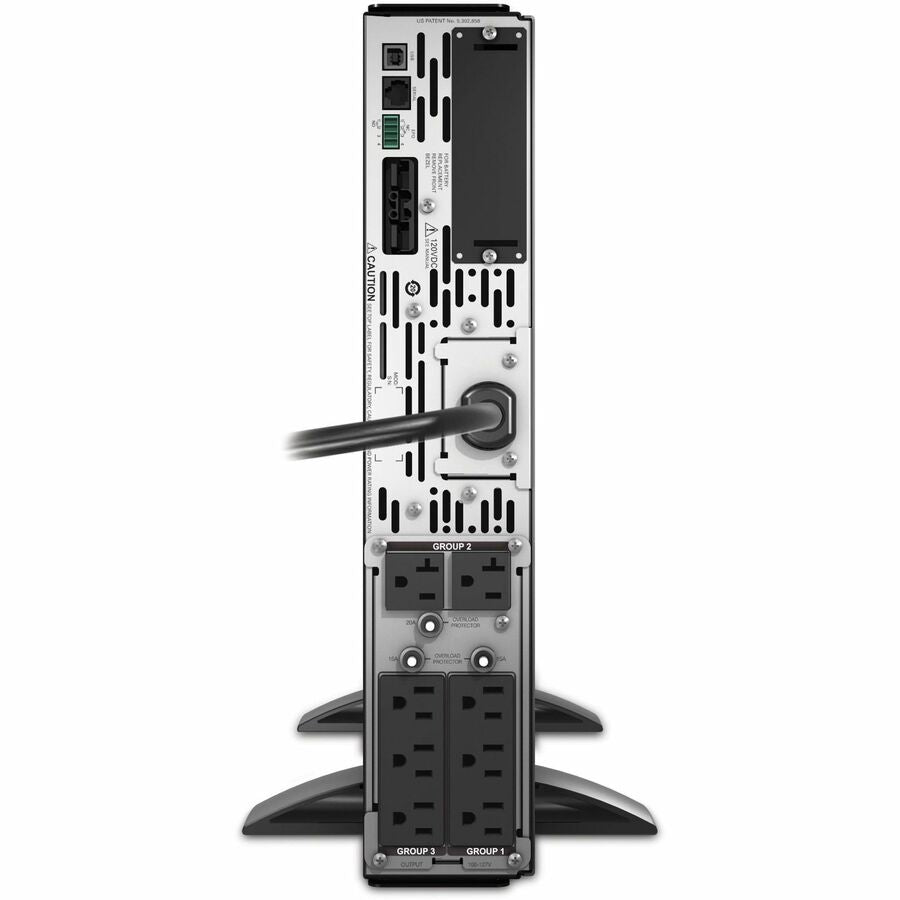

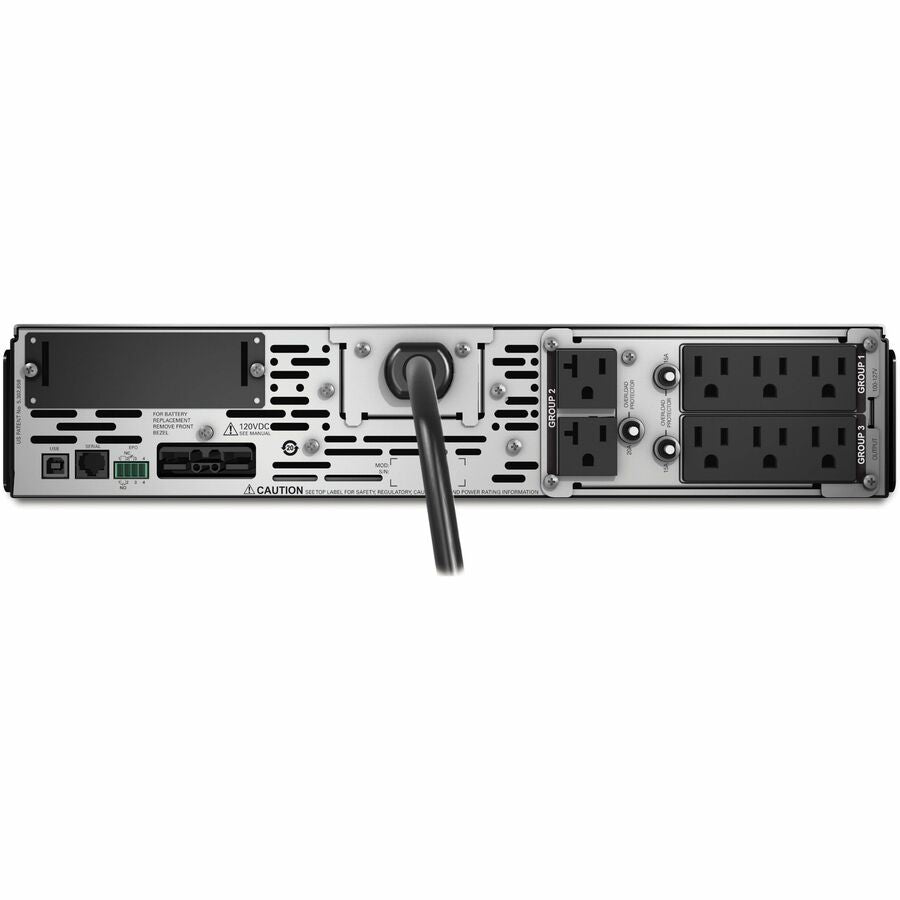

- Receptacle Detail:
- 2 x NEMA 5-20R
- 6 x NEMA 5-15R
- Number of Battery & Surge Outlets: 8
- Cord Length: 8 ft
- Transfer Time: 4 ms
Power Description
- Load Capacity (VA): 2200 VA
- Load Capacity (Watt): 1980 W
- Input Voltage: 120 V AC
- Output Voltage: 120 V AC
- Waveform Type: Sine Wave
- Surge Energy Rating: 540 J
Interfaces/Ports
- Serial Port: Yes
- USB: Yes
Battery Information
- Battery Characteristics: Maintenance-free, Sealed, Spill-proof
- Battery Chemistry: Lead Acid
- Backup/Run Time (Full Load): 10 Minute
- Backup/Run Time (Half Load): 25 Minute
- Hot Swappable: Yes
- Typical Battery Recharge Time: 3 Hour
Physical Characteristics
- Product Color: Black
- Height: 3.3"
- Width: 17"
- Depth: 26.3"
- Rack Height: 2U
- Form Factor: Rack-mountable
- Weight (Approximate): 84.77 lb
Miscellaneous
- Package Contents:
- Smart-UPS X SMX2200RMLV2U 2200 VA Rack-mountable UPS
- CD with software
- Documentation CD
- Installation guide
- Rack mounting brackets
- Rack mounting hardware
- Rack mounting support rails
- Removable support feet
- Smart UPS signalling RS-232 cable
- USB cable
- Software Included: Powerchute Serial Edition
- Country of Origin: Philippines
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 3 Year
- Additional Warranty Information: Battery: 24 month(s)|UPS: 36 month(s)
