- Description
- Specifications

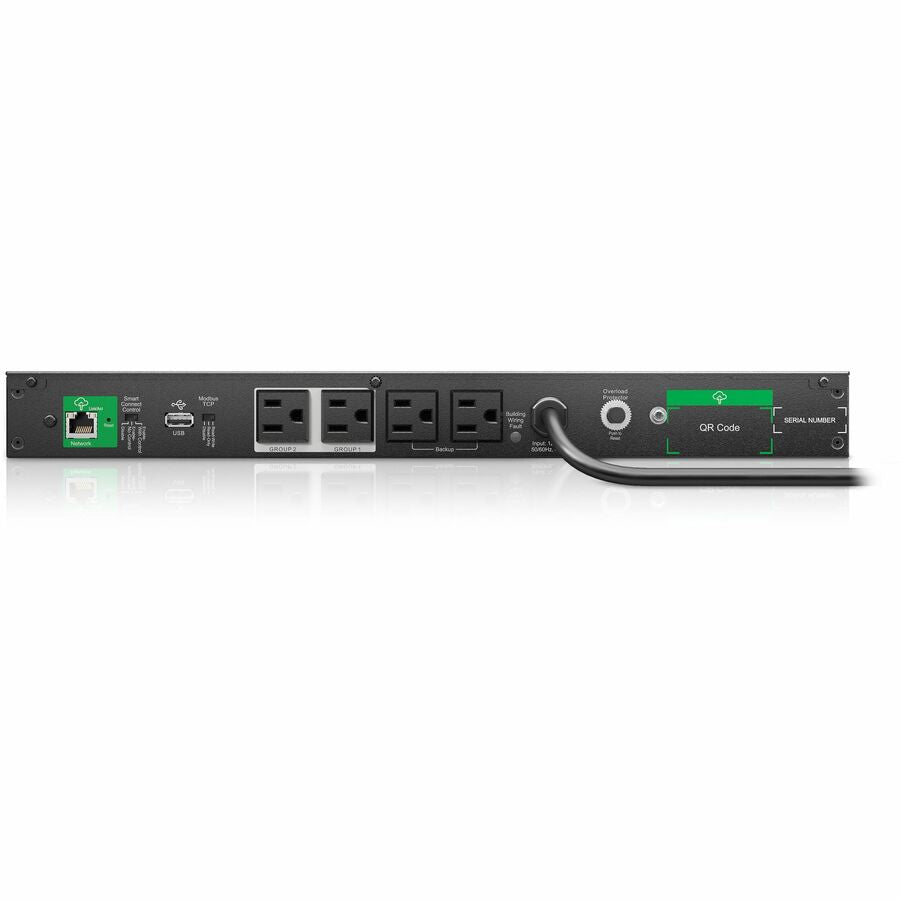

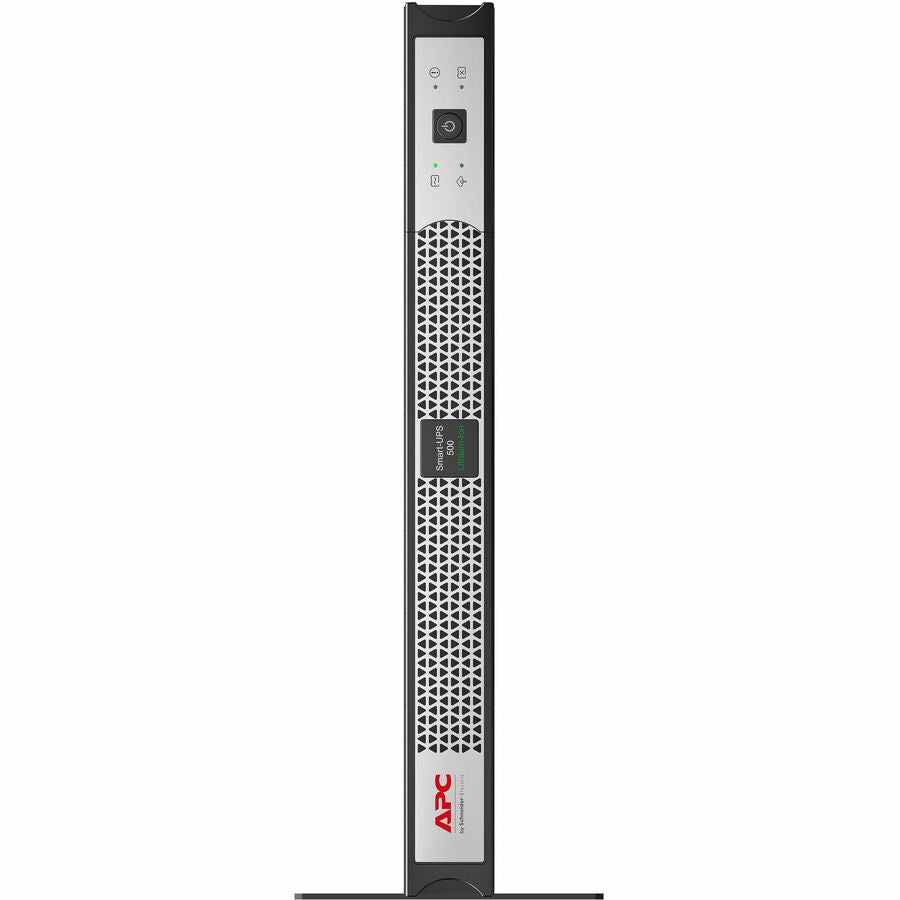

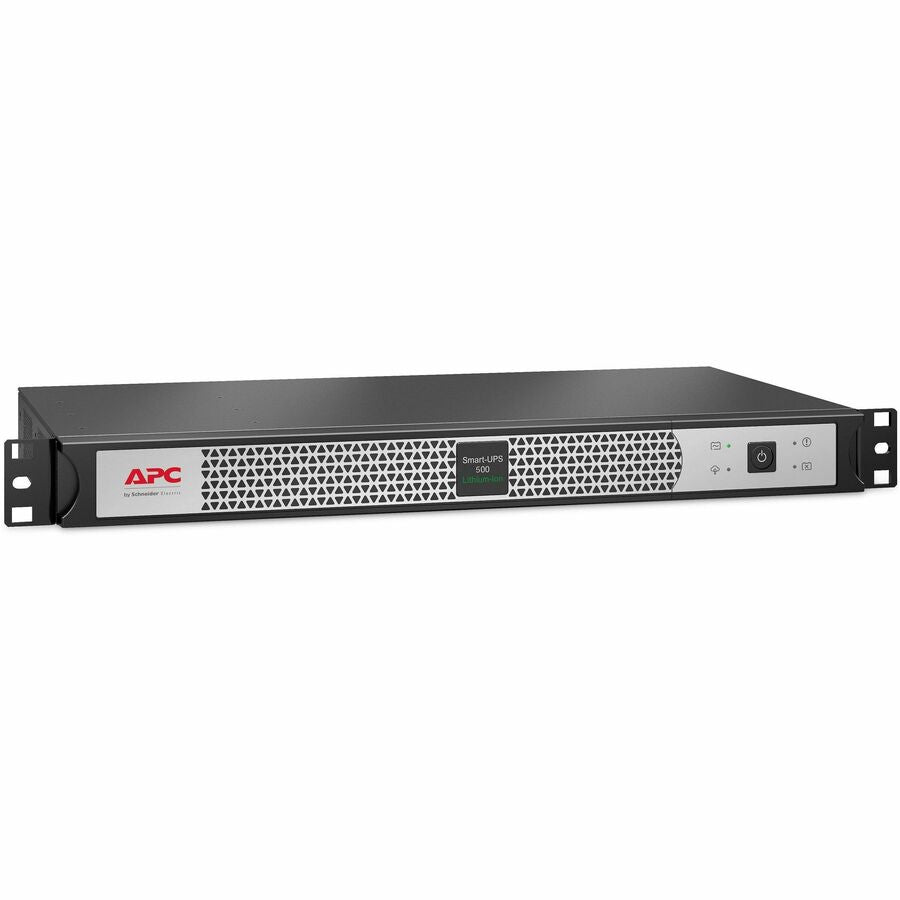

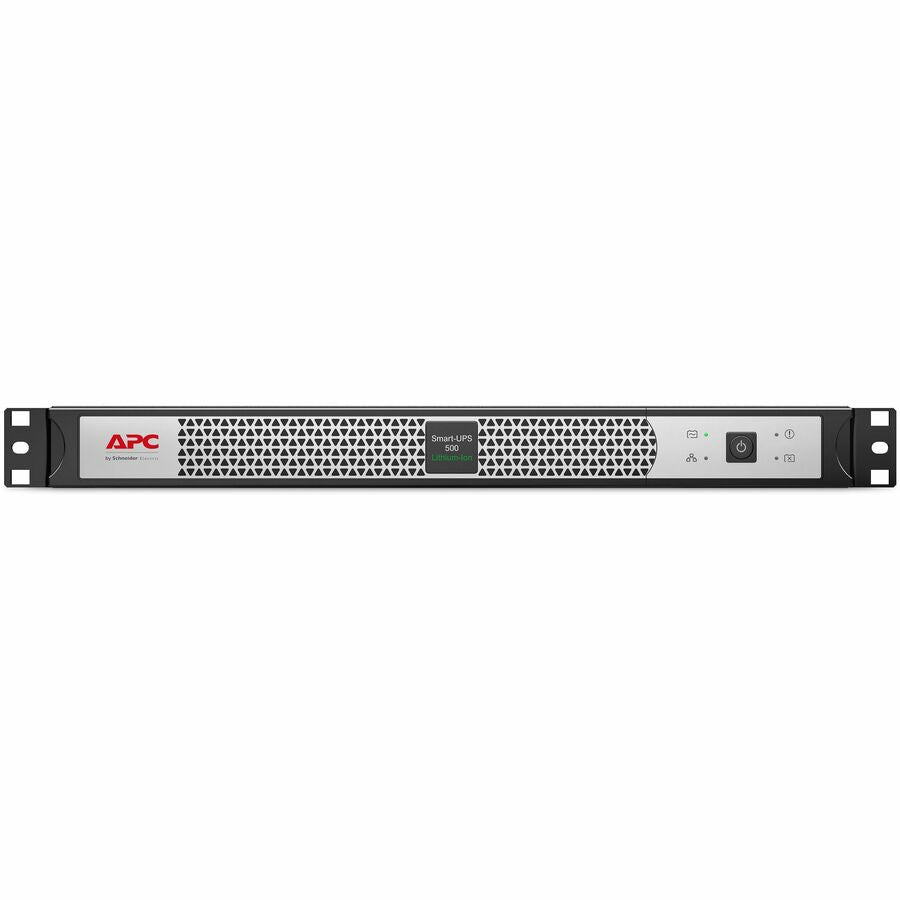

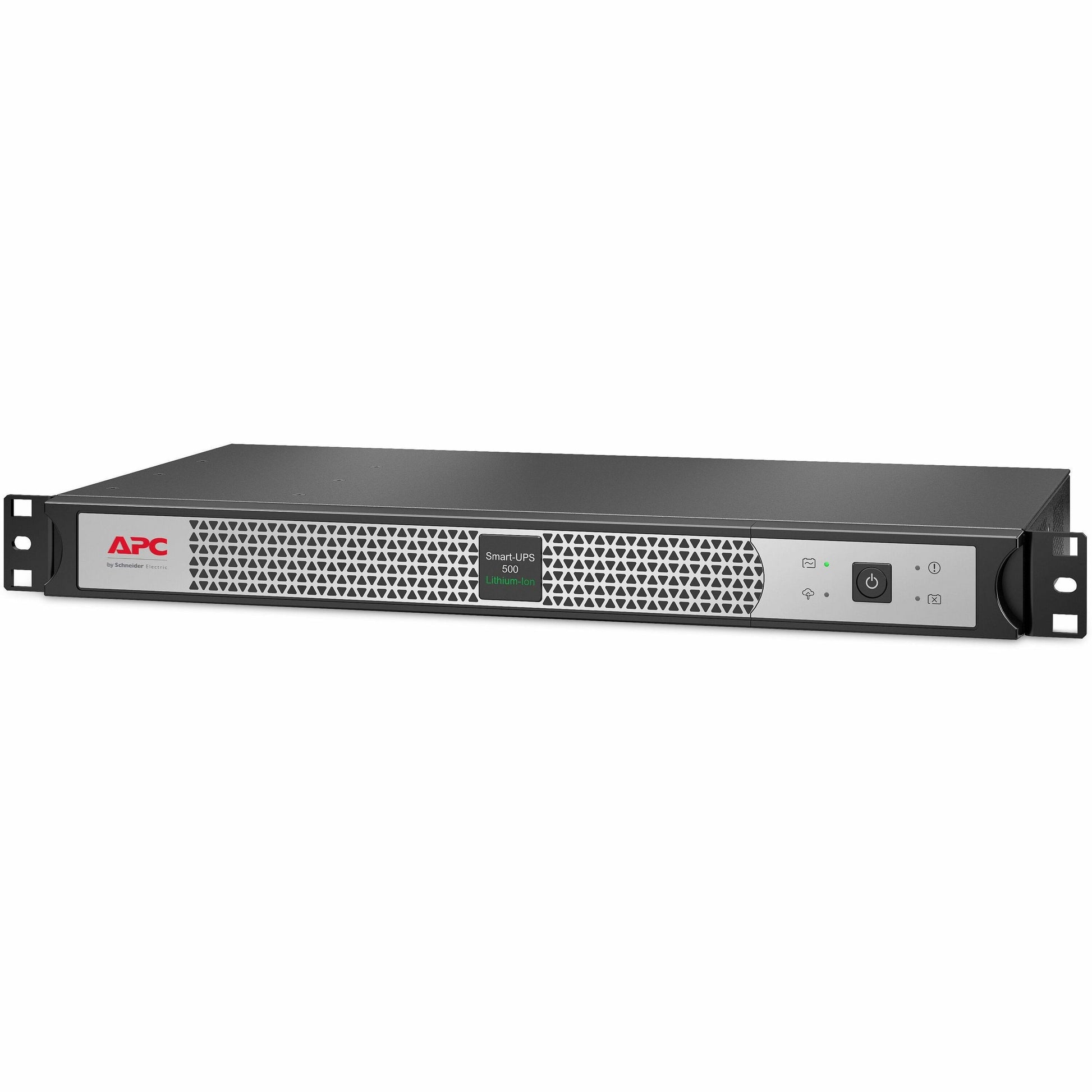

APC Smart-UPS, Line Interactive, 500VA, Lithium-ion, Rackmount 1U, 120V, 4x NEMA 5-15R outlets, SmartConnect Port, Short Depth - SCL500RM1UC
Key Features
- 500VA/400W line interactive pure sine wave 1U rackmount UPS
- Cloud-based remote power monitoring via SmartConnect Ethernet Port
- Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
- Ideal for small edge environment, back office, network infrastructure and IDF/MDF closets
- Lithium-ion battery minimizes the need to replace battery during the life time of UPS
- Peace of mind with a 5-year warranty on UPS and battery
- Short depth UPS provides extra space for cable management
Product Overview
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 500VA line interactive 1U short depth rackmount UPS with Lithium-ion battery provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 4x NEMA5-15R outlets. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SCL UPS has a 5-year warranty on the UPS and Lithium-ion battery.
General Information
- Manufacturer: Schneider Electric SA
- Manufacturer Part Number: SCL500RM1UC
- Brand Name: APC by Schneider Electric
- Product Line: Smart-UPS
- Product Name: Smart-UPS 500VA Rack/Floor Mountable UPS
- Packaged Quantity: 1 Each
- Product Type: Line-interactive UPS
Technical Information
- AVR: Yes
- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15P
- Receptacle Detail: 4 x NEMA 5-15R
- Number of Battery & Surge Outlets: 4
- Dataline Protection: RJ-45
- Cord Length: 6 ft
- Transfer Time: 10 ms
- Phase: Single Phase
- Application/Usage:
- Network
- Server
- POS Terminal
- Router
- Switch
- Network Hub
- Equipment
- Business
- Storage
- Security System
- Communication System
- Voice/Data Network
Power Description
- Load Capacity (VA): 500 VA
- Load Capacity (Watt): 400 W
- Input Voltage: 120 V AC
- Input Voltage Range: 92 V AC - 139 V AC
- Output Voltage: 120 V AC
- Input Frequency: 63 Hz
- Output Frequency: 60 Hz
- Waveform Type: Sine Wave
- Surge Energy Rating: 680 J
Management
- Network Management: SmartConnect
- Alarm:
- On Battery
- Low Battery
- Configurable Delay
Controls/Indicators
- Status Indicators: LED Display
Interfaces/Ports
- Serial Port: Yes
- Network (RJ-45): Yes
- EPO Port: Yes
- USB (HID Compliant) Port: Yes
Battery Information
- Battery Characteristics: Valve-regulated
- Battery Chemistry: Lithium Ion (Li-Ion)
- Backup/Run Time (Full Load): 2.70 Minute
- Backup/Run Time (Half Load): 6.30 Minute
- Hot Swappable: Yes
- Typical Battery Recharge Time: 3 Hour
- Replaceable Battery: Yes
Environmental Conditions
- Maximum Operating Elevation: 6561 ft
- Maximum Storage Elevation: 49212 ft
- Storage Temperature: 5°F (-15°C) - 113°F (45°C)
- Operating Humidity: 10% - 90%
- Storage Relative Humidity: 10% - 90%
- Maximum Operating Temperature: 104°F (40°C)
- Sound Emission (A-Weighted): 45 dB(A)
Physical Characteristics
- Product Color:
- Black
- Silver
- Height: 1.7"
- Width: 17"
- Depth: 9.1"
- Rack Height: 1U
- Form Factor: Rack-mountable
- Weight (Approximate): 9.22 lb
Miscellaneous
- Package Contents:
- Smart-UPS 500VA Rack/Floor Mountable UPS
- CD with software
- Documentation CD
- Installation guide
- Rack mounting support rails
- USB cable
- Software Included: Powerchute Serial Edition
- Energy Star: Yes
- Country of Origin: Philippines
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 5 Year
