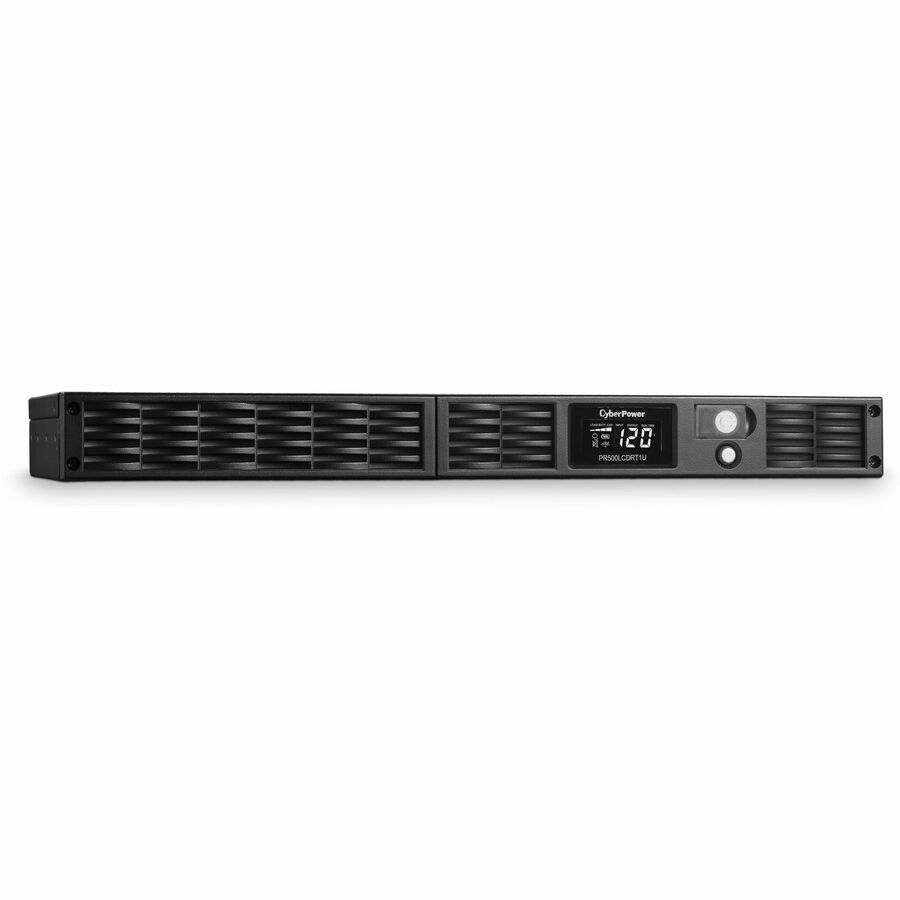

CyberPower PR500LCDRT1U Smart App Sinewave UPS Systems - PR500LCDRT1U
Key Features
- 120 VAC ± 5%
- 3 year
- 500 VA / 400 W
- Capacity:
- Communication:
- Line Interactive
- Management software:
- NEMA 5-15P, 10 ft. cord
- Output:
- Plug type & cord:
- PowerPanel® Business Edition
- Remote management:
- Sine Wave
- Topology:
- USB, Serial, SNMP, Relay, EPO
- Warranty:
- Waveform:
- Yes
Product Overview

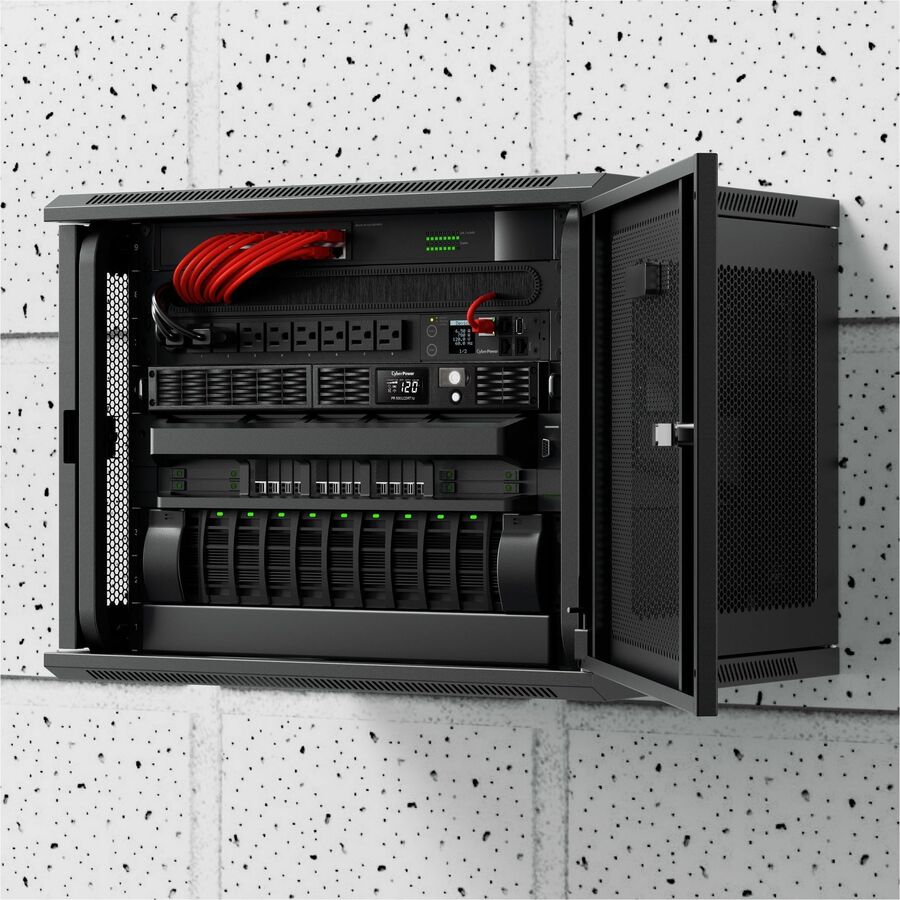

A rack/tower convertible UPS with line interactive topology, the CyberPower Smart App Sinewave PR500LCDRT1U provides battery backup, power protection (using sine wave output), and surge protection for corporate servers, department servers, storage appliances, network devices, and telecom installations requiring Active PFC power source compatibility. The PR500LCDRT1U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The PR500LCDRT1U comes with a three-year warranty (including coverage of batteries) and a ,400,000 Connected Equipment Guarantee.
General Information
- Manufacturer: CyberPower Systems, Inc
- Manufacturer Part Number: PR500LCDRT1U
- Brand Name: CyberPower
- Product Series: Smart App Sinewave UPS
- Product Model: PR500LCDRT1U
- Product Name: PR500LCDRT1U Smart App Sinewave UPS Systems
- Product Type: Line-interactive UPS
Technical Information
- AVR: Yes
- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15R

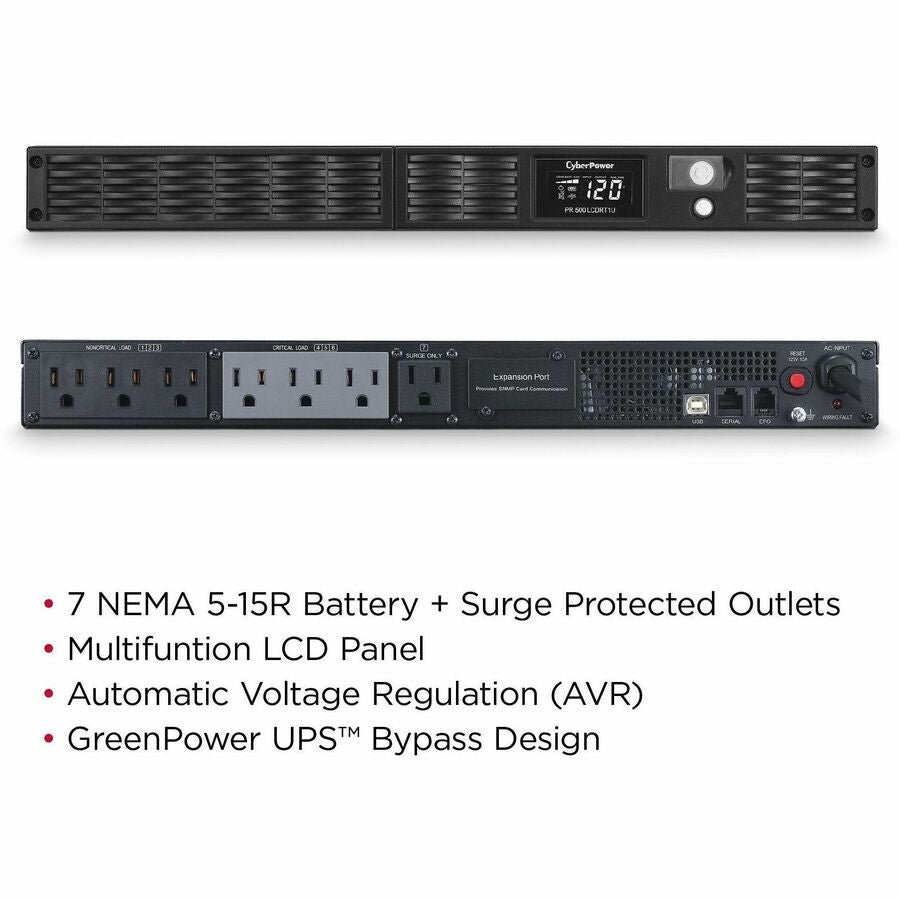

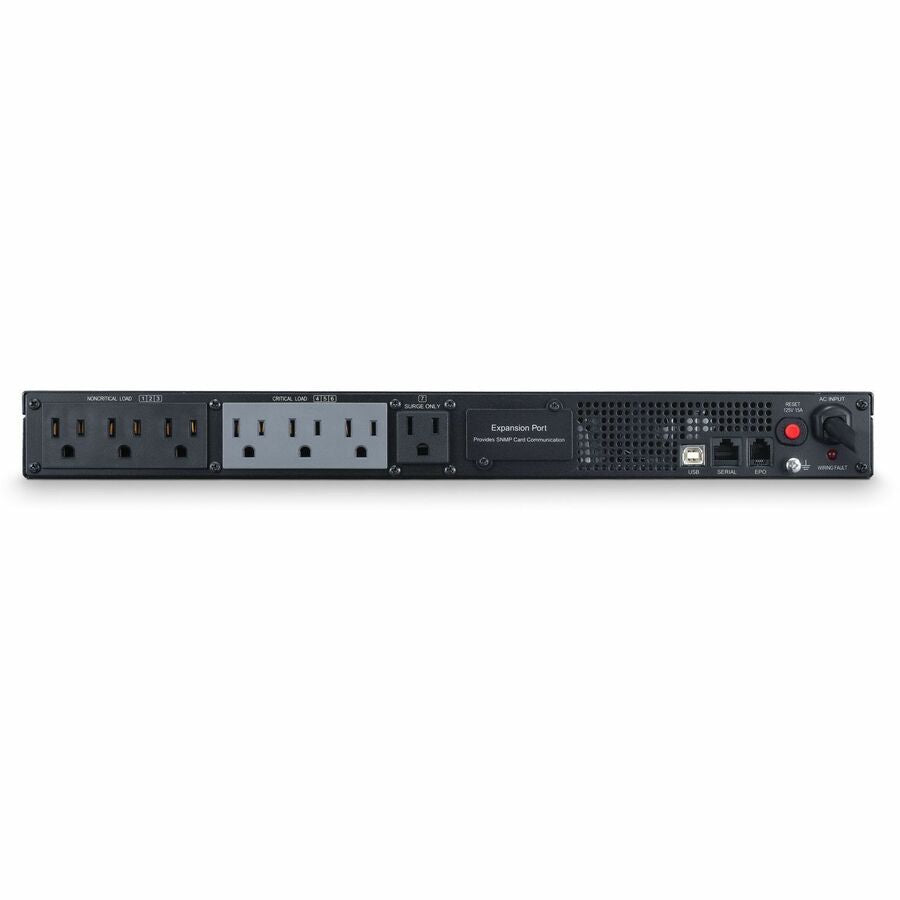

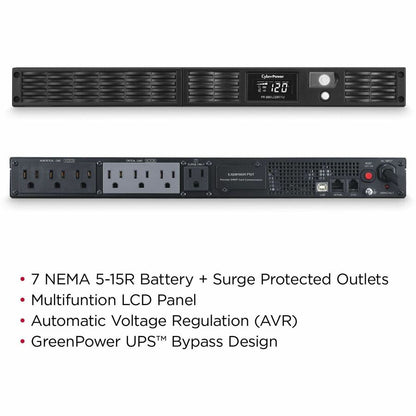

- Receptacle Detail: 7 x NEMA 5-15R
- Number of Battery & Surge Outlets: 6
- Number of Surge-only Outlets: 1
- Number of Critical Load Outlets: 3
- Transfer Time: 10 ms
- Protection Type:
- Under Voltage
- Over Voltage
- Overload Protection: Yes
- EMI/RFI Noise Filter: Yes
- Energy Saving: GreenPower UPS™ Bypass Technology
- Cord Length: 10 ft
- Circuit Breaker Current Rating: 15 A
Power Description
- Load Capacity (VA): 500 VA
- Load Capacity (Watt): 400 W
- Input Voltage: 120 V AC
- Input Voltage Range: 80 V AC - 150 V AC
- Output Voltage: 120 V AC
- Input Frequency:
- 50 Hz
- 60 Hz
- Output Frequency: 60 Hz
- Waveform Type: Sine Wave
- Surge Energy Rating: 1030 J
- Output Power Factor: 0.8
Display & Graphics
- Display: LCD
Management
- Network Management: SNMP/HTTP Remote Monitoring
- Alarm: Battery Mode
Controls/Indicators
- Status Indicators: LED Indicators: Power On
Interfaces/Ports
- Serial Port: Yes
- USB (HID Compliant) Port: Yes
- EPO Port: Yes
Battery Information
- DC System Voltage: 6 V DC
- Number of Batteries: 2
- Battery Characteristics: Sealed
- Battery Chemistry: Lead Acid
- Battery Size: 6V
- Battery Capacity: 9000 mAh
- Backup/Run Time (Full Load): 3 Minute
- Backup/Run Time (Half Load): 12 Minute
- Typical Battery Recharge Time: 6 Hour
- Replaceable Battery: Yes
Environmental Conditions
- Maximum Operating Temperature: 104°F (40°C)
- Storage Temperature: 5°F (-15°C) - 113°F (45°C)
- Maximum Operating Elevation: 10000 ft
- Maximum Storage Elevation: 50000 ft
- Thermal Dissipation: 7.91 W

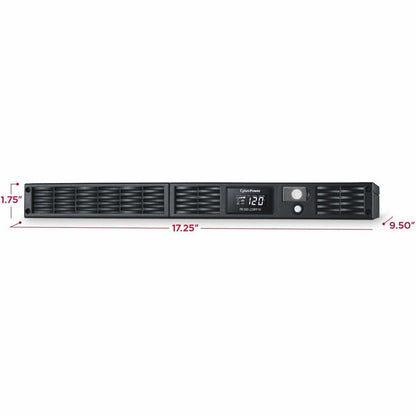

Physical Characteristics
- Product Color: Black
- Form Factor: Rack/Tower
- Rack Height: 1U
- Height: 1.8"
- Width: 17.3"
- Depth: 9.5"
- Weight (Approximate): 19.80 lb
Miscellaneous
- Package Contents:
- Smart App Sinewave PR500LCDRT1U 500VA Pure Sine Wave 1U RT LCD UPS
- User Manual
- Functional Setup Guide
- USB Cable
- Serial Cable
- Emergency Power Off (EPO) Cable
- Registration Card
- Software Included: PowerPanel Business Edition
- Energy Star: No
- Country of Origin: China
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 3 Year
