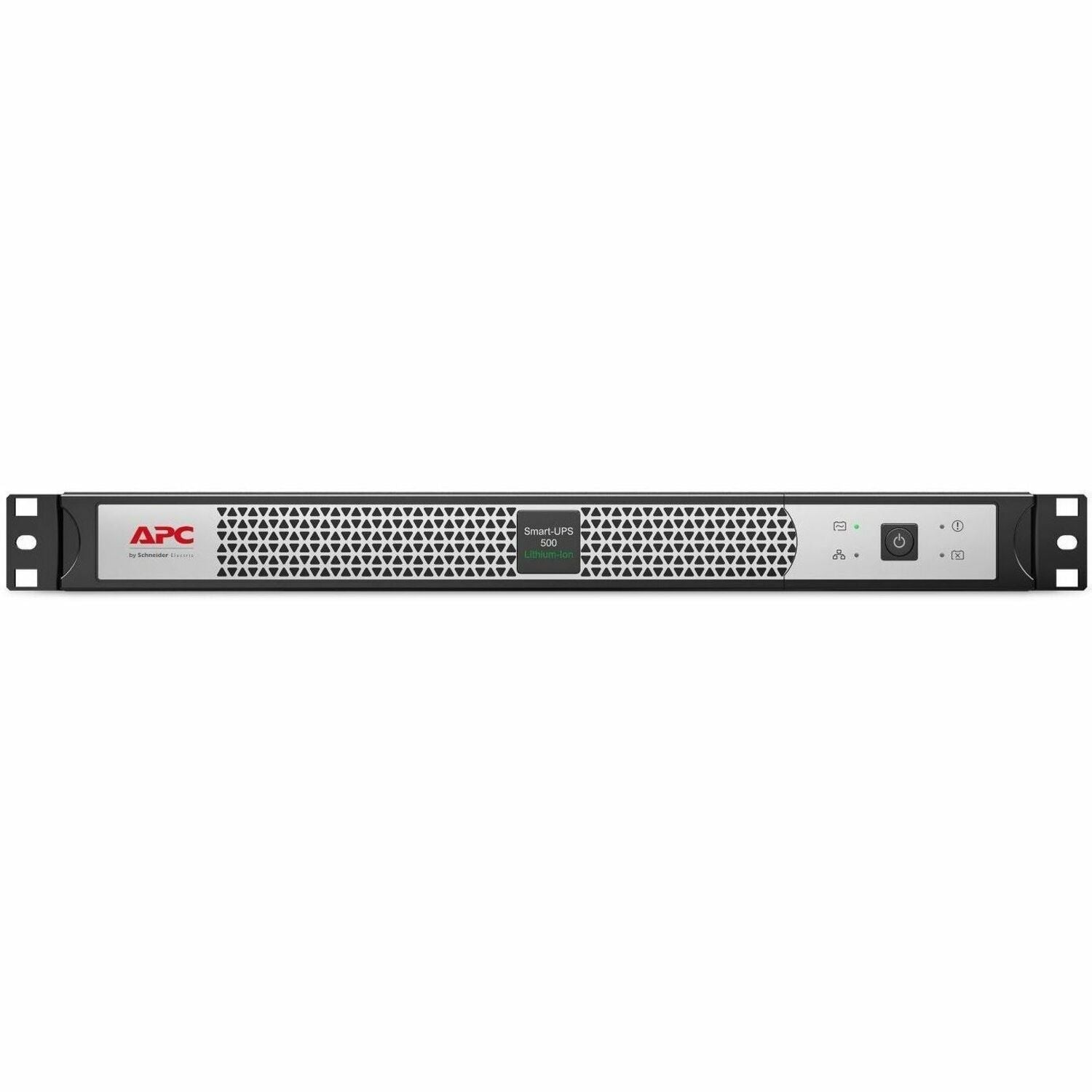

APC Smart-UPS, Line Interactive, 500VA, Lithium-ion, Rackmount 1U, 120V, 4x NEMA 5-15R outlets, Network Card, Short Depth - SCL500RM1UNC
Key Features
- 1-Year Secure Network Management Card subscription included
- 500VA/400W line interactive pure sine wave 1U rackmount UPS
- Graceful shutdown of physical servers, virtual machines and HCI Clusters
- Ideal for small edge environment, back office, network infrastructure and IDF/MDF closets
- Lithium-ion battery minimizes the need to replace battery during the life time of UPS
- Peace of mind with a 5-year warranty on UPS and battery
- Preinstalled Network Management Card for network-based UPS monitoring & management

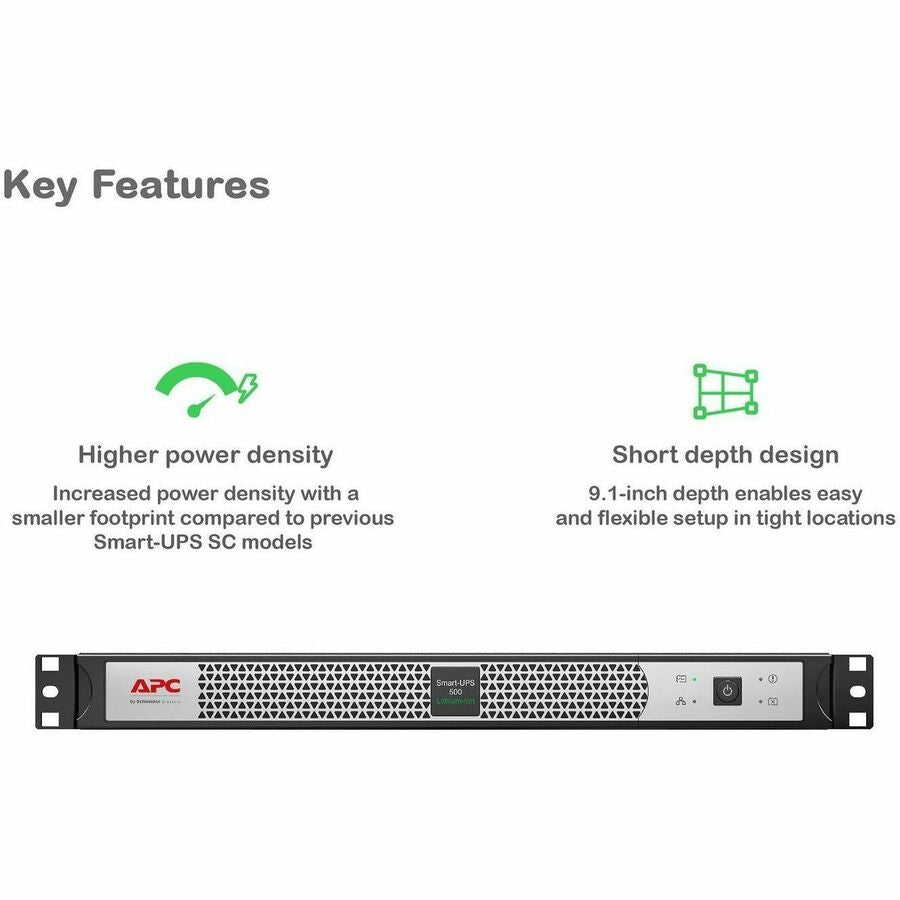

- Short depth UPS provides extra space for cable management
Product Overview
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 500VA line interactive 1U short depth rackmount UPS with Lithium-ion battery provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 4 NEMA5-15R outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SCL UPS has a 5-year warranty on the UPS and Lithium-ion battery.General Information
- Manufacturer: Schneider Electric SA
- Manufacturer Part Number: SCL500RM1UNC
- Brand Name: APC
- Product Line: Smart-UPS
- Product Name: Smart-UPS 500VA Rack-mountable UPS
- Packaged Quantity: 1 Each
- Product Type: Line-interactive UPS
Technical Information
- AVR: Yes
- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15P

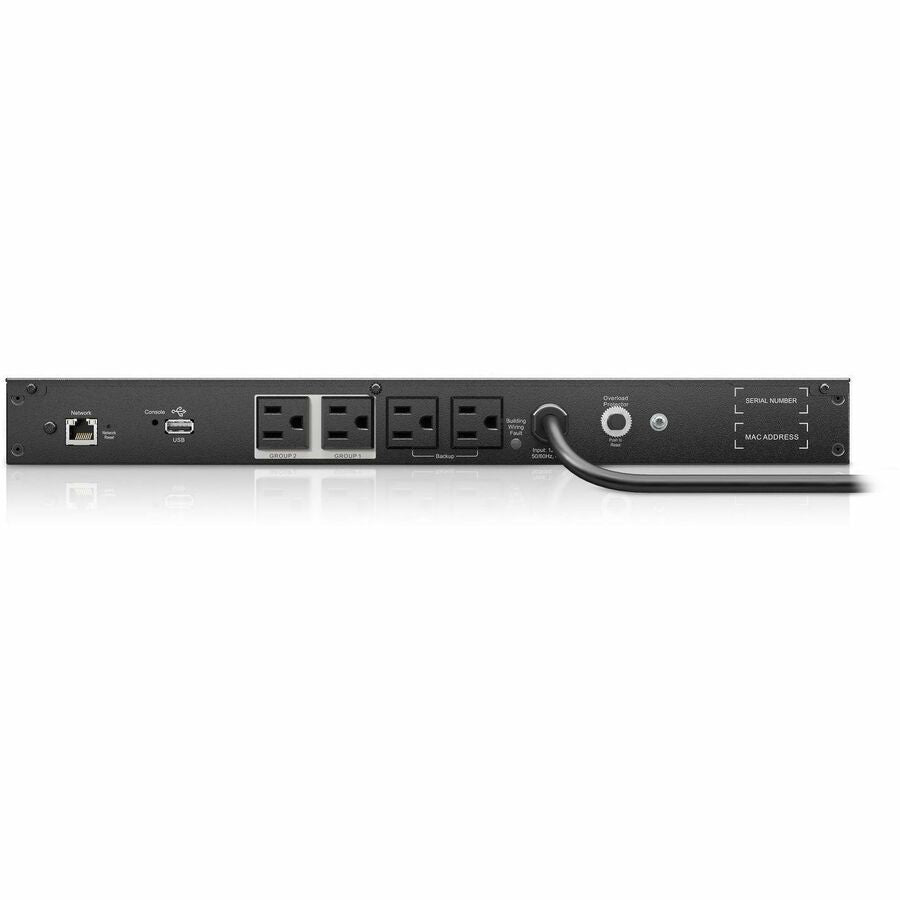

- Receptacle Detail: 4 x NEMA 5-15R
- Number of Battery & Surge Outlets: 4
- Overload Protection: Yes
- Cord Length: 6 ft
- Transfer Time: 6 ms
- Phase: Single Phase
- Application/Usage:
- Server
- POS Terminal
- Router
- Switch
- Network Hub
- IT Equipment
- Network Device
- Business
- Storage System
- Critical System
- Security System
- Communication System
Power Description
- Load Capacity (VA): 500 VA
- Load Capacity (Watt): 400 W
- Input Voltage: 120 V AC
- Output Voltage: 120 V AC
- Input Frequency: 63 Hz
- Output Frequency: 60 Hz
- Waveform Type: Sine Wave
- Surge Energy Rating: 680 J
Management
- Alarm:
- On Battery
- Low Battery
- Configurable Delay

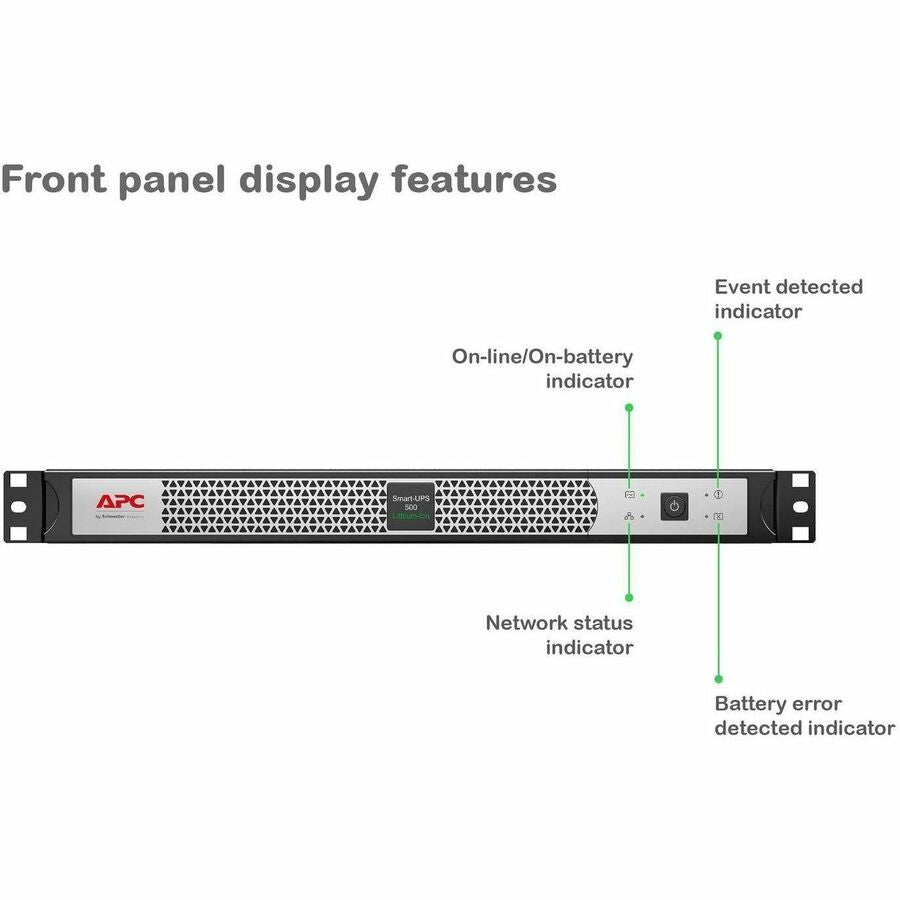

Controls/Indicators
- Status Indicators:
LED Status Display:
- On Battery
- On Line

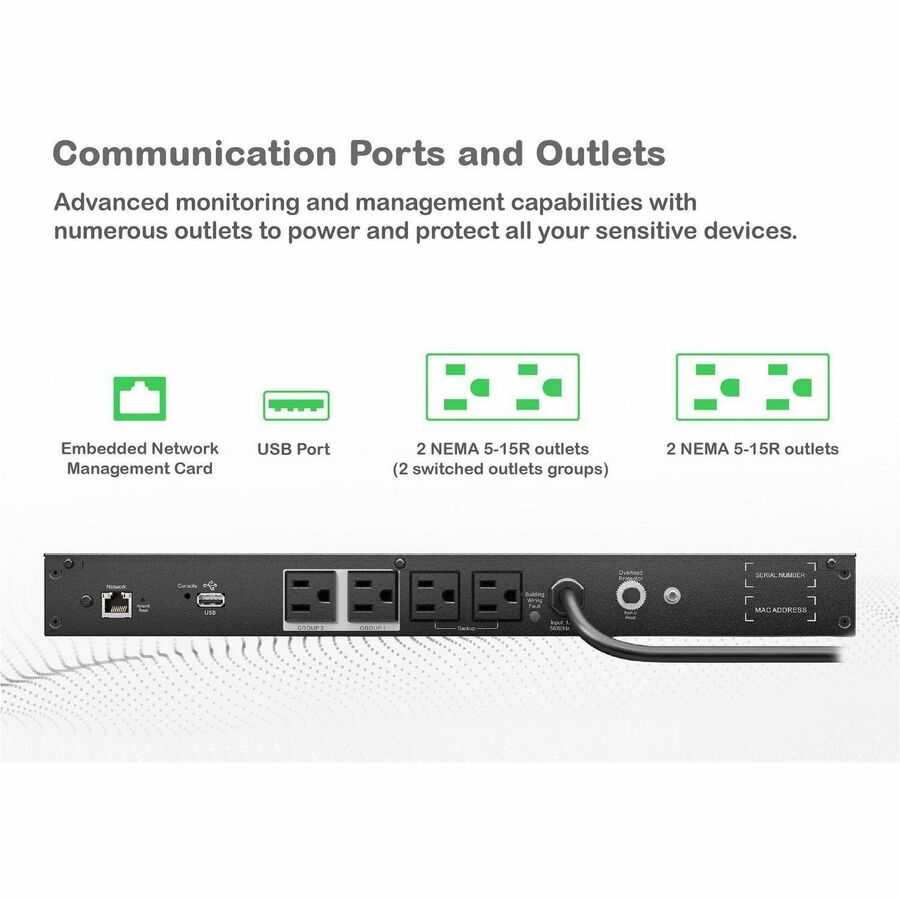

Interfaces/Ports
- Serial Port: Yes
- USB (HID Compliant) Port: Yes
Battery Information
- Battery Chemistry: Lithium Ion (Li-Ion)
- Battery Energy: 108 kJ

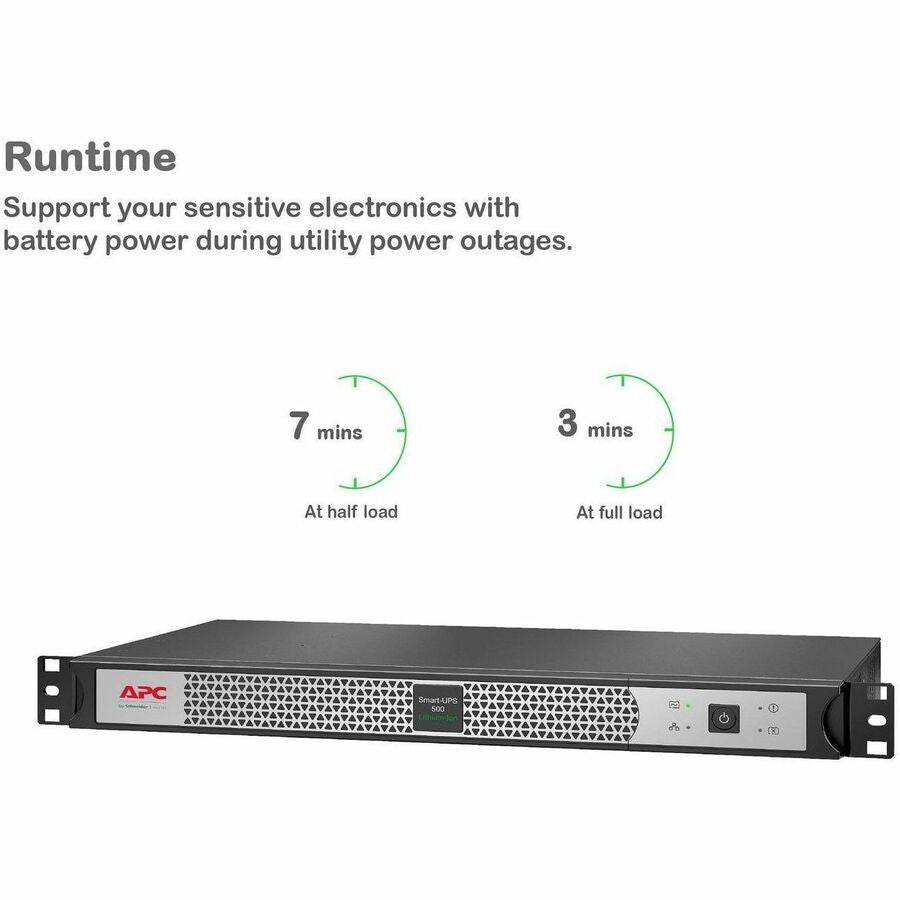

- Backup/Run Time (Full Load): 2.70 Minute
- Backup/Run Time (Half Load): 6.30 Minute
- Hot Swappable: Yes
- Typical Battery Recharge Time: 3 Hour
- Replaceable Battery: Yes
Environmental Conditions
- Maximum Operating Elevation: 6561 ft
- Maximum Storage Elevation: 49212 ft
- Storage Temperature: 5°F (-15°C) - 113°F (45°C)
- Maximum Operating Temperature: 104°F (40°C)
- Sound Emission (A-Weighted): 45 dB(A)
Physical Characteristics
- Product Color:
- Black
- Silver
- Height: 1.73"
- Width: 17.01"
- Depth: 9.13"
- Rack Height: 1U
- Form Factor: Rack-mountable
- Weight (Approximate): 9.30 lb
Miscellaneous
- Package Contents:
- Smart-UPS 500VA Rack-mountable UPS
- CD with software
- Documentation CD
- Installation guide
- Rack mounting support rails
- USB cable
- Software Included: Powerchute Serial Edition
- Energy Star: Yes
- Country of Origin: Philippines
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 5 Year
