APC Smart-UPS X, Line Interactive, 2000VA, Rack/tower 2U, 100V-127V, 3x 5-15R+3x 5-20R+1x L5-20R NEMA, SmartSlot, Extended runtime, 10ft input cord - SMX2KR2UX145
Key Features
- 1920VA/1800W line interactive pure sine wave 2U rack/tower UPS (rail kit included)

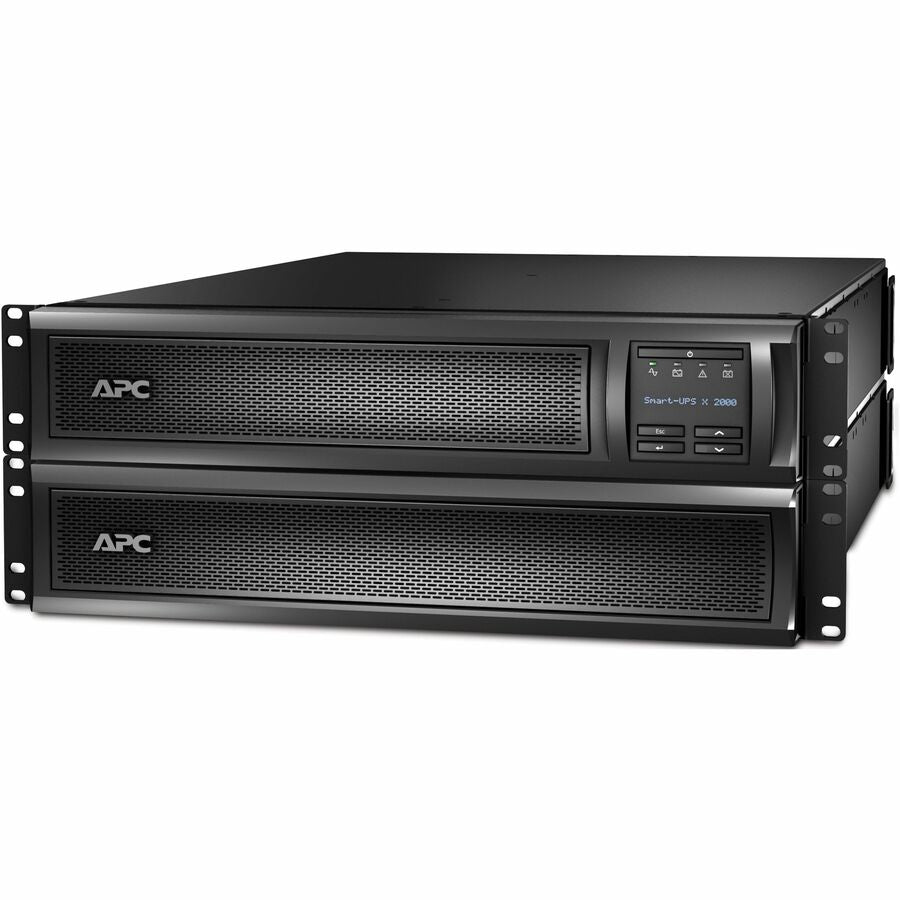

- Add up to 10 external battery packs (SMX120RMBP2U)
- Automatic Voltage Regulation keeps output voltage within acceptable user selectable levels
- Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
- Ideal for servers, storage, networking & commercial applications
- User-selectable low voltage setting of 100V-127V
Product Overview
This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 2000VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA 5-20P input, 3x NEMA 5-15R, 3x NEMA 5-20R and 1x NEMA L5-20R outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.
General Information
- Manufacturer: Schneider Electric SA
- Manufacturer Part Number: SMX2KR2UX145
- Brand Name: APC by Schneider Electric
- Product Line: Smart-UPS X
- Product Name: Smart-UPS X 2000VA Tower/Rack Convertible UPS
- Product Type: Line-interactive UPS
Technical Information
- Plug/Connector Type: NEMA 5-20P
- Receptacle Type: NEMA 5-20P
- Receptacle Detail:
- 1 x NEMA L5-20R
- 3 x NEMA 5-15R
- 3 x NEMA 5-20R
- Number of Battery & Surge Outlets: 7
- Cord Length: 10 ft
- Transfer Time: 4 ms
- Phase: Single Phase
- Application/Usage:
- Server
- POS
- Router
- Switch
- Hub
- Network Device
Power Description
- Load Capacity (VA): 1920 VA
- Load Capacity (Watt): 1800 W
- Input Voltage: 120 V AC
- Input Voltage Range:
- 70 V AC - 153 V AC
- 75 V AC -154 V AC
- Output Voltage: 120 V AC
- Input Frequency: 60 Hz
- Output Frequency: 60 Hz
- Waveform Type: Sine Wave
- Surge Energy Rating: 540 J
Management
- Alarm:
- On Battery
- Low Battery
- Configurable Delay
Controls/Indicators
- Status Indicators:
LED:
- On Line
- On Battery
- Replace Battery
- Overload Indicators
Interfaces/Ports
- EPO Port: Yes
- USB (HID Compliant) Port: Yes
Battery Information
- Battery Chemistry: Lead Acid
- Battery Life: 5 Year
- Typical Battery Recharge Time: 3 Hour
Environmental Conditions
- Maximum Operating Elevation: 10000 ft
- Maximum Storage Elevation: 10000 ft
- Storage Temperature: 5°F (-15°C) - 113°F (45°C)
- Storage Relative Humidity: 0% - 95%
- Maximum Operating Temperature: 104°F (40°C)
- Sound Emission (A-Weighted): 55 dB(A)
- Thermal Dissipation: 59.49 W
Physical Characteristics
- Product Color: Black
- Height: 3.3"
- Width: 17"
- Depth: 26.3"
- Rack Height: 2U
- Form Factor: Tower/Rack Convertible
- Weight (Approximate): 84.59 lb
Miscellaneous
- Package Contents:
- Smart-UPS X 2000VA Tower/Rack Convertible UPS
- CD With Software
- Documentation CD
- Installation Guide
- Rack Mounting Hardware
- Rack Mounting Brackets
- Rack Mounting Support Rails
- Removable Support Feet
- Smart UPS Signalling RS-232 Cable
- USB Cable
- Software Included: Powerchute Serial Edition
- Environmentally Friendly: Yes
- Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
- Limited Warranty: 3 Year
- Additional Warranty Information: UPS: 36 month(s)|Battery: 24 month(s)
