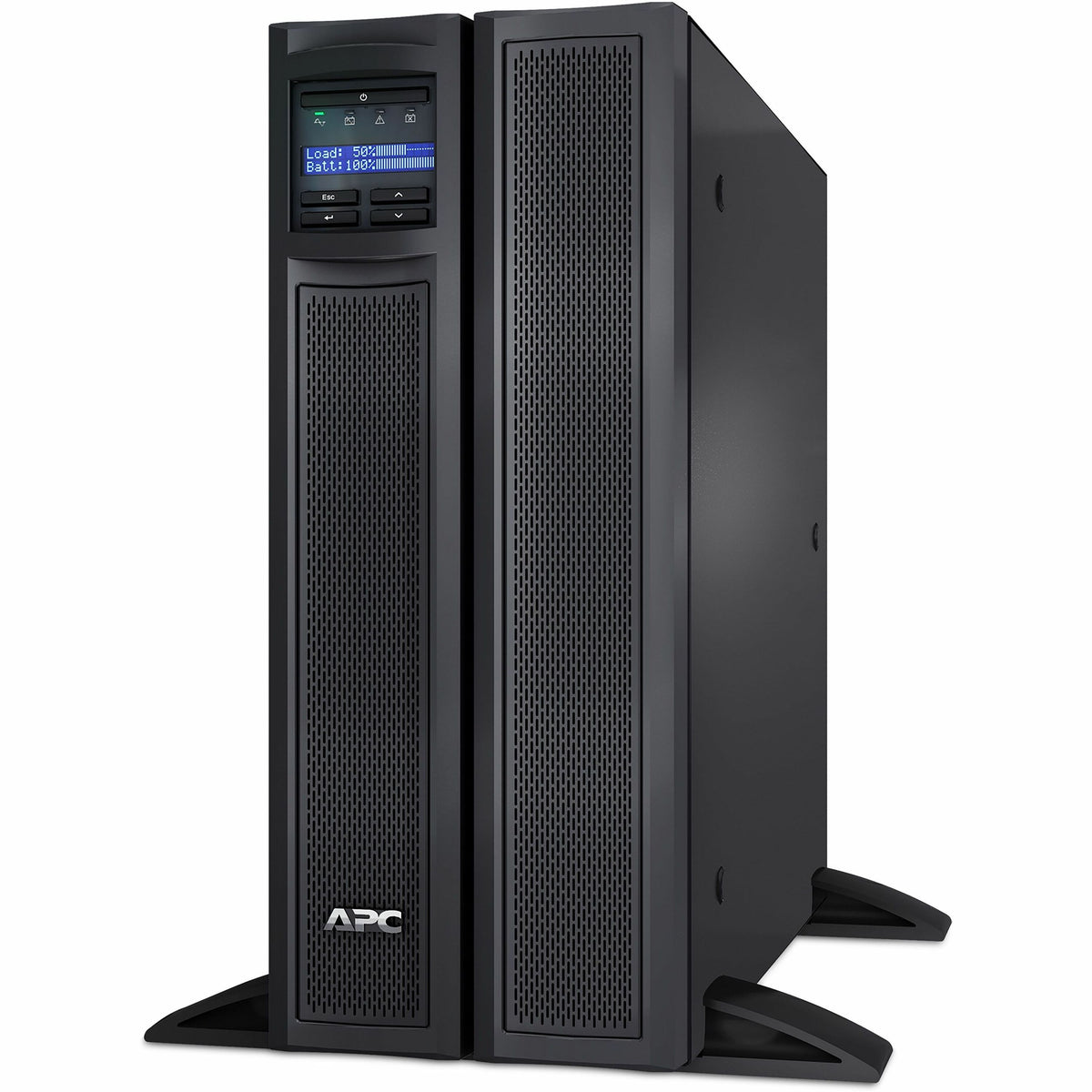

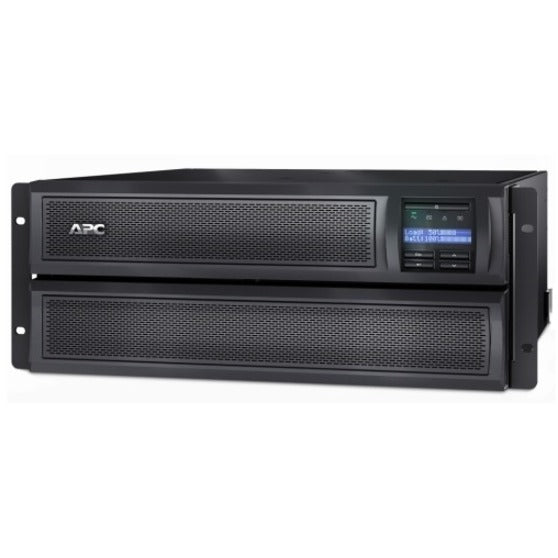

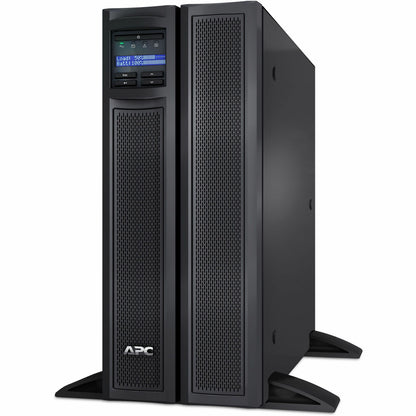

APC Smart-UPS X, Line Interactive,3kVA,Rack/tower convert 4U,208V,2x L6-20R NEMA+4x C13 IEC+2x C19 IEC, SmartSlot,Extended runtime,Short depth [TAA] - SMX3000HVTUS
Key Features
- 3kVA/2700W line interactive pure sine wave 4U rack/tower UPS (rail kit AP9625 sold separately)
- Add up to 10 external battery packs (SMX120BP)
- Automatic Voltage Regulation keeps output voltage within acceptable user selectable levels
- Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
- Ideal for servers, storage, networking & commercial applications
- Short depth UPS provides extra space for cable management
- User-selectable high voltage setting of 200V-240V
Product Overview

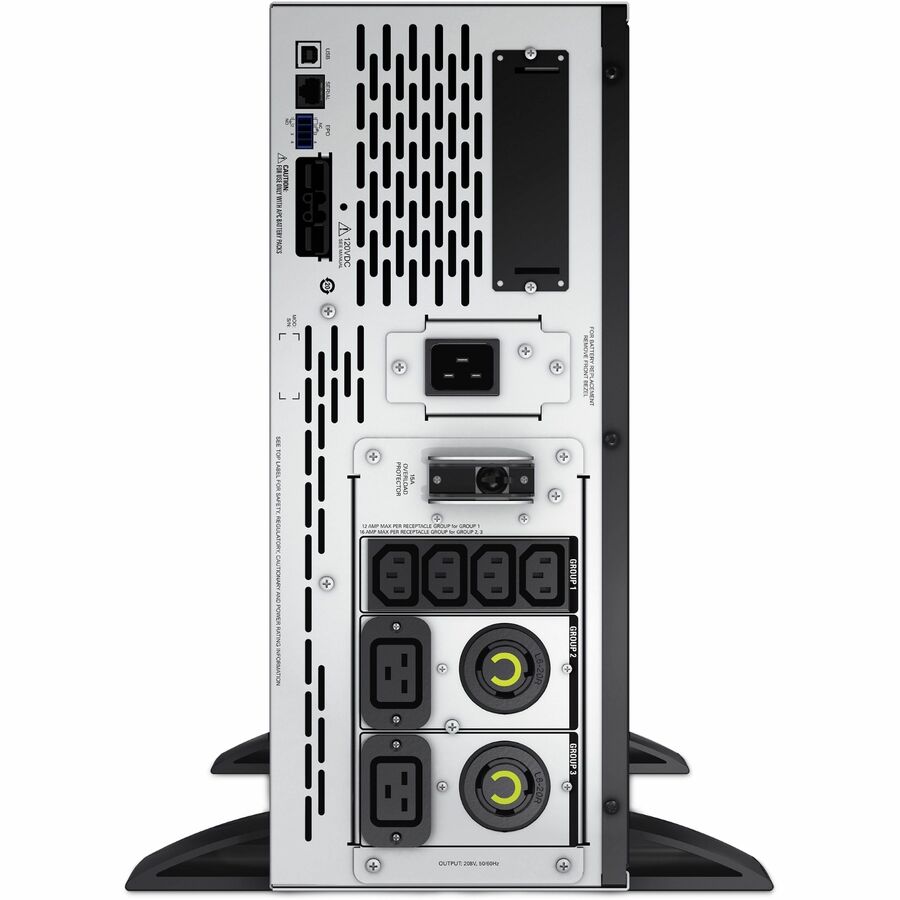

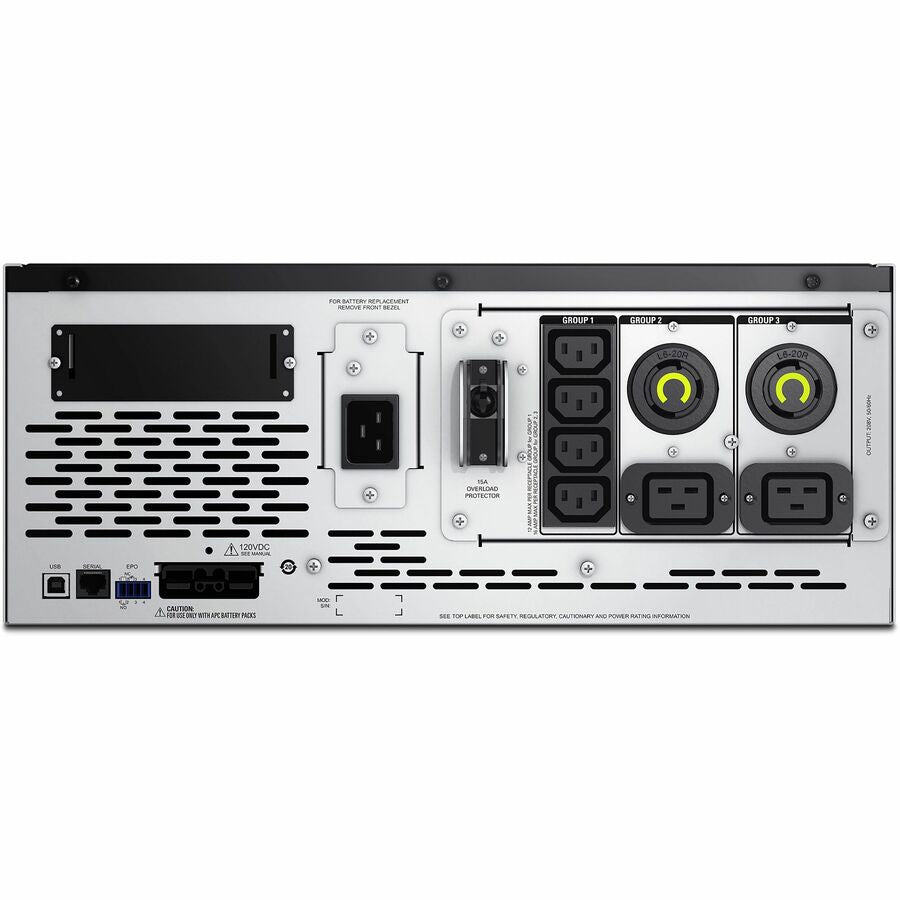

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 3kVA line interactive 4U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA L6-20P input, 2x NEMA L6-20R, 4x IEC 320 C13 and 2x IEC 320 C19 outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies. The UPS is TAA Complaint.
General Information
- Manufacturer: Schneider Electric SA
- Manufacturer Part Number: SMX3000HVTUS
- Brand Name: APC
- Product Line: Smart-UPS X
- Product Model: SMX3000HVTUS
- Product Name: Smart-UPS X 3000VA Short Depth Tower/Rack Convertible LCD 208V
- Product Type: Line-interactive UPS
Technical Information
- Plug/Connector Type: NEMA L6-20P
- Receptacle Type: NEMA L6-20P
- Receptacle Detail:
- 2 x IEC 320-C19
- 2 x NEMA L6-20R
- 3 x IEC Jumper
- 4 x IEC 320-C13
- Number of Battery & Surge Outlets: 11
- Cord Length: 8.01 ft
- Transfer Time: 2 ms
- Phase: Single Phase
- Application/Usage:
- Server
- Router
- Network Switch
- Network Hub
- Security System
- Network Device
Power Description
- Load Capacity (VA): 3000 VA
- Load Capacity (Watt): 2700 W
- Input Voltage: 208 V AC
- Input Voltage Range: 141 V AC - 280 V AC
- Output Voltage: 208 V AC
- Waveform Type: Sine Wave
- Surge Energy Rating: 645 J
Battery Information
- Battery Chemistry: Lead Acid
- Backup/Run Time (Full Load): 6.30 Minute
- Hot Swappable: Yes
- Typical Battery Recharge Time: 3 Hour
Physical Characteristics
- Product Color: Black
- Height: 17.01"
- Width: 7.01"
- Depth: 19.02"
- Rack Height: 4U
- Form Factor: Rack-mountable
- Weight (Approximate): 85.19 lb
Miscellaneous
- Package Contents:
- Smart-UPS X 3000VA Short Depth Tower/Rack Convertible LCD 208V
- CD with software
- Documentation CD
- Rack mounting brackets
- Smart UPS signalling RS-232 cable
- USB cable
- User manual
- Software Included: Powerchute Serial Edition
- Energy Star: Yes
- Country of Origin: Philippines
- TAA Compliant: Yes
- Environmentally Friendly: Yes
- Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Single-use Plastic (SUP) Free Shipping Packaging: No
Warranty
- Limited Warranty: 3 Year
- Additional Warranty Information: UPS: 36 month(s)|Battery: 24 month(s)
