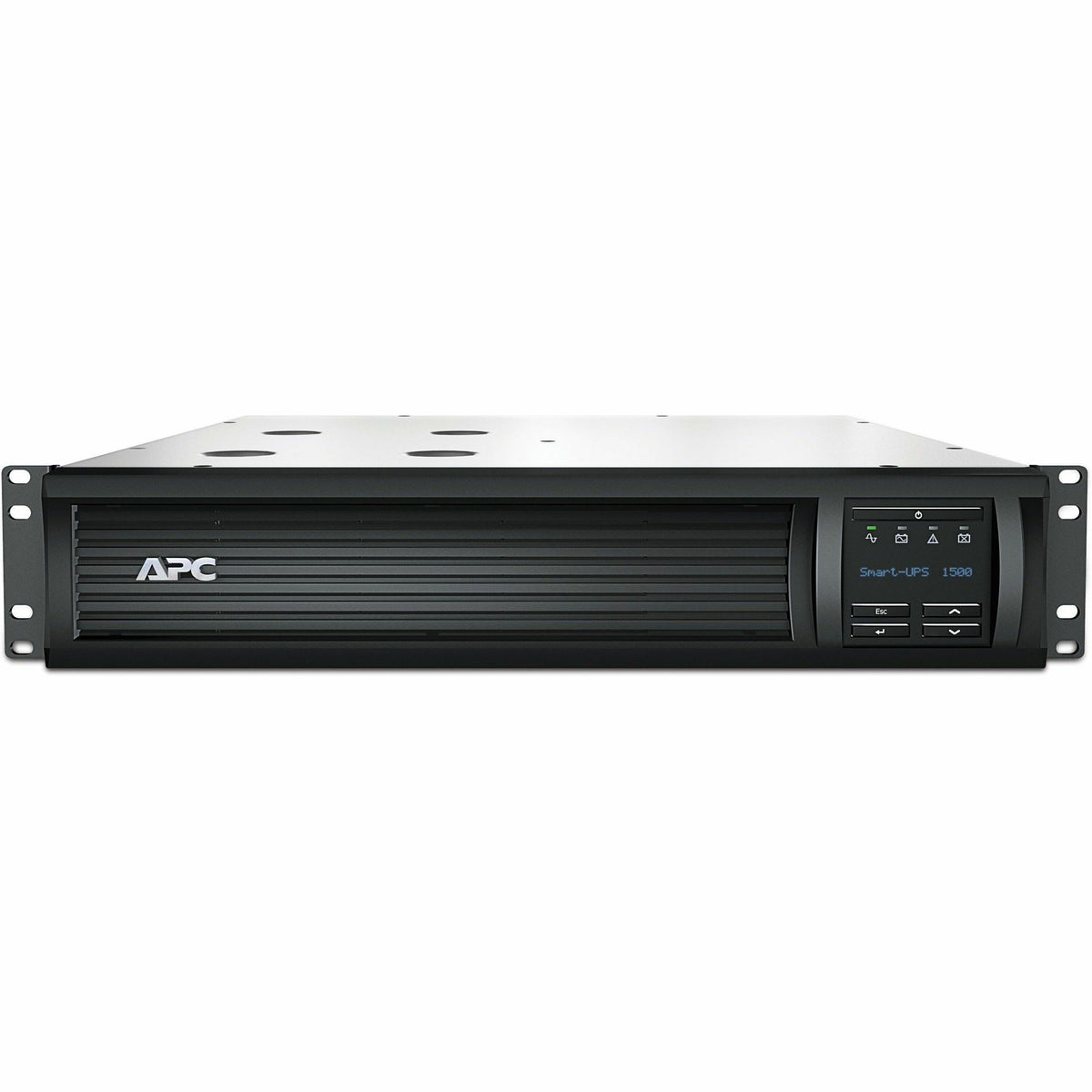

APC Smart-UPS 1.5kVA 120V RM SHIPBOARD - SMT1500RMX93
Key Features
- Designed for rack installation, saving space in data centers
- Enhances battery life and performance
- Features an LED status display for easy monitoring
- Provides 1440VA and 1000W of power, suitable for critical equipment
Product Overview
The APC Smart-UPS is a rackmount shipboard UPS with a power rating of 1440VA and an output power capacity of 1000 watts. It operates at a nominal voltage of 120V and includes 6 NEMA 5-15R outlets.
General Information
- Manufacturer: Schneider Electric SA
- Manufacturer Part Number: SMT1500RMX93
- Brand Name: APC
- Product Line: Smart-UPS
- Product Name: Smart-UPS 1.5kVA 120V RM SHIPBOARD
- Product Type: Line-interactive UPS
Technical Information
- AVR: Yes
- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15P
- Receptacle Detail: 6 x NEMA 5-15R
- Number of Battery & Surge Outlets: 6
- Transfer Time: 10 ms
- Phase: Single Phase
Power Description
- Load Capacity (VA): 1440 VA
- Load Capacity (Watt): 1000 W
- Input Voltage: 120 V AC
- Input Voltage Range: 82 V AC - 144 V AC
- Output Voltage: 120 V AC
- Input Frequency: 60 Hz
- Output Frequency: 60 Hz
- Waveform Type: Sine Wave
- Surge Energy Rating: 693 J
Management
- Alarm: Changing Utility Power
Controls/Indicators
- Status Indicators:
LED Display:
- Load bar-graphs
- Battery bar-graphs
- On line
- On battery
- Replace battery
- Overload indicators
Interfaces/Ports
- Serial Port: Yes
- USB (HID Compliant) Port: Yes
Battery Information
- Battery Chemistry: Lead Acid
- Battery Energy: 1555.2 kJ
- Backup/Run Time (Full Load): 7 Minute
- Backup/Run Time (Half Load): 26 Minute
- Battery Life: 5 Year
- Typical Battery Recharge Time: 3 Hour
Environmental Conditions
- Storage Temperature: -4°F (-20°C) - 131°F (55°C)
- Storage Relative Humidity: 0% - 95%
- Maximum Operating Temperature: 104°F (40°C)
- Sound Emission (A-Weighted): 45 dB(A)
- Thermal Dissipation: 74.73 W
Physical Characteristics
- Height: 3.39"
- Width: 17.01"
- Depth: 18.78"
- Form Factor: Rack-mountable
- Weight (Approximate): 58.42 lb
Miscellaneous
- Country of Origin: United States
- TAA Compliant: Yes
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
- Single-use Plastic (SUP) Free Shipping Packaging: No
Warranty
- Limited Warranty: 3 Year
- Additional Warranty Information: UPS: 36 month(s)|Battery: 24 month(s)
